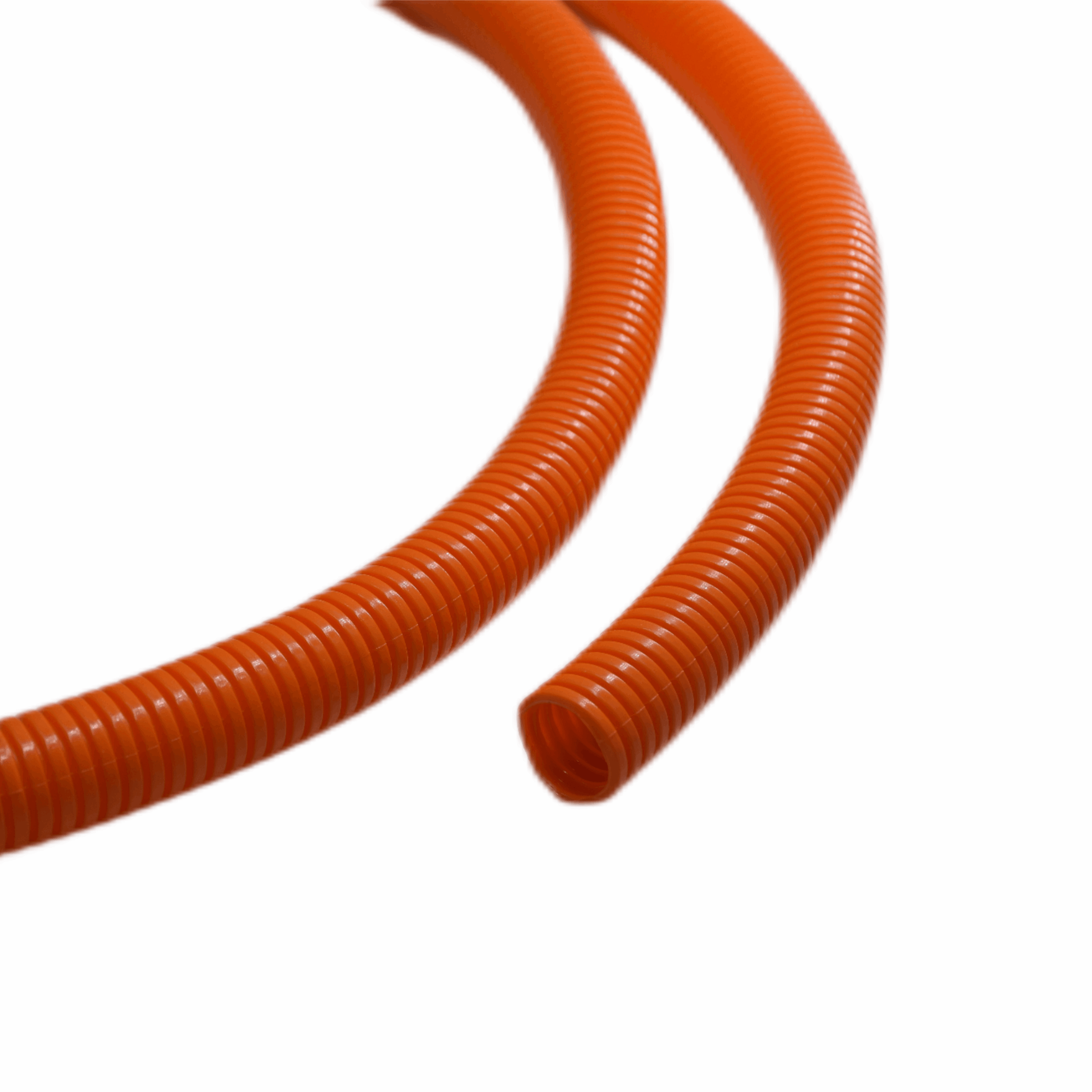

Orange Corrugated Wire Loom Conduit
Orange wire loom made of 100% new and high-quality PP or PA66 material, which is lightweight, very flexible, and easy to install, can be used for wire connecting in many new-energy vehicles, electric appliances, and industrial machines.
| Part No. : | MJ-WLA-R |
|---|---|
| Material: | Polypropylene, Polyamides |
| Working Temperature: | PP: -40℃ to 125℃ |
| Melt Point: | PP: 180+(-)10℃ |
| Flammability: | UL94 V2 |
| Standard Color: | Orange |
| Certification: | RoHS, Halogen free |
| Cutting Tool: | Scissor |
| Size: | 7mm~50mm |

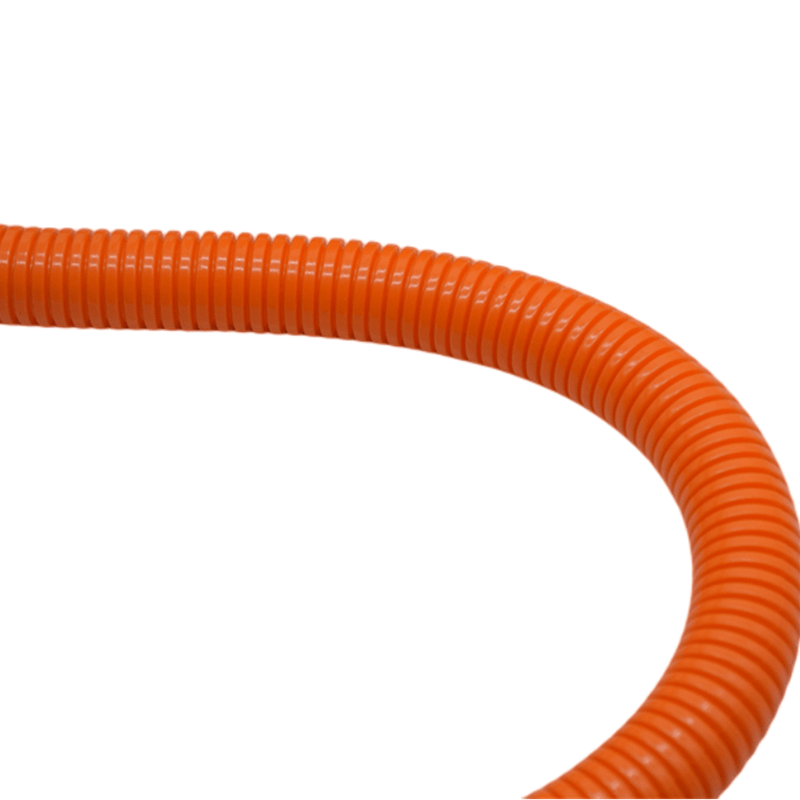

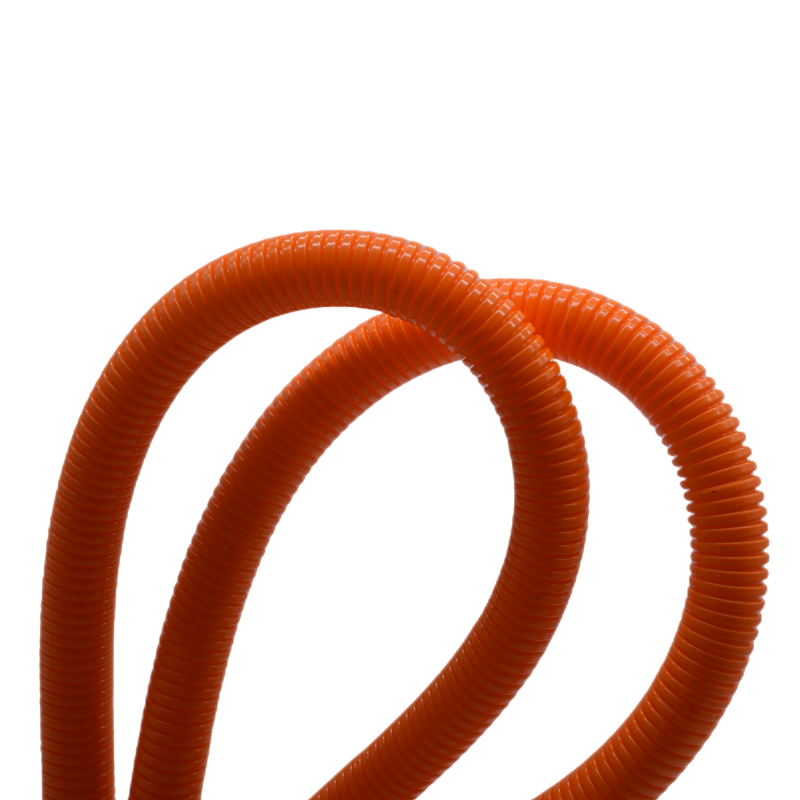

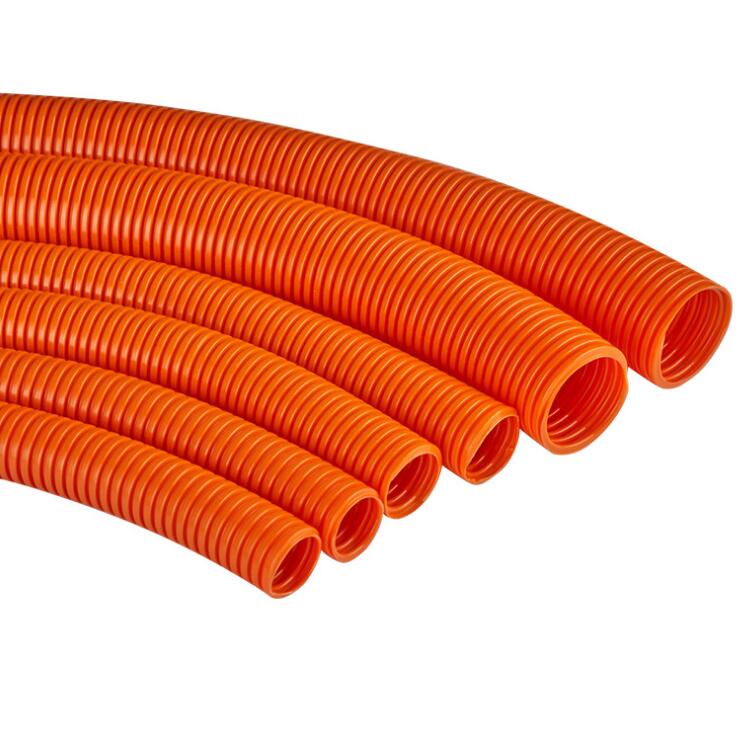

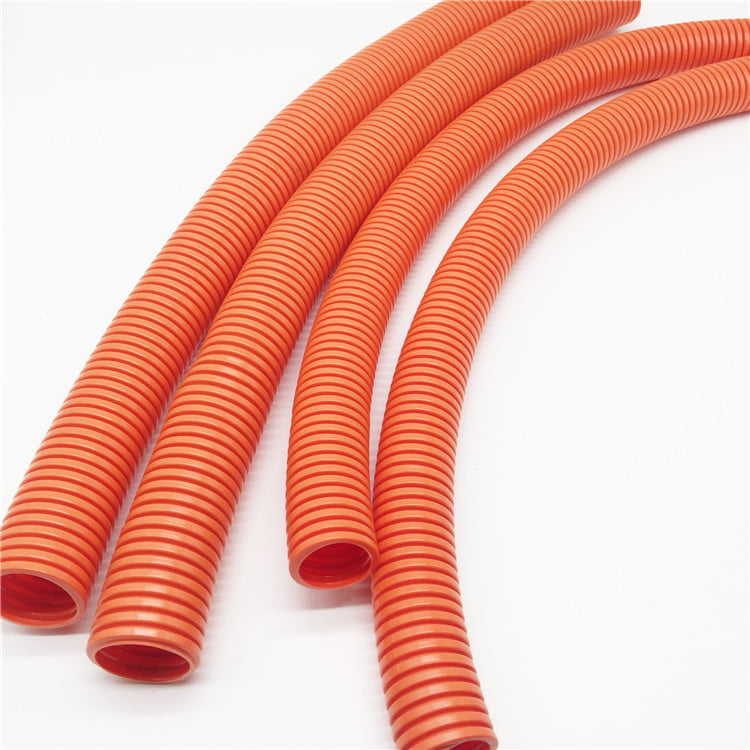

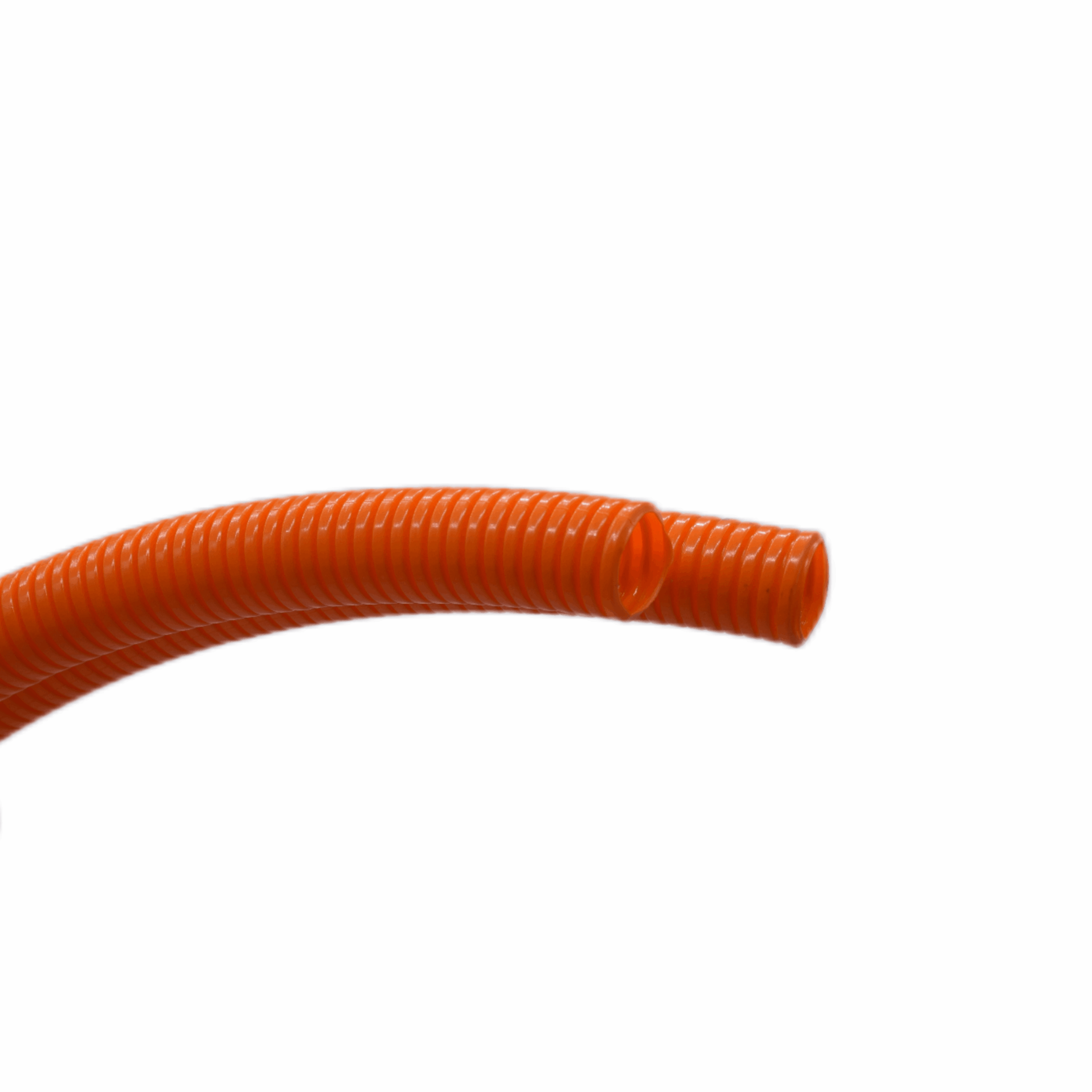

Orange Flexible Corrugated Wire Loom Conduit
Orange flexible conduit is lightweight, very flexible, provides abrasion protection, can withstand heavy loads, flame retardant, UV Resistant, and resistant to gasoline, oil, and other chemicals allowing this cable conduit to work in extreme environments found around engine bays, manufacturing machinery, and hydraulic systems.
New energy wire loom is widely used to produce cable and wire harnesses in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.
Application

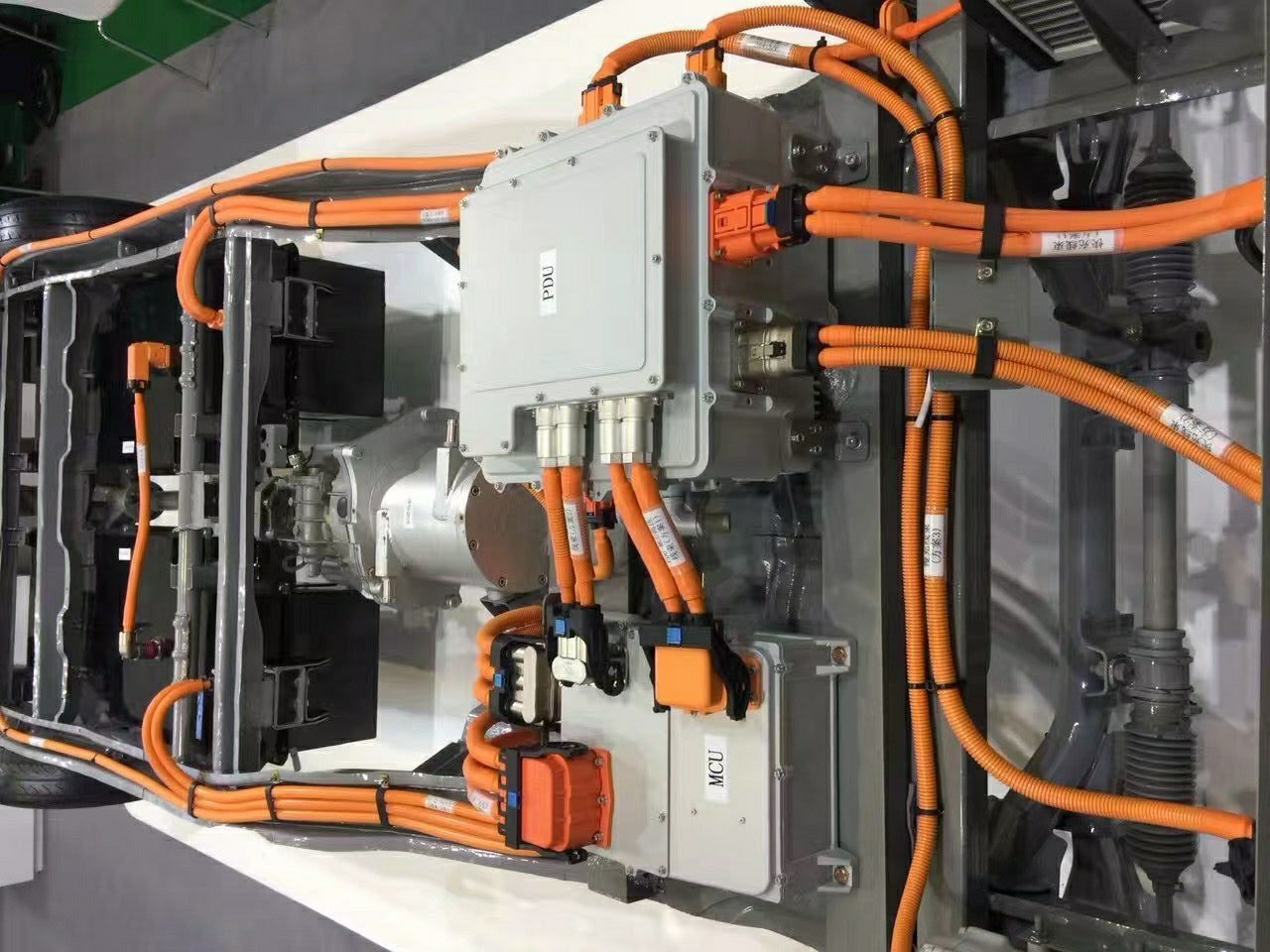

Corrugated conduit offers long-lasting protection and a professional look to your wires and cables. Widely used in vehicles, new energy vehicles, home offices, small equipment, and industries related to manufacturing, hydraulics, and railway.
Specification
|
Part No (PA Material) |
Part No
(PP Material) |
Size
ID*OD(mm) |
Thickness
(mm) |
Bending
Radius (R±10%) |
Standard
Color |
Packing Length |
| MJ-WLA-R-7 | MJ-WLP-R-7 | 4.5mm*7.0mm | 0.20mm | 5.0 | Black | 200m/spool |
| MJ-WLA-R-8.5 | MJ-WLP-R-8.5 | 5.5mm*8.5mm | 0.25mm | 8.0 | Black | 200m/spool |
| MJ-WLA-R-10 | MJ-WLP-R-10 | 7.0mm*10.0mm | 0.27mm | 10.0 | Black | 100m/spool |
| MJ-WLA-R-12 | MJ-WLP-R-12 | 8.5mm*11.5mm | 0.30mm | 15.0 | Black | 100m/spool |
| MJ-WLA-R-13 | MJ-WLP-R-13 | 10.0mm*13.0mm | 0.30mm | 20.0 | Black | 100m/spool |
| MJ-WLA-R-15.8 | MJ-WLP-R-15.8 | 12.0mm*15.8mm | 0.30mm | 30.0 | Black | 100m/spool |
| MJ-WLA-R-18.5 | MJ-WLP-R-18.5 | 14.3mm*18.5mm | 0.32mm | 40.0 | Black | 100m/spool |
| MJ-WLA-R-21.2 | MJ-WLP-R-21.2 | 17.0mm*21.2mm | 0.32mm | 45.0 | Black | 100m/spool |
| MJ-WLA-R-25.0 | MJ-WLP-R-25.0 | 21.0mm*25.0mm | 0.35mm | 50.0 | Black | 100m/spool |
| MJ-WLA-R-28.5 | MJ-WLP-R-28.5 | 23.0mm*28.5mm | 0.35mm | 55.0 | Black | 50m/spool |
| MJ-WLA-R-34.5 | MJ-WLP-R-34.5 | 29.0mm*34.5mm | 0.40mm | 60.0 | Black | 50m/spool |
| MJ-WLA-R-42.5 | MJ-WLP-R-42.5 | 36.0mm*42.5mm | 0.45mm | 70.0 | Black | 25m/spool |
| MJ-WLA-R-54.5 | MJ-WLP-R-54.5 | 48.0mm*54.5mm | 0.50mm | 80.0 | Black | 25m/spool |
