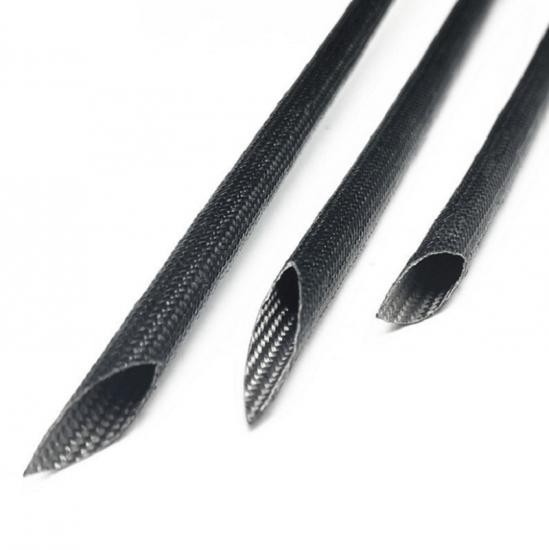

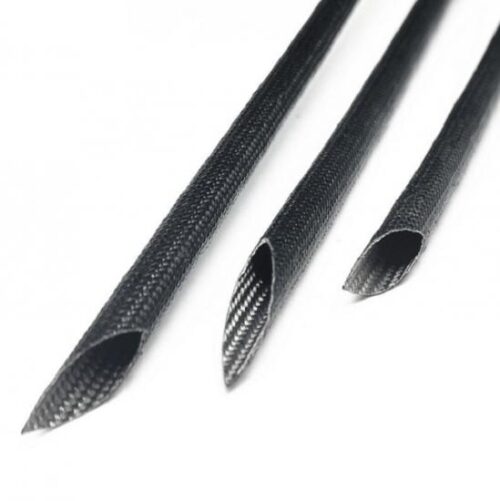

Acrylic Coated Fiberglass Sleeving
Acrylic fiberglass sleeving is made of non-alkali fiberglass fiber and coated with acrylic resin. With good flexibility, insulation, and chemical resistance, and self-extinguishing.
It is widely applied to insulating protection of F-grade electrical machinery, home appliance, electric & heat equipment, special lightwave, etc.
| Part No,: | MJ-FGS-AC |
|---|---|
| Material: | Fiberglass fiber |
| Coated material: | Acrylic resin |
| Working Temperature: | -50℃ to 155℃ |
| Temperature endurance | 190℃+(-)2℃ |
| Aging Test | 6 hours without crackle |
| Cold bend | Without crackle |
| Grade | Grade A,Grade B,Grade C |
| Flammability: | VW-1 |
| Standard Color: | White, Black |
| Certification: | UL, ROHS, Reach |
| Cutting Tool: | Scissor |
| Size | 0.5mm~25mm |

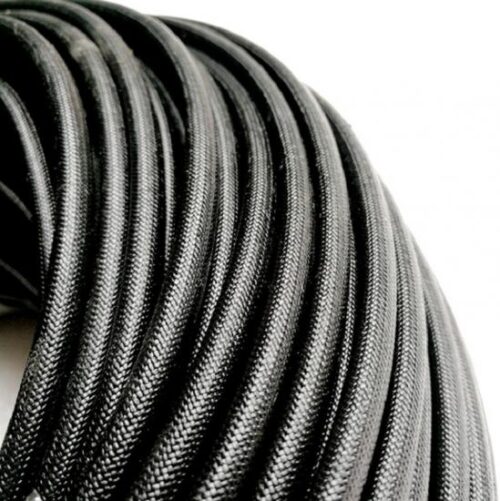

Acrylic Coated Fiberglass Insulation Sleeving
Acrylic coated fiberglass sleeving is a heat-treated, tightly braided fiberglass sleeving coated with a dielectric acrylic resin. This durable sleeving will withstand mechanical stress and holds its dielectric strength on all bends. Resistant to solvents, corrosive, moisture, fungus, and engine fluids.
The fiberglass sleeve has excellent flexibility, cut-through, and mechanical abrasion resistance and is rated class 155ºC electrically. Acrylic sleeving is the work-horse of the motor, transformer, and lighting industries.
Application
Acrylic fiberglass sleeving is the ideal solution for relays, radio circuits, transformers, and lead/crossover protection on motors. Highly resistant to acids and solvents, and will withstand tough assembly handling.
Specification
| Part No | Size(ID)
(mm) |
Tolerance(mm) | Thickness(mm) | Packing Length
(m/spool) |
|
| Grade A | Grade B/C | ||||
| MJ-FGS-AC0.5 | 0.5 | +0.25/-0.1 | 0.38±0.05 | 0.20±0.05 | 200 |
| MJ-FGS-AC0.8 | 0.8 | +0.25/-0.1 | 0.38±0.05 | 0.20±0.05 | 200 |
| MJ-FGS-AC1.0 | 1.0 | +0.25/-0.1 | 0.38±0.05 | 0.20±0.05 | 200 |
| MJ-FGS-AC1.5 | 1.5 | +0.25/-0.1 | 0.38±0.05 | 0.20±0.05 | 200 |
| MJ-FGS-AC2.0 | 2.0 | +0.25/-0.1 | 0.38±0.05 | 0.20±0.05 | 200 |
| MJ-FGS-AC2.5 | 2.5 | +0.25/-0.1 | 0.38±0.05 | 0.20±0.05 | 200 |
| MJ-FGS-AC3.0 | 3.0 | +0.3/-0.1 | 0.45±0.05 | 0.23±0.05 | 100 |
| MJ-FGS-AC3.5 | 3.5 | +0.3/-0.1 | 0.45±0.05 | 0.23±0.05 | 100 |
| MJ-FGS-AC4.0 | 4.0 | +0.3/-0.1 | 0.45±0.05 | 0.23±0.05 | 100 |
| MJ-FGS-AC4.5 | 4.5 | +0.3/-0.1 | 0.45±0.05 | 0.23±0.05 | 100 |
| MJ-FGS-AC5.0 | 5.0 | +0.4/-0.1 | 0.45±0.05 | 0.28±0.05 | 100 |
| MJ-FGS-AC5.5 | 5.5 | +0.4/-0.1 | 0.45±0.05 | 0.28±0.05 | 100 |
| MJ-FGS-AC6.0 | 6.0 | +0.4/-0.1 | 0.45±0.05 | 0.28±0.05 | 100 |
| MJ-FGS-AC7.0 | 7.0 | +0.55/-0.1 | 0.50±0.05 | 0.32±0.05 | 100 |
| MJ-FGS-AC8.0 | 8.0 | +0.55/-0.1 | 0.50±0.05 | 0.32±0.05 | 50 |
| MJ-FGS-AC9.0 | 9.0 | +0.55/-0.1 | 0.50±0.05 | 0.32±0.05 | 50 |
| MJ-FGS-AC10.0 | 10.0 | +0.75/-0.1 | 0.60±0.05 | 0.40±0.05 | 50 |
| MJ-FGS-AC11.0 | 11.0 | +0.75/-0.1 | 0.60±0.05 | 0.40±0.05 | 50 |
| MJ-FGS-AC12.0 | 12.0 | +0.75/-0.1 | 0.60±0.05 | 0.40±0.05 | 50 |
| MJ-FGS-AC13.0 | 13.0 | +0.75/-0.1 | 0.60±0.05 | 0.40±0.05 | 50 |
| MJ-FGS-AC14.0 | 14.0 | +0.75/-0.1 | 0.60±0.05 | 0.40±0.05 | 50 |
| MJ-FGS-AC15.0 | 15.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
| MJ-FGS-AC16.0 | 16.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
| MJ-FGS-AC17.0 | 17.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
| MJ-FGS-AC18.0 | 18.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
| MJ-FGS-AC19.0 | 19.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
| MJ-FGS-AC20.0 | 20.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
| MJ-FGS-AC25.0 | 25.0 | +0.85/-0.1 | 0.64±0.05 | 0.43±0.05 | 50 |
