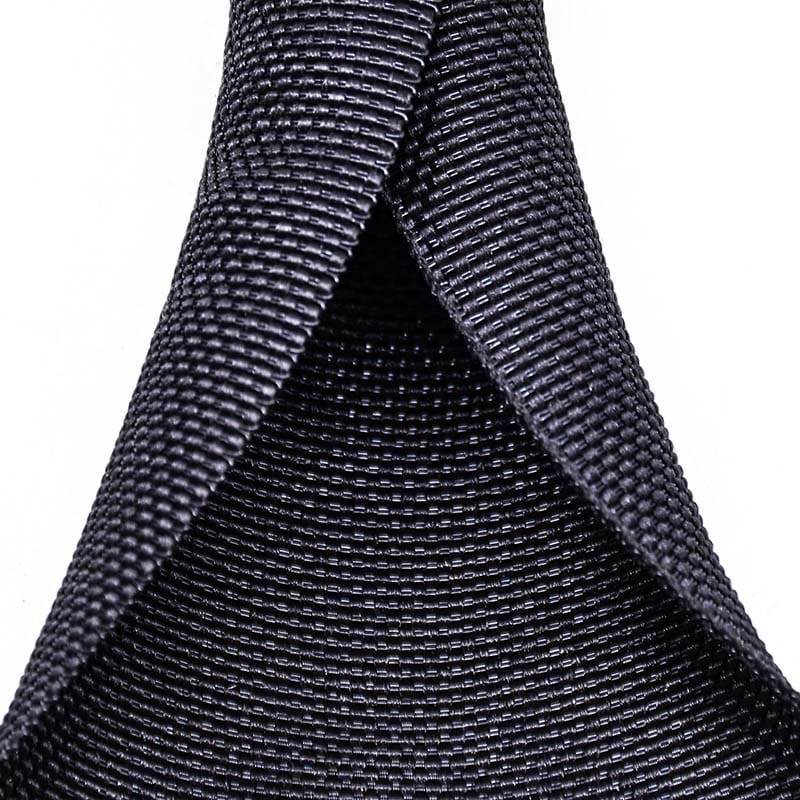

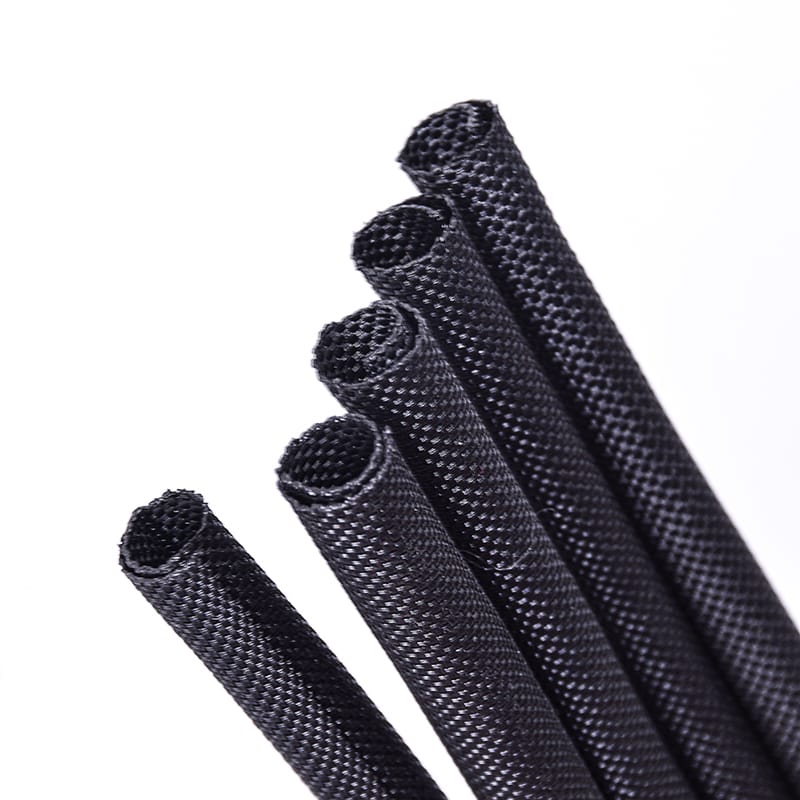

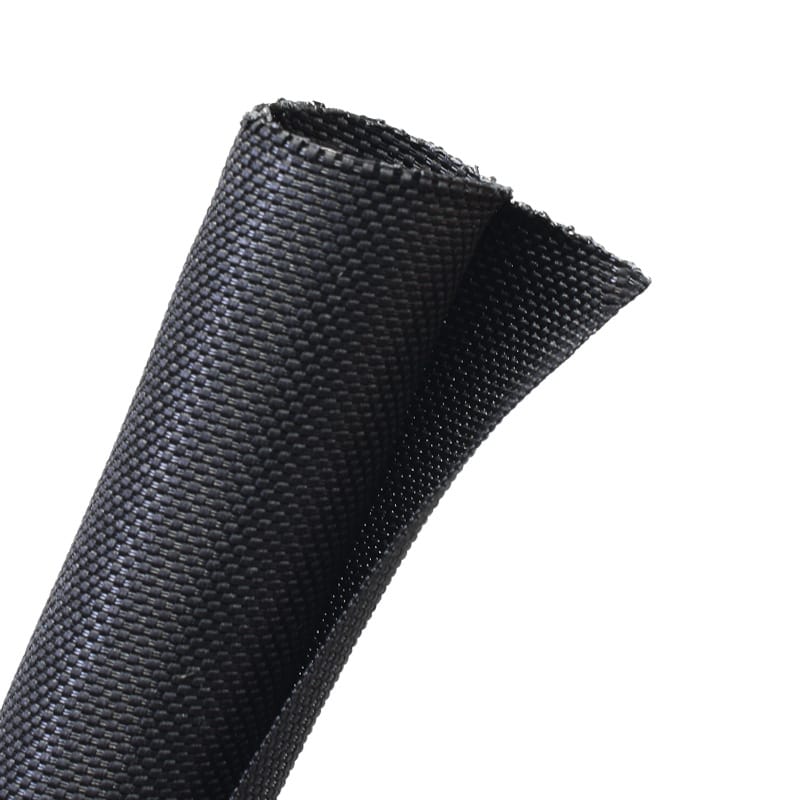

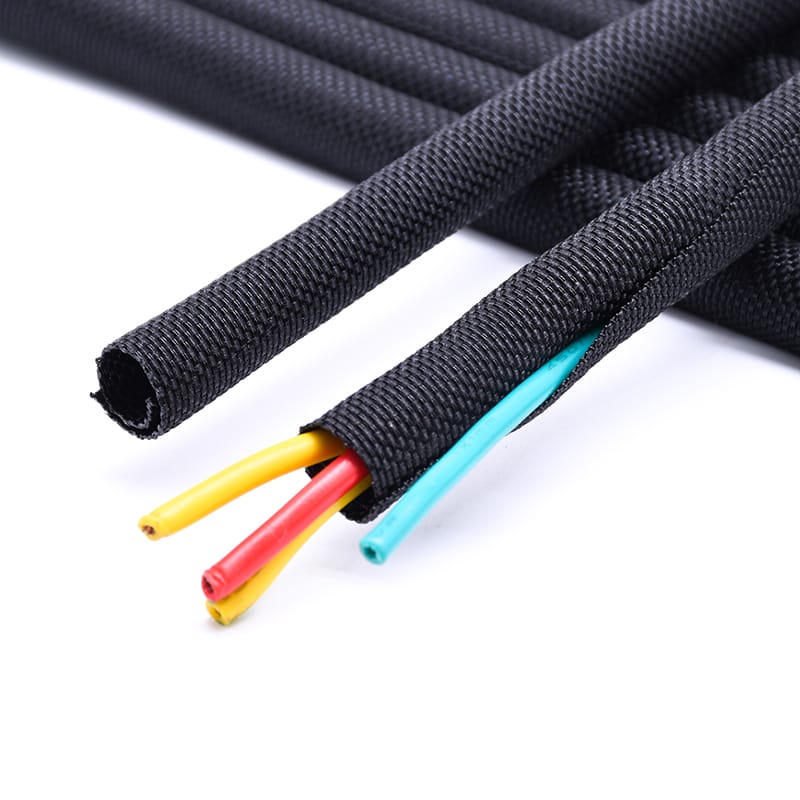

Automotive Split Woven Wrap Harness Cable Protection
E-FLEX® Split woven wrap is designed to be an easy-to-install and effective protective sleeving for various industrial cables, wiring harnesses, hoses, tubes, etc. The self-wrapping design mesh wire loom is a self-extinguishing, lightweight wraparound sleeving for all shapes of cables and harnesses with a 150% or 125% capacity.
| Part No | STW-PET |
|---|---|
| Material | Polyester mulitifilament and monofilament |
| Working Temperature | -40℃ to 125℃ |
| Melt Point | 240+(-)10℃ |
| Flammability | UL94 V2 |
| Abrasion Resistance | Scrape≧2000 cycles per ISO 6722-1 |
| Overlap | 50% |
| Certification | UL, EN45545, ROHS, Reach, Halogen free,FMVSS302 |
| Cutting Tool | Hot Knife |
Automotive Split Woven Wrap Harness Cable Protection
The split woven wiring harness wrap is a versatile and durable solution for protecting cables, wires, and hoses in demanding environments. Crafted from PET multifilament and monofilament, its self-closing split design ensures quick installation and exceptional coverage without requiring disassembly. This lightweight braided wire sleeve offers high abrasion resistance, flame retardancy, and UV protection. It also resists most oils, fuels, and solvents, maintaining reliable performance in a wide temperature range. Ideal for automotive, railway, industrial, and home cable management, this cable wrap combines flexibility, durability, and ease of use for seamless protection.
Certifications

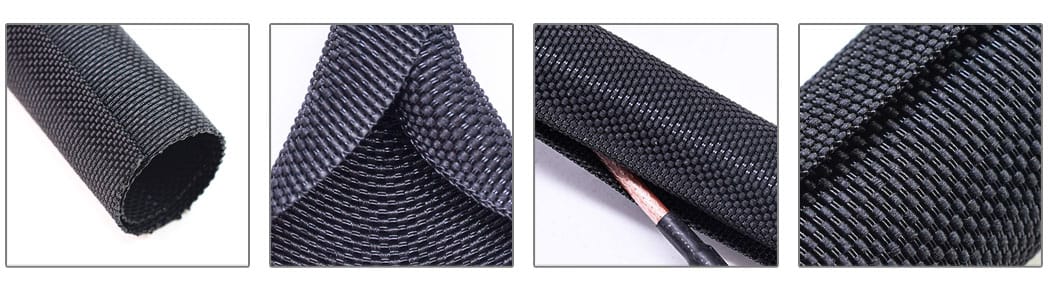

Product Size
Application of Split Woven Wrap Harness Cable Protection
Perfect for split woven wiring harness wrap solutions, railway and marine wiring, and industrial cable protection. It also excels in electronics, home/office cable management, and other environments requiring efficient, cost-effective durability. The split sleeving cable protection ensures secure installations even in irregular or confined spaces.
