Emi Shielding Copper Braided Sleeving
This metal wire shielding sleeve is made of tinned copper filament. It has scalability, wear resistance, anti-electromagnetic interference, and conductivity. It can tie all kinds of irregular wires, keep soft in a large temperature range, and its unique mesh shape has good heat dissipation.
| PART NO.: | MJ-TCBS |
|---|---|
| MATERIAL: | Tinned copper filament |
| WORKING TEMPERATURE: | -60℃ to 200℃ |
| MELT POINT: | 1084±10℃ |
| STANDARD COLOR: | Tinned color |
| CERTIFICATION: | ROHS |
| CUTTING TOOL: | Scissor |
| SIZE: | 3mm~30mm |

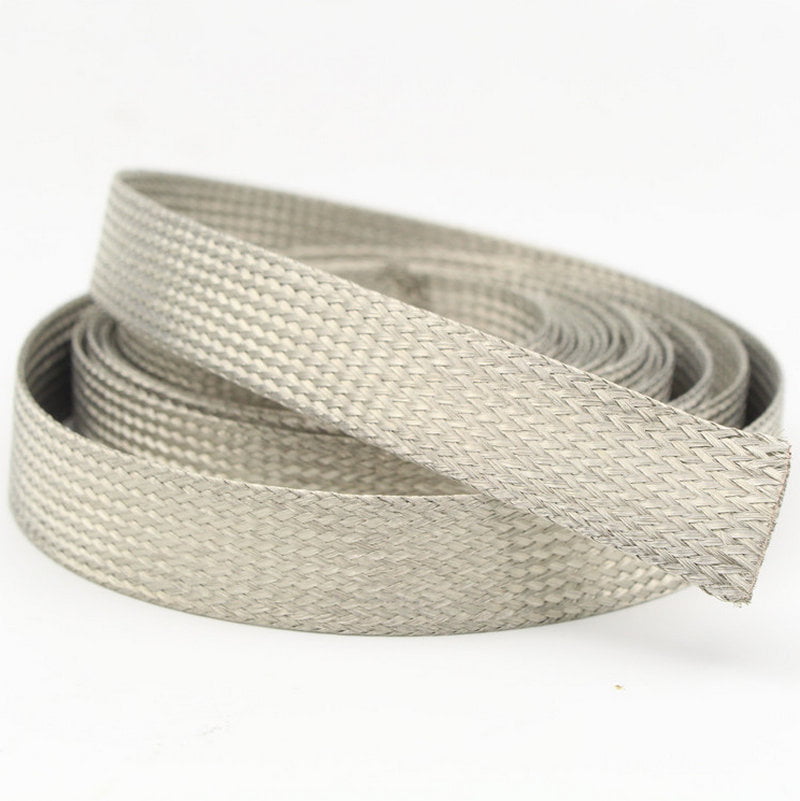

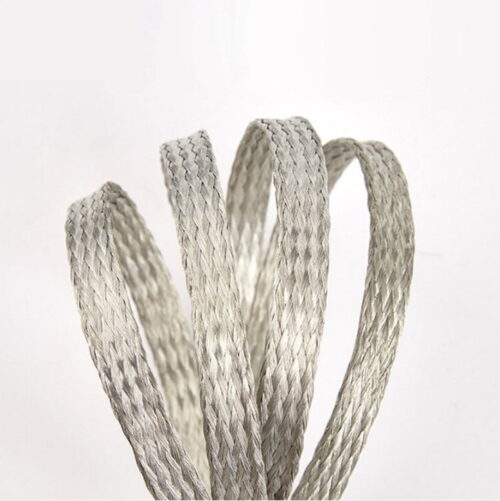

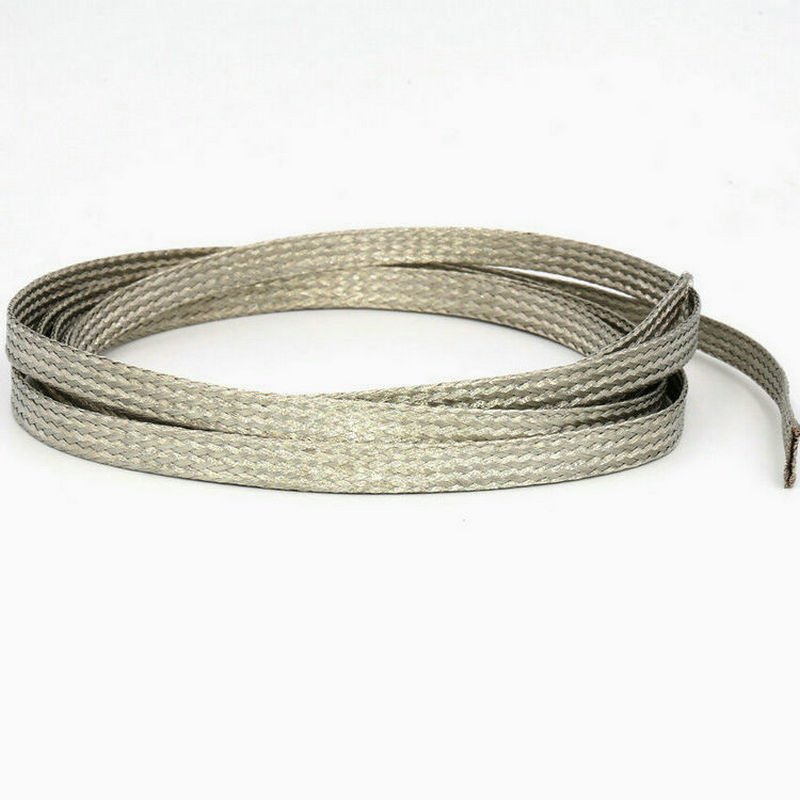

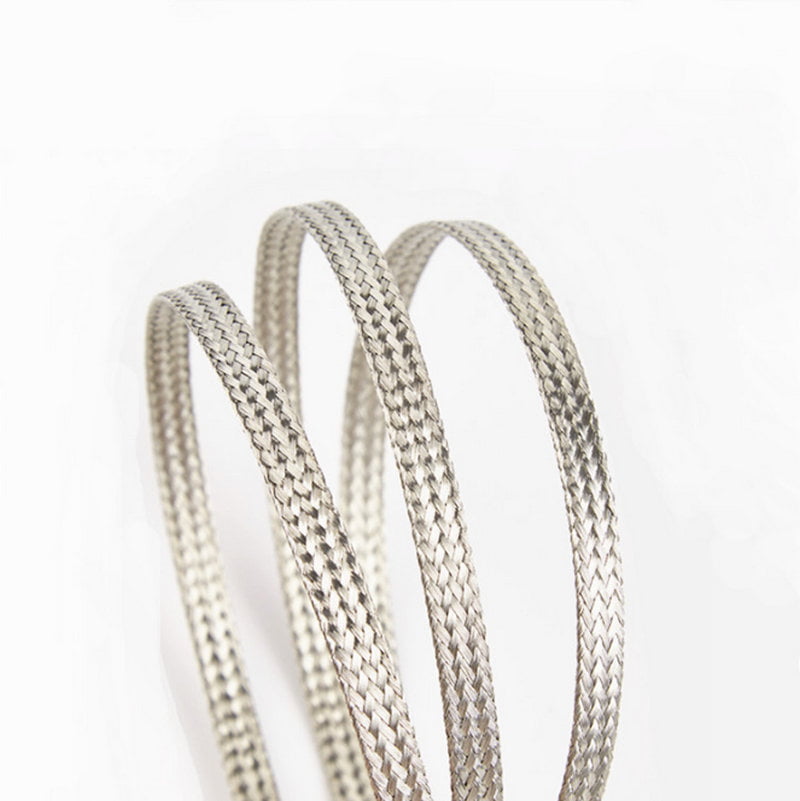

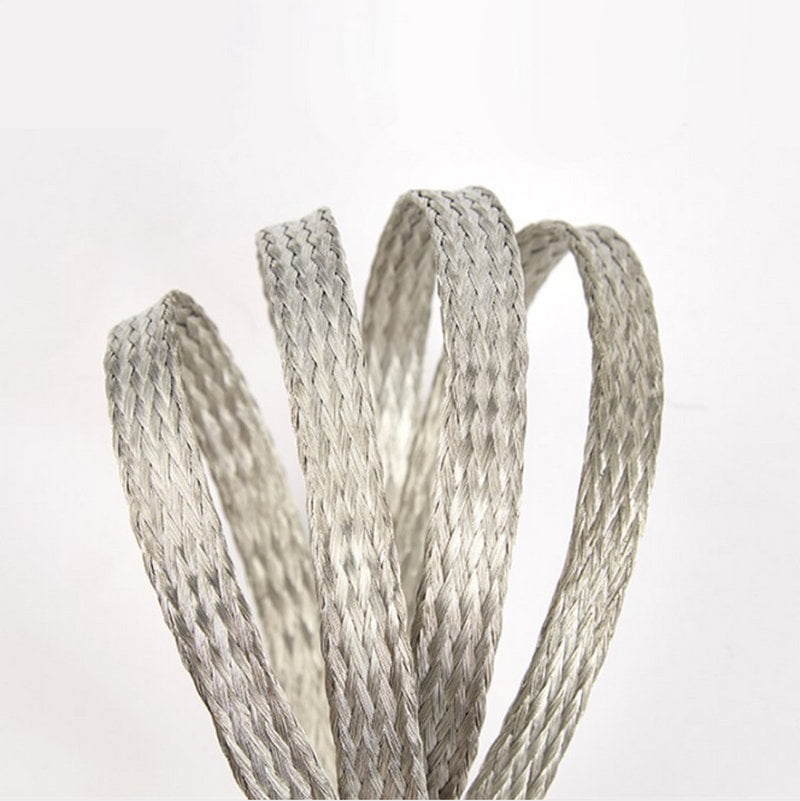

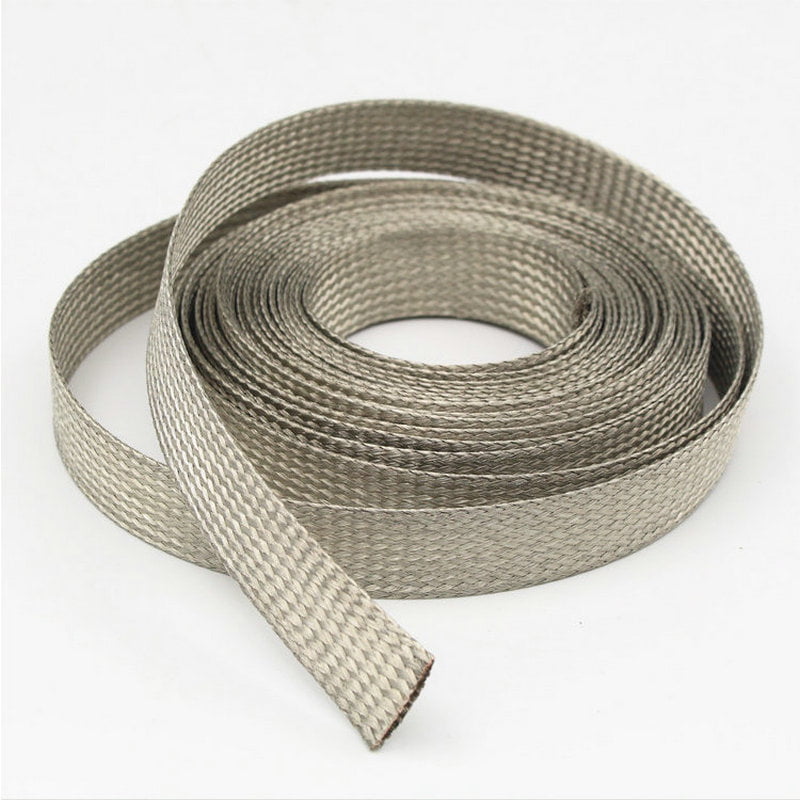

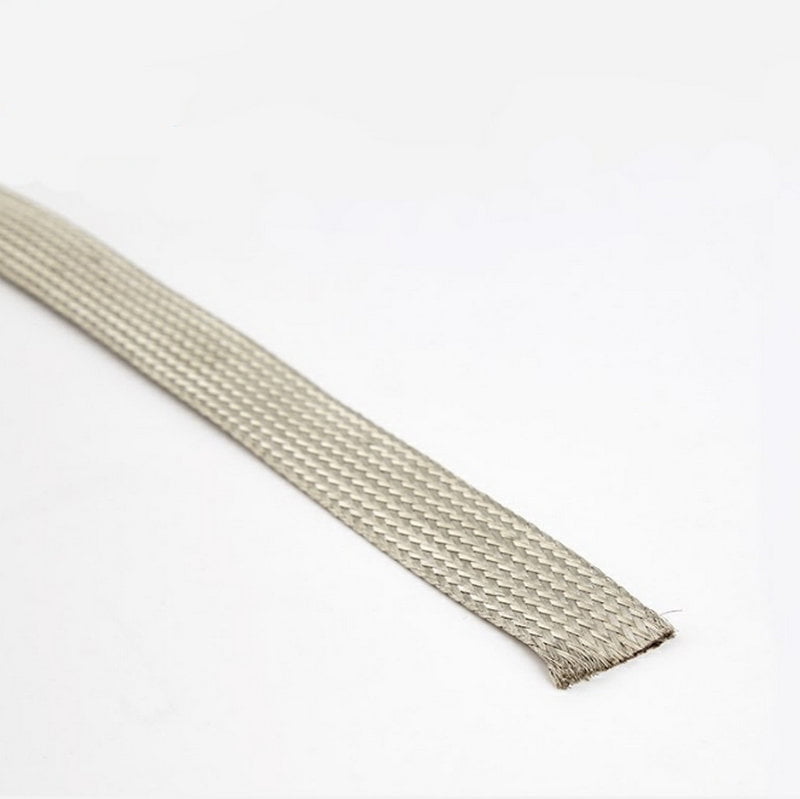

EMI Shielding Copper Braided Sleeving
Metal EMI braided cable shielding sleeve is made from tinned copper which provides great EMI, RFI, and ESD protection as well as cut and abrasion resistance. Strong metal fibers made from tinned copper create our metal braid sleeving that can be used in automotive and industrial applications to dress-up engines, hose support, or wire protection.
EMI shielding metal wire protector sleeve is suitable for use in shielding electric cable from abrasion and radio frequency interference, it provides full coverage and is great for covering and protecting hoses on hot rods and motorcycles. Will does not retain moisture and resists abrasion, chemicals, and UV.

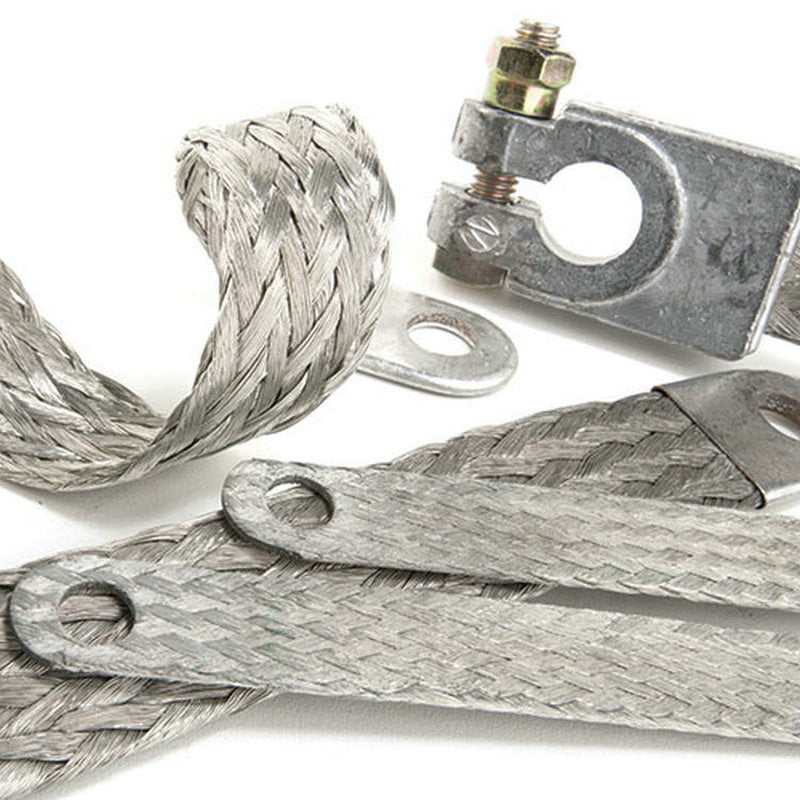

Application
Flexible EMI shield metal cable sleeve product has a variety of industrial applications in high-speed train, underground, aerospace, and high-tech special products. EMI metal-braided sleeve is widely used in computer power lines, audio and video lines, HDMI lines, high-speed railway harnesses, automobile harnesses, aviation harnesses, etc.
Specification
| PART NO | SIZE (MM) | Nominal Cross | Structure | Packing Length |
| Sectional Area(mm²) | (M/SPOOL) | |||
| MJ-TCBS003 | 3.2mm | 1.50mm² | 24*6/0.12 | 300m/spool |
| MJ-TCBS006 | 6.3mm | 2.50mm² | 24*9/0.12 | 200m/spool |
| MJ-TCBS007 | 7.0mm | 4.0mm² | 24*10/0.15 | 200m/spool |
| MJ-TCBS010 | 10.0mm | 6.0mm² | 32*11/0.15 | 150m/spool |
| MJ-TCBS013 | 12.7mm | 8.0mm² | 40*18/0.12 | 100m/spool |
| MJ-TCBS016 | 16.0mm | 10.0mm² | 40*18/0.12 | 100m/spool |
| MJ-TCBS020 | 20.0mm | 12.0mm² | 48*15/0.15 | 50m/spool |
| MJ-TCBS022 | 22.0mm | 16.0mm² | 48*20/0.15 | 50m/spool |
| MJ-TCBS025 | 25.0mm | 20.0mm² | 48*25/0.15 | 50m/spool |
| MJ-TCBS030 | 30.0mm | 25.0mm² | 48*30/0.15 | 50m/spool |
