Nylon Hose Double Sleeve

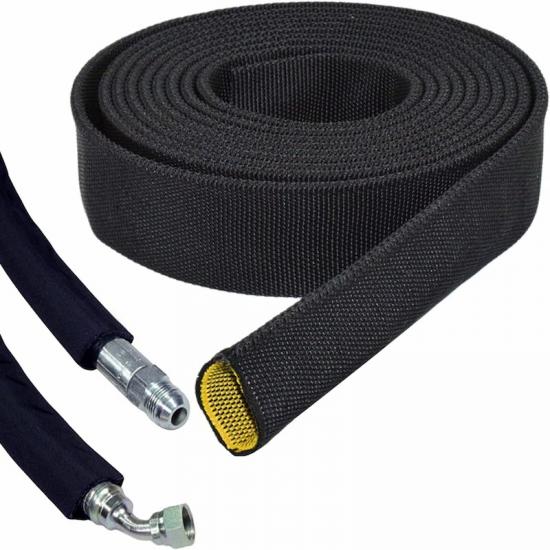

Heavy Duty Double Layer Nylon Hydraulic Hose Sleeve

Ultra-dense, dual-layer ballistic nylon sleeve engineered to contain hydraulic hose bursts up to 13,000 PSI while providing an instant visual wear-warning system.

Part No.:

HPS-NY-D
Material:

Nylon
Working Temperature:

-40℃~+125℃
Melt Point:

220±10℃
Standard Color:

Black(Outer Layer); Yellow(Inner Layer)
SEND INQUIRY



E-FLEX® Double Layer Nylon Hydraulic Hose Sleeve is a premier safety solution and a high-performance nylon hydraulic hose sleeve designed for high-pressure systems. Featuring an industry-leading weave density—three times that of standard options—this ultra-durable nylon hydraulic hose sleeve is engineered to protect personnel and equipment from the catastrophic effects of pinhole leaks and hose bursts.
Its unique dual-layer construction consists of a rugged, abrasion-resistant black outer layer and a high-visibility yellow inner core. This specialized nylon hydraulic hose sleeve not only provides superior mechanical shielding but also serves as a critical safety indicator: when the yellow layer becomes visible, it’s time for maintenance.





Key Features of  Nylon Hydraulic Hose Sleeve

  • Extreme Burst Containment: Independently tested to control hose bursts up to 13,000 PSI, ensuring maximum safety in line-of-sight operations.
  • Dual-Layer Visual Warning System: The yellow inner layer acts as a “preventative maintenance” signal. If the outer black layer is compromised, the bright yellow shows through, alerting operators to replace the hose before failure occurs.
  • Ultra-High Abrasion Resistance: Meets ISO 6945 standards, providing exceptional durability against friction in heavy-duty mining and construction environments.
  • MSHA Certified Safety: Compliant with MSHA IC 293/01 for flame resistance, making it approved for underground mining and other hazardous applications.
  • Superior Environmental Resilience: UV-resistant (BS EN 13758-1) and stable in temperatures ranging from -40°C to +125°C, with no signs of embrittlement even after 504 hours of high-heat exposure.
  • Leak & Fluid Control: Conforms to SAE J343 and ISO 3457 for effective containment of high-pressure fluid spray and leakage.





Physical Properties

Physical Properties
Material Nylon
Working Temperature -40°C ~ +125°C
Melt Point 220 ± 10°C
Heat Resistance No signs of embrittlement after 504h at 125°C
Low Temperature Resistance No signs of embrittlement after 4h at -40°C
MSHA Compliance MSHA IC 293/01
Blasting Resistance Conform to ISO 3457
Abrasion Resistance Conform to ISO 6945
Flammability FMVSS 302
Anti-leakage Conform to SAE J343
UV Resistant Conform to BS EN 13758-1
Standard Color Black (Outer Layer); Yellow (Inner Layer)
Cutting Tool Scissor





Specification

Part No I.D
(mm)		 Flat Width
(mm)		 Thickness
(mm)		 Packing Length
(m/spool)
HPS-NY-D-020-YL/BK 20 38 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-030-YL/BK 30 53 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-034-YL/BK 34 60 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-042-YL/BK 42 72 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-044-YL/BK 44 75 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-046-YL/BK 46 78 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-055-YL/BK 55 93 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-058-YL/BK 58 97 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-060-YL/BK 60 100 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-070-YL/BK 70 117 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-077-YL/BK 77 127 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-080-YL/BK 80 132 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-084-YL/BK 84 139 Inner-1.0mm
Outer-1.3mm		 50
HPS-NY-D-093-YL/BK 93 153 Inner-1.0mm
Outer-1.3mm		 50





Product Applications

  • Mining & Tunneling: MSHA-approved protection for hydraulic lines on underground drill rigs and loaders.
  • Construction Machinery: Burst guard for excavators, cranes, and heavy-duty earthmovers operating near personnel.
  • Agriculture & Forestry: Protection for high-pressure hoses on harvesters and tractors exposed to harsh outdoor debris.
  • Industrial Hydraulics: Safety shielding for high-pressure power units and factory automation systems where line-of-sight protection is mandatory.
