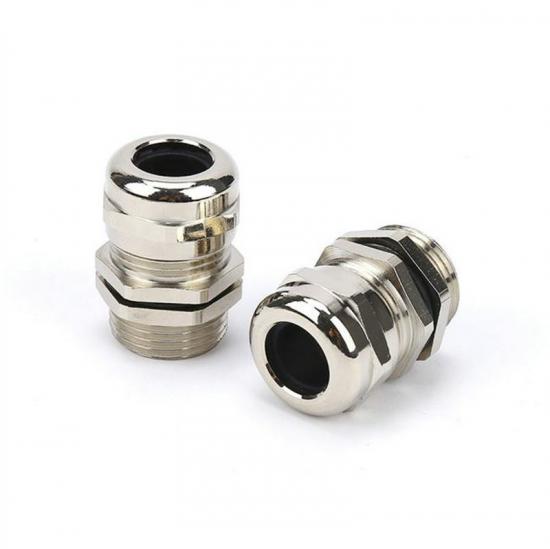

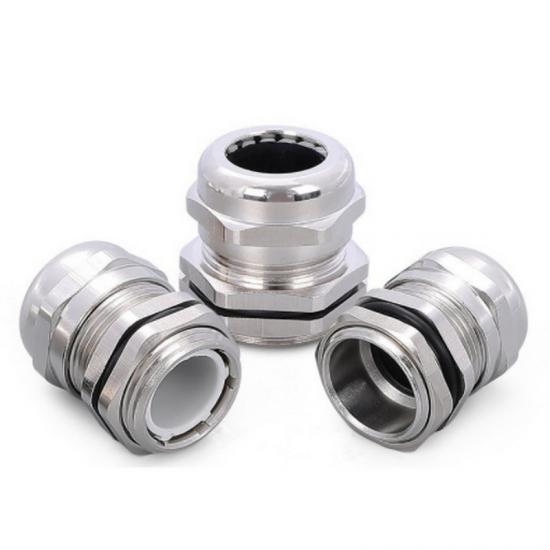

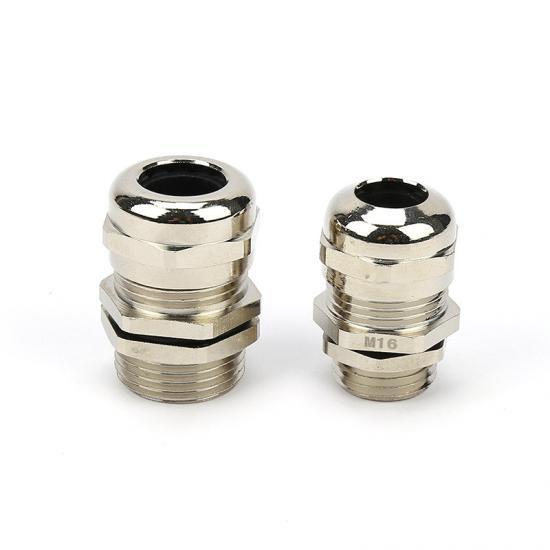

M Thread Series Metal Explosion Proof Cable Gland
Metal cable glands made from brass nickel plated material, it comes with an inner rubber seal and precise sealing nut, to ensure great feature of waterproof. Brass cable gland includes M Series, PG Series, and NPT Series, that’s great to fit your project. Suitable for cable fixing, mechanical control box, switchboard, electrical appliances, ships, outdoor lighting engineering, mechanical equipment, LED lamps, waterproof equipment, etc.
| Part No.: | MJ-CG-B-M |
|---|---|
| Material: | Brass Nickel Plated+NBR |
| Working Temperature: | -40℃~100℃ |
| Tread Style: | M Style |
| Available Model: | M Series, PG Series, NPT Series, G Series |
| Waterproof Rating: | IP68 |
| Flammability: | UL94V2 |
| Standard Color: | Nickel plated |
| Certification: | UL, ROHS, Reach |

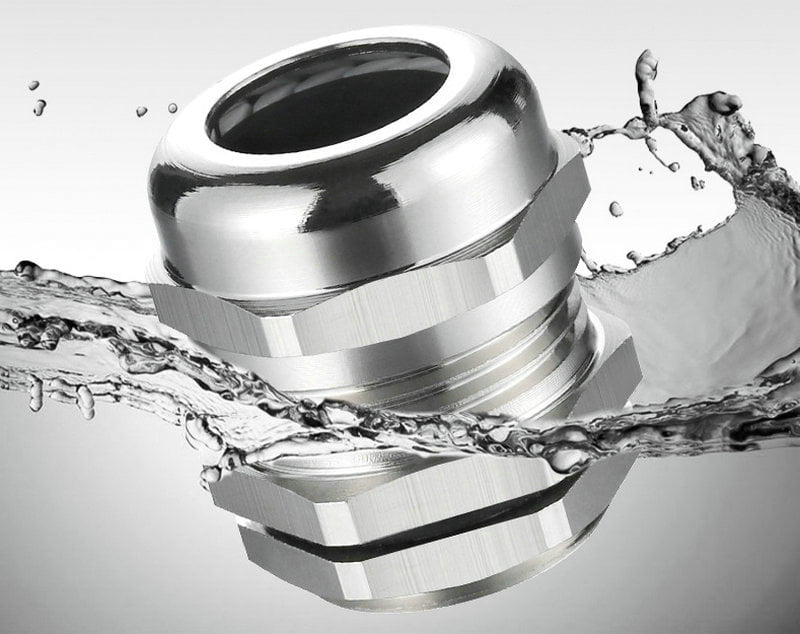

M Type IP68 Brass Metal Explosion Proof Cable Gland

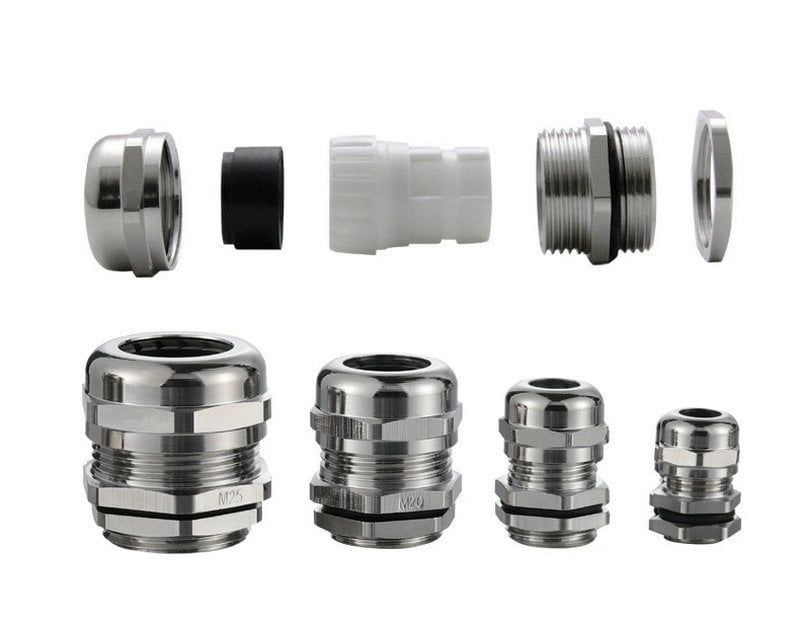

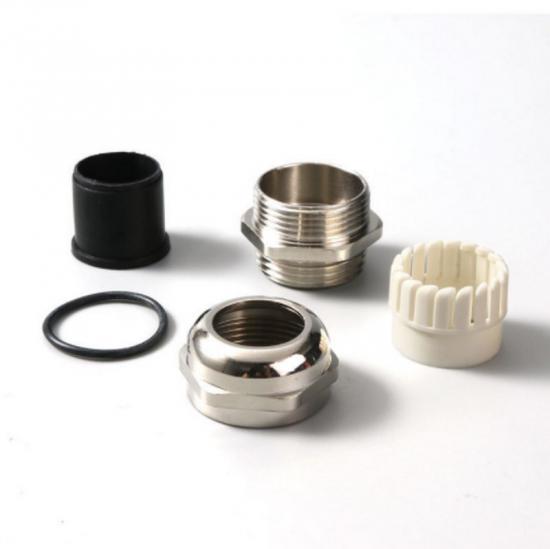

Waterproof brass cable connector-Lock nut, main body, and sealing nut are made of durable brass nickel plated material. The seal and washer are made of nitrile butadiene rubber(NBR). The special design of the clamping die and rubber part, wide clamping range, strong stretching resistance, and no damage to cables and devices.
Metal cable connector without disassembly, the cable can be inserted through directly then tighten easily and save time. Waterproof, dustproof, salt spray resistant, acid, and alkali resistant, strong pulling force.
What’s special about Brass Wire Joint Connectors?
1. Made of brass, nickel plated
2. IP68 waterproof rating
3. Flame retardant
4. Resistant against light acids and soft lyes
5. Resistant against seawater, benzine, and mineral oil
6. A variety of models to choose
Application
Cable Gland Nickel Plated Brass use for cable fixing, wiring, mechanical control box, switchboard, electrical appliances, etc. The ideal kit for your project needs.
Specification
| Model | Thread | Cable Range
Φ(mm) |
Thread O.D
AG(mm) |
Thread Length
GL(mm) |
Spanner Size A&F(mm) |
| M12-LM | M12*1.5 | 3~6.5 | 12.5 | 10 | 14 |
| M14-LM | M14*1.5 | 3~6.5 | 14 | 10 | 17 |
| M16-LM | M16*1.5 | 4~8 | 16 | 10 | 18 |
| M18-LM | M18*1.5 | 5~10 | 18 | 10 | 20 |
| M20-LM | M20*1.5 | 6~12 | 20 | 10 | 22 |
| M22-LM | M22*1.5 | 10~14 | 22 | 10 | 24 |
| M24-LM | M24*1.5 | 10~14 | 24 | 11 | 30 |
| M25-LM | M25*1.5 | 10~14 | 25 | 12 | 30 |
| M27-LM | M27*1.5(2) | 13~18 | 27 | 12 | 30 |
| M30-LM | M30*1.5(2) | 13~18 | 30 | 14 | 36 |
| M32-LM | M32*1.5(2) | 15~22 | 32 | 14 | 36 |
| M33-LM | M33*1.5(2) | 15~22 | 33 | 14 | 36 |
| M36-LM | M36*1.5(2) | 18~25 | 36 | 14 | 42 |
| M40-LM | M40*1.5(2) | 18~25 | 40 | 15 | 50 |
| M42-LM | M42*1.5(2) | 22~30 | 42 | 15 | 50 |
| M48-LM | M48*1.5(2) | 25~33 | 48 | 15 | 52 |
| M50-LM | M50*1.5(2) | 32~38 | 50 | 15 | 57 |
| M54-LM | M54*1.5(2) | 32~38 | 50 | 15 | 57 |
| M60-LM | M60*1.5(2) | 37~44 | 60 | 15 | 64 |
| M63-LM | M63*1.5(2) | 37~44 | 63 | 15 | 68 |
| M64-LM | M64*1.5(2) | 37~44 | 64 | 15 | 68 |
