Multi Hole Electrical Cable Gland
The Waterproof multi-hole cable gland is designed to safeguard your electrical devices that are housed in the enclosures. It is equipped with multi-hole cable strain relief to insert for each unit, allowing you to pass through 3 wires to connect to the ports of various electrical devices. The electrical gland is resistant against light acids, soft lyes seawater, benzine, and mineral oil.
| Part No.: | MJ-CG-MC |
|---|---|
| Material: | Nylon PA66 |
| Tread Style | Pg, M, Npt |
| Holes | From 2 to 8 |
| Working Temperature: | -40℃~100℃ |
| Waterproof Rating: | IP68 |
| Flammability: | UL94V2 |
| Standard Color: | Black, Light Grey |
| Certification: | UL, ROHS, Reach |
| Size | Full size |

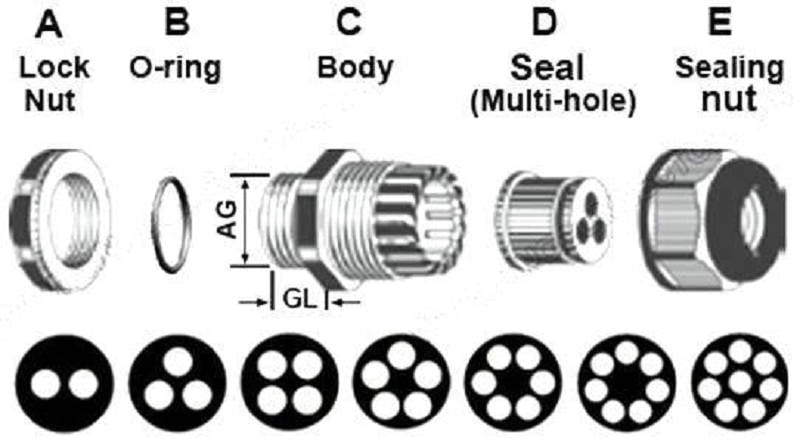

Waterproof Multi Hole Electrical Cable Gland
Nylon cable gland with multi-hole insert for multiple cables through the same opening, ideal for clamping system. Specially designed tool mounts on waterproof enclosure panel or products housed in. Reliable IP68 waterproof rated material against dirt, dust, water, etc.
The stuffing gland can monitor the status of the total PoE usage in real-time, cost saving-deploy existing Ethernet infrastructure. Multiple hole cable gland for sealing multiple wires through a single cable gland. save space by limiting the number of cord grips used for entry into your enclosure, panel, or combiner box.
Application
Multi cable gland is widely used in new energy power generation, new energy trains, thermal power generation, nuclear power plants, power collection, automotive wiring harnesses, machine tools, automatic instruments, motors, engineering installations, mechanical arms, etc.

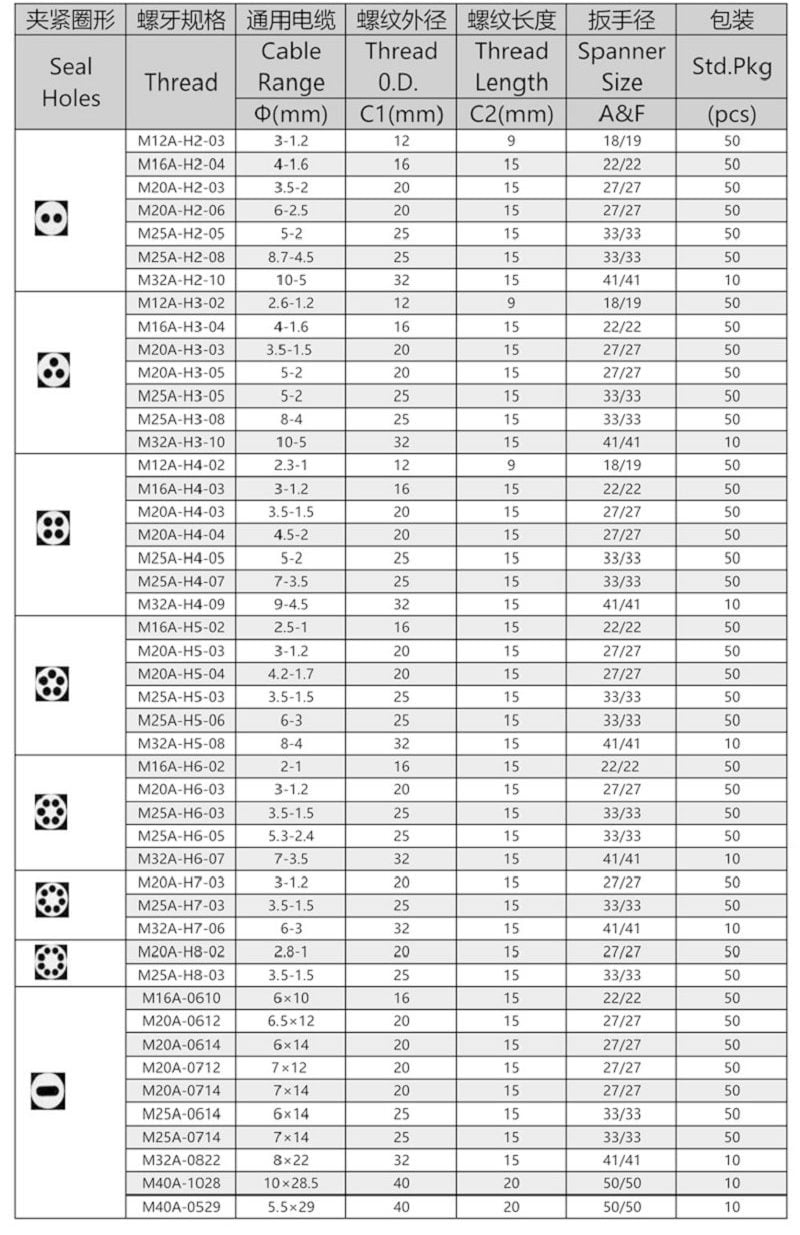

Specification
