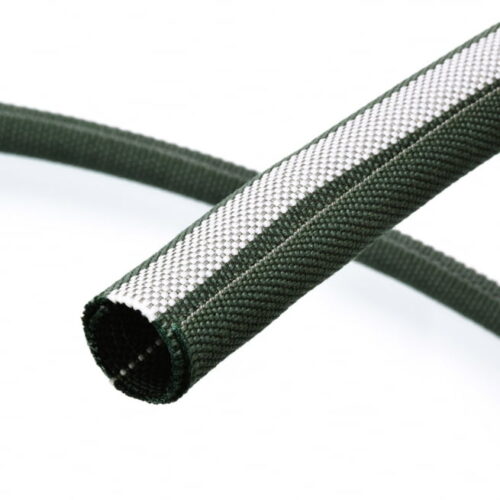

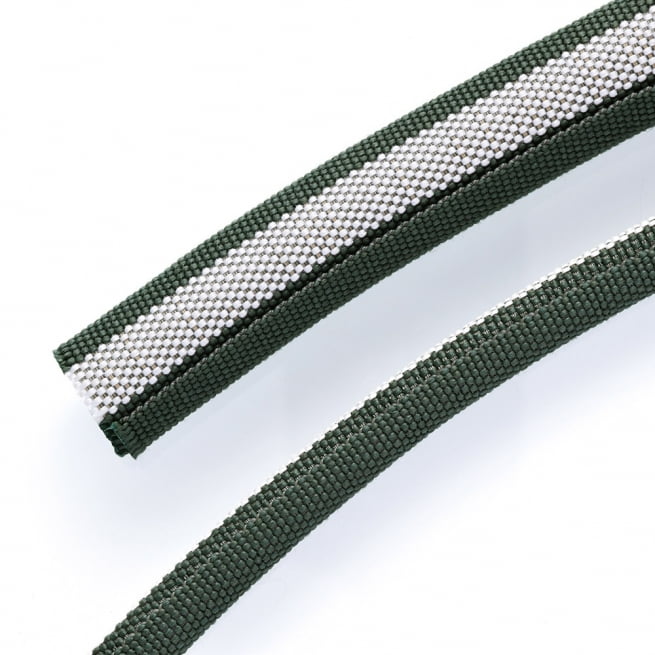

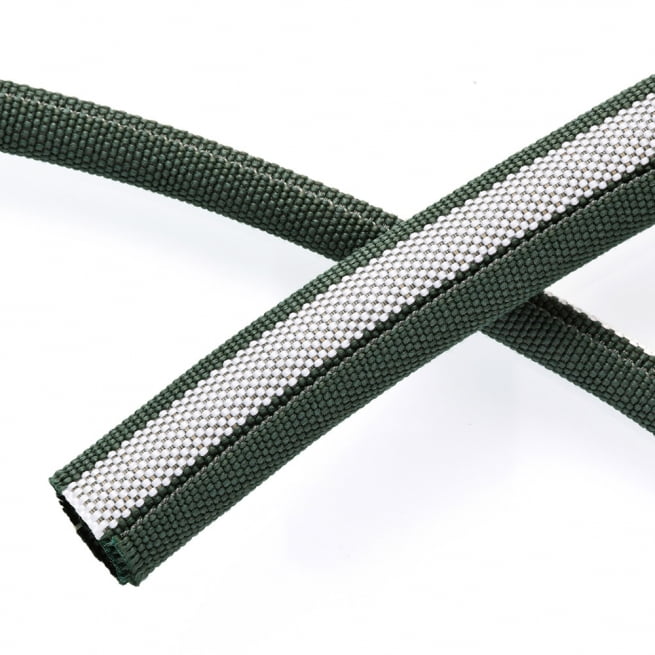

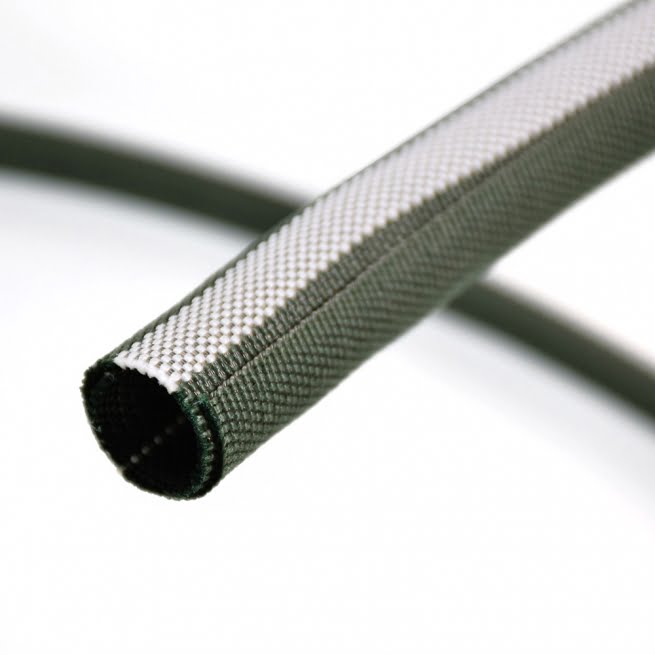

Nomex Split Braided Wire Loom
Nomex split braided sleeving is made using Nomex fiber and PEEK mono-filament, which features outstanding heat resistance and high strength. This wire harness protection product is also resistant to GAMMA and X-RAYS and is known for its excellent wear resistance, oil and waterproof performance, moisture resistance, and flow material impermeable.
| PART NO.: | MJ-NPSS |
|---|---|
| MATERIAL: | Nomex Fiber+PEEK |
| WORKING TEMPERATURE: | -55° to 260°C |
| STANDARD COLOR: | Army green with white |
| CERTIFICATION: | Rohs, halogen free |
| CUTTING TOOL: | Scissor, Hot Knife |
High-Temperature Nomex Split Braided Wire Loom
Nomex wire loom braided is made using Nomex fiber and PEEK mono-filament, which features outstanding heat resistance and high strength. This braided wrap will work normally at temperatures up to 250℃ for long periods of time.
Our Nomex braided wire loom features a higher mechanical toughness, self-extinguishing, acid resistance, oil and alkali resistance, and lower density.
Application
Nomex split braided cable sleeve is primarily used to protect hoses, antennas, and cable harnesses against high temperature, flame, or mechanical abrasion.
Specification
| Part No. | Inner diameter(d) | Edge overlap (%) | Packing Length |
| MJ-NPSS05 | 1~5 | 18%~50% | 150m/Spool |
| MJ-NPSS08 | 5~8 | 18%~50% | 100m/Spool |
| MJ-NPSS13 | 8~13 | 18%~50% | 50m/Spool |
| MJ-NPSS16 | 13~16 | 18%~50% | 25m/Spool |
| MJ-NPSS19 | 16~19 | 19%~50% | 25m/Spool |
| MJ-NPSS25 | 19~25 | 19%~50% | 25m/Spool |
| MJ-NPSS32 | 25~32 | 19%~50% | 25m/Spool |
| MJ-NPSS40 | 32~40 | 19%~50% | 25m/Spool |
