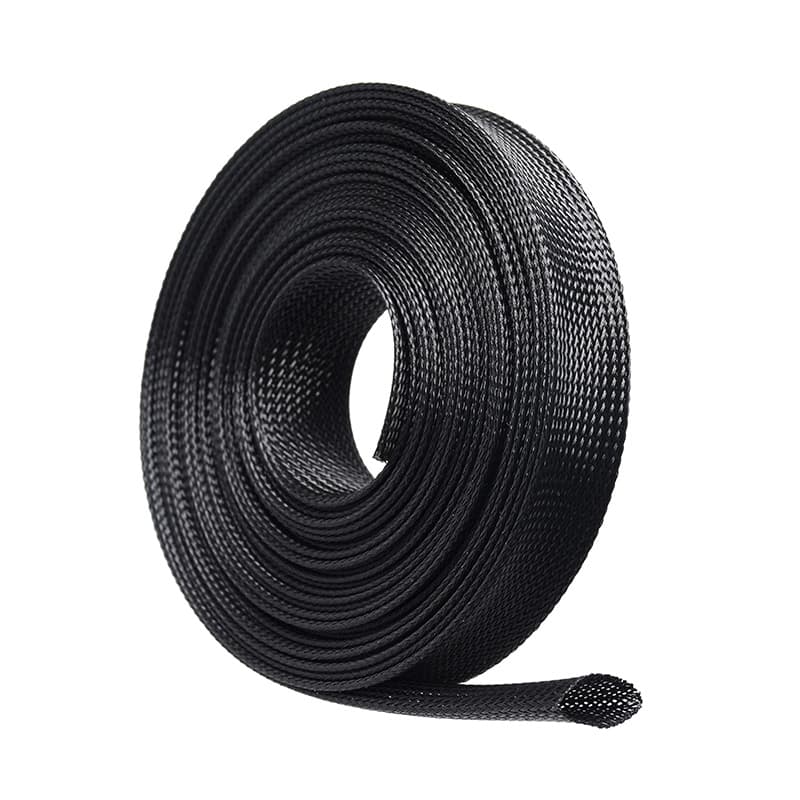

PET Expandable Cable Braided Sleeving
PET braided sleeving protect cables and hoses. It offers high flexibility, excellent abrasion resistance, and easily expands to fit over connectors or irregular shapes, making it ideal for industrial, automotive, and electronics applications.
Part No. | BRS-PET |
---|---|
Material | Polyester monofilament |
Working Temperature | -40℃ to150℃ |
Melt Point | 240+(-)10℃ |
Flammability | UL94V2 |
Standard Color | Black |
Cutting Tool | Hot Knife |
Certification | Rohs,Reach |
PET Expandable Cable Braided Sleeving
E-FLEX® PET braided sleeving is constructed from durable polyester monofilament, offering lightweight protection with high expansion ratio, excellent abrasion resistance, flame retardancy, UV resistance, and chemical/oil resistance. Its flexible design accommodates irregular shapes and cuts cleanly with a hot knife for secure wire, hose, or cable protection.
Our high-performance cable braiding sleeves serve as reliable alternatives to imported brands, complete with comprehensive specifications, certifications, and documentation. Available in multiple colors and sizes for efficient color-coding in complex wiring systems.

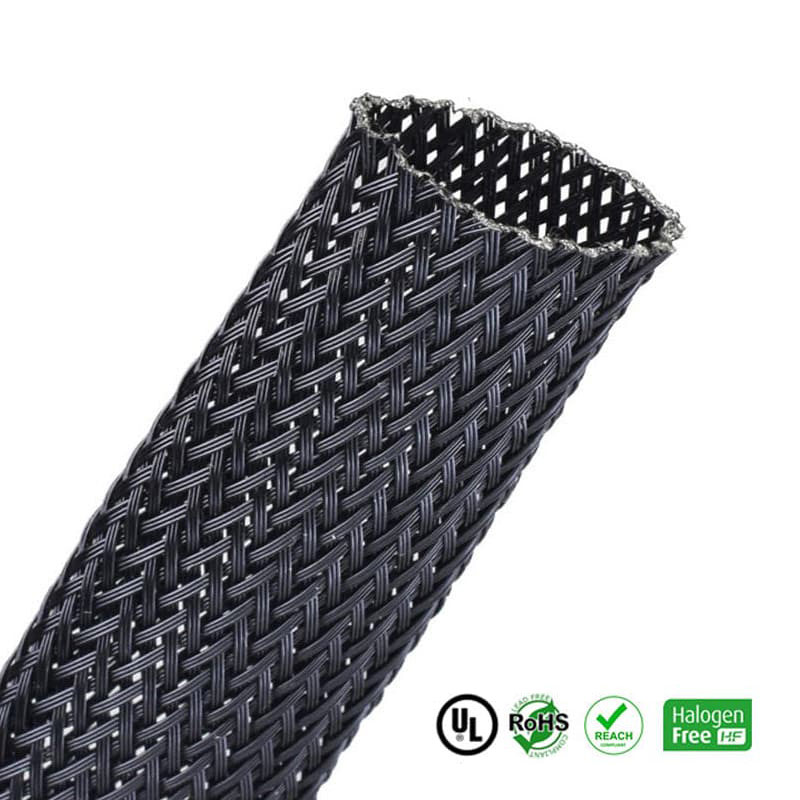

Certifications
For More Information on the Applications of PET Sleeving, Please Refer to the Following Articles:
1.Cable Management for Vacuum Cleaners
2.The Ultimate Cable Management Solution for PC Cases MJ Cable Protection Sleeve
3.Why Fishing Pole Rod Sleeves Are a Must-Have? MJ Cable Protection Sleeve
4.How Do You Stop Black Sleeving Braided Fraying at The Ends? – MJ Cable Protection Sleeve

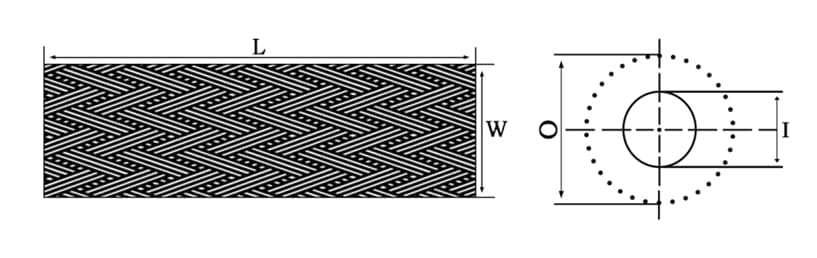

Product Size
Part No | Flat Width(W) | Wall Thickness(mm) | Expanded Range(mm) | Packing Length | ||
---|---|---|---|---|---|---|
Inch | mm | Min(I) | Max(O) | (m/spool) | ||
BRS-PET-003-BK | 1/8″ | 3 | 0.65±0.05 | 1 | 6 | 500 |
BRS-PET-006-BK | 1/4″ | 6 | 0.65±0.05 | 3 | 9 | 400 |
BRS-PET-008-BK | 5/16″ | 8 | 0.65±0.05 | 5 | 12 | 400 |
BRS-PET-010-BK | 3/8″ | 10 | 0.65±0.05 | 7 | 17 | 200 |
BRS-PET-012-BK | 1/2″ | 12 | 0.65±0.05 | 8 | 20 | 200 |
BRS-PET-016-BK | 5/8″ | 16 | 0.65±0.05 | 10 | 27 | 200 |
BRS-PET-020-BK | 3/4″ | 20 | 0.65±0.05 | 14 | 30 | 200 |
BRS-PET-025-BK | 1″ | 25 | 0.65±0.05 | 18 | 33 | 100 |
BRS-PET-032-BK | 1-1/4″ | 32 | 0.65±0.05 | 20 | 50 | 100 |
BRS-PET-038-BK | 1-1/2″ | 38 | 0.65±0.05 | 30 | 60 | 100 |
BRS-PET-045-BK | 1-3/4″ | 45 | 0.65±0.05 | 35 | 75 | 50 |
BRS-PET-050-BK | 2″ | 50 | 0.65±0.05 | 40 | 80 | 50 |
BRS-PET-064-BK | 2-1/2″ | 64 | 0.65±0.05 | 45 | 105 | 50 |
BRS-PET-076-BK | 3″ | 76 | 0.65±0.05 | 64 | 120 | 50 |

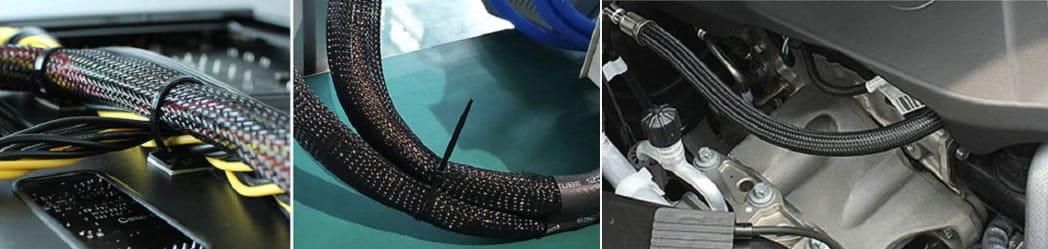

Application of PET Braided Sleeving
The PET wire sleeve excels in applications that require high expansion rates. Electronics, automotive, marine, and industrial sectors highly value it for its cost-efficiency and durability.
Industries primarily use it for wire bundling, while it also protects hose cables in automation, heavy machinery, automobiles, and maritime applications.
Additionally, commercial sectors use it in personal computers, automation, motorcycles, bicycles, fishing, diving wires, and pipelines.
