Products
New Products
-
-
-
-
-
-
-
-
-
-
-
-

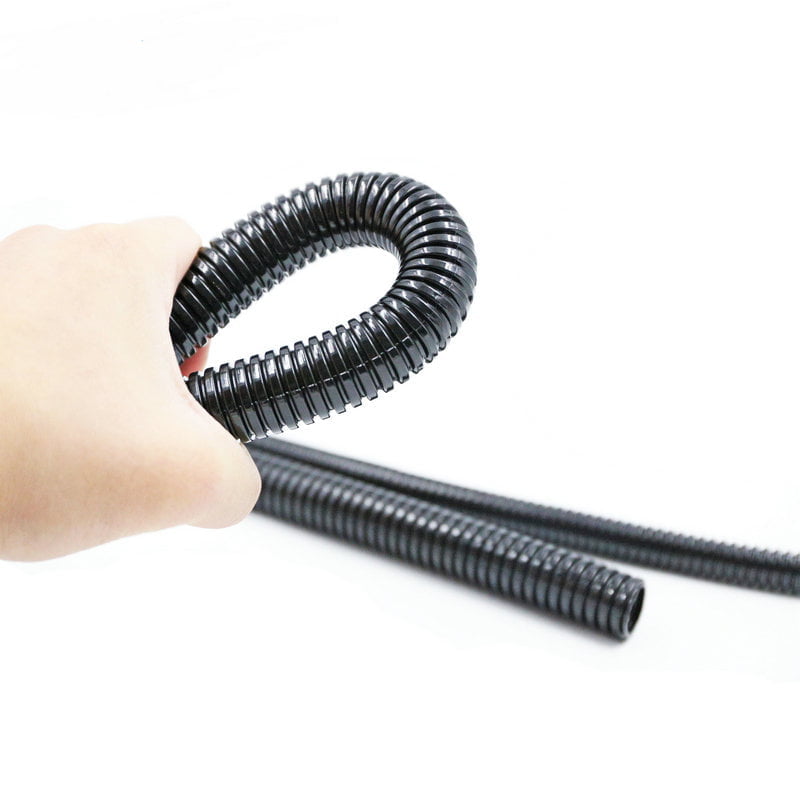

Polypropylene Wire Loom Tubing
Polypropylene corrugated conduit made of 100% new and high-quality PP material, which is lightweight, very flexible, and easy to install, can be used for wire connecting in many electric appliances and industry machines.
| Part No. : | MJ-WLP |
|---|---|
| Material: | Polypropylene |
| Working Temperature: | -40℃ to 125℃ |
| Melt Point: | 180+(-)10℃ |
| Flammability: | UL94 V2 |

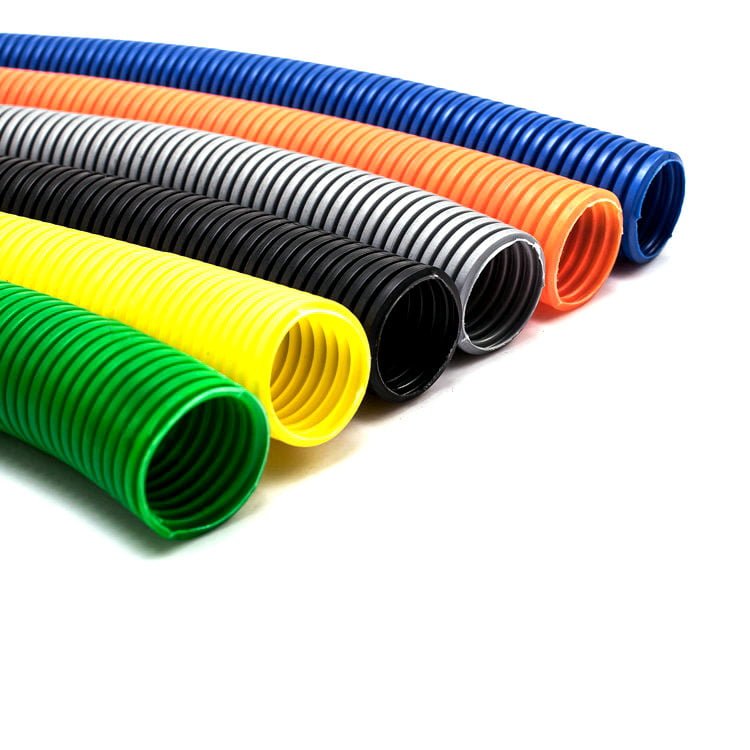

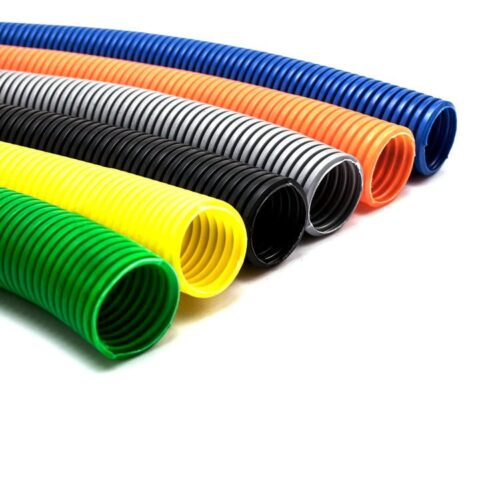

| Standard Color: | Black, Orange |
| Certification: | RoHS |
| Cutting Tool: | Scissor |
| Size: | 7mm~50mm |

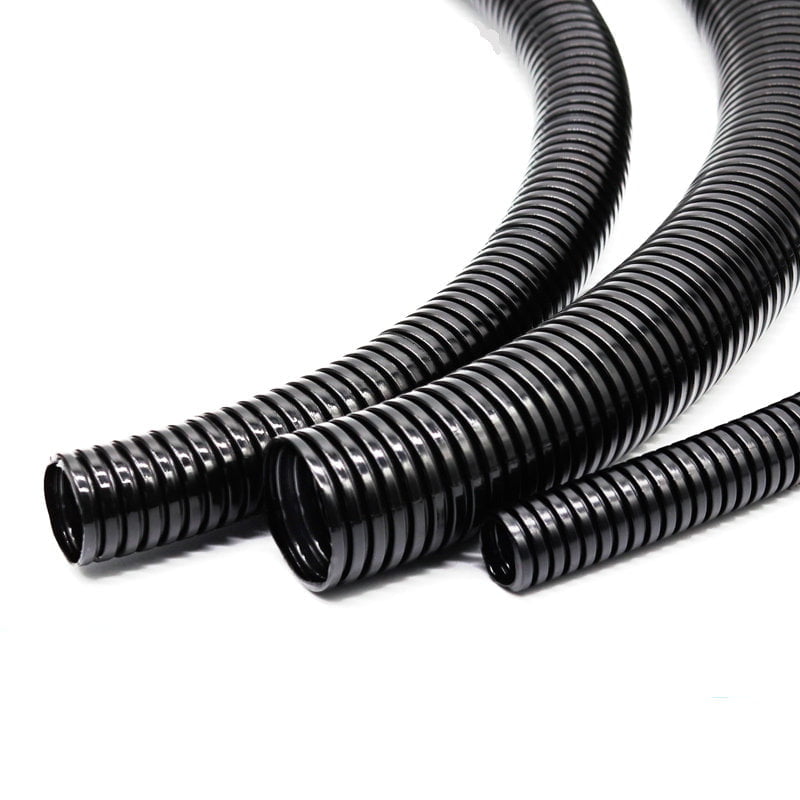

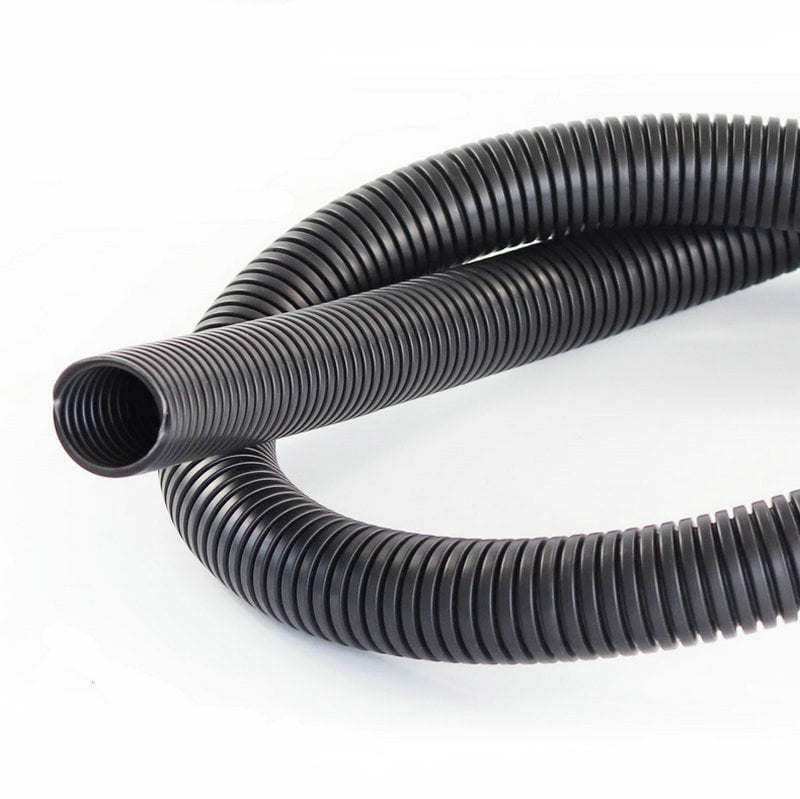

Polypropylene Wire Loom Tubing

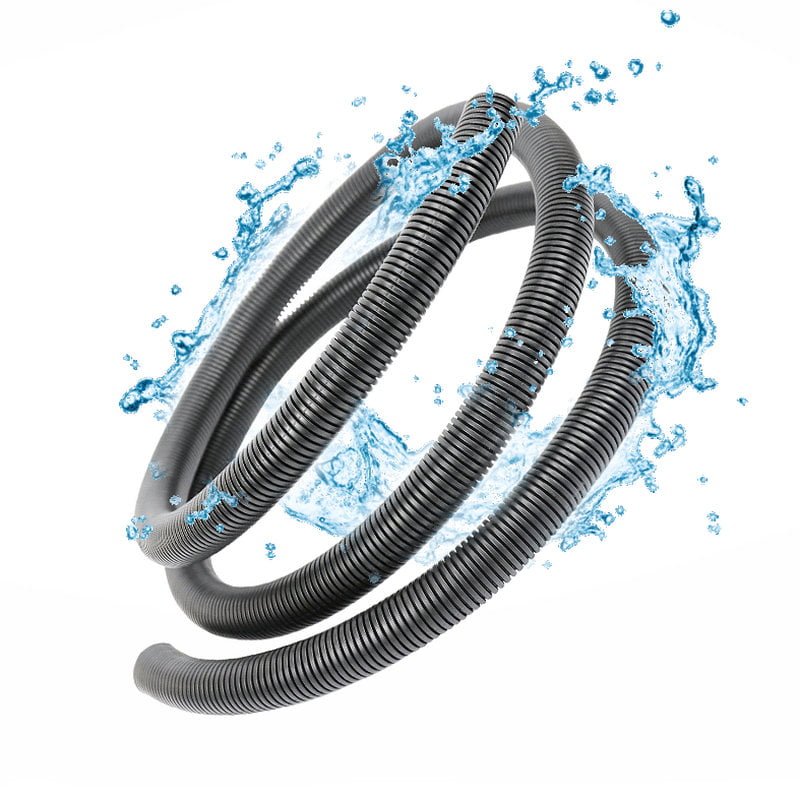

Polypropylene Wire Loom Tubing is lightweight, very flexible, provides cut and abrasion protection, can withstand heavy loads, resistant to gasoline, oil, auto fluids, UV damage and other chemicals allows this cable conduit to work in extreme environments found around engine bays, manufacturing machinery, and hydraulic systems.

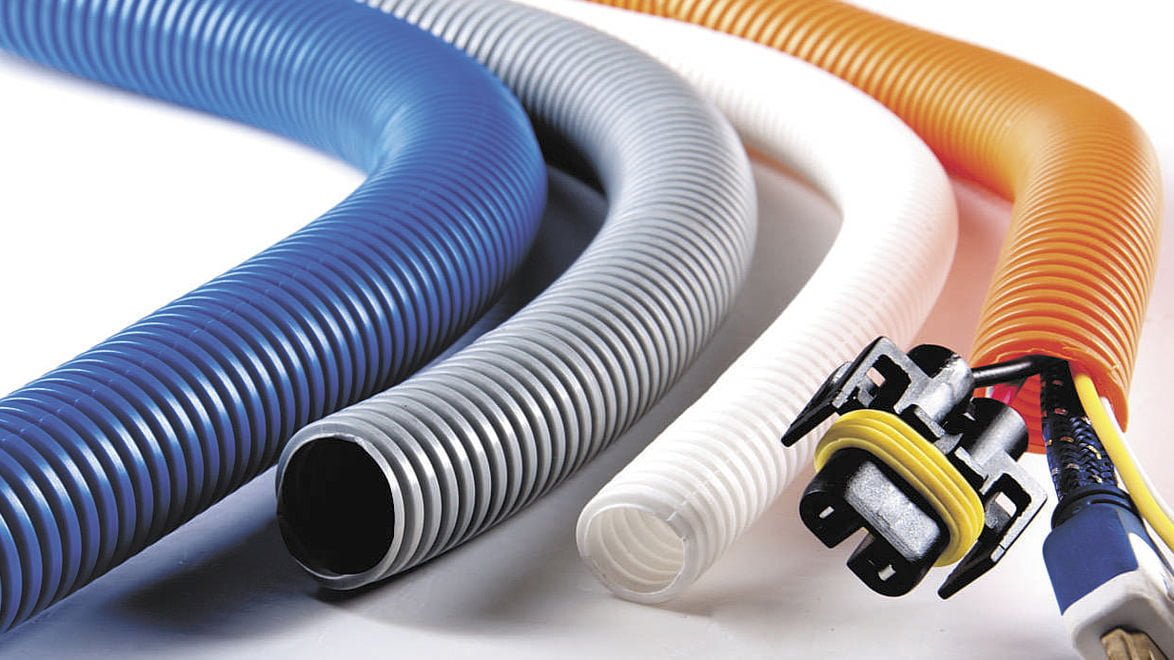

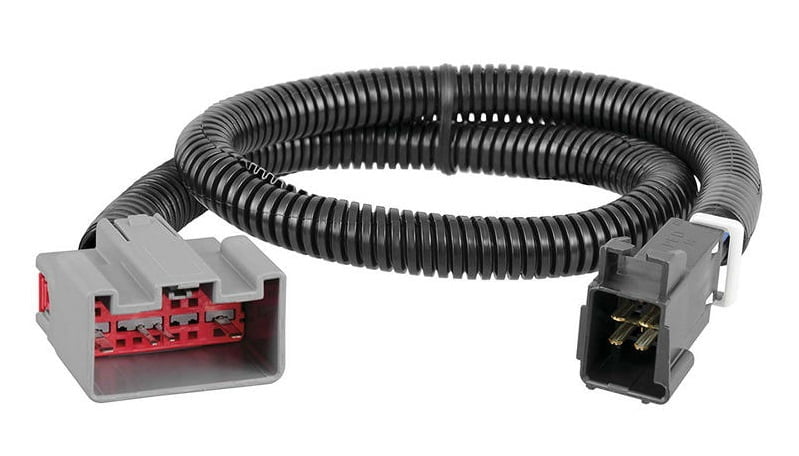

Flexible wire conduit is widely used to produce cable and wire harnesses in many industries, such as automotive, computer/electronics, farm/agricultural, marine, recreation vehicles, telecommunications, construction, and specialty markets.
Application
Corrugated Conduit offers long-lasting protection and a professional look to your wires and cables. Widely used in vehicles, home offices, small equipment, and industries related to manufacturing, hydraulics, and railway.
Specification
| Part No | Size
ID*OD(mm) |
Thickness
(mm) |
Bending Radius
(R±10%) |
Standard Color | Packing Length |
| MJ-WLP-7 | 4.5mm*7.0mm | 0.20mm | 5.0 | Black | 200m/spool |
| MJ-WLP-8.5 | 5.5mm*8.5mm | 0.25mm | 8.0 | Black | 200m/spool |
| MJ-WLP-10 | 7.0mm*10.0mm | 0.27mm | 10.0 | Black | 100m/spool |
| MJ-WLP-12 | 8.5mm*11.5mm | 0.30mm | 15.0 | Black | 100m/spool |
| MJ-WLP-13 | 10.0mm*13.0mm | 0.30mm | 20.0 | Black | 100m/spool |
| MJ-WLP-15.8 | 12.0mm*15.8mm | 0.30mm | 30.0 | Black | 100m/spool |
| MJ-WLP-18.5 | 14.3mm*18.5mm | 0.32mm | 40.0 | Black | 100m/spool |
| MJ-WLP-21.2 | 17.0mm*21.2mm | 0.32mm | 45.0 | Black | 100m/spool |
| MJ-WLP-25.0 | 21.0mm*25.0mm | 0.35mm | 50.0 | Black | 100m/spool |
| MJ-WLP-28.5 | 23.0mm*28.5mm | 0.35mm | 55.0 | Black | 50m/spool |
| MJ-WLP-34.5 | 29.0mm*34.5mm | 0.40mm | 60.0 | Black | 50m/spool |
| MJ-WLP-42.5 | 36.0mm*42.5mm | 0.45mm | 70.0 | Black | 25m/spool |
| MJ-WLP-54.5 | 48.0mm*54.5mm | 0.50mm | 80.0 | Black | 25m/spool |
