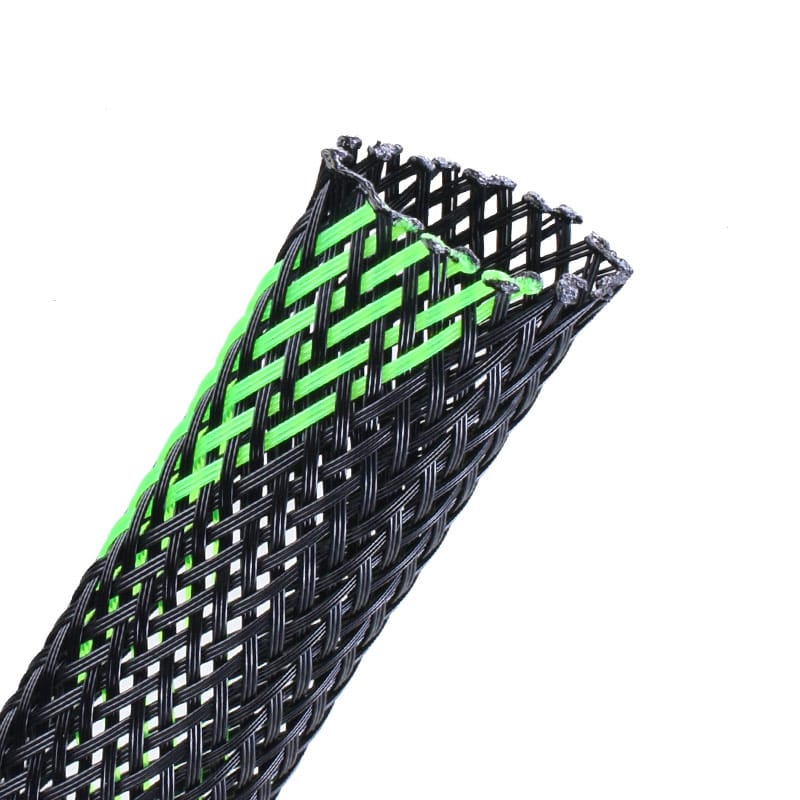

Remix Expandable Braided Cable Sleeving

Remix expandable braided wire sleeving has unique color effects with full coverage and protection. It provides a professional look to products. PET sleeving is very flexible, flame retardant, UV resistant, and resists most oils, common fuels, and solvents. It maintains high performance in a wide operating temperature range.

Part No

BRS-PET-MC

Material

PET Monofilament

Working Temperature

-50℃ to 150℃

Melt Point

240+(-)10℃

Flammability

VW-1

Standard Color

Colored

Available Color

Over 60 available options

Certification

ROHS, Reach, UL, Halogen Fress

Cutting Tool

Hot Knife




Remix Expandable Braided Cable Sleeving

Remix expandable braided cable sleeving for electronic and high-tech applications;mix-color braided sleeving is a good option because it is flame retardant and durable. Flexible braided wire covering is an efficient choice for long runs of wire or cable due to its ease of installation.

Multi color sleeving allowing quick and easy fitting over irregular components. PET braided cable sleeves are popularly used in electronics, automotive, marine, and industrial wire harnessing applications where cost efficiency and durability are critical.

rmix braided sleeve






Product Size

Part No Flat Width(W) Wall Thickness(mm) Expanded Range(mm) Packing Length
Inch mm Min(I) Max(O) (m/spool)
BRS-PET-003-MC 1/8″ 3  0.65±0.05 1 6 500
BRS-PET-006-MC 1/4″ 6 0.65±0.05 3 9 400
BRS-PET-008-MC 5/16″ 8 0.65±0.05 5 12 400
BRS-PET-010-MC 3/8″ 10 0.65±0.05 7 17 200
BRS-PET-012-MC 1/2″ 12 0.65±0.05 8 20 200
BRS-PET-016-MC 5/8″ 16 0.65±0.05 10 27 200
BRS-PET-020-MC 3/4″ 20 0.65±0.05 14 30 200
BRS-PET-025-MC 1″ 25 0.65±0.05 18 33 100
BRS-PET-032-MC 1-1/4″ 32 0.65±0.05 20 50 100
BRS-PET-038-MC 1-1/2″ 38 0.65±0.05 30 60 100
BRS-PET-045-MC 1-3/4″ 45 0.65±0.05 35 75 50
BRS-PET-050-MC 2″ 50 0.65±0.05 40 80 50
BRS-PET-064-MC 2-1/2″ 64 0.65±0.05 45 105 50
BRS-PET-076-MC 3″ 76 0.65±0.05 64 120 50






Application of Remix Expandable Braided Cable Sleeving

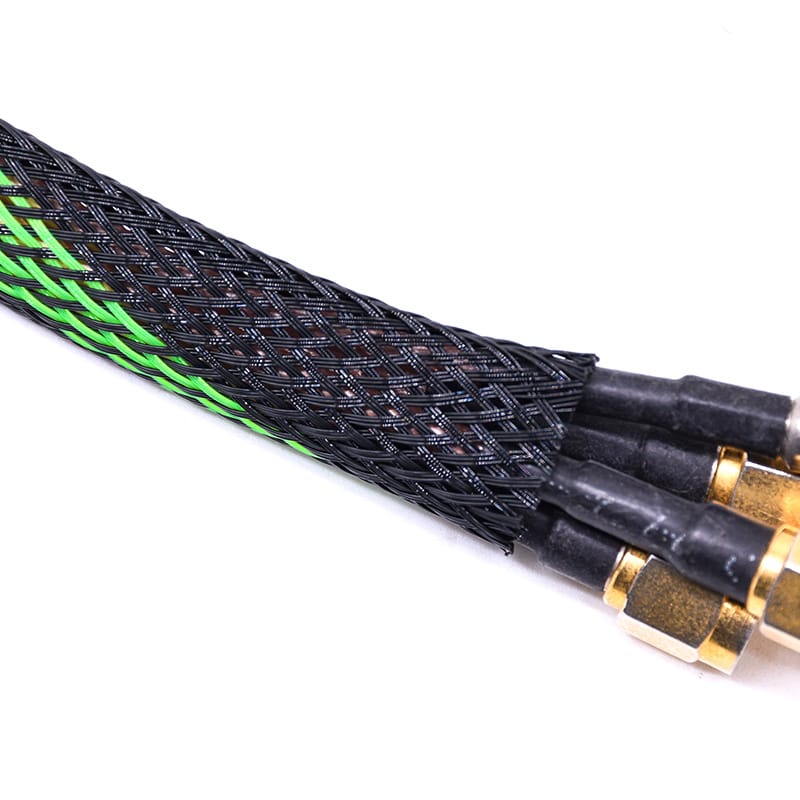

MJ designs its expandable braided sleeving for applications that require a higher expansion rate, making it an ideal choice for a wide range of industries.. This versatile protective sleeve provides superior coverage for industrial cables, A/V cables, HDMI cables, wire harnesses, pneumatic hoses, hydraulic lines, and even highly polished or threaded machine parts, offering enhanced durability and protection in both harsh and high-performance environments.
