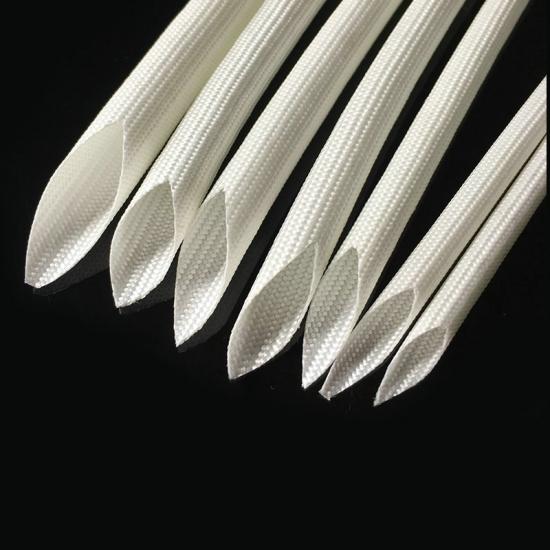

Silicone Coated Fiberglass Braided Sleeve
Silicone-coated fiberglass sleeving is made of fiberglass fiber and coated with silicone resin. It is lightweight, soft, good flexibility, insulation, chemical and corrosion resistance, anti-aging and self-extinguishing. Fiberglass tubes are widely applied to mechanization, radio, office equipment, motor wireless devices, and other wiring insulation and mechanical protection. Available in different sizes.
| Part No,: | MJ-PEBS-HA |
|---|---|
| Material: | Fiberglass fiber coated with silicone resin |
| Working Temperature: | -50℃ to 200℃ |
| Voltage Rating | 1.5KV,2.5KV,4.0KV |

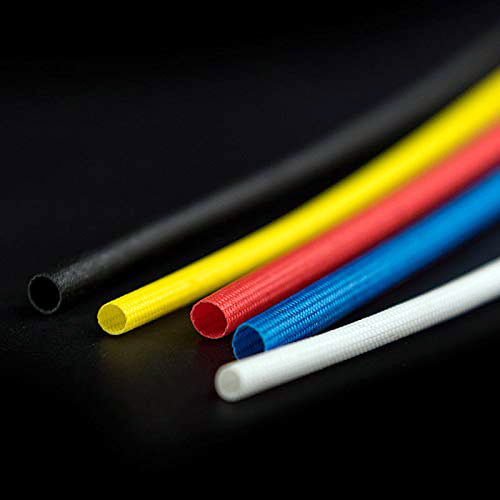

| Colored | Available |
| Flammability: | VW-1 |
| Standard Color: | White |
| Certification: | UL, ROHS, Reach |
| Cutting Tool: | Scissor |
Silicone Coated Fiberglass Braided Wire Insulation Sleeving
Silicone-coated fiberglass sleeve is made of fiberglass, coated with silicone resin, heated and plasticized, possessing good wear resistance, insulation, high-temperature resistance, corrosion resistance,anti-aging, etc. which is very flexible and will not be damaged by dryness, anti-aging, durable, and long-service life.
Fiberglass sleeves applied to mechanization, electrical, and office devices have good heat protection on the cables. It is primarily used for self-heating or pipelines near a heat source, such as automotive fuel pipes, vacuum tubes, and exhaust pipes.
Application
Fiberglass braided sleeving is suitable for various electric insulation and bonding of cables and connectors and is widely used in connection or termination. It is mainly used for wire connection, solder joint protection, electronic equipment protection and insulation treatment, metal surface protection, etc.
Specification
| Part No | Size(ID)(mm) | Thickness | Packing Length(m/spool) | ||
| 1.5KV | 2.5KV | 4.0KV | |||
| MJ-FGS-0.80 | 0.80mm | 0.30mm | 0.40mm | 0.50mm | 100m/spool |
| MJ-FGS-1.00 | 1.00mm | 0.30mm | 0.40mm | 0.50mm | 100m/spool |
| MJ-FGS-1.50 | 1.50mm | 0.30mm | 0.40mm | 0.50mm | 100m/spool |
| MJ-FGS-2.00 | 2.00mm | 0.30mm | 0.40mm | 0.50mm | 100m/spool |
| MJ-FGS-2.50 | 2.50mm | 0.30mm | 0.40mm | 0.50mm | 100m/spool |
| MJ-FGS-3.00 | 3.00mm | 0.35mm | 0.40mm | 0.50mm | 100m/spool |
| MJ-FGS-3.50 | 3.50mm | 0.35mm | 0.45mm | 0.50mm | 100m/spool |
| MJ-FGS-4.00 | 4.00mm | 0.35mm | 0.45mm | 0.50mm | 100m/spool |
| MJ-FGS-4.50 | 4.50mm | 0.40mm | 0.45mm | 0.50mm | 100m/spool |
| MJ-FGS-5.00 | 5.00mm | 0.40mm | 0.45mm | 0.50mm | 100m/spool |
| MJ-FGS-5.50 | 5.50mm | 0.40mm | 0.45mm | 0.60mm | 100m/spool |
| MJ-FGS-6.00 | 6.00mm | 0.45mm | 0.50mm | 0.60mm | 100m/spool |
| MJ-FGS-7.00 | 7.00mm | 0.45mm | 0.50mm | 0.60mm | 100m/spool |
| MJ-FGS-8.00 | 8.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-9.00 | 9.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-10.00 | 10.0mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-11.00 | 11.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-12.00 | 12.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-13.00 | 13.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-14.00 | 14.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-15.00 | 15.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
| MJ-FGS-16.00 | 16.00mm | 0.50mm | 0.60mm | 0.70mm | 50m/spool |
