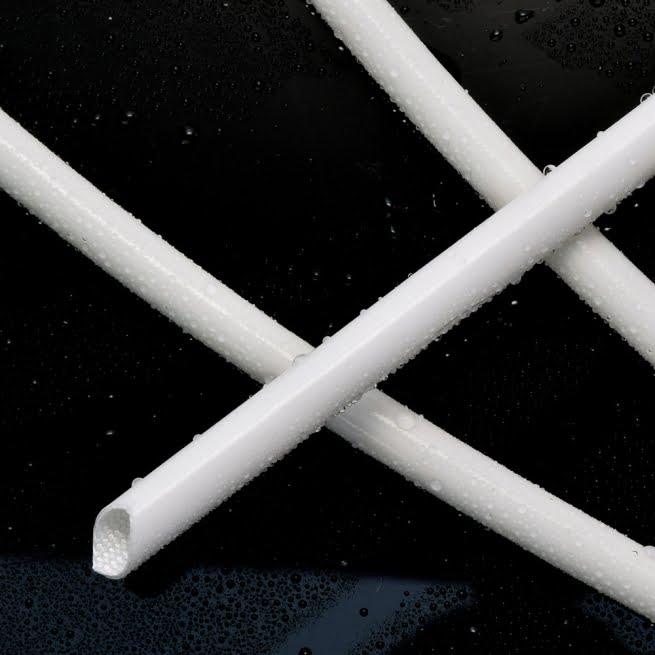

Silicone Rubber Coated Fiberglass Sleeving
Silicone rubber-coated glass fiber sleeving made from glass fiber and coated with silicone. It has good flexibility, class H (200°C) insulation, chemical resistance, self-extinguishing, and anti-aging protection.
| Part No,: | MJ-FGS-SC |
|---|---|
| Material: | Fiberglass fiber+Silicone rubber |
| Working Temperature: | -50℃ to 200℃ |
| Temperature endurance | 265℃+(-)2℃ |
| Aging Test | 6 hours without crackle |
| Cold bend | Without crackle |
| Voltage Rating | 4.0KV, 7.0KV |
| Flammability: | VW-1 |
| Standard Color: | White, Black |
| Certification: | UL, ROHS, Reach |
| Cutting Tool: | Scissor |
| Size | 0.5mm~35mm |
Silicone Rubber Coated Fiberglass Sleeving
Silicone fiberglass sleeving is engineered with a silicone rubber coating over an insulating fiberglass sleeve. Silicone-coated fiberglass sleeving is very abrasion resistant and is ideal in heavy-duty applications that require outstanding mechanical and electrical properties.
Silicone coated fiberglass sleeving has a high tear strength, slight expandability for easy installation, excellent flex life, and resistance to fatigue
Application
The mechanical properties and strength of Silicone coated fiberglass make it a great choice in applications such as:
1. Transformer lead protection
2. Motor coil leads
3. Component isolation
4. Power supply wiring
Specification
| Part No | Size(ID)
(mm) |
Tolerance(mm) | Thickness(mm) | Packing Length
(m/spool) |
|
| 4kV | 7kV | ||||
| MJ-FGS-SC0.5 | 0.5 | +0.3/-0.1 | 0.35±0.05 | 0.38±0.05 | 200 |
| MJ-FGS-SC0.8 | 0.8 | +0.3/-0.1 | 0.40±0.05 | 0.55±0.05 | 200 |
| MJ-FGS-SC1.0 | 1.0 | +0.3/-0.1 | 0.42±0.05 | 0.55±0.05 | 200 |
| MJ-FGS-SC1.5 | 1.5 | +0.3/-0.1 | 0.43±0.05 | 0.58±0.05 | 200 |
| MJ-FGS-SC2.0 | 2.0 | +0.3/-0.1 | 0.45±0.05 | 0.58±0.05 | 200 |
| MJ-FGS-SC2.5 | 2.5 | +0.3/-0.1 | 0.48±0.05 | 0.60±0.05 | 200 |
| MJ-FGS-SC3.0 | 3.0 | +0.3/-0.1 | 0.50±0.05 | 0.60±0.05 | 100 |
| MJ-FGS-SC3.5 | 3.5 | +0.3/-0.1 | 0.53±0.05 | 0.64±0.05 | 100 |
| MJ-FGS-SC4.0 | 4.0 | +0.3/-0.1 | 0.56±0.05 | 0.64±0.05 | 100 |
| MJ-FGS-SC4.5 | 4.5 | +0.3/-0.1 | 0.57±0.05 | 0.64±0.05 | 100 |
| MJ-FGS-SC5.0 | 5.0 | +0.4/-0.1 | 0.57±0.05 | 0.65±0.05 | 100 |
| MJ-FGS-SC5.5 | 5.5 | +0.4/-0.1 | 0.56±0.05 | 0.65±0.05 | 100 |
| MJ-FGS-SC6.0 | 6.0 | +0.4/-0.1 | 0.55±0.05 | 0.65±0.05 | 100 |
| MJ-FGS-SC7.0 | 7.0 | +0.4/-0.1 | 0.55±0.05 | 0.65±0.05 | 100 |
| MJ-FGS-SC8.0 | 8.0 | +0.4/-0.1 | 0.57±0.05 | 0.65±0.05 | 50 |
| MJ-FGS-SC9.0 | 9.0 | +0.5/-0.1 | 0.68±0.05 | 0.75±0.05 | 50 |
| MJ-FGS-SC10.0 | 10.0 | +0.5/-0.1 | 0.71±0.05 | 0.76±0.05 | 50 |
| MJ-FGS-SC11.0 | 11.0 | +0.5/-0.1 | 0.70±0.05 | 0.76±0.05 | 50 |
| MJ-FGS-SC12.0 | 12.0 | +0.5/-0.1 | 0.71±0.05 | 0.77±0.05 | 50 |
| MJ-FGS-SC13.0 | 13.0 | +0.5/-0.1 | 0.73±0.05 | 0.78±0.05 | 50 |
| MJ-FGS-SC14.0 | 14.0 | +0.5/-0.1 | 0.75±0.05 | 0.79±0.05 | 50 |
| MJ-FGS-SC15.0 | 15.0 | +0.5/-0.1 | 0.75±0.05 | 0.79±0.05 | 50 |
| MJ-FGS-SC16.0 | 16.0 | +0.6/-0.1 | 0.75±0.05 | 0.79±0.05 | 50 |
| MJ-FGS-SC17.0 | 17.0 | +0.6/-0.1 | 0.76±0.05 | 0.81±0.05 | 50 |
| MJ-FGS-SC18.0 | 18.0 | +0.6/-0.1 | 0.78±0.05 | 0.81±0.05 | 50 |
| MJ-FGS-SC19.0 | 19.0 | +0.6/-0.1 | 0.90±0.05 | 0.92±0.05 | 50 |
| MJ-FGS-SC20.0 | 20.0 | +0.8/-0.1 | 0.91±0.05 | 0.95±0.05 | 50 |
| MJ-FGS-SC25.0 | 25.0 | +0.8/-0.1 | 0.91±0.05 | 0.95±0.05 | 50 |
| MJ-FGS-SC30.0 | 30.0 | +0.8/-0.1 | 0.92±0.05 | 0.96±0.05 | 50 |
| MJ-FGS-SC35.0 | 35.0 | +0.8/-0.1 | 0.94±0.05 | 0.98±0.05 | 50 |
