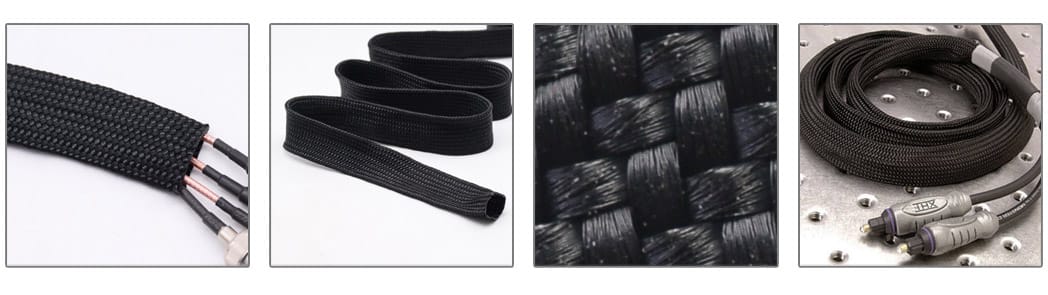

Nylon Multifilament Braided Sleeve
MJ nylon multifilament braided sleeving is made of nylon multifilament, which is extremely soft, flexible, and abrasion resistant. The full coverage provides a professional appearance as well as complete product protection. It is widely used for automotive, marine, military, and machinery cable protection.
| Part No | BRS-PAMF |
|---|---|
| Material: | Nylon Multifilament |
| Working Temperature: | -40℃ to 125℃ |
| Melt Point: | 220+(-)10℃ |
| Standard Color: | Black |
| Certification: | ROHS, Reach, Halogen Fress |
| Cutting Tool: | Hot Knife |
Nylon Multifilament Expandable Braided Sleeve
Nylon multifilament expandable braided sleeve woven from high-quality PA66 multifilament, combines fabric-like softness with exceptional durability and flexibility. This advanced sleeving offers superior protection against cuts, abrasion, vibration, and common chemicals, making it ideal for demanding automotive and marine environments. Designed to safeguard and enhance the appearance of wires, cables, and hoses, Nylon multifilament sleeving is not only cost-effective but also easy to install, providing a reliable and long-lasting solution for cable management.

Certifications

Product Size
| Part No | Standard Size | Expanded Range(mm) | Packing Length | ||
|---|---|---|---|---|---|
| Inch | mm | Min(I) | Max(O) | (m/spool) | |
| BRS-PAMF-003-BK | 1/8″ | 3 | 2 | 4 | 350 |
| BRS-PAMF-006-BK | 1/4″ | 6 | 4 | 7 | 350 |
| BRS-PAMF-008-BK | 5/16″ | 8 | 5 | 9 | 350 |
| BRS-PAMF-010-BK | 3/8″ | 10 | 6 | 11 | 350 |
| BRS-PAMF-012-BK | 1/2″ | 12 | 8 | 13 | 300 |
| BRS-PAMF-016-BK | 5/8″ | 16 | 10 | 17 | 250 |
| BRS-PAMF-019-BK | 3/4″ | 19 | 12 | 20 | 200 |
| BRS-PAMF-023-BK | 8/9″ | 23 | 15 | 24 | 200 |
| BRS-PAMF-025-BK | 1″ | 25 | 16 | 26 | 200 |
| BRS-PAMF-032-BK | 1-1/4″ | 32 | 20 | 33 | 150 |
| BRS-PAMF-038-BK | 1-1/2″ | 38 | 24 | 39 | 100 |
| BRS-PAMF-050-BK | 2″ | 50 | 32 | 51 | 100 |
| BRS-PAMF-063-BK | 2-1/2″ | 63 | 40 | 64 | 100 |
Application
Nylon multifilament sleeving is widely used in automotive, military, and marine wire harness applications because it offers dependable protection against abrasion, cuts, UV radiation, and chemical damage. Furthermore, this durable and flexible sleeving effectively extends the life of cables and hoses in harsh environments. As a result, it has become essential for high-performance industries that demand robust, long-lasting solutions. Whether for automotive wiring, military electronics, or marine systems, it offers exceptional resilience and safeguards critical components from wear and environmental damage.
