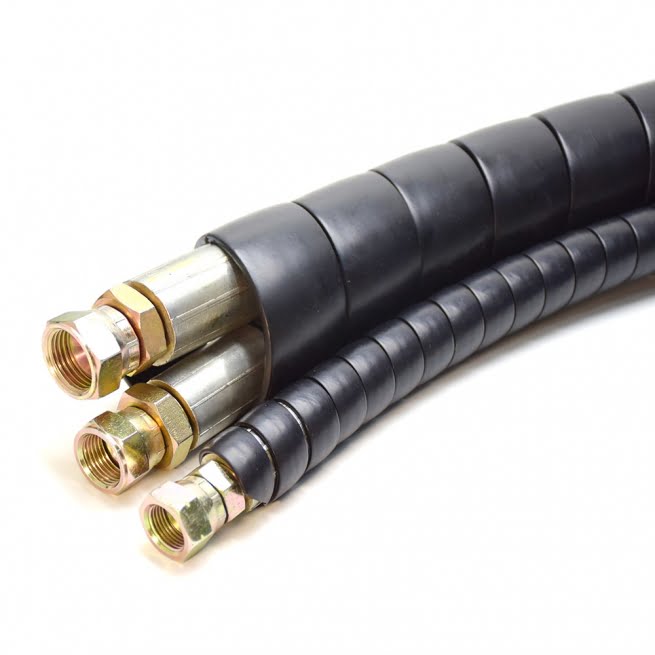

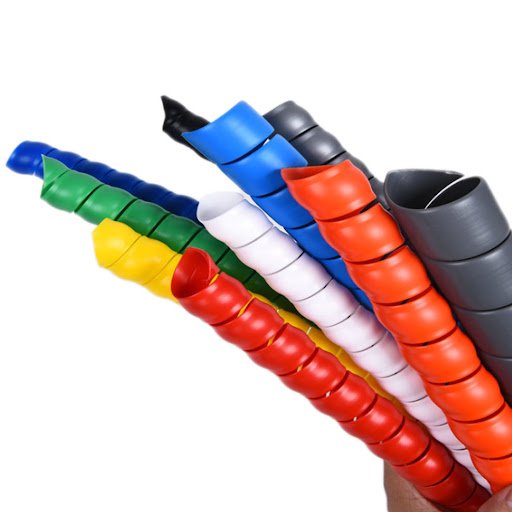

Hydraulic Hose Protector Spiral Cable Wrap
E-FLEX® Hydraulic Hose Sheathing is a rugged, high-performance barrier engineered from premium High-Density Polyethylene (HDPE). Specifically designed for the most demanding environments, this spiral wrap provides a tough shield against heavy abrasion from rocks, dirt, and industrial debris while offering exceptional resistance to UV rays, oils, and solvents. Its unique spiral design allows for rapid, on-site installation over existing hoses and cables without the need to disconnect any fittings. Ideal for mining, construction, and agriculture, it is the ultimate solution for extending the operational lifespan of critical hydraulic components and minimizing costly equipment downtime.
| Part No.: | HPS-HDPE-SX-CS |
|---|---|
| Material: | High Density Polyethylene(HDPE) |
| Working Temperature: | -50℃ to 100℃ |
| Flammability: | Non-Flame Retardant |
| Standard Color: | Black |
| Certification: | RoHS |
| Cutting Tool: | Hot Knife |
Hydraulic Hose Protector Spiral Cable Wrap
E-FLEX® Hydraulic Hose Protector spiral cable wrap is engineered from High-Density Polypropylene (HDPP) to provide a robust barrier against harsh environments. This spiral wrap shields your equipment from abrasion caused by dirt, rocks, and dust, while offering exceptional resistance to oils, UV rays, and solvents. By utilizing this spiral cable wrap, you can dramatically reduce the likelihood of hose failure and significantly extend the operational lifespan of your critical components.
Designed for maximum efficiency, this Hydraulic Hose Protector can be installed easily without the need to remove connectors or terminals. Its self-lubricating spiral design allows for seamless on-site fitting over existing rubber hoses, pipes, and cables, providing an effortless cable management solution that minimizes friction and wear.
Key Highlights of HDPE Spiral Hose Protector
- 1. Rapid Retrofit Installation: The self-lubricating spiral design enables effortless installation over existing hoses, pipes, and wire harnesses without dismantling connectors or terminals—minimizing maintenance labor.
- 2. Rugged Impact & Abrasion Defense: Crafted from high-density HDPE, it creates a robust external shell that absorbs impacts and prevents surface wear caused by constant friction against rough terrain or metal edges.
- 3. Extreme Temperature Resilience: Engineered to perform in harsh climates, maintaining high tensile strength from -50°C to +100°C without cracking or deformation.
- 4. Superior Chemical & UV Stability: Highly resistant to hydraulic fluids, gasoline, and solar degradation, ensuring long-term protection for outdoor equipment in mining and forestry sectors.
- 5. Efficient Cable Management: Provides a clean and organized way to bundle multiple hoses and cables, reducing snags and streamlining industrial hose routing for improved safety.
- 6. Proven Industrial Durability: Laboratory-tested for weight loss of less than 2mg after 100 turns of abrasion, ensuring a long-lasting, low-maintenance protective solution.
Physical Properties
| Material | High Density Polyethylene (HDPE) |
| Working Temperature | -50℃ ~ +100℃ |
| Tensile Strength | ≥ 25 Mpa at room temperature; ≥ 30 Mpa at -40℃ for 24H |
| Impact Strength | Conforms to GB/T 2411-1843 |
| Flammability | Non-Flame Retardant |
| Abrasion Resistance | Apply a load of 5N to rub the product by 100 turns, then abrade it by abrasive wheel H-18. The weight loss is less than 2mg after abrasion. |
| Oil Resistance | Use gasoline 93# and methylbenzene mixture to scrub the surface of the product for 5 minutes, specimen is without color-changing or clamminess phenomenon. |
| Low and High Temperature Resistance | 80℃ × 1H → Room temperature × 0.5H → -40℃ × 1H → Room temperature × 0.5H, as 1 circulation; The specimen is without deformation, cracking, clamminess or sinking after 5 circulations. |
| Color | Black |
| Certification | RoHS |
| Cutting Tool | Hot Knife |
Specification
| Part No. | ID (mm) | OD (mm) | Wall Thickness (mm) | Screw Pitch (mm) | Bundle Dia (mm) | Packing (m/spool) |
|---|---|---|---|---|---|---|
| HPS-HDPE-SX-008-BK-CS | 8 | 11 | 1.5 | 10 | 8~12 | 2/20/50/100/200 |
| HPS-HDPE-SX-010-BK-CS | 10 | 12.8 | 1.4 | 11 | 10~14 | 2/20/50/100/200 |
| HPS-HDPE-SX-012-BK-CS | 12 | 15 | 1.5 | 12 | 12~16 | 2/20/50/100/200 |
| HPS-HDPE-SX-014-BK-CS | 14 | 17 | 1.5 | 13 | 14~18 | 2/20/50/100/200 |
| HPS-HDPE-SX-016-BK-CS | 16 | 19.6 | 1.8 | 15 | 16~20 | 2/20/50/100/200 |
| HPS-HDPE-SX-018-BK-CS | 18 | 21.6 | 1.8 | 16 | 18~22 | 2/20/50/100 |
| HPS-HDPE-SX-020-BK-CS | 20 | 24 | 2 | 18 | 20~24 | 2/20/50/100 |
| HPS-HDPE-SX-021-BK-CS | 21 | 25 | 2 | 18 | 21~25 | 2/20/50/100 |
| HPS-HDPE-SX-022-BK-CS | 22 | 26 | 2 | 18 | 22~25 | 2/20/50/100 |
| HPS-HDPE-SX-023-BK-CS | 23 | 27 | 2 | 19.2 | 23~28 | 2/20/50/100/150 |
| HPS-HDPE-SX-024-BK-CS | 24 | 28 | 2 | 21 | 24~28 | 2/20/50/100/150 |
| HPS-HDPE-SX-025-BK-CS | 25 | 29.8 | 2.4 | 21.5 | 25~30 | 2/20/50/100/150 |
| HPS-HDPE-SX-028-BK-CS | 28 | 33.2 | 2.6 | 23 | 28~32 | 2/20/50/100/150 |
| HPS-HDPE-SX-030-BK-CS | 30 | 34.8 | 2.4 | 22.5 | 30~35 | 2/20/50/100 |
| HPS-HDPE-SX-032-BK-CS | 32 | 37.6 | 2.8 | 23 | 32~38 | 2/20/50/100 |
| HPS-HDPE-SX-035-BK-CS | 35 | 40.6 | 2.8 | 24 | 35~40 | 2/20/50/100 |
| HPS-HDPE-SX-038-BK-CS | 38 | 44 | 3 | 25 | 38~43 | 2/20/50/100 |
| HPS-HDPE-SX-040-BK-CS | 40 | 47 | 3.5 | 27 | 40~45 | 2/20/50 |
| HPS-HDPE-SX-042-BK-CS | 42 | 49 | 3.5 | 25 | 42~48 | 2/20/50 |
| HPS-HDPE-SX-045-BK-CS | 45 | 53 | 4 | 28 | 45~50 | 2/20/50 |
| HPS-HDPE-SX-048-BK-CS | 48 | 56 | 4 | 28 | 48~52 | 2/20/50 |
| HPS-HDPE-SX-050-BK-CS | 50 | 59 | 4.5 | 29 | 50~55 | 2/20/50 |
| HPS-HDPE-SX-052-BK-CS | 52 | 61 | 4.5 | 29 | 52~58 | 2/20/50 |
| HPS-HDPE-SX-055-BK-CS | 55 | 64 | 4.5 | 30 | 55~60 | 2/20/50 |
| HPS-HDPE-SX-060-BK-CS | 60 | 69 | 4.5 | 30 | 60~65 | 2/20/50 |
| HPS-HDPE-SX-063-BK-CS | 63 | 72 | 4.5 | 30 | 63~68 | 2/20/50 |
| HPS-HDPE-SX-065-BK-CS | 65 | 74 | 4.5 | 30 | 65~70 | 2/20/50 |
| HPS-HDPE-SX-067-BK-CS | 67 | 76 | 4.5 | 30 | 67~72 | 2/10/20 |
| HPS-HDPE-SX-070-BK-CS | 70 | 79 | 4.5 | 34 | 70~75 | 2/10/20 |
| HPS-HDPE-SX-074-BK-CS | 74 | 84 | 5 | 34 | 74~80 | 2/10 |
| HPS-HDPE-SX-075-BK-CS | 75 | 85 | 5 | 42 | 75~78 | 2/10 |
| HPS-HDPE-SX-080-BK-CS | 80 | 91 | 5.5 | 45 | 80~85 | 2/10 |
| HPS-HDPE-SX-088-BK-CS | 88 | 99 | 5.5 | 45 | 88~95 | 2/10 |
| HPS-HDPE-SX-090-BK-CS | 90 | 101 | 5.5 | 45 | 90~97 | 2/10 |
| HPS-HDPE-SX-100-BK-CS | 100 | 112 | 6 | 50 | 100~110 | 2/10 |
| HPS-HDPE-SX-150-BK-CS | 150 | 162 | 6 | 38 | 150~180 | 2 |
| HPS-HDPE-SX-200-BK-CS | 200 | 210 | 5 | 50 | 200~300 | 2 |
Application
The Hydraulic Spiral hose guard is the ideal safety guard for demanding sectors, including:
- Mining & Construction: Heavy-duty equipment protection.
- Forestry & Agriculture: Shielding lines from rugged outdoor debris.
- Trucking & Automotive: Organizing and safeguarding complex wire harnesses.
- Manufacturing: Streamlining industrial hose and cable management.
Why Source Spiral Guards from MJ-Flex?
- Comprehensive Size Range: We provide a massive inventory with IDs ranging from 8mm up to 200mm, ensuring a perfect fit for everything from small fuel lines to massive hydraulic bundles.
- Cost-Effective OEM Alternative: Performance-matched to leading brands, offering an interchangeable, high-quality solution at competitive wholesale pricing for global distributors.
- Reliable Global Supply: Based on years of export expertise, we offer fast, door-to-door shipping to the USA, Canada, Australia, and Europe with real-time tracking for every bulk order.
