White High Anti-Abrasion PET Expandable Wire Sleeve

White High Anti-Abrasion PET Expandable Wire Sleeve Provides exceptional mechanical protection with high flexibility and excellent abrasion resistance. It is easy to slip on cables and wires.

Part No

BRS-PET-HA

Material

PET monofilament

Working Temperature

-40℃ to 150℃

Melt Point

240+(-)10℃

Flammability

UL94 V2

Standard Color

Black, Grey, White

Certification

ROHS, Reach, UL, Halogen Fress

Cutting Tool

Hot Knife




White High Anti-Abrasion PET Expandable Wire Sleeving

White high abrasion resistant PET expandable wire sleeving was developed for applications where high flexibility and specific chemical properties are a must. The white anti-abrasion cable sleeve protector withstands continual movement without breaking. It retains its shape even after numerous cycles of bending and flexing, making it an ideal solution for a variety of applications.

Due to its high expansion and ultra-flexibility, this braided wire cover is incredibly easy to install over long runs. Furthermore, it cuts best with a hot knife and offers excellent resistance to gasoline, chemicals, and cleaning solvents.

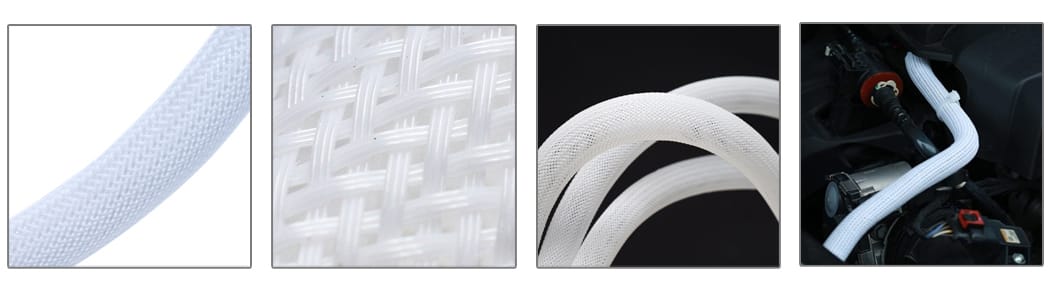

white braided sleeving top picture

Certifications








Product Size

PART NO NOMINAL SIZE THICKNESS EXPANDED RANGE PACKING
INCH MM (MM) MIN.(I) MAX.(O) (M/SPOOL)
(mm) (mm)
BRS-PET-003-WH-HA 1/8″ 3 0.2 or 0.25 1 6 1000
BRS-PET-006-WH-HA 1/4″ 6 0.2 or 0.25 3 9 500
BRS-PET-008-WH-HA 5/16″ 8 0.2 or 0.25 5 12 350
BRS-PET-010-WH-HA 3/8″ 10 0.2 or 0.25 7 17 350
BRS-PET-012-WH-HA 1/2″ 12 0.2 or 0.25 8 20 300
BRS-PET-015-WH-HA 5/8″ 15 0.2 or 0.25 10 27 250
BRS-PET-020-WH-HA 3/4″ 20 0.2 or 0.25 14 30 200
BRS-PET-025-WH-HA 1″ 25 0.2 or 0.25 18 33 200
BRS-PET-032-WH-HA 1-1/4″ 32 0.2 or 0.25 20 50 150
BRS-PET-038-WH-HA 1-1/2″ 38 0.2 or 0.25 30 60 100
BRS-PET-045-WH-HA 1-3/4″ 45 0.2 or 0.25 35 75 100
BRS-PET-050-WH-HA 2″ 50 0.2 or 0.25 40 80 100
BRS-PET-064-WH-HA 2-1/2″ 64 0.2 or 0.25 45 105 100
BRS-PET-076-WH-HA 3″ 76 0.2 or 0.25 64 120 100






Application of  White Anti-Abrasion Sleeving

Industries widely use abrasion resistant wire sleeve to safeguard wiring harnesses and hoses in heavy equipment. Offering superior resistance to abrasion and UV damage, making them ideal for demanding environments.
