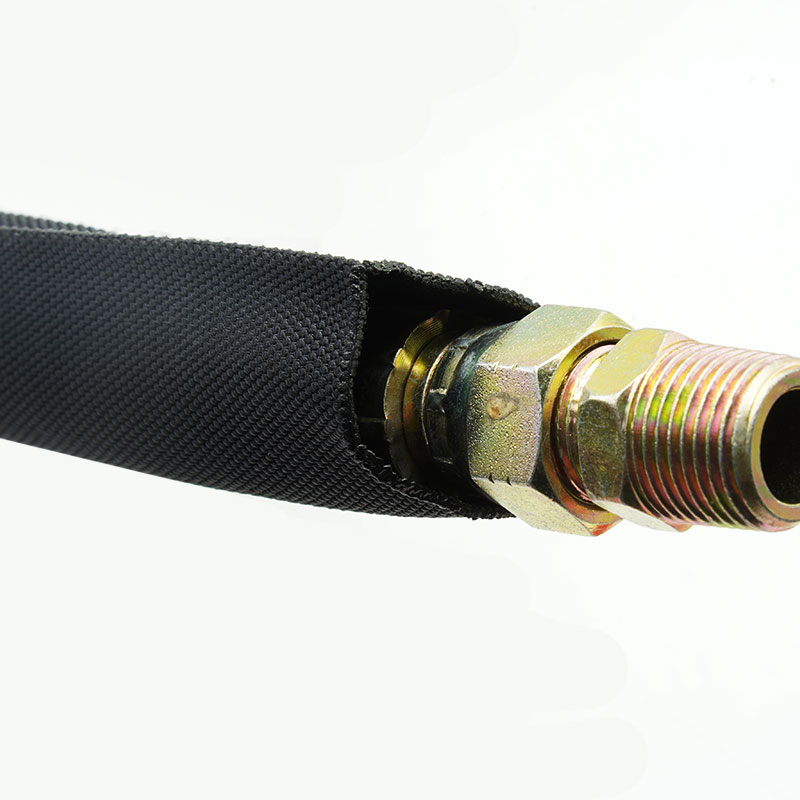

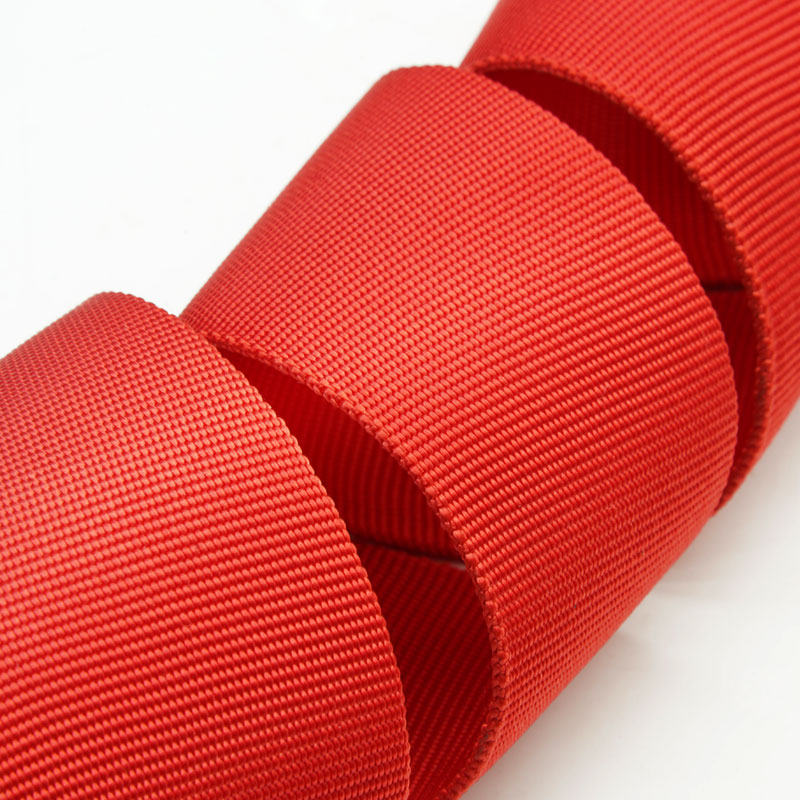

• Reduce external hose-cover wear
The nylon layer helps isolate hydraulic hoses from repetitive contact with machine frames, clamps and neighboring lines.
• Protect confined routes without excessive bulk
The 0.8 mm construction suits installations where available space and added sleeve diameter are limited.

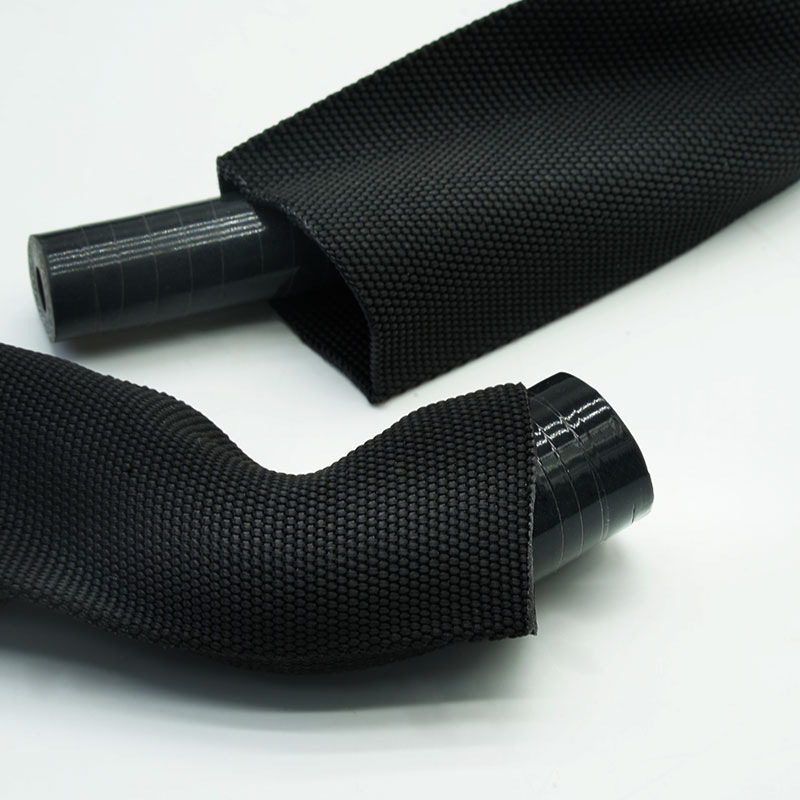

• Control multi-hose movement
Bundling nearby lines helps reduce uncontrolled rubbing and keeps routing more orderly during machine operation.
1. Nominal 0.8 mm sleeve thickness
Provides a lightweight protective layer for space-conscious hydraulic routing.
2. Abrasion-control barrier
Helps reduce scuffing and wear on the hose outer cover when correctly fitted.
3. Flexible hose-bundle management
Conforms to curved routes and groups one or more compatible hydraulic lines.
4. Low-bulk installation
Adds less profile than thicker protective sleeves where clearance is restricted.

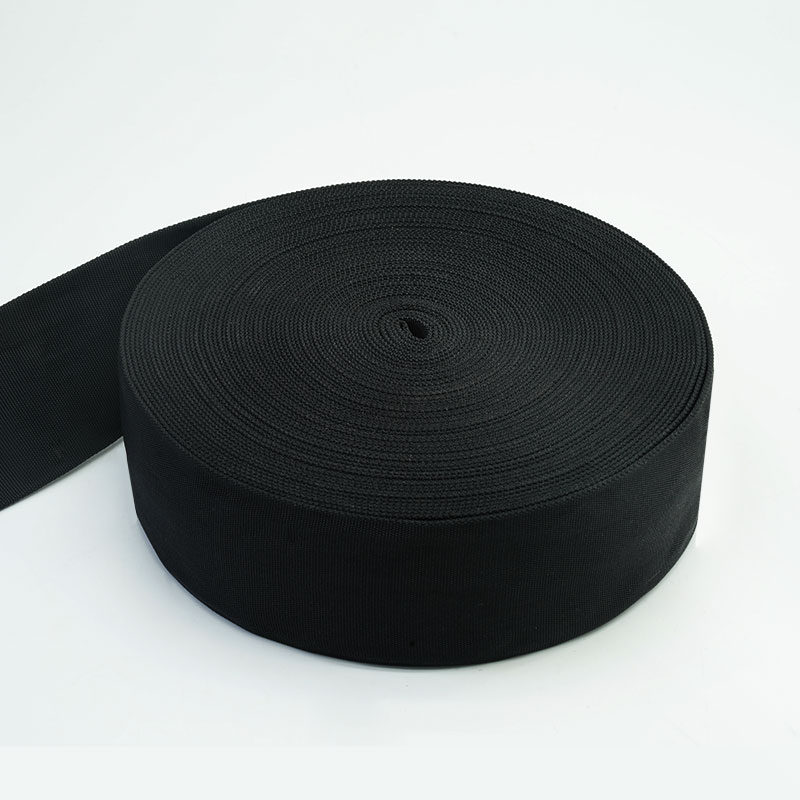

5. Serviceable cut-length supply
Can be prepared to project lengths for repeatable installation on machinery or hose assemblies.
6. OEM customization options
Diameter, length, color, marking, end treatment and packaging can be reviewed for production programs.
| Material |
Nylon multifilament
|
| Working Temperature |
-40°C to +125°C |
| Melting Point |
220±10°C |
| Flammability |
FMVSS 302 |
| MSHA Compliance |
Refer to MSHA IC293/01 |
| Blasting Resistance |
Refer to ISO3457 |
| Abrasion Resistance |
Refer to ISO 6945 |
| Anti-leakage |
Conform to SAE J343 |
| UV Resistant |
Conform to BS EN13758-1 |
| Standard Color |
Black |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
I.D
(mm)
|
Flat Width
(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
| HPS-NY-S-010-BK-T8 |
10 |
20 |
0.8±0.1
|
50 |
| HPS-NY-S-014-BK-T8 |
14 |
25 |
0.8±0.1 |
50 |
| HPS-NY-S-017-BK-T8 |
17 |
30 |
0.8±0.1 |
50 |
| HPS-NY-S-020-BK-T8 |
20 |
35 |
0.8±0.1 |
50 |
| HPS-NY-S-023-BK-T8 |
23 |
39 |
0.8±0.1 |
50 |
| HPS-NY-S-025-BK-T8 |
25 |
42 |
0.8±0.1 |
50 |
| HPS-NY-S-027-BK-T8 |
27 |
46 |
0.8±0.1 |
50 |
| HPS-NY-S-031-BK-T8 |
31 |
52 |
0.8±0.1 |
50 |
| HPS-NY-S-033-BK-T8 |
33 |
55 |
0.8±0.1 |
50 |
| HPS-NY-S-036-BK-T8 |
36 |
60 |
0.8±0.1 |
50 |
| HPS-NY-S-040-BK-T8 |
40 |
66 |
0.8±0.1 |
50 |
| HPS-NY-S-044-BK-T8 |
44 |
72 |
0.8±0.1 |
50 |
| HPS-NY-S-047-BK-T8 |
47 |
77 |
0.8±0.1 |
50 |
| HPS-NY-S-050-BK-T8 |
50 |
80 |
0.8±0.1 |
50 |
| HPS-NY-S-053-BK-T8 |
53 |
86 |
0.8±0.1 |
50 |
| HPS-NY-S-056-BK-T8 |
56 |
91 |
0.8±0.1
|
50 |
| HPS-NY-S-060-BK-T8 |
60 |
97 |
0.8±0.1
|
50 |
| HPS-NY-S-062-BK-T8 |
62 |
100 |
0.8±0.1
|
50 |
| HPS-NY-S-066-BK-T8 |
66 |
107 |
0.8±0.1
|
50 |
| HPS-NY-S-073-BK-T8 |
73 |
118 |
0.8±0.1
|
50 |
| HPS-NY-S-078-BK-T8 |
78 |
126 |
0.8±0.1
|
50 |
| HPS-NY-S-085-BK-T8 |
85 |
137 |
0.8±0.1
|
50 |
| HPS-NY-S-090-BK-T8 |
90 |
145 |
0.8±0.1
|
50 |
| HPS-NY-S-093-BK-T8 |
93 |
149 |
0.8±0.1
|
50 |
| HPS-NY-S-102-BK-T8 |
102 |
165 |
0.8±0.1
|
50 |
| HPS-NY-S-106-BK-T8 |
106 |
170 |
0.8±0.1
|
50 |
| HPS-NY-S-112-BK-T8 |
112 |
179 |
0.8±0.1
|
50 |
| HPS-NY-S-127-BK-T8 |
127 |
206 |
0.8±0.1
|
50 |
Typical Applications
Construction and earthmoving equipment
Reduces hose-cover contact with booms, frames and moving machine structures in congested routing areas.
Agricultural machinery
Groups hydraulic lines and limits rubbing caused by vibration, articulation and repeated implement movement.
Material-handling systems
Protects lift, steering and auxiliary hoses where clearance is limited around masts, guides and brackets.
Industrial hydraulic equipment
Separates flexible hoses from machine edges and neighboring components inside presses, power units and production equipment.
Measure the maximum outside diameter of the individual hose or complete hose bundle, including fittings, clamps and local transitions. Choose a sleeve that installs without excessive stretching yet remains close enough to avoid snagging or uncontrolled movement. Review bend radius, flex frequency, rubbing points, temperature, hydraulic fluids, outdoor exposure and the method used to secure each end. For applications requiring protection against high-pressure fluid spray or hose bursts, the sleeve's suitability should be verified under the relevant operating and test conditions.
Customization Available
• Diameter and Bundle Fit - Select suitable sleeve sizes based on the outside diameter of individual hoses or multi-hose bundles.
• Cut Lengths and Tolerances - Customized cut lengths and tolerance control to meet the requirements of specific machine zones, hose kits, or assembly stations.
• Color and Identification - Black is the standard color; printed labels or other identification options can be evaluated upon request.
• Packaging - Available in rolls, bags, kits, and customized OEM cartons.
• Incoming yarn verification - Material identity and agreed purchasing requirements are checked before production.
• Wall and construction checks - Nominal thickness and textile build are measured according to the approved inspection plan.
• Size and fit review - Finished diameter and sample fit are compared with the confirmed hose or bundle dimensions.
• Workmanship inspection - The sleeve is examined for yarn damage, contamination, uneven coverage and unacceptable openings.
• Order conformity - Length, marking, end finish, quantity and packaging are checked against the released order.
Frequently Asked Questions
01. How do I select the correct sleeve diameter?
Measure the maximum hose or bundle outside diameter and allow enough installation clearance without leaving excessive looseness.
02. Can it protect several hoses together?
Yes, provided the complete bundle diameter, movement, bend radius and end-retention method are considered.
03.Does the sleeve replace hose inspection?
No. The hose, fittings and sleeve should all be inspected according to the equipment maintenance plan.
04. Can custom lengths and markings be supplied?
Yes. Provide the finished length, tolerance, identification requirement, quantity and packaging format for review.
Request a Sample or Quote
Send the hose or bundle outside diameter, routing conditions, abrasion points, temperature, fluid exposure, finished length and order quantity. MJ FLEX will review the fit and arrange a HPS-NY-S-T8 sample or quotation.
