Why Choose STW-PET-FR-V0 Woven Sleeving?
1. Meet a defined V-0 material requirement
The referenced construction supports projects specifying UL 94 V-0 rather than a generic FR claim.
2. Upgrade existing harnesses
Side entry allows flame-retardant protection to be added without removing terminals.
3. Keep equipment wiring serviceable
The sleeve reopens for inspection, replacement and branch access.
4. Separate material and system approval
Documentation can be reviewed while recognizing that the final equipment may require its own evaluation.
1. UL 94 V-0 material performance
Referenced construction supports the specified plastics flammability classification.

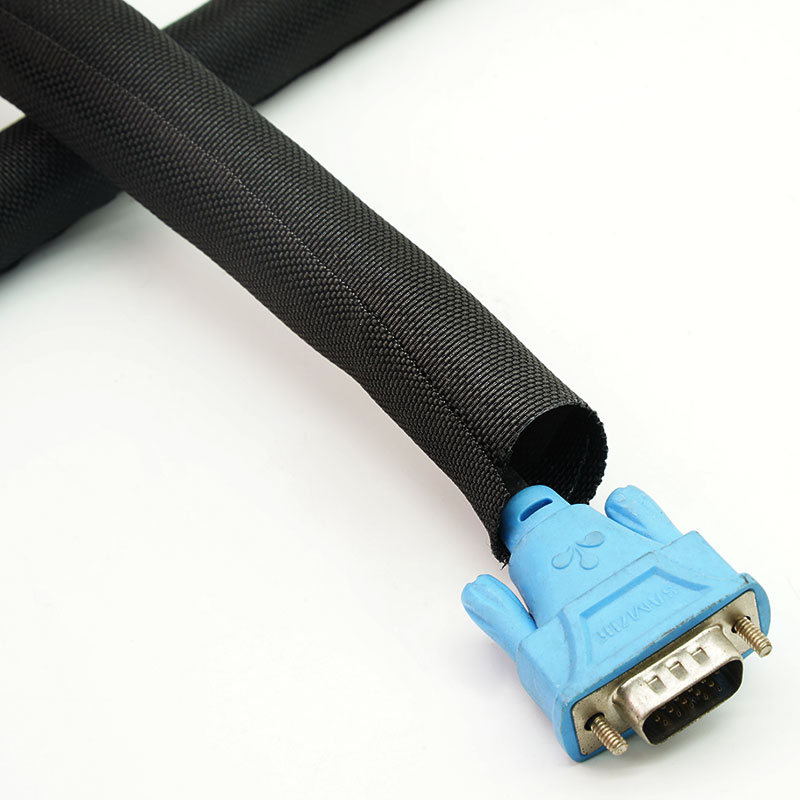

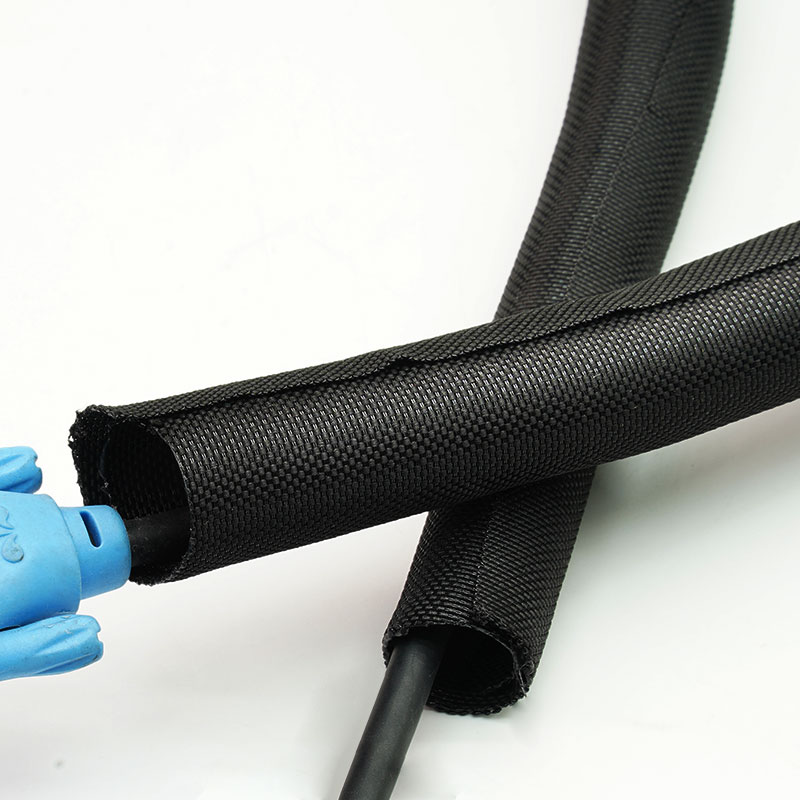

2. Self-closing split construction
Wraps around existing cables and returns to a closed position.

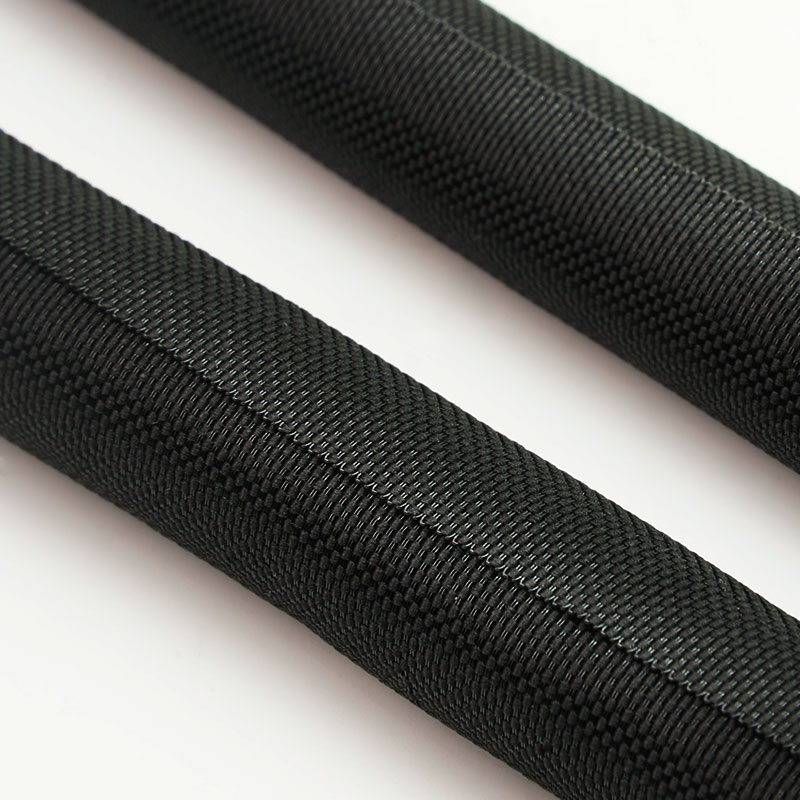

3. Flame-retardant woven PET
Combines textile flexibility with controlled material flame behavior.

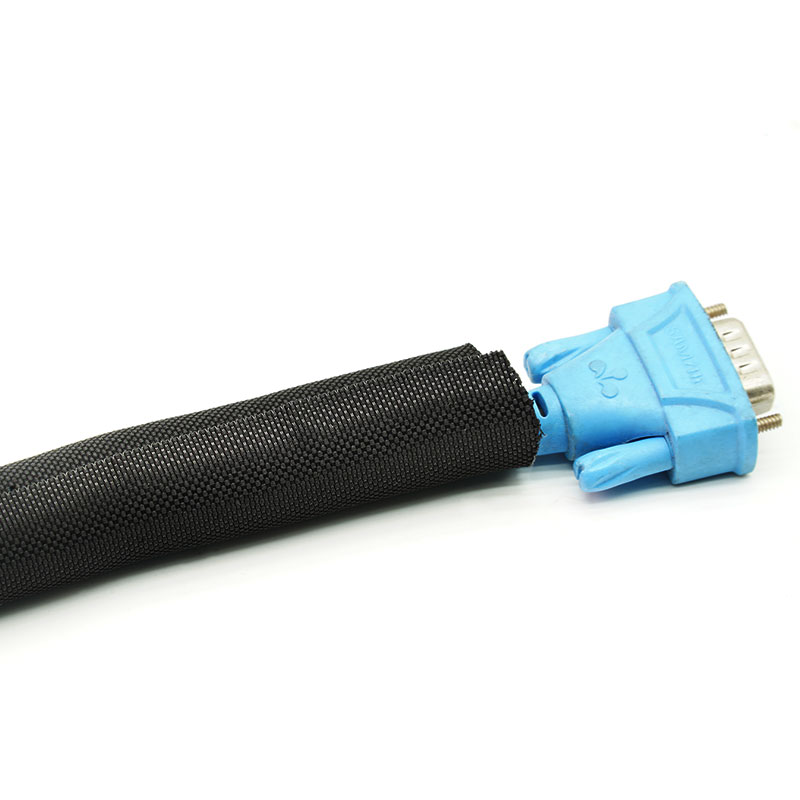

4. Retrofit and maintenance access
Supports installation and servicing without connector removal.
5. Flexible abrasion protection
Helps limit cable-jacket wear inside equipment and cabinets.
6. Controlled overlap
Provides continuous coverage when correctly sized.
7. Compliance document support
Applicable reports and declarations can be matched to the ordered construction.
| Material |
Flame-retardant PET Monofilament+900D Multifilament |
| Construction |
Self-closing split wrap |
| Overlap |
≥35% |
| Working Temperature |
-40°C to +150°C |
| Melting Point |
240±10°C |
| Flammability |
UL94 V0 |
| Abrasion Resistance |
Refer to ISO6722 |
| Aging Resistance |
Refer to ISO6722 |
| Liquid Resistance |
Refer to GMW14327 |
| Standard Color |
Black |
| Certification |
RoHS,REACH,Halogen free |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Blade or hot knife |
Specifications
|
Part No
|
Nominal Size
(mm)
|
Spread Width
(mm)
|
Bundle Dia Range(mm)
|
Packing
Length
(m/spool)
|
|
Min
|
Max
|
|
STW-PET-003-BK-FR-V0
|
Φ3
|
25±2
|
2 |
4 |
200 |
|
STW-PET-005-BK-FR-V0
|
Φ5
|
29±2
|
4 |
6 |
200 |
|
STW-PET-006-BK-FR-V0
|
Φ6
|
34±2
|
4 |
7 |
200 |
|
STW-PET-008-BK-FR-V0
|
Φ8
|
46±2
|
6 |
10 |
100 |
|
STW-PET-010-BK-FR-V0
|
Φ10
|
55±2
|
8 |
11 |
100 |
|
STW-PET-013-BK-FR-V0
|
Φ13
|
65±2
|
12 |
15 |
100 |
|
STW-PET-016-BK-FR-V0
|
Φ16
|
77±2
|
15 |
18 |
100 |
|
STW-PET-019-BK-FR-V0
|
Φ19
|
104±5
|
18 |
20 |
50 |
|
|
|
|
23 |
26 |
25 |
|
|
|
|
27 |
31 |
25 |
|
|
|
|
30 |
34 |
25 |
|
|
|
|
37 |
40 |
25 |
|
|
|
|
48 |
52 |
25 |
● Note: Select the size according to the actual bundle diameter and ensure at least 35% overlap after installation.
Typical Applications
Electrical control cabinets
Protects organized power, signal and control wiring where V-0 material performance is specified.
Battery and energy-storage equipment
Wraps auxiliary and low-voltage harnesses while preserving maintenance access.
Charging equipment
Protects cable groups within modules and enclosures subject to equipment-level review.
Appliances and instruments
Covers internal wiring routed close to housings and components.
Electronic production equipment
Adds serviceable protection to terminated cable assemblies.
Confirm that UL 94 V-0 is the specified classification; it is not interchangeable with VW-1 or EN 45545-2. Provide bundle range, overlap requirement, temperature, installation location and required documents. Approval should reference the exact ordered material and construction.
Customization Available
• Approved size selection - Diameter and overlap matched to the cable bundle.
• Pre-cut pieces - Project lengths with agreed end and dimensional tolerance.
• Traceability labels - Lot, project and document references on packaging.
• OEM packaging - Custom roll lengths, kits, labels and cartons.
UL 94 V-0 applies to the referenced material or sleeve construction and does not certify the complete harness or equipment. It is different from VW-1, FMVSS 302 and EN 45545-2. Applicable RoHS, REACH and halogen-free documents should be matched to the supplied construction.
• Controlled FR material - Approved flame-retardant yarn is verified before production.
• Overlap verification - Closure is checked across the specified bundle range.
• Process traceability - Material and production lots are retained.
• Documented release - Dimensions, appearance, labels and requested files are verified.
Frequently Asked Questions
01. Is UL 94 V-0 the same as VW-1?
No. They are different test classifications and cannot be substituted without approval.
02. Does V-0 certify the whole harness?
No. It applies to the referenced material or sleeve construction.
03. Can it be installed after connectors are fitted?
Yes. Its split wrap-around design supports side-entry installation.
Request a Sample or Quote
Send the bundle range, installation environment, required standard, cut length and quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quote.
