• Clear oversized connectors
The enlarged pass-over capability helps the sleeve travel across plugs and fittings that ordinary expandable braid may not accommodate.
• Protect pre-terminated assemblies
Installation can be completed after connectors are fitted, reducing the need to depin, reterminate or rebuild the harness.

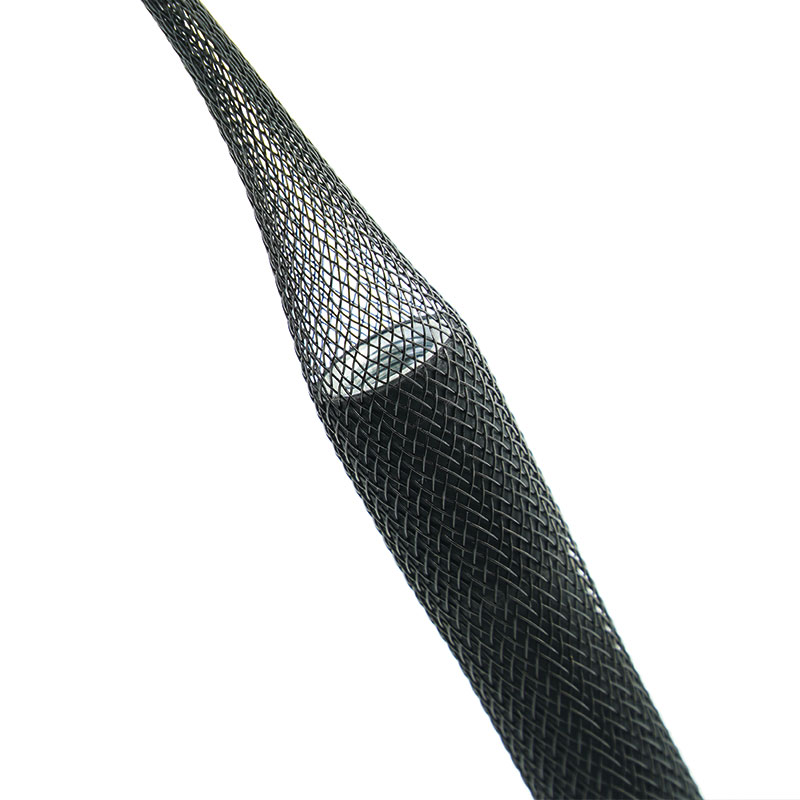

• Handle abrupt diameter transitions
The open braid geometry adapts to connector backshells, splices and other local increases in assembly size.
• Reduce size complexity for variable bundles
A carefully selected OverExpand construction can cover a wider assembly range, potentially simplifying sleeve inventory and installation planning.
1. Enhanced pass-over expansion
The braid opens widely to negotiate connectors, plugs and other enlarged components.

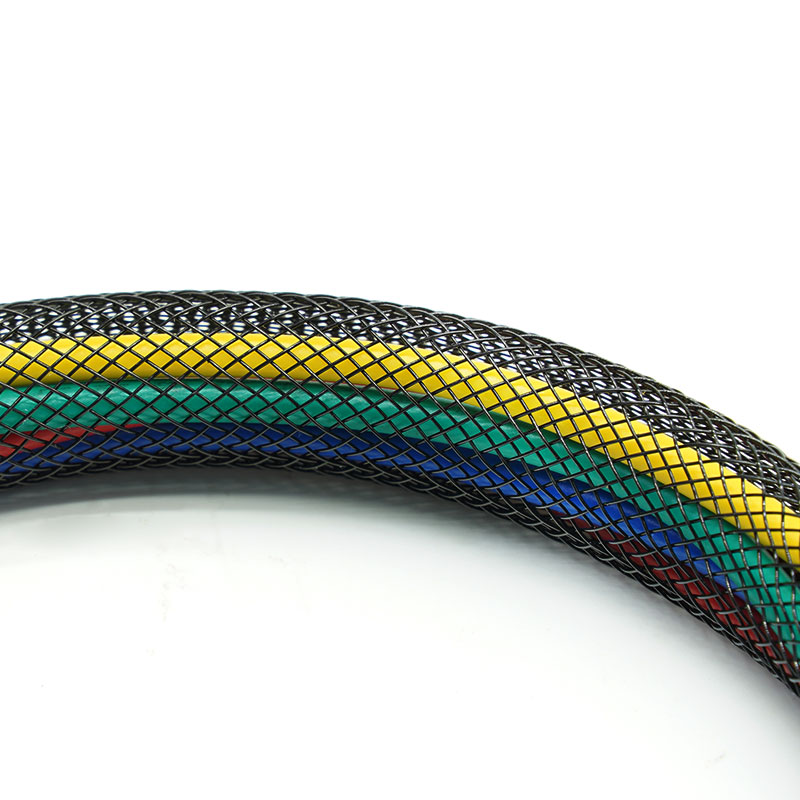

2. Recovery around the cable bundle
After passing the obstruction, the sleeve contracts toward the smaller harness diameter for practical cable containment.
3. Connector-friendly installation
Supports post-termination sleeving without cutting off or removing many fitted components.

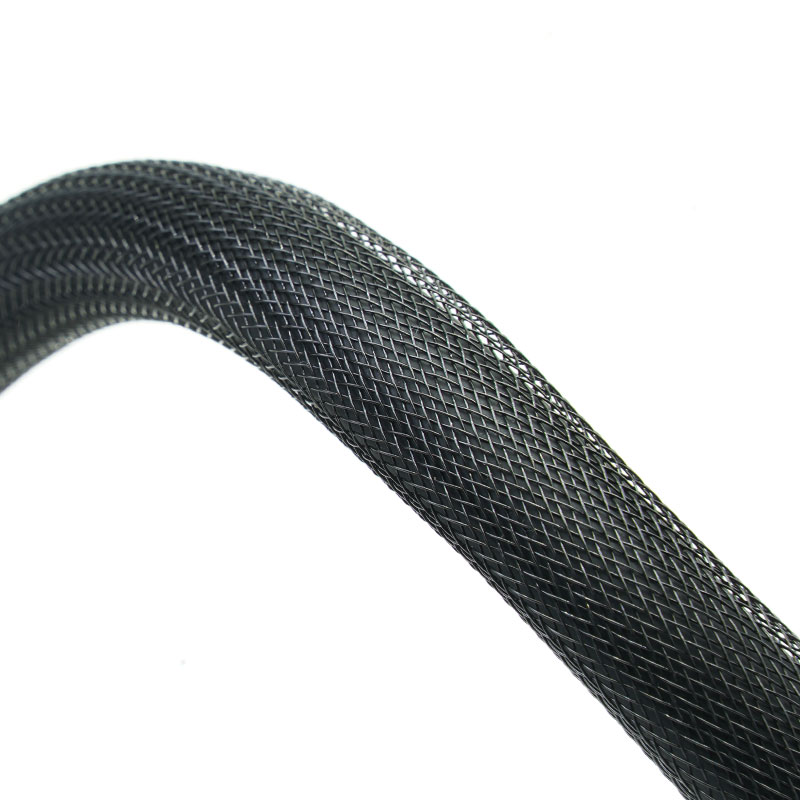

4. PET monofilament construction
Provides lightweight mechanical protection with flexible handling for cable and wire assemblies.
5. Adaptability to irregular profiles
Follows splices, transitions and moderate bundle changes along the protected route.
6. Reduced assembly disruption
Helps shorten installation steps where conventional tubing would require connector disassembly.
7. Project-specific expansion design
Nominal size, pass-over requirement, braid geometry, length and packaging can be reviewed for the application.
| Material |
PET monofilament |
| Construction |
Highly expandable tubular braid |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
UL 94 V2 |
| Standard Color |
Black |
| Size range |
Project-specific nominal sizes |
| Certification |
RoHS,REACH,Halogen Free |
| Cutting Tool |
Hot knife |
| Supply form |
Bulk rolls or custom cut lengths |
Specifications
|
Part No
|
Flat Width(W)
|
Expanded Range(mm)
|
Packing
Length
(m/spool)
|
|
Inch
|
mm
|
Min.(I)
|
Max.(O)
|
|
BRS-PET-006-BK-OE
|
1/4”
|
6 |
3 |
12 |
500 |
|
BRS-PET-008-BK-OE
|
5/16”
|
8 |
6 |
22 |
500 |
|
BRS-PET-010-BK-OE
|
3/8”
|
10 |
5 |
25 |
350 |
|
BRS-PET-012-BK-OE
|
1/2”
|
12 |
11 |
35 |
300 |
|
BRS-PET-020-BK-OE
|
3/4”
|
19 |
12 |
45 |
200 |
Typical Applications
Pre-terminated cable assemblies
Passes over installed plugs so protective sleeving can be added without depinning or replacing connectors.
Automotive and equipment harnesses
Covers wiring with connector backshells, branch joints or local diameter changes that complicate pull-through installation.
Data and communication cables

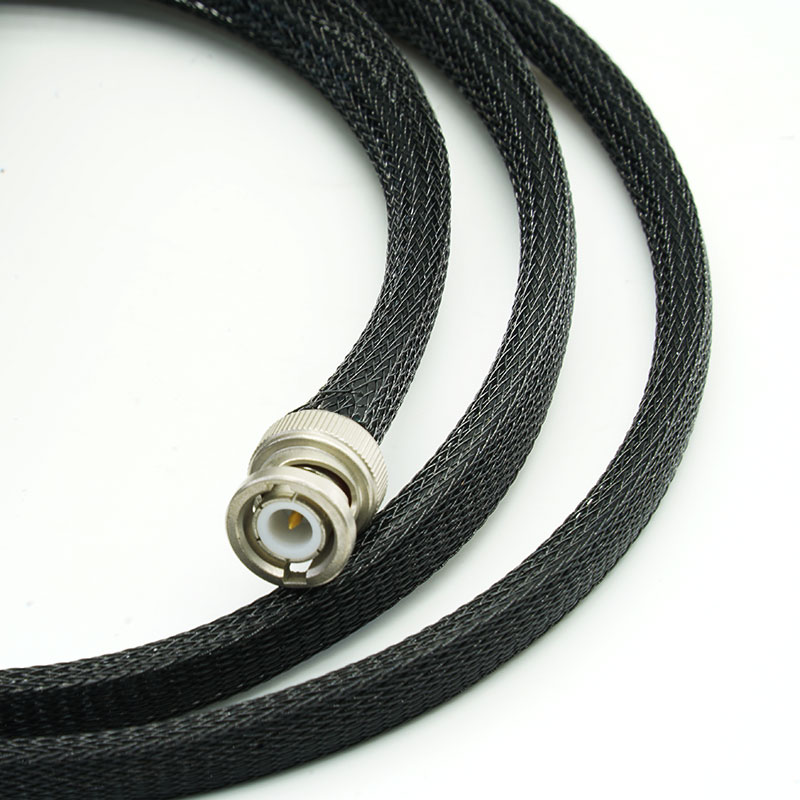

Fits over molded ends and interface connectors while protecting the smaller cable section behind them.
Industrial sensors and control leads
Protects ready-to-install cables fitted with terminals, glands or sensor heads that are wider than the cable bundle.
Service replacement and retrofit kits
Allows technicians to add or replace braided protection while retaining original cable terminations where installation access permits.
Record two separate dimensions: the largest component the sleeve must pass over and the minimum-to-maximum diameter of the cable section that remains covered. Also measure connector length, sharp shoulders and available installation space. A construction that clears the connector must still recover sufficiently around the final bundle. Expansion increases braid openings and causes longitudinal shortening, so confirm coverage and finished length on an actual assembly or representative gauge. Do not calculate cut length from the relaxed sleeve alone; include installation take-up, routing bends and the required end allowance.
Customization Available
Expansion profile - Braid geometry can be reviewed against connector-to-bundle diameter ratio.
Nominal size and coverage - Selected to balance pass-over clearance with acceptable installed appearance.
Cut length development - Trial pieces can establish the correct relaxed length for the required installed coverage.
Color and production packaging - Project colors, labeled lengths, reels, bags and assembly kits are available subject to MOQ and confirmation.
OverExpand describes installation geometry and does not by itself establish flame resistance, UV resistance, temperature class or an automotive approval. RoHS, REACH and other material documentation may be supplied for the confirmed PET construction. Any flammability or environmental statement must be linked to the exact yarn, color and test report. Expansion ratio, installed coverage and length change should be verified using an agreed measurement method and representative connector-and-bundle combination.
Pass-over verification - The agreed construction is checked against a defined connector diameter or customer gauge.
Recovery and coverage check - Sleeve fit is reviewed again on the target cable-bundle range after expansion.
Expansion-path consistency - Production samples are opened through the specified diameter range to identify uneven expansion, snagging or isolated mesh distortion.
Installed-length evaluation - Expansion-related shortening can be checked when finished cut length is project critical.
Shipment release - Material, color, roll or cut length, labels, quantity and packaging are confirmed before dispatch.
Frequently Asked Questions
01. How should BRS-PET-OE be sized?
Use both the largest connector diameter and the final cable-bundle diameter. A sleeve selected only for the connector may be too open or loose on the cable.
02. Will coverage remain the same at maximum expansion?
No. The mesh openings become larger as the braid expands. Evaluate coverage at the actual installed diameter.
03. Can one size cover several cable diameters?
Potentially, but acceptable recovery, coverage and appearance must be confirmed across the complete range.
04. Can it be installed over molded connectors?
Often yes, provided the largest connector diameter and shape fall within the verified pass-over capability of the selected construction.
Request a Sample or Quote
Send the final bundle range, largest connector dimensions, connector length and shape, required coverage, installed length, color and order quantity. MJ FLEX will review the expansion path and arrange a suitable BRS-PET-OE sample or quotation.
