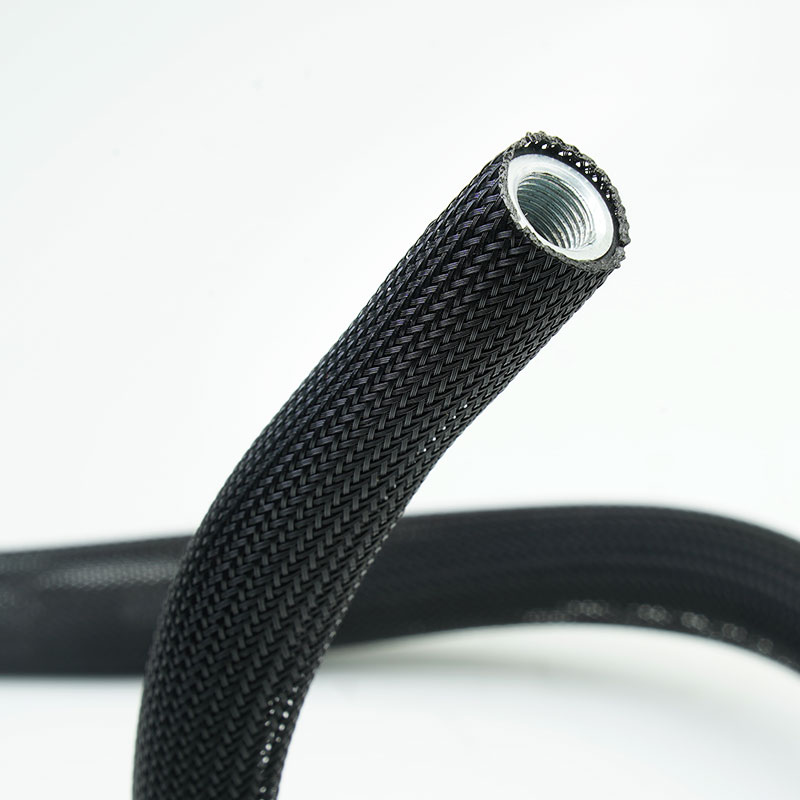

Flexible abrasion protection for industrial cable and hose assemblies
Why Choose PA6 Nylon Braided Sleeving?
• Improve protection in high
PA6 provides a tough braided barrier for cable bundles that rub against frames, housings or nearby components.

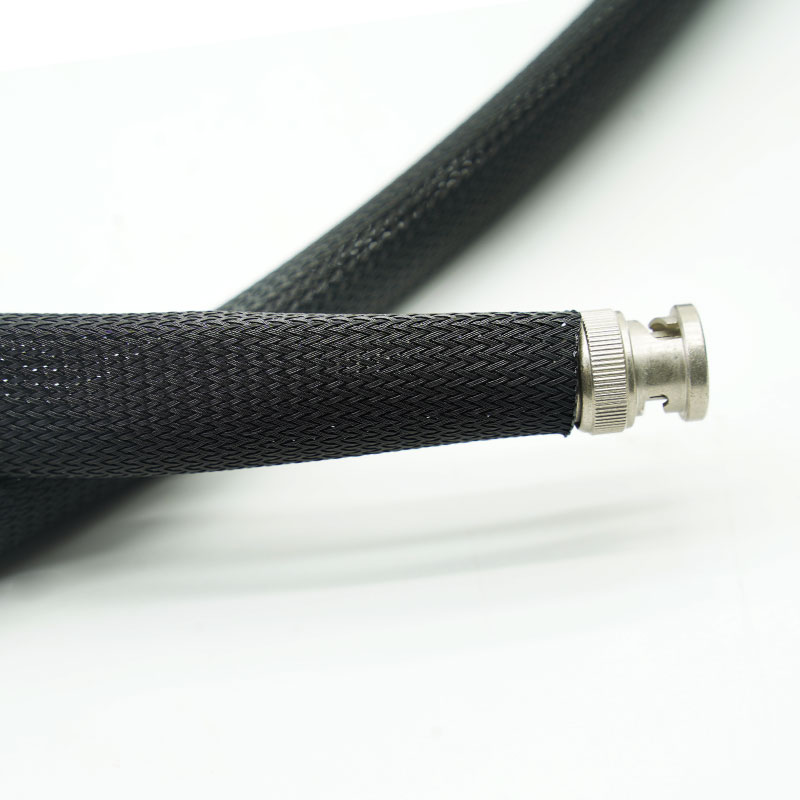

• Fit connectors without a split construction
The expandable braid enlarges during installation and recovers around the cable bundle.
• Balance toughness and flexibility
The sleeve follows bends and changing bundle profiles without the weight of rigid conduit.
• Support application-specific production
Available test information can be matched to the proposed size, installation location and customer project specification before approval.
1. PA6 monofilament construction
Provides durable mechanical protection with a flexible braided structure.
2. Expandable installation range
Passes over connectors and accommodates moderate variation in bundle diameter.
3. Good abrasion resistance
Helps reduce cable-jacket wear in machinery and equipment routing.

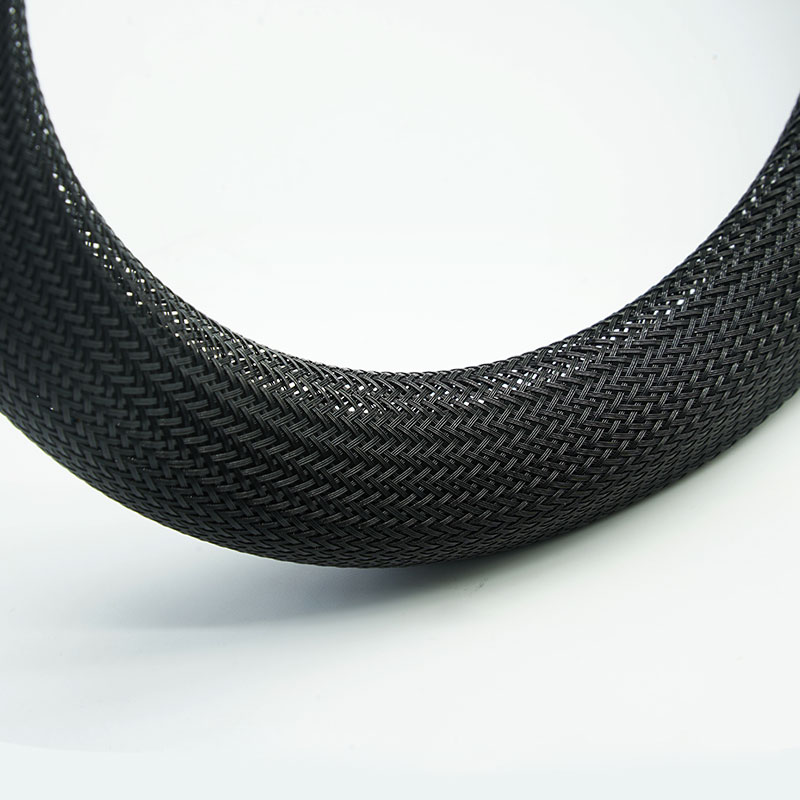

4. Flexible bend performance
Follows curved harness paths while maintaining organized coverage.
5. Lightweight open braid
Adds protection without sealing the bundle or creating a bulky conduit.
6. Custom supply options
Available in project-specific sizes, colors, cut lengths and packaging subject to review.
| Material |
PA6 monofilament |
| Construction |
Expandable braid |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
220±10°C |
| Flammability |
UL94 V2 |
| Abrasion Resistance |
High |
| Wall thickness |
0.65 ± 0.05 mm |
| Standard Color |
Black |
| RoHS Compliant |
Yes |
| Reach Compliant |
Yes |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
Flat Width(W)
|
Expanded Range(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
|
Inch
|
mm
|
Min.(I)
|
Max.(O)
|
|
BRS-PA6-003-BK
|
1/8”
|
3 |
1 |
6 |
0.65±0.05
|
1000 |
|
BRS-PA6-006-BK
|
1/4”
|
6 |
3 |
9 |
0.65±0.05
|
500 |
|
BRS-PA6-008-BK
|
5/16”
|
8 |
5 |
12 |
0.65±0.05
|
350 |
|
BRS-PA6-010-BK
|
3/8”
|
10 |
7 |
17 |
0.65±0.05
|
350 |
|
BRS-PA6-012-BK
|
1/2”
|
12 |
8 |
20 |
0.65±0.05
|
350 |
|
BRS-PA6-016-BK
|
5/8”
|
16 |
10 |
27 |
0.65±0.05
|
250 |
|
BRS-PA6-018-BK
|
11/16"
|
18 |
12 |
29 |
0.65±0.05
|
250 |
|
BRS-PA6-020-BK
|
3/4”
|
20 |
14 |
32 |
0.65±0.05
|
200 |
|
|
1”
|
25 |
18 |
35 |
0.65±0.05
|
200 |
|
|
1-1/4”
|
32 |
20 |
50 |
0.65±0.05
|
150 |
|
|
1-1/2”
|
38 |
30 |
60 |
0.65±0.05
|
100 |
|
|
1-3/4”
|
45 |
35 |
75 |
0.65±0.05
|
100 |
|
|
2”
|
50 |
40 |
80 |
0.65±0.05
|
100 |
|
|
2-1/2”
|
64 |
45 |
105 |
0.65±0.05
|
50 |
|
|
3”
|
76 |
64 |
120 |
0.65±0.05
|
50 |
|
|
4”
|
100 |
80 |
150 |
0.65±0.05
|
50 |
● Note: Expanded range describes geometric capability, not the preferred continuous operating point. Selecting near maximum expansion increases braid openings, reduces surface coverage and shortens installed length.
Typical Applications
Industrial machinery
Protects control and sensor wiring from rubbing against frames, guards and moving equipment surfaces.
Automotive and specialty vehicles
Bundles harnesses in areas requiring flexible routing and stronger mechanical protection.
Robotics and automation
Controls cable disorder and surface wear along articulated or repeatedly serviced routes.
Power tools and production equipment
Protects internal leads from vibration, handling and contact with housings.
Marine and outdoor equipment
Provides tough cable organization where moisture exposure and mechanical handling must be considered together.
Provide the minimum and maximum cable-bundle diameter, largest connector, bend radius, abrasion level, temperature, fluids and required documents. PA6 absorbs more moisture than PET, so dimensional or mechanical requirements in tightly controlled applications should be reviewed under the expected service condition.
Customization Options
• Size and expansion range - Nominal diameter and braid angle can be reviewed against the cable bundle and largest connector.
• Color options -Black is standard; other colors can be evaluated according to quantity and raw-material availability.
• Cut-length service -Pre-cut pieces can be supplied with agreed length tolerance and end treatment.
• Packaging and identification-Roll length, carton quantity, private labels and project references can be customized.
• Application-specific construction-Braid density and yarn selection can be reviewed when abrasion, flexibility or coverage requirements differ from the standard product.
PA6 performance depends on the selected resin grade, yarn and conditioning state. RoHS, REACH and halogen-free documentation may be supplied for approved materials when applicable. Standard PA6 should not be described as UL 94 V-0, VW-1 or FMVSS 302 unless the ordered construction is supported by the corresponding report.
• Incoming yarn verification - Material identity, color and filament condition are checked before braiding.
• Braid consistency control -Operators monitor coverage, pick pattern and surface defects during production.
• Dimensional inspection -Nominal diameter, expansion behavior and connector pass-through are checked against the approved specification.
• Length and packaging checks -Roll length or cut length, labeling and package quantity are verified before release.
• Final visual inspection-Finished sleeving is checked for broken filaments, contamination, irregular braid and damaged ends.
Frequently Asked Questions
01. How is PA6 different from PET sleeving?
PA6 is normally selected when nylon toughness, flexibility and abrasion behavior are preferred. PET is often chosen for general-purpose cable management, dimensional stability and broad commercial availability.
02. Can it expand over connectors?
Yes. Select a nominal size that can pass over the largest connector and recover around the cable bundle.
03. Is PA6 automatically flame retardant?
No. Flame performance depends on the specific material and construction. State the required standard when requesting a quotation.
04.Can custom cut lengths be supplied?
Yes, subject to length tolerance, end finish, packaging and minimum-order review.
Request a Sample or Quote
Share the bundle diameter, connector size, environment, required standard and quantity. MJ FLEX will recommend a suitable construction and arrange samples or a quotation.
