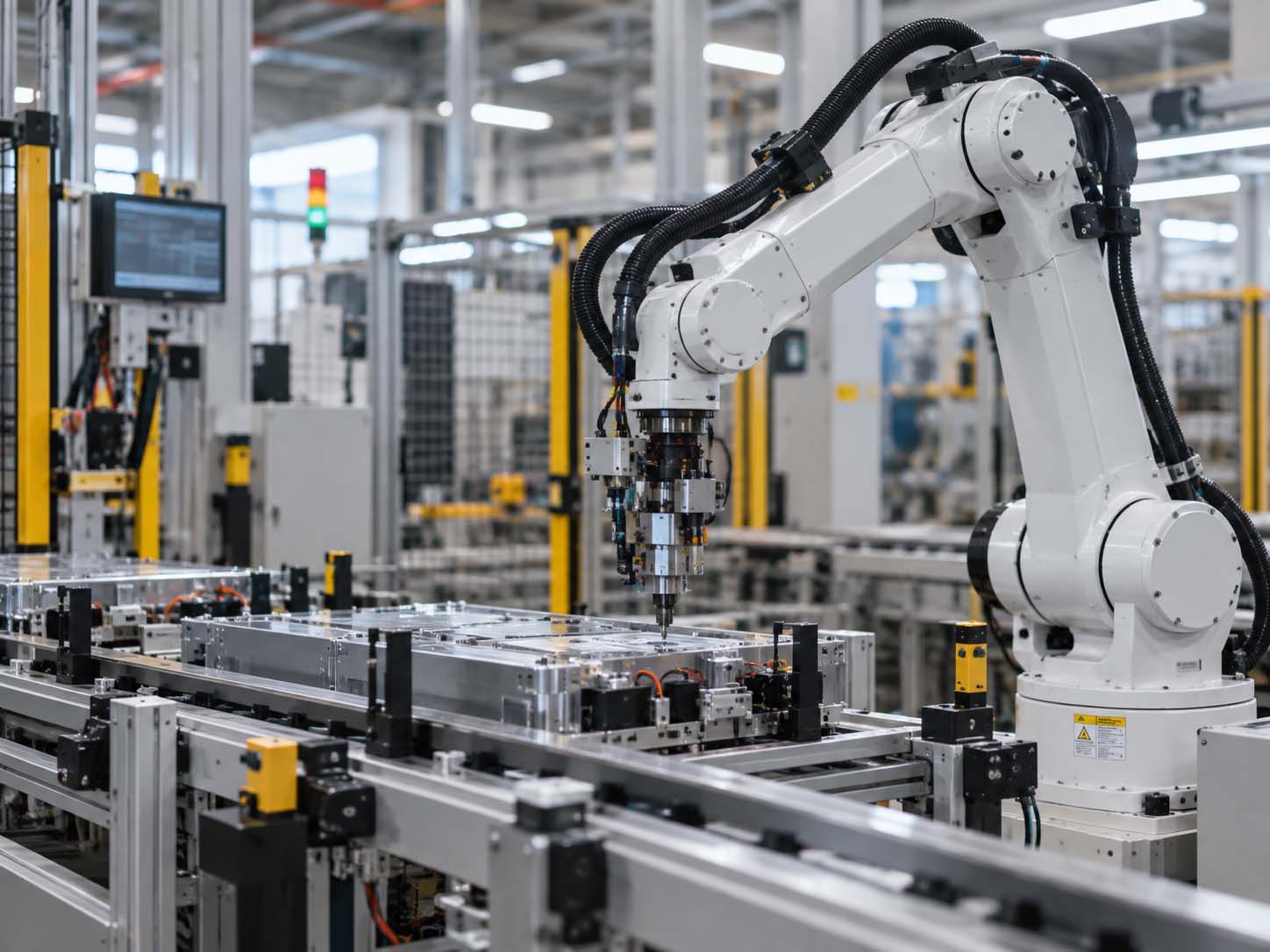

Robotic and automated systems depend on power, signal, communication, sensor and fluid connections to operate accurately and continuously. These cables and hoses may be exposed to repeated bending, torsion, abrasion, vibration, heat, welding spatter and industrial contaminants.
Suitable cable protection helps reduce mechanical wear, organize moving bundles and support reliable equipment operation. MJ FLEX provides standard and customized protection solutions for industrial robots, automation equipment, conveyors, control cabinets, AGVs and other motion-intensive applications.
Cables installed on moving equipment experience different stresses from stationary wiring. Robot arms may bend and rotate repeatedly, while cables routed through production equipment can rub against frames, fixtures or adjacent components.
Cable protection solutions can help:
• Reduce abrasion and surface damage
• Organize cables, hoses and pneumatic lines
• Support repeated bending and movement
• Limit contact between bundles and equipment
• Protect cables from heat and welding spatter
• Improve resistance to oil, dust and industrial contaminants
• Simplify installation, inspection and maintenance
• Protect sensitive signal cables from electromagnetic interference
Product selection should consider bundle dimensions, bending direction, torsion, movement frequency, bend radius, temperature, abrasion and environmental exposure.
Different robotic and automated systems create different movement, abrasion, temperature and environmental requirements. The following guide connects common application areas with suitable MJ FLEX protection solutions.
| APPLICATION AREA | MAIN REQUIREMENTS | RECOMMENDED SOLUTIONS |
|---|---|---|
| Robot Arms and Dress Pack | Repeated movement, bundle organization, abrasion, compression, twisting and flexible routing | Flexible self-closing braided wraps; abrasion-resistant PA sleeving; woven split cable sleeves; expandable braided sleeving; hook-and-loop cable wraps; customized multi-line protective sleeves |
| Joints and Moving Axes | Repeated bending, torsion, component contact, low friction and movement flexibility | Flexible PA braided sleeving; lightweight PET braided sleeving; self-closing cable wraps; woven split sleeves; customized low-friction structures |
| End-of-Arm Tooling | Frequent tool movement, replacement, abrasion, handling and convenient cable access | Expandable braided sleeving; self-closing braided wraps; abrasion-resistant woven sleeves; hook-and-loop cable wraps; heat-resistant sleeving; customized cut-length protection |
| Welding Robots and High-Temperature Areas | Heat, sparks, welding spatter, abrasion and elevated operating temperatures | Fiberglass braided sleeving; silicone-coated fiberglass sleeving; fire-resistant sleeves; heat-reflective sleeving; PPS braided sleeving; PEEK braided sleeving; welding-spatter-resistant textile sleeves |
| Control Cabinets and Automation Panels | Dense wiring, organized routing, flame protection, identification and maintenance access | Expandable PET braided sleeving; flame-retardant braided sleeving; self-closing cable wraps; woven split sleeves; heat-shrink tubing; cable identification products |
| Conveyors and Production Equipment | Vibration, abrasion, dust, oil, mechanical contact and occasional or continuous movement | Abrasion-resistant PET or PA sleeving; high-density braided sleeving; self-closing braided wraps; woven split sleeves; hydraulic hose protection sleeves; customized cable and hose protection |
| AGVs and Autonomous Mobile Robots | Compact routing, continuous vibration, abrasion, heat, EMI control and cable identification | Flame-retardant braided sleeving; abrasion-resistant PA sleeving; self-closing cable wraps; woven split sleeves; EMI shielding sleeving; heat-resistant sleeving; customized identification sleeves |
| Pneumatic and Hydraulic Lines | Abrasion, movement, equipment contact, hose protection and potential fluid exposure | Hydraulic hose protection sleeves; heavy-duty woven sleeves; self-closing cable and hose wraps; abrasion-resistant PA sleeving; spiral protection; customized multi-line sleeves |
Movement Evaluation: Representative movement testing is recommended because cable behavior depends on the complete bundle, routing, clamps, bend radius and robot motion. The correct sleeve also depends on whether the cable remains stationary, moves occasionally or operates continuously.
Servo motors, drives, welding equipment and power electronics can generate electromagnetic interference that affects sensitive communication and sensor cables.
Recommended solutions include:
• Tinned-copper braided sleeving
• Copper-foil shielding sleeving
• Stainless-steel braided sleeving
• EMI self-closing wraps
• Customized hybrid shielding structure
Shielding Note: Shielding effectiveness depends on material coverage, grounding, termination, frequency range and the complete system design.
MJ FLEX provides standard and customized cable and hose protection products for robotic and automated equipment, including:
• Expandable braided sleeving
• Self-closing braided wraps
• Woven split sleeves
• Hook-and-loop cable wraps
• Abrasion-resistant PA sleeving
• High-density braided sleeving
• Flame-retardant sleeving
• High-temperature braided sleeving
• Fiberglass sleeving
• Silicone-coated fiberglass sleeving
• Hydraulic hose protection sleeves
• EMI shielding sleeving
• Heat-shrink tubing
• Customized cable protection products
Available Materials: PET, PA6, PA66, PPS, PEEK, fiberglass, aramid, copper, stainless steel and selected hybrid constructions.
Robotic applications often require product evaluation around a specific motion profile. MJ FLEX supports customized development based on the cable bundle, equipment design and operating conditions.
| CUSTOM AREA | AVAILABLE OPTIONS |
|---|---|
| Material | Material and material combinations |
| Dimensions | Inner diameter and expansion range |
| Structure | Braid density and wall thickness |
| Movement | Flexibility and surface friction |
| Overlap | Self-closing overlap percentage |
| Performance | Abrasion and temperature performance |
| Welding Protection | Welding-spatter protection |
| EMI Protection | EMI shielding structures |
| Identification | Colors and identification markings |
| Supply Format | Cut lengths, rolls and customized packaging |
Samples can be prepared for installation and movement evaluation before production approval.
MJ FLEX applies material inspection, first-piece verification, in-process control, final inspection and production records to support consistent product quality.
Depending on the selected product and project requirements, available testing and documentation may include:
• Abrasion testing
• Temperature evaluation
• UL VW-1
• UL 94 V-0 or V-2
• RoHS
• REACH
• Halogen-free testing
• Product specifications
• Material information
• Test reports
• Inspection and batch records
Compliance Note: Certification and test-report availability must be confirmed for the exact product, material, color, size and construction.
System Evaluation Note: Protective sleeving should be evaluated as part of the complete moving cable system. Its performance is affected by bundle construction, cable type, bend radius, torsion, routing, clamps and equipment motion.
Find the Right Robotics Cable Protection Solution
Whether your project requires flexible protection for robot dress packs, abrasion-resistant sleeving for conveyors, welding-spatter protection or EMI shielding for control cables, MJ FLEX can help evaluate the application and recommend a suitable solution.
Share your cable and hose dimensions, movement pattern, bend radius, operating temperature and environmental exposure with our team.
MJ FLEX BRS-PET-FR is an expandable PET braided sleeve for cable assemblies that specify VW-1 flame performance. It combines a flame-retardant PET construction with connector pass-through, abrasion protection and flexible routing for electrical equipment, cabinets and general industrial harnesses. The applicable report should be reviewed against the exact ordered construction.
MJ FLEX BRS-PET-FR-V0 is an expandable PET braided sleeve developed for wire harnesses that require UL 94 V-0 material flammability performance for the referenced construction. It combines connector pass-through, flexible abrasion protection and organized cable routing with a clearly defined flame-retardant selection basis for electrical and electronic equipment.
MJ FLEX BRS-PET-CLR is a colored expandable PET braid that combines cable protection with visual identification. It helps separate circuits, match equipment colors and improve harness recognition while retaining the flexibility, connector pass-through and abrasion protection of general PET braided sleeving. Color feasibility and minimum order depend on yarn and production requirements.
MJ FLEX BRS-PET-RR is an expandable PET braid developed to discourage rodent chewing and add mechanical protection around cable bundles. It is intended for wiring in equipment rooms, infrastructure, agriculture and other locations where ordinary cable jackets may be vulnerable. Performance reduces risk but should not be described as completely rodent-proof under every condition.
MJ FLEX BRS-PET-CC is a fray-resistant expandable PET sleeve designed for cleaner cutting and faster cable-harness assembly. Its modified construction helps limit loose filaments at cut ends compared with standard PET braid, reducing secondary trimming and improving the appearance of pre-cut pieces. The best cutting method should be confirmed for the required finish.
MJ FLEX BRS-PA6 is an expandable braided sleeve made from polyamide 6 monofilament. It combines flexible cable bundling with strong resistance to routine abrasion and repeated handling. The open braid expands over connectors and irregular bundles, then contracts around the installed harness, making it suitable for machinery, vehicle and equipment wiring where PET may not provide the preferred nylon toughness.
MJ FLEX BRS-PA66 is braided from polyamide 66 monofilament for wire harnesses that need a strong combination of abrasion resistance, mechanical durability and higher thermal capability than general PET or standard PA6 constructions. Its expandable braid supports installation over connectors while maintaining flexible coverage around complex industrial cable bundles.
MJ FLEX BRS-PA-MF uses bundled nylon filaments to create a softer, more textile-like cable sleeve than conventional monofilament braid. It is intended for harnesses that require flexible abrasion protection without a hard plastic contact surface. The construction conforms around cables, supports comfortable manual handling and helps protect finished or sensitive cable jackets.
MJ FLEX BRS-PA-FF is produced from tough flat nylon filaments that create a broad, smooth contact surface around cables and hoses. Compared with round monofilament braid, the flat yarn provides denser visual coverage and a low-profile protective layer. It is designed for demanding industrial, mobile-equipment and hydraulic-adjacent routes where snag resistance and surface durability are important.
MJ FLEX SBW-PET-FR-V0 combines a serviceable split-braid design with flame-retardant PET material developed to meet UL 94 V-0 performance for the referenced construction. It installs around assembled wire bundles and is intended for electrical and electronic equipment where material flammability is a defined selection requirement.
MJ FLEX STW-PET is a self-closing woven cable sleeve designed for fast installation around existing wire harnesses. Its split wrap-around construction opens by hand, fits over terminated cables and returns around the bundle without disconnecting plugs or branches. The textile surface provides flexible abrasion protection for vehicle interiors, machinery and electrical equipment.
MJ FLEX STW-PET-FR-V0 is a self-closing woven PET cable wrap for equipment designs that specify UL 94 V-0 material flammability performance. The split construction installs around completed harnesses and maintains service access, while the textile surface protects wiring from routine abrasion inside electrical and electronic equipment.
MJ FLEX STW-PET-FR-VW-1 is a flame-retardant woven cable wrap for projects that specify VW-1 performance and require side-entry installation. It closes around existing harnesses, helps protect cable jackets from abrasion and remains accessible for service, making it suitable for electrical equipment and industrial assemblies with terminated wiring.
MJ FLEX VBW-PVT is a reusable braided cable wrap with a hook-and-loop closure for organizing and protecting installed wire bundles. The openable construction fits around terminated cables without removing connectors, while the braided body flexes with changing bundle profiles. It is a practical solution for equipment that needs regular inspection, cable additions or routing changes.
MJ FLEX VTW-PVT is a textile wrap sleeve with a full-length hook-and-loop closure for cables, hoses and mixed utility lines. Its denser fabric body provides broad, soft-surface coverage around assembled systems and opens completely for quick installation. Compared with an open braid, the textile panel offers greater visual containment and a more continuous contact layer for sensitive or mixed bundles.
MJ FLEX ZBW-PZP combines a flexible expandable braid with a full-length zipper to create a secure, reopenable cable-management sleeve. It installs from the side around terminated harnesses, then closes with a positive mechanical fastening action. The braided body follows curved routes and bundle variation, making it useful where a defined closed appearance is preferred over a simple overlap wrap.
MJ FLEX ZTW-PZP is a zip-up textile sleeve for enclosing installed cables and selected hose-and-cable groups. The fabric body creates smooth, opaque coverage, while the full-length zipper provides a secure closure that can be reopened for service. It is suited to visible installations, interior equipment and cable routes where appearance, containment and controlled access are important.
MJ FLEX BRS-PPS is an expandable cable sleeve braided from polyphenylene sulfide monofilament. PPS provides a balanced combination of thermal stability, chemical resistance, dimensional control and electrical performance for cable systems exposed to heat, fluids and demanding industrial environments.
MJ FLEX BRS-PEEK is a premium expandable sleeve braided from polyether ether ketone monofilament. PEEK combines high-temperature capability with mechanical toughness, wear resistance, low moisture uptake and broad chemical resistance. It is intended for high-reliability cable protection where conventional engineering plastics cannot meet the environment.
MJ FLEX BRS-KV is a lightweight braided sleeve made from para-aramid fiber for cable and hose protection where high tensile strength, cut resistance and low weight are priorities. The textile braid protects vulnerable jackets from sharp edges and mechanical damage while remaining flexible around complex assemblies.
MJ FLEX BRS-NM is a textile cable sleeve braided from meta-aramid fiber for applications that prioritize heat resistance, inherent flame resistance and electrical insulation. The flexible braid protects wiring near hot equipment and supports cable organization in aerospace, electrical and transportation systems.
MJ FLEX STW-PET-W is a warp-knitted split wire loom with a textured wave profile for automotive harness protection. The openable structure wraps around installed wiring, follows tight bends and accommodates branch points. Its knitted geometry provides a flexible alternative to rigid conduit in interiors and protected equipment zones.

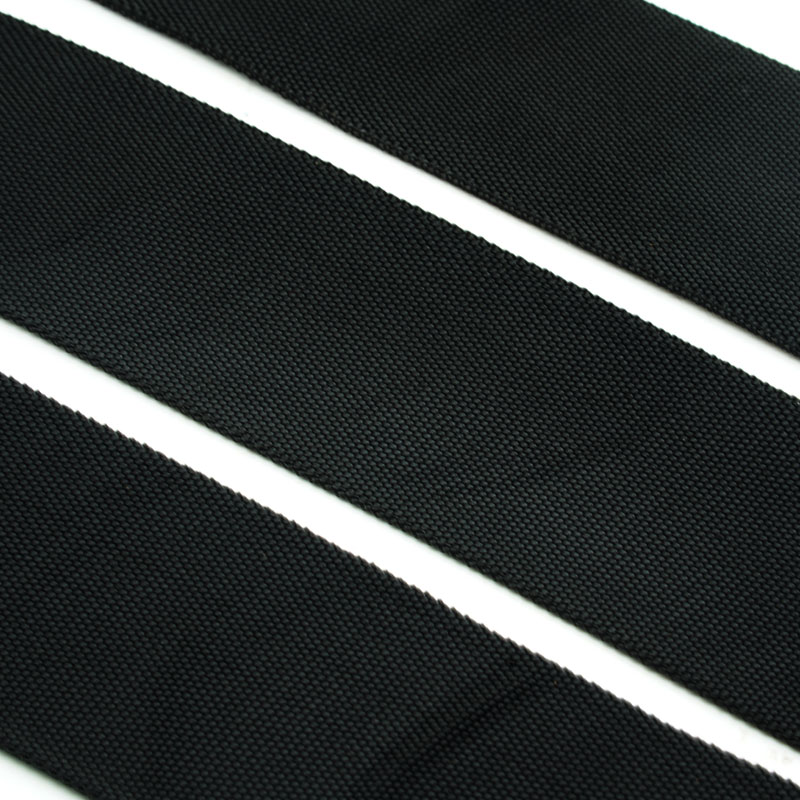

MJ FLEX HPS-NY-S-T8 is a 0.8 mm nylon hydraulic hose protection sleeve that offers excellent flexibility, abrasion resistance, and tensile strength. It effectively reduces surface wear on cables and hydraulic hoses caused by friction, vibration, and mechanical contact. Its lightweight hollow woven structure allows for easy installation and cable routing while providing good coverage and adaptability, ensuring reliable supplementary mechanical protection for cables and hoses.

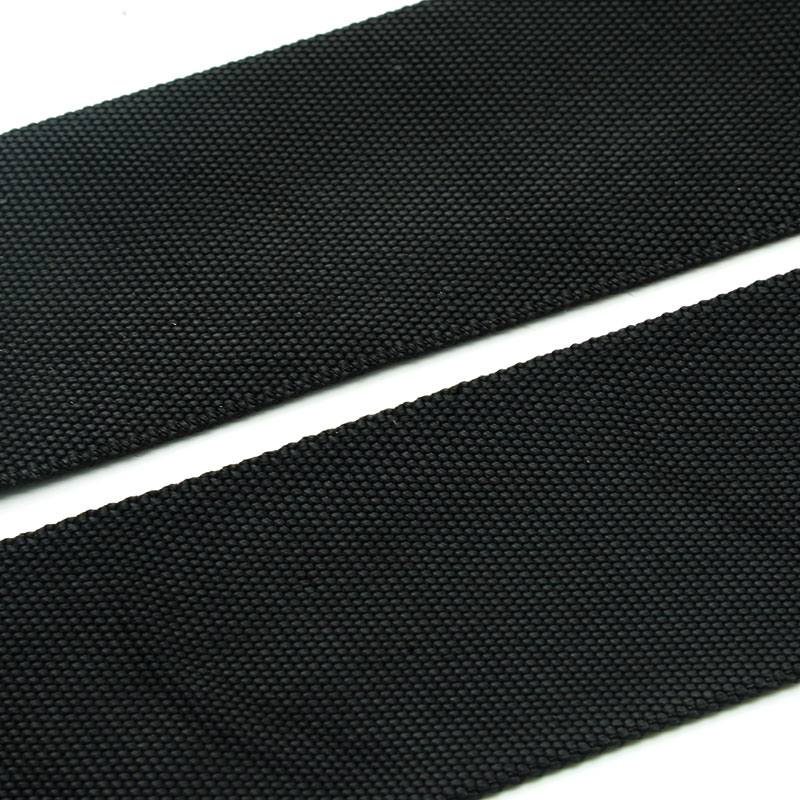

MJ FLEX HPS-NY-S-T10 is a 1.0 mm nylon sleeve for hydraulic hose assemblies that repeatedly touch machine structures, other hoses or mounting hardware. Its textile wall places a replaceable wear layer around the hose cover and keeps parallel lines together through moving or vibration-prone routes. The 1.0 mm construction is intended for users who want more physical coverage than a lightweight routing sleeve while retaining the flexibility needed for installation around bends. The sleeve protects against external wear; the hydraulic hose and fittings remain the pressure-containing parts of the assembly.

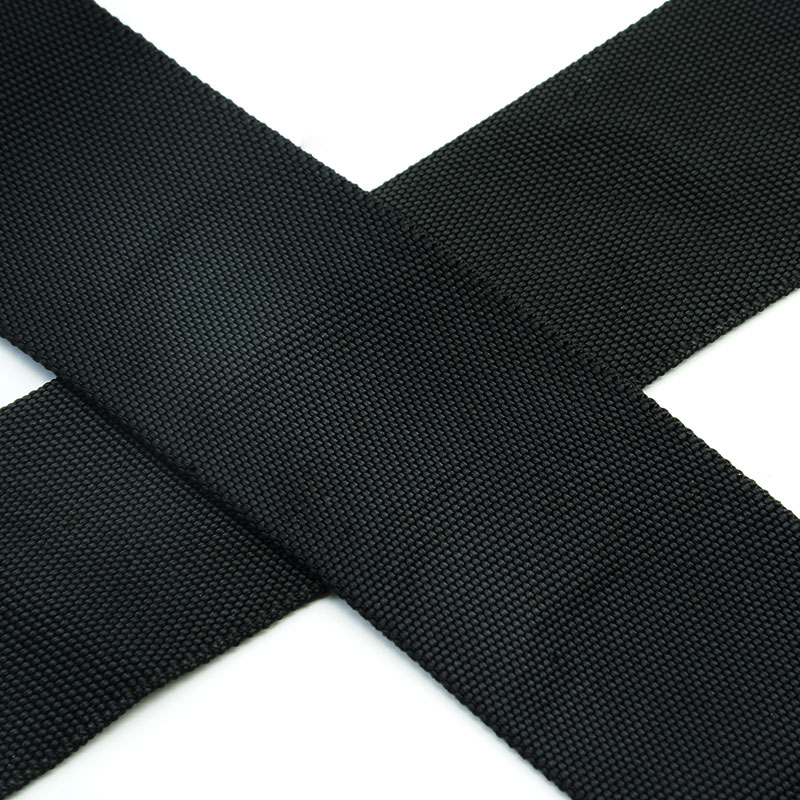

HPS-NY-S-T12 is a 1.2 mm nylon hydraulic hose burst protection sleeve intended for hose assemblies where a rupture or pinhole leak may release high-pressure fluid. The woven wall surrounds the hose and is designed to absorb part of the discharge energy, break up a concentrated jet and guide released fluid along the sleeve toward a safer exit area. It also provides external abrasion protection during normal service. Performance depends on the complete installed system, including hose size, pressure, fluid, temperature, sleeve fit, overlap and end restraint.

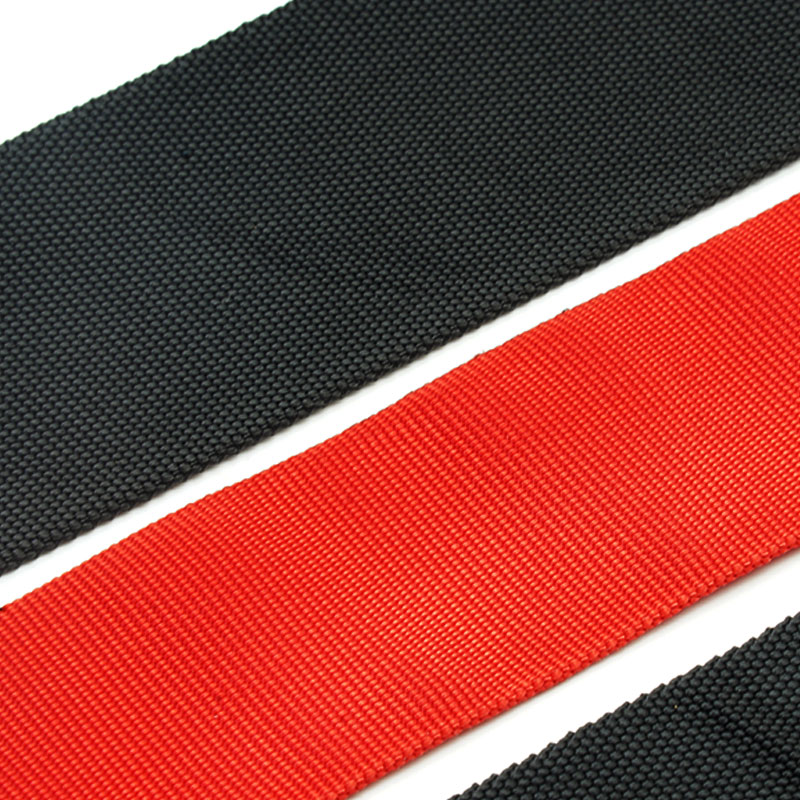

MJ FLEX HPS-PES-S-T8 made from durable polyester yarns, this lightweight hollow woven sleeve provides practical protection for hydraulic hoses, cables and flexible tubing against everyday abrasion and surface wear. Its flexible textile construction conforms easily to curved routing paths and compact installations without adding unnecessary bulk. The smooth, uniform exterior also helps organize hose assemblies and reduce direct contact with surrounding components, making it suitable for general industrial equipment, machinery and hydraulic systems.
