Why Choose BRS-PET Expandable Braided Sleeving?
• Solve everyday cable disorder
The braid groups loose wires into a clean, manageable harness.
• Reduce routine cable-jacket wear
PET provides a lightweight sacrificial barrier against rubbing and scuffing.

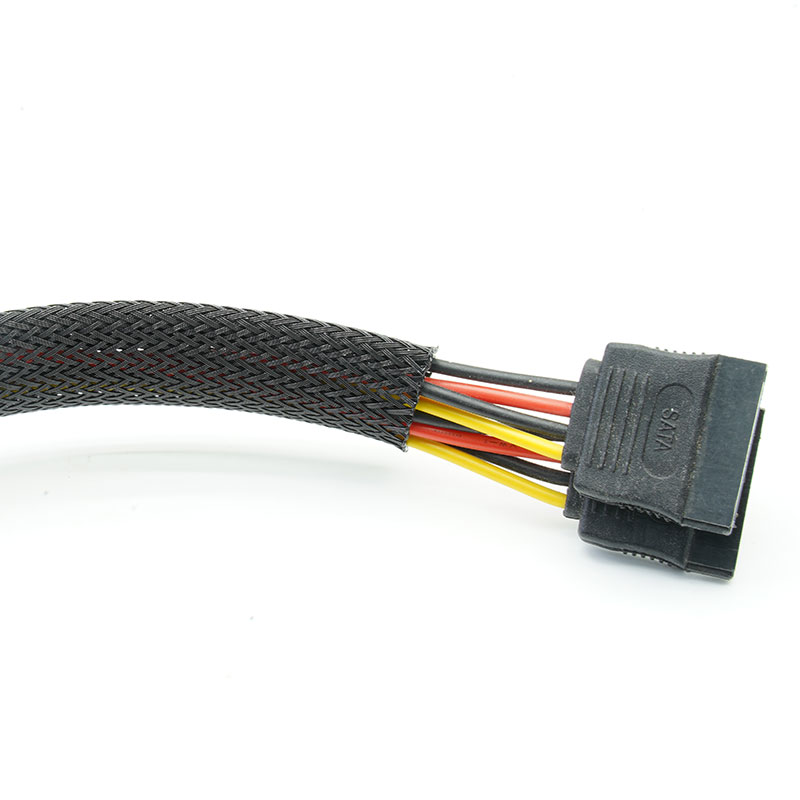

• Speed installation over connectors
Expandable construction reduces connector removal and supports efficient assembly.
• Avoid paying for unnecessary special grades
The standard version covers general indoor protection when no specific fire, UV or industry certification is required.
1. PET monofilament material
Provides reliable general-purpose cable protection.

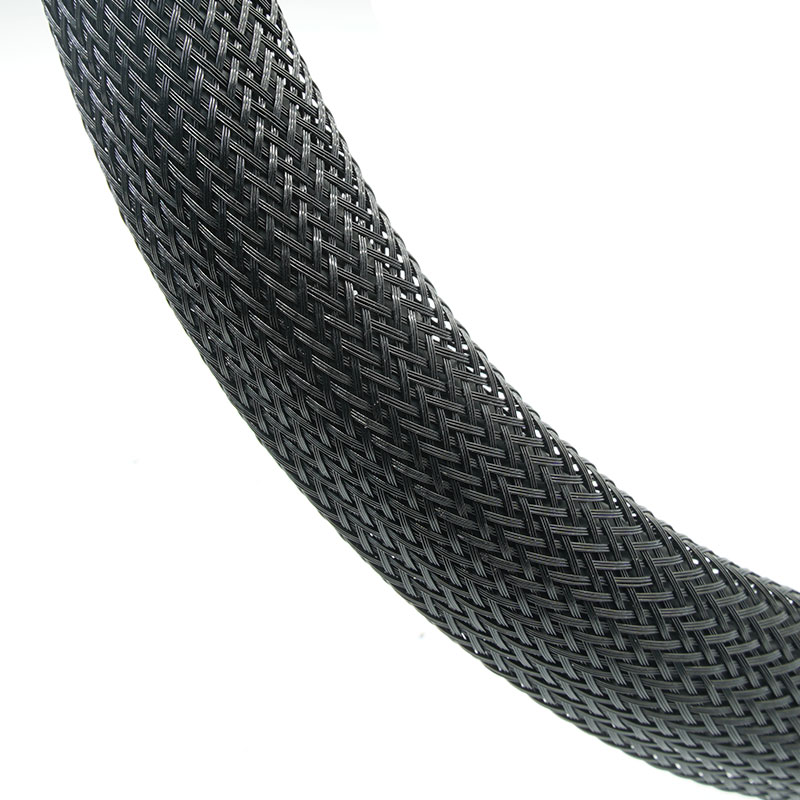

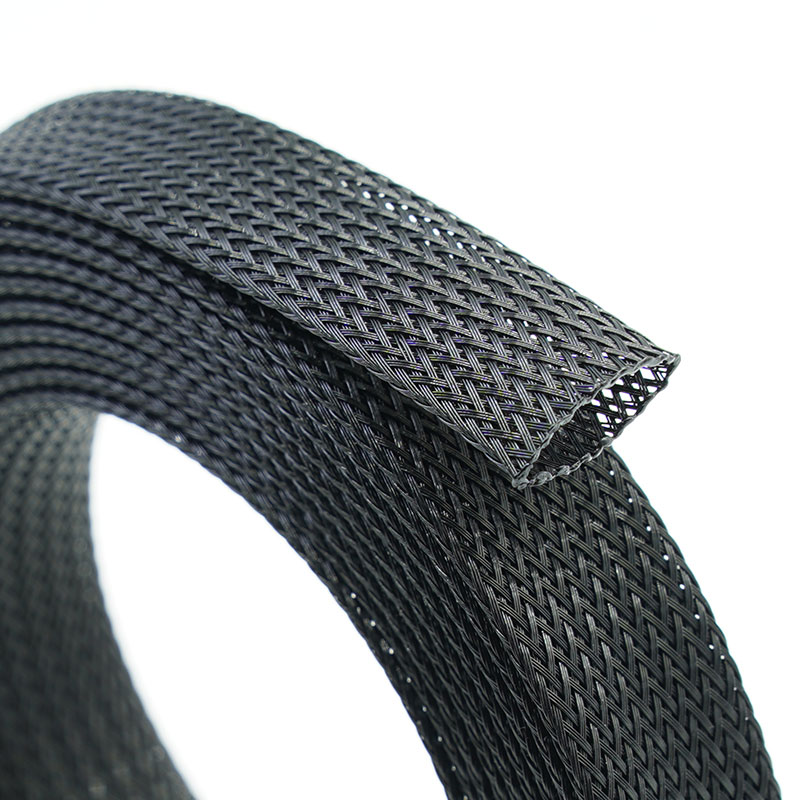

2. Expandable braided design
Fits over connectors and accommodates moderate bundle variation.

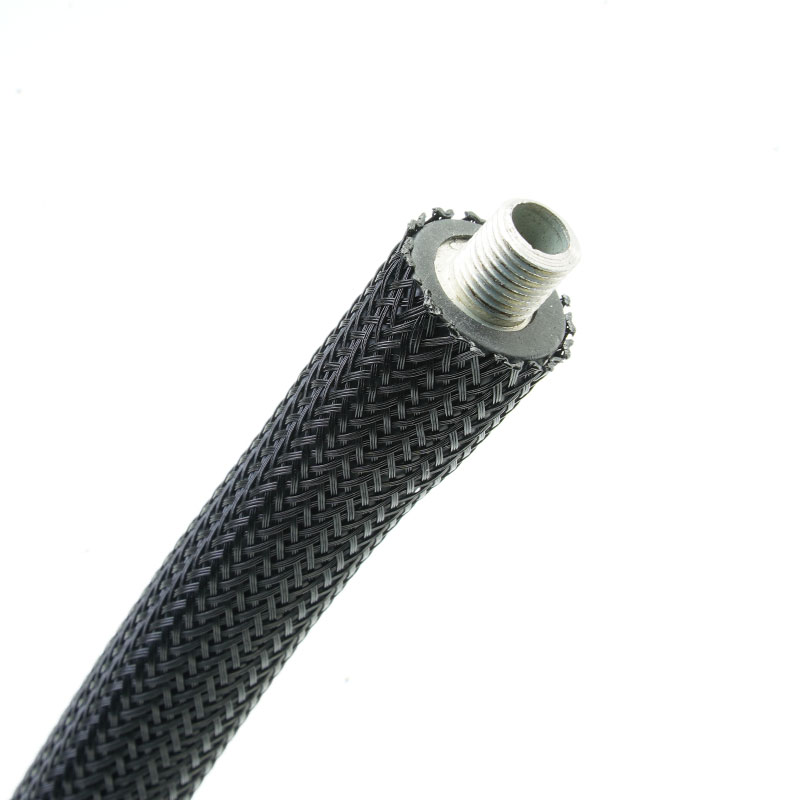

3. Lightweight abrasion protection
Protects wire jackets without a heavy conduit.
4. Flexible cable routing
Follows bends and irregular harness paths.
5. Open breathable structure
Allows heat and moisture to dissipate instead of sealing the bundle.
6. Hot-knife cuttable
Supports clean production cutting and reduced end fraying.
7. Wide customization range
Size, color, cut length, packaging and labeling can be tailored subject to MOQ.
| Material |
PET monofilament |
| Construction |
Expandable braid |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
UL94 V2 |
| Abrasion Resistance |
Medium |
| Wall thickness |
0.65 ± 0.05 mm |
| Standard Color |
Black |
| Certification |
RoHS,REACH,Halogen Free |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
Flat Width(W)
|
Expanded Range(mm)
|
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
|
Inch
|
mm
|
Min.(I)
|
Max.(O)
|
|
BRS-PET-003-BK
|
1/8”
|
3 |
1 |
6 |
0.65±0.05
|
1000 |
|
BRS-PET-006-BK
|
1/4”
|
6 |
3 |
9 |
0.65±0.05
|
500 |
|
BRS-PET-008-BK
|
5/16”
|
8 |
5 |
12 |
0.65±0.05
|
350 |
|
BRS-PET-010-BK
|
3/8”
|
10 |
7 |
17 |
0.65±0.05
|
350 |
|
BRS-PET-012-BK
|
1/2”
|
12 |
8 |
20 |
0.65±0.05
|
350 |
|
BRS-PET-016-BK
|
5/8”
|
16 |
10 |
27 |
0.65±0.05
|
250 |
|
BRS-PET-018-BK
|
11/16"
|
18 |
12 |
29 |
0.65±0.05
|
250 |
|
BRS-PET-020-BK
|
3/4”
|
20 |
14 |
32 |
0.65±0.05
|
200 |
|
|
1”
|
25 |
18 |
35 |
0.65±0.05
|
200 |
|
|
1-1/4”
|
32 |
20 |
50 |
0.65±0.05
|
150 |
|
|
1-1/2”
|
38 |
30 |
60 |
0.65±0.05
|
100 |
|
|
1-3/4”
|
45 |
35 |
75 |
0.65±0.05
|
100 |
|
|
2”
|
50 |
40 |
80 |
0.65±0.05
|
100 |
|
|
2-1/2”
|
64 |
45 |
105 |
0.65±0.05
|
50 |
|
|
3”
|
76 |
64 |
120 |
0.65±0.05
|
50 |
|
|
4”
|
100 |
80 |
150 |
0.65±0.05
|
50 |
● Note: Expanded range describes geometric capability, not the preferred continuous operating point. Selecting near maximum expansion increases braid openings, reduces surface coverage and shortens installed length.
Typical Applications
Automotive wire harnesses
Organizes interior and general vehicle wiring while reducing contact abrasion.
Industrial control panels
Bundles signal, control and power wiring to improve routing and serviceability.
Robotics and automation
Manages flexible cable groups along machine frames and moving assemblies.
Electrical appliances
Protects internal leads from housings, sharp edges and installation handling.
Computers and electronic equipment
Keeps power and data cables organized without adding bulky conduit.
General retrofit projects
Slides over disconnected cable runs and connectors where a closed expandable sleeve is preferred.
Measure the finished bundle and largest connector, then choose a size that provides adequate expansion without excessive loss of coverage. State the working temperature, abrasion level, color, cut length and any flame, UV or industry standard. If a defined requirement applies, select the corresponding functional PET grade instead of the general version.
Customization Available
• Size range - Multiple nominal diameters can be supplied for small wires through larger cable bundles.
• Color matching - Black is standard; additional colors can be produced for identification or brand requirements.
• Braid density and expansion - Construction can be reviewed to balance coverage, flexibility and connector pass-through.
• Cut lengths - Pre-cut pieces with hot-knife sealed ends can support line-side harness assembly.
• Private packaging - Roll length, retail box, barcode, customer label and carton quantity can be customized.
General BRS-PET is intended for standard cable organization and abrasion protection. Applicable RoHS, REACH and halogen-free documentation can be supplied for approved materials. Where UL 94 V-0, VW-1, FMVSS 302, UV or EN 45545 performance is specified, use the corresponding tested MJ FLEX variant rather than applying those claims to the general product.
• PET yarn inspection - Material, filament diameter, color and surface condition are checked before braiding.
• In-process braid control - Coverage, braid pattern, tension and diameter are monitored during production.
• Expansion verification - Samples are fitted over controlled mandrels to check expansion and recovery.
• Length control - Roll length or pre-cut length is checked against the order and agreed tolerance.
• Final appearance and packing - Ends, surface cleanliness, labels and packaging are inspected before shipment.
Frequently Asked Questions
01. How much can the sleeve expand?
Expansion depends on nominal size and braid construction. Provide the bundle and connector dimensions for a suitable recommendation.
02. Can it be cut with scissors?
It can, but a hot knife is recommended because it seals the PET filaments and helps reduce fraying.
03. Is standard PET suitable outdoors?
For prolonged sunlight exposure, use the UV-resistant version and review the actual environmental requirements.
04. Is it flame retardant?
Do not assume a defined flame rating for the general version. Select the VW-1, UL 94 V-0 or EN 45545 variant when the specification requires it.
05. Are custom colors available?
Color development may be reviewed against volume and performance requirements. Color changes can affect UV or flammability evidence and should be approved before production.
Request a Sample or Quote
Share the bundle diameter, connector size, environment, required standard and quantity. MJ FLEX will recommend a suitable construction and arrange samples or a quotation.
