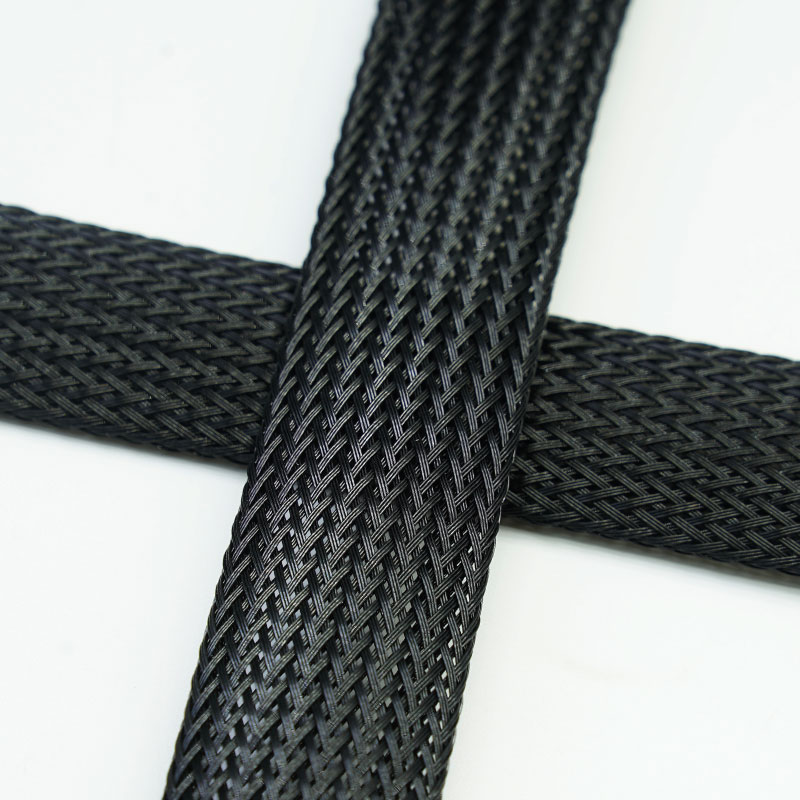

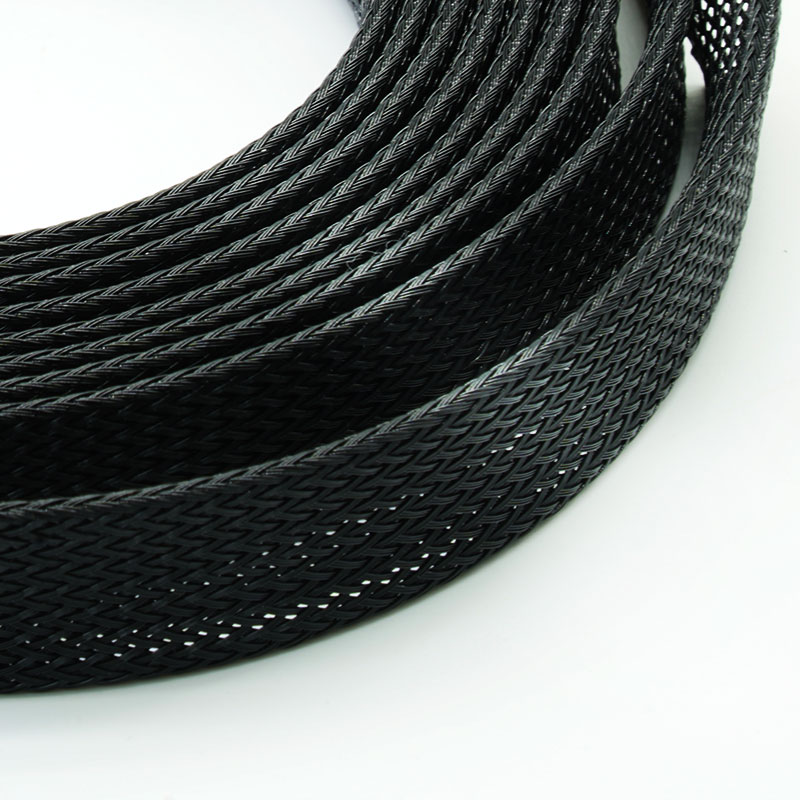

UL 94 V0 Flame Retardant PET Expandable Braided Cable Sleeve

MJ FLEX BRS-PET-FR-V0 is an expandable PET braided sleeve developed for wire harnesses that require UL 94 V-0 material flammability performance for the referenced construction. It combines connector pass-through, flexible abrasion protection and organized cable routing with a clearly defined flame-retardant selection basis for electrical and electronic equipment.

  • Material :

    PET Monofilament

  • Working Temperature :

    -40℃~ +150℃

  • Melting Point :

    240+(-)10℃

  • Flammability :

    UL 94 V-0

  • Standard Color :

    Black

  • Certification :

    Rohs,Reach,Halogen Free,CSA

  • MOQ :

    1 Spool

  • Why Choose BRS-PET-FR-V0?

    • Meet a specified V-0 material requirement

    The referenced flame-retardant construction supports projects calling for UL 94 V-0 performance.

    •Protect terminated cable assemblies

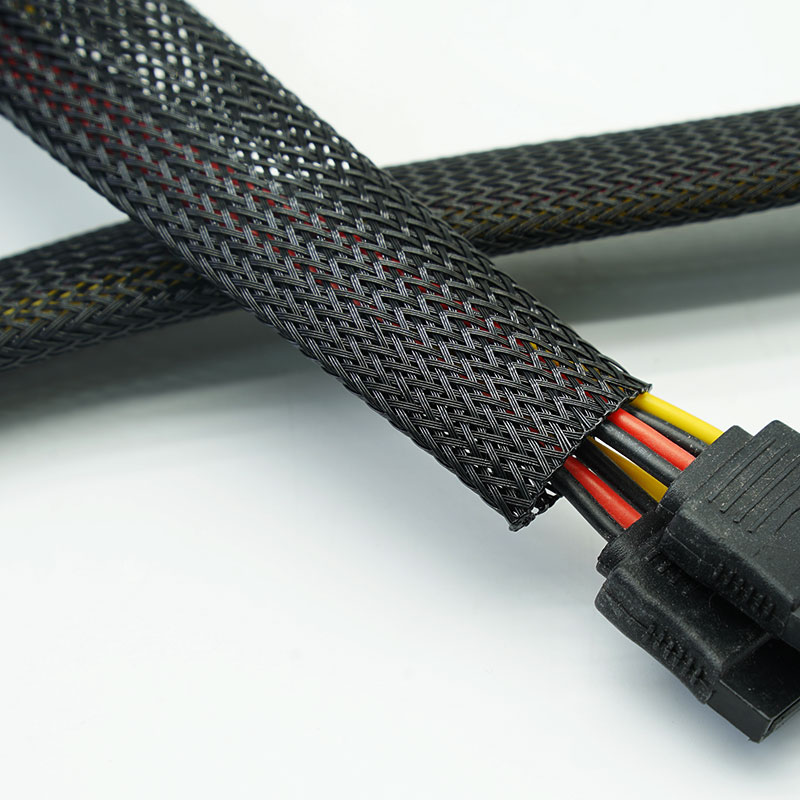

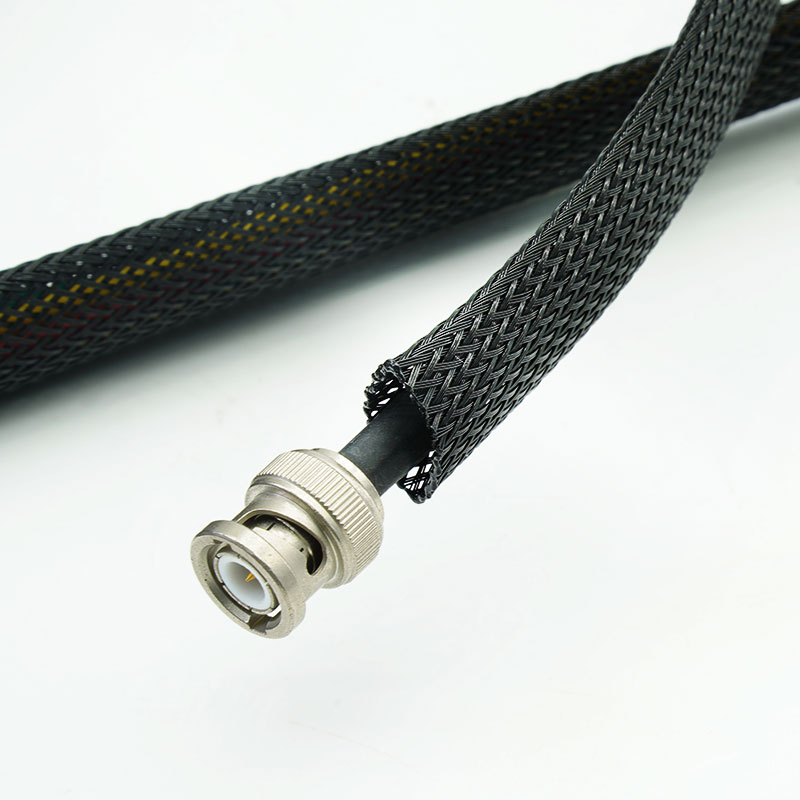

    Expandable braid passes over connectors and recovers around the wire bundle.

    • Separate compliance from generic claims

    The page clearly distinguishes UL 94 V-0 from VW-1, railway and automotive flame tests.

    • Combine fire performance with daily protection

    The sleeve also organizes wiring and reduces routine abrasion in equipment assemblies.



    Key Features

    1. UL 94 V-0 performance
    Referenced construction meets the specified plastic-material flammability classification.
    2. Flame-retardant PET monofilament
     Combines defined flame behavior with practical cable protection.
    3. Expandable installation
    Fits over connectors and accommodates changing bundle diameters.
    4. Flexible abrasion barrier
    Helps reduce cable-jacket wear inside equipment and enclosures.
    5. Lightweight open braid
    Organizes wiring without the bulk of rigid conduit.
    6. Hot-knife cuttable
    Supports efficient assembly and controlled cut ends.
    7. Documentation support
    Applicable reports and material-compliance documents can be reviewed for the selected construction.



    Technical Data

    Material Flame-retardant PET monofilament
    Construction Expandable open braid
    Working Temperature -40°C to +150°C
    Melting Point 240±10°C
    Flammability UL 94 V-0
    Abrasion Resistance Medium
    Wall thickness 0.65 ± 0.05 mm
    Standard Color Black; other colors available upon request
    Certification RoHS, REACH, halogen free, UL and applicable V-0 documentation
    Halogen Free Yes
    UV Resistant Yes
    Cutting Tool Hot knife

    Specifications
    Part No
    Flat Width(W)
    Expanded Range(mm)
    Wall
    Thickness
    (mm)
    Packing
    Length
    (m/spool)
    Inch
    mm
    Min.(I)
    Max.(O)
    BRS-PET-003-BK-FR-V0
    1/8”
    		 3 1 6
    0.65±0.05
    		 1000
    BRS-PET-006-BK-FR-V0
    1/4”
    		 6 3 9
    0.65±0.05
    		 500
    BRS-PET-008-BK-FR-V0
    5/16”
    		 8 5 12
    0.65±0.05
    		 350
    BRS-PET-010-BK-FR-V0
    3/8”
    		 10 7 17
    0.65±0.05
    		 350
    BRS-PET-012-BK-FR-V0
    1/2”
    		 12 8 20
    0.65±0.05
    		 350
    BRS-PET-016-BK-FR-V0
    5/8”
    		 16 10 27
    0.65±0.05
    		 250
    BRS-PET-018-BK-FR-V0
    11/16"
    		 18 12 29
    0.65±0.05
    		 250
    BRS-PET-020-BK-FR-V0
    3/4”
    		 20 14 32
    0.65±0.05
    		 200
    BRS-PET-025-BK-FR-V0
    1”
    		 25 18 35
    0.65±0.05
    		 200
    BRS-PET-032-BK-FR-V0
    1-1/4”
    		 32 20 50
    0.65±0.05
    		 150
    BRS-PET-038-BK-FR-V0
    1-1/2”
    		 38 30 60
    0.65±0.05
    		 100
    BRS-PET-045-BK-FR-V0
    1-3/4”
    		 45 35 75
    0.65±0.05
    		 100
    BRS-PET-050-BK-FR-V0
    2”
    		 50 40 80
    0.65±0.05
    		 100
    BRS-PET-064-BK-FR-V0
    2-1/2”
    		 64 45 105
    0.65±0.05
    		 50
    BRS-PET-076-BK-FR-V0
    3”
    		 76 64 120
    0.65±0.05
    		 50
    BRS-PET-100-BK-FR-V0
    4”
    		 100 80 150
    0.65±0.05
    		 50
    ● Note: Expanded range describes geometric capability, not the preferred continuous operating point. Selecting near maximum expansion increases braid openings, reduces surface coverage and shortens installed length.

    Typical Applications
    Electrical and electronic equipment
    Protects internal wiring where a V-0-rated sleeve material is specified.
    Industrial control cabinets
    Organizes power, signal and control wires while addressing a defined material-flammability requirement.
    Battery and energy-storage equipment
    Covers auxiliary and low-voltage harnesses inside cabinets; system-level requirements remain subject to project review.
    Charging equipment
    Protects cable bundles in charging modules and electrical enclosures.
    Appliances and instruments
    Provides organized, abrasion-resistant routing where flame-retardant polymer components are required.
    Transportation electronics
    Protects equipment wiring when the component specification identifies UL 94 V-0 rather than a vehicle or railway test.

    How to Select

    First confirm that UL 94 V-0 is the actual requirement. It is not interchangeable with VW-1, FMVSS 302 or EN 45545. Then provide the bundle diameter, largest connector, temperature, installation location and required approval documents so the proposed construction can be checked before quotation.



    Customization Options

    • Approved size selection - Nominal diameter is matched to both the cable bundle and the largest connector while maintaining suitable coverage.

    • Braid coverage - Construction can be reviewed within the limits of the tested material and approved production specification.

    • Cut lengths - Hot-knife cut pieces can be supplied for repeatable equipment assembly.

    • Identification and traceability - Project labels, lot numbers and document references can be added to packaging.

    • Commercial packaging - Roll length, inner packing, carton quantity and private label options can be customized subject to approval.



    Testing and Compliance

    The referenced flame-retardant PET construction is intended to meet UL 94 V-0 material flammability performance. V-0 is not equivalent to VW-1, FMVSS 302 or EN 45545, and it does not certify the complete wire harness or end equipment. Applicable test reports and RoHS, REACH or halogen-free documents should be matched to the exact ordered construction before publication or approval.

    Quality and Supply Assurance

    • Controlled flame-retardant material - Production uses the approved PET formulation linked to the applicable technical documentation.

    • Lot and process traceability - Raw-material batches and production records are retained for order traceability.

    • Braid and dimension inspection - Coverage, nominal size, expansion and surface condition are monitored during manufacture.

    • Length and labeling verification - Rolls or cut pieces are checked against quantity, tolerance and required compliance identification.

    • Document review before shipment - Requested reports and declarations are checked for relevance to the supplied construction.

    Frequently Asked Questions

    01. Is UL 94 V-0 the same as VW-1?
    No. UL 94 classifies plastic-material flammability, while VW-1 is a vertical flame test associated with wire and cable products.
    02. Can the sleeve expand over plugs and terminals?
    Yes, within its designed expansion range. Provide the largest connector and bundle dimensions for size selection.
    03. Does V-0 mean the complete harness is certified?
    No. The classification applies to the referenced material or sleeve construction. The final equipment or harness may require separate evaluation.
    04. Are test reports available?
    Applicable reports can be supplied for review, subject to confirmation that the requested construction is covered.



    Request a Sample or Quote

      Share the bundle diameter, connector size, environment, required standard and quantity. MJ FLEX will recommend a suitable construction and arrange samples or a quotation.
