• Protect Vulnerable Lines Near Severe Heat

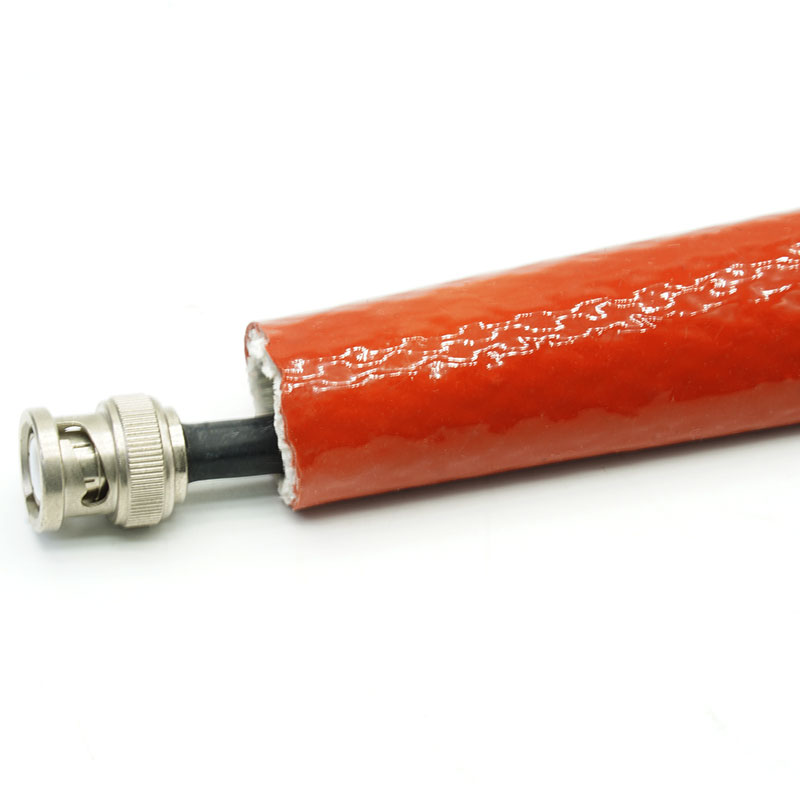

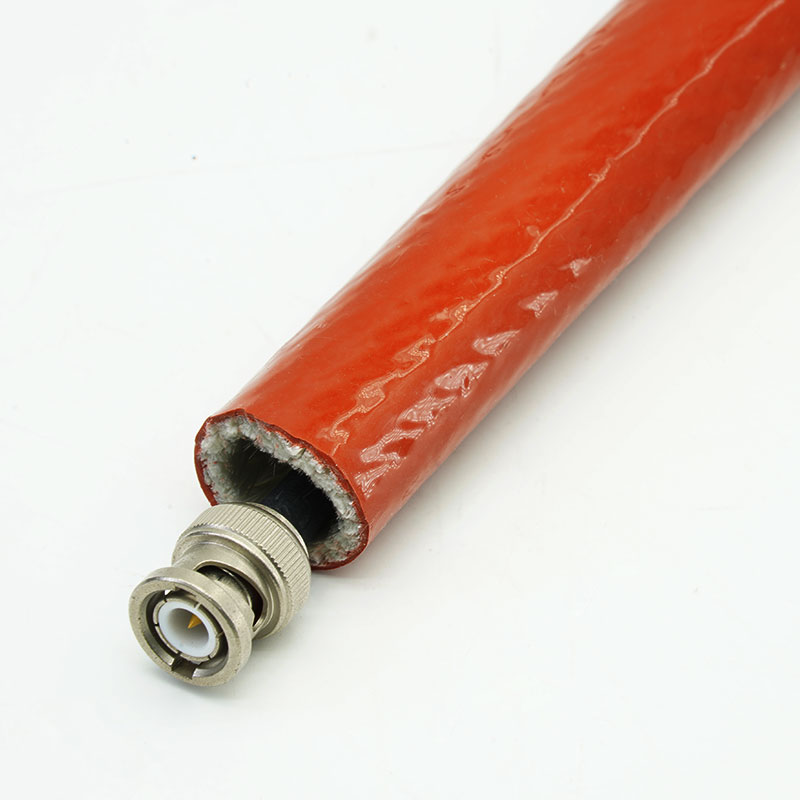

Creates a thermal barrier around hydraulic hoses, cables and piping close to furnaces, exhaust systems and hot process equipment.
• Manage More Than One Heat Hazard
The product construction is designed to provide protection against various thermal hazards, including radiant heat, direct flame exposure, and molten metal splashes.
•Combine Insulation with Route Flexibility

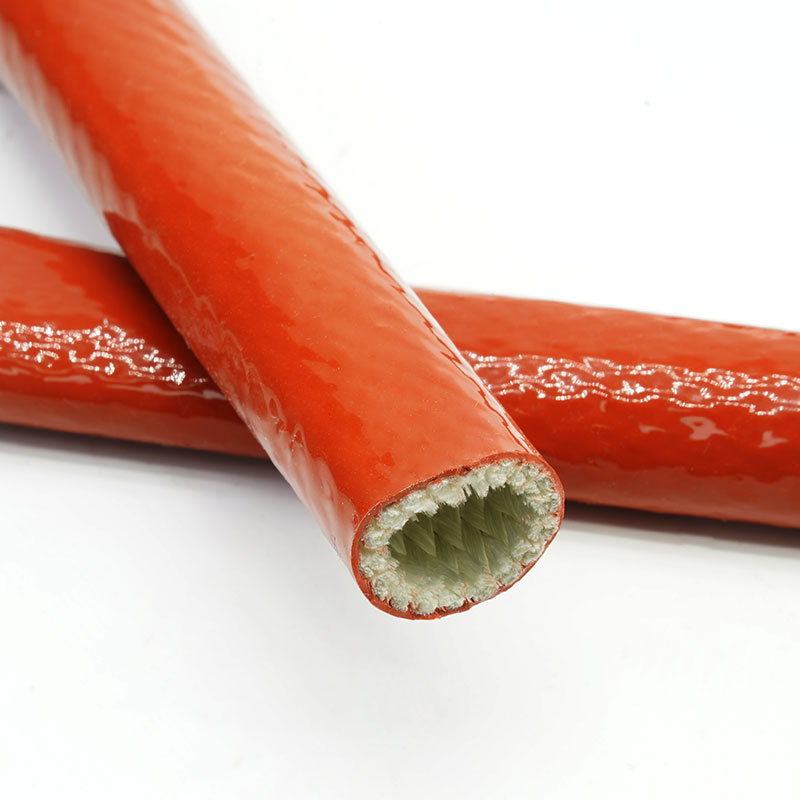

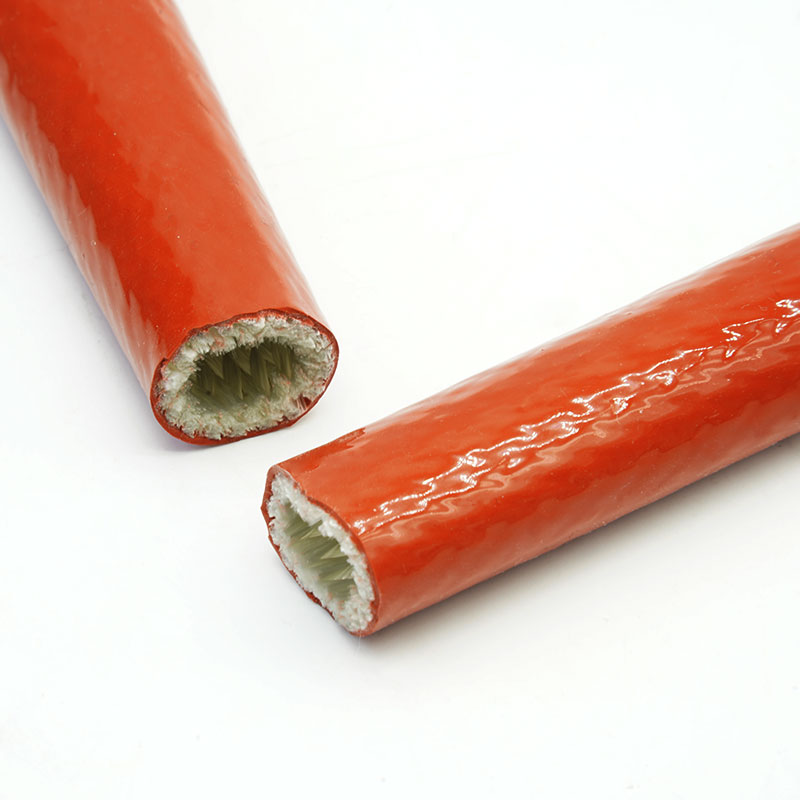

The flexible woven fiberglass structure accommodates curved hose and cable routing, while the outer silicone rubber coating further enhances flexibility, durability, and resistance to environmental exposure.
• Cover a Wide Range of Assembly Diameters
Available in inner diameters ranging from 6 to 150 mm, providing protection for small cables, hydraulic hoses, and larger pipes or hose bundles.
1. E-Glass Fiberglass Substrate
Uses an alkali-free woven tubular reinforcement for high-temperature insulation.
2. High-Temperature Silicone Coating
The fiberglass sleeve is coated with a high-temperature-resistant silicone rubber layer.
3. Wide Operating Temperature Range
Designed for continuous operating temperatures from −50°C to +260°C, supporting use in both low- and high-temperature industrial environments.
4. High-Temperature Exposure Protection
Provides protection against radiant heat, flame and molten-metal splash.
5. Flexible Tubular Design
The flexible tubular construction accommodates normal hose and cable bends while maintaining continuous external protective coverage.
| Material |
E Fiberglass+ High-temperature Resistant Silicone Rubber |
| Working Temperature |
-50℃~+260℃,Peak up to 3000°F(1650°C) |
| Nominal Voltage |
7kV-25kV |
| Flammability |
VW-1 |
| Standard Color |
Red (Color customizable) |
| Certification |
Rohs,Reach |
| Cutting Tool |
Scissor |
Specifications
|
Part No
|
Inner Diameter |
Wall
Thickness
(mm)
|
Packing
Length
(m/spool)
|
| mm |
inch
|
| GF-FH-SR-006-RD |
6 |
1/4" |
1.5
|
20 |
| GF-FH-SR-008-RD |
8 |
5/16" |
1.6
|
20 |
| GF-FH-SR-010-RD |
10 |
3/8" |
1.8 |
20 |
| GF-FH-SR-012-RD |
12 |
1/2" |
2.0 |
20 |
| GF-FH-SR-015-RD |
15 |
5/8" |
2.1 |
20 |
| GF-FH-SR-020-RD |
20 |
3/4" |
2.4 |
20 |
| GF-FH-SR-022-RD |
22 |
7/8" |
2.5 |
20 |
| GF-FH-SR-025-RD |
25 |
1" |
2.6 |
20 |
| GF-FH-SR-030-RD |
30 |
1-1/8" |
2.9 |
20 |
| GF-FH-SR-032-RD |
32 |
1-1/4" |
3.0 |
20 |
| GF-FH-SR-035-RD |
35 |
1-3/8" |
3.1 |
20 |
| GF-FH-SR-038-RD |
38 |
1-1/2" |
3.3 |
20 |
| GF-FH-SR-040-RD |
40 |
1-5/8" |
3.4 |
20 |
| GF-FH-SR-045-RD |
45 |
1-3/4" |
3.5 |
20 |
| GF-FH-SR-050-RD |
50 |
2" |
3.6 |
20 |
| GF-FH-SR-055-RD |
55 |
2-1/4" |
3.7 |
20 |
| GF-FH-SR-060-RD |
60 |
2-3/8" |
3.8 |
20 |
| GF-FH-SR-065-RD |
65 |
2-1/2" |
3.8
|
20 |
| GF-FH-SR-070-RD |
70 |
2-3/4" |
4.0
|
20 |
| GF-FH-SR-075-RD |
75 |
3" |
4.1
|
10 |
| GF-FH-SR-080-RD |
80 |
3-1/8" |
4.2
|
10 |
| GF-FH-SR-085-RD |
85 |
3-1/4" |
4.3
|
10 |
| GF-FH-SR-090-RD |
90 |
3-1/2" |
4.4
|
10 |
| GF-FH-SR-095-RD |
95 |
3-3/4" |
4.5
|
10 |
| GF-FH-SR-100-RD |
100 |
4" |
4.6
|
10 |
| GF-FH-SR-110-RD |
110 |
4-3/8" |
5.0
|
10 |
| GF-FH-SR-120-RD |
120 |
4-3/4" |
5.2
|
10 |
| GF-FH-SR-130-RD |
130 |
5-1/8" |
5.5
|
10 |
| GF-FH-SR-150-RD |
150 |
6" |
6.0
|
10 |
Typical Applications
Steel Mills and Foundries
Helps protect hoses, cables and pipes from radiant heat and molten-metal splash near casting and metal-processing areas.
Hydraulic Equipment Near Furnaces
Reduces direct thermal exposure that can harden, crack or prematurely age hydraulic hose covers.
Welding and Hot-Work Cells
Shields service lines from intermittent sparks, heat and nearby flame sources where routing cannot be moved farther away.
Engine and Exhaust Zones
Provides an insulating layer around compatible lines routed near hot manifolds, exhaust components or industrial engines.
Measure the largest outside diameter along the protected assembly, including joints, clamps and local enlargements. Choose an ID that permits installation without compressing the hose or leaving an unnecessarily loose sleeve.
Map the heat source, distance, orientation, exposure time and whether the hazard is radiant heat, direct flame or molten splash. Check bends and movement through the full equipment cycle. Define how the sleeve ends will be secured and protected from fraying or contaminant entry.
Customization Available
• Diameter & Wall Thickness - A range of standard inside diameters is available, with custom sizes and wall thicknesses subject to project requirements.
• Color Options - Multiple color options are available to meet customer preferences and project requirements.
• Length & Packaging Preparation - Custom lengths are available, with cutting and supply arranged according to the confirmed specifications.
• Identification & Packaging - Product labels, batch identification and customized packaging are available to meet identification and delivery requirements.
The GF-FH-SR silicone-coated fiberglass fire sleeve is supported by UL 1441 test reports and relevant RoHS and REACH compliance documentation. These documents provide supporting evidence for the product's applicable material and safety requirements.
Product quality is controlled through raw material verification, coating inspection, dimensional checks and manufacturing process monitoring to ensure consistent construction and reliable thermal protection.
• Raw Material Verification - Fiberglass substrate, silicone coating materials and relevant material records are checked against the confirmed product specifications.
• Dimensional Inspection - Inside diameter, wall thickness and finished length are inspected using the specified methods to verify conformity with applicable dimensional tolerances.
• Visual and Workmanship Inspection - Products are inspected for cracks, coating damage, contamination, uneven construction and other defects that may affect appearance or suitability for use.
• Final Inspection and Release - Product specifications, color, quantity, packaging and labels are checked before shipment to ensure conformity with the confirmed order requirements.
Frequently Asked Questions
01. What is a silicone-coated fiberglass fire sleeve used for?
A silicone-coated fiberglass fire sleeve protects hydraulic hoses, cables and pipes operating near high-temperature sources. It helps reduce the effects of radiant heat, flame and molten-metal splash.
02. What is the continuous operating temperature of GF-FH-SR?
The specified continuous operating temperature range is −50°C to +260°C. Peak thermal exposure is different from continuous service temperature and must not be interpreted as a continuous operating rating.
03. How do I select the correct fire sleeve diameter?
Measure the maximum outside diameter of the hose, cable, pipe or complete bundle, including fittings and enlarged sections. Allow for bends and installation clearance, and select an ID that permits installation without excessive looseness or restricted movement.
04. How should GF-FH-SR be inspected and maintained?
Inspect the sleeve periodically according to the equipment maintenance plan for coating cracks, damage, wear, contamination or loose ends. If significant damage is found, reassess its suitability for the operating thermal conditions and replace it when necessary.
Request a Sample or Quote
Send the protected assembly OD, fitting dimensions, required sleeve length, heat-source temperature, distance from the source, expected exposure time, flame or splash risk, movement, end-fixing method, color and quantity. MJ FLEX can review the GF-FH-SR model, provide the applicable technical documents and arrange a sample or quotation for evaluation.
