Why Choose STW-PES Woven Split Loom?
1. Provide soft all-polyester coverage
The woven textile creates a consistent contact surface around cables.
2. Retrofit existing harnesses
The split profile installs without removing connectors.
3. Organize mixed cable bundles
Flexible wrap contains irregular wires and branches.
4. Keep maintenance simple
The sleeve reopens for inspection and cable changes.
1. All-polyester yarn construction
Provides lightweight textile protection.

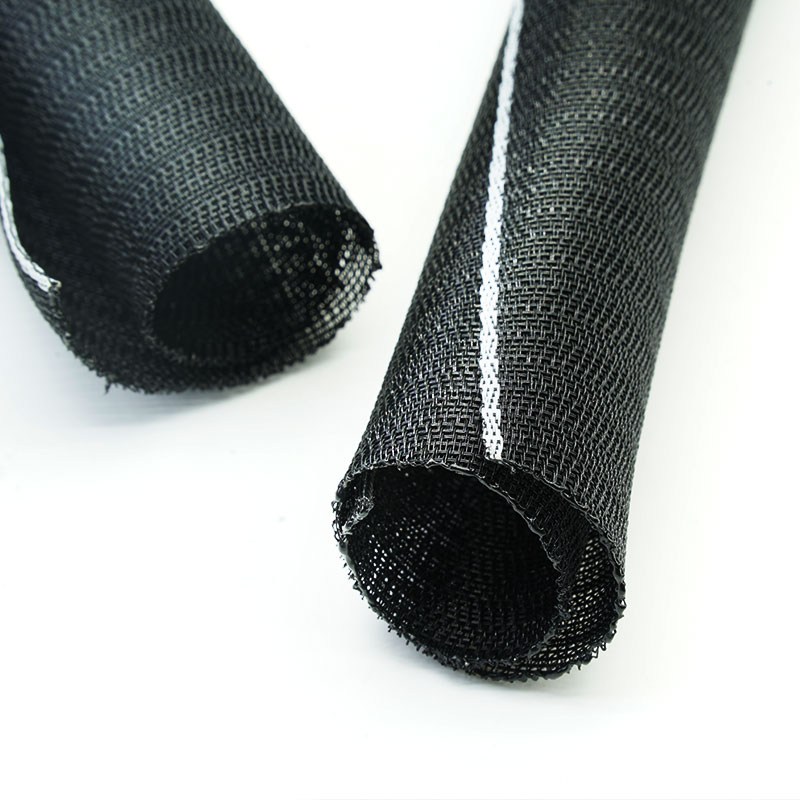

2. Woven split wrap design
Installs from the side.
3. Soft contact surface
Protects cable jackets and nearby panels.
4. Flexible cable containment
Follows bends and bundle variation.
5. Accessible branch-outs
Allows local cable exits.
6. General-purpose abrasion protection
Reduces routine rubbing and scuffing.
7. Custom OEM supply
Sizes, lengths, colors and packaging can be reviewed.
| Material |
Polyester |
| Construction |
Woven split loom |
| Overlap |
≥35% |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
DIN5510 |
| Standard Color |

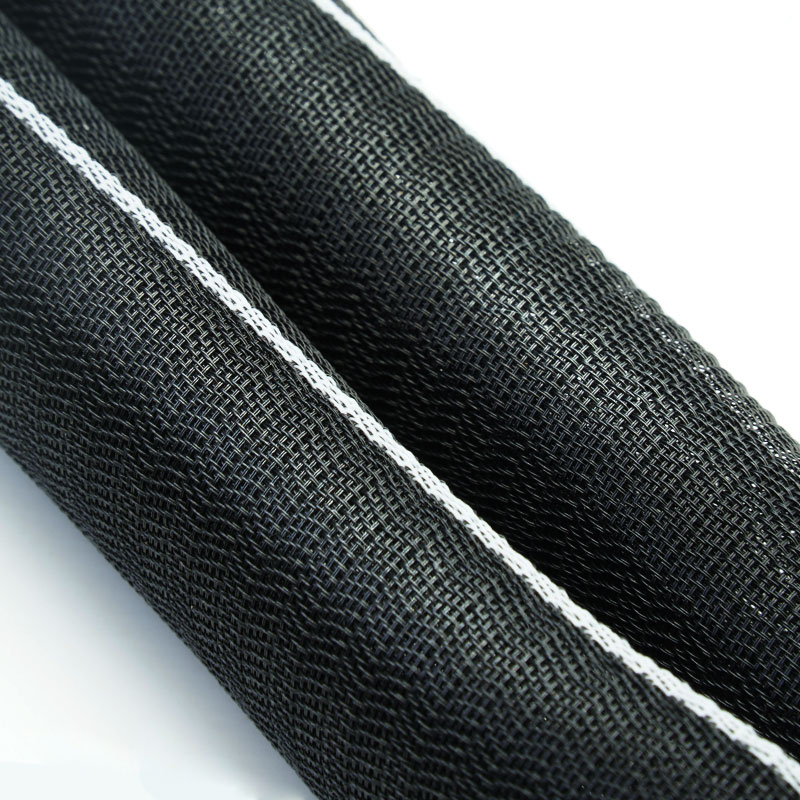

Black with a white identification stripe |
| RoHS Compliant |
Yes |
| Reach Compliant |
Yes |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Blade or hot knife |
| Supply |
Rolls or cut lengths |
Specifications
|
Part No
|
ID
(mm)
|
Spread Width
(mm)
|
Bundle Dia Range(mm)
|
Packing
Length
(m/spool)
|
|
Min
|
Max
|
|
STW-PES-005-BK
|
5
|
25±4
|
4 |
6 |
100 |
|
STW-PES-008-BK
|
8
|
40±4
|
6 |
9 |
100 |
|
STW-PES-010-BK
|
10
|
45±4
|
8 |
11 |
100 |
|
STW-PES-013-BK
|
13
|
65±5
|
12 |
15 |
50 |
|
STW-PES-016-BK
|
16
|
77±5
|
15 |
18 |
100 |
|
STW-PES-019-BK
|
19
|
97±5
|
18 |
22 |
100 |
|
|
|
|
23 |
26 |
50 |
|
|
|
|
28 |
30 |
50 |
|
|
|
|
29 |
34 |
25 |
|
|
|
|
35 |
40 |
25 |
|
|
|
|
48 |
52 |
25 |
● Note: Select the size according to the actual bundle diameter and ensure at least 35% overlap after installation.
Typical Applications
Automotive interiors
Organizes wiring behind dashboards, seats and trim.
Industrial machinery
Protects control cables around frames and panels.
Electrical cabinets
Contains wires while preserving troubleshooting access.
Appliances
Protects internal leads from housing contact.
Office and electronic equipment
Creates a clean, serviceable cable bundle.
Measure the bundle range and include branches and connectors. Choose enough overlap for secure coverage through bends. Provide abrasion, movement, temperature, fluids and appearance requirements. Select a dedicated FR, high-temperature or UV grade when those properties are required.
Customization Available
Diameter and overlap - Matched to cable bundle.
Woven density - Adjusted for coverage and hand feel.
Cut lengths and ends - Prepared pieces with agreed finish.
Color and packaging - Project labels, bags and OEM cartons available.
Standard STW-PES is a general-purpose polyester textile sleeve. Do not assign flame, UV, high-temperature or noise-reduction ratings without supporting data. Applicable RoHS, REACH and halogen-related documents may be supplied for confirmed materials.
Polyester yarn control - Material and color are verified.
Woven quality inspection - Coverage, edges and contamination are checked.
Dimensional verification - Size, overlap and length are confirmed.
Final release - Labels, quantity and packaging are checked.
Frequently Asked Questions
01. Is STW-PES the same as the 175 C version?
No. Use STW-PET-HT when the approved high-temperature construction is required.

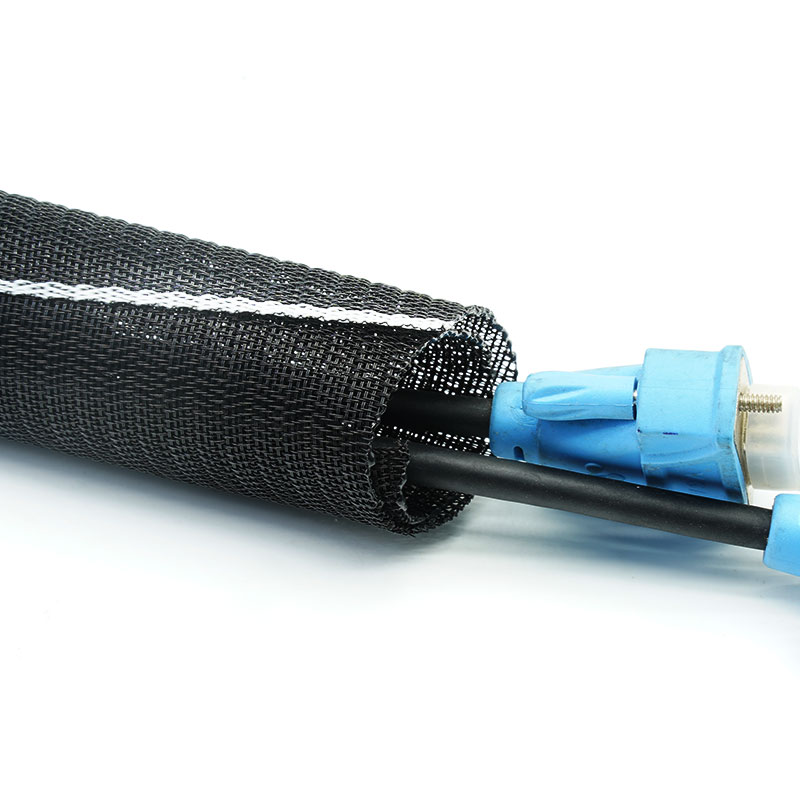

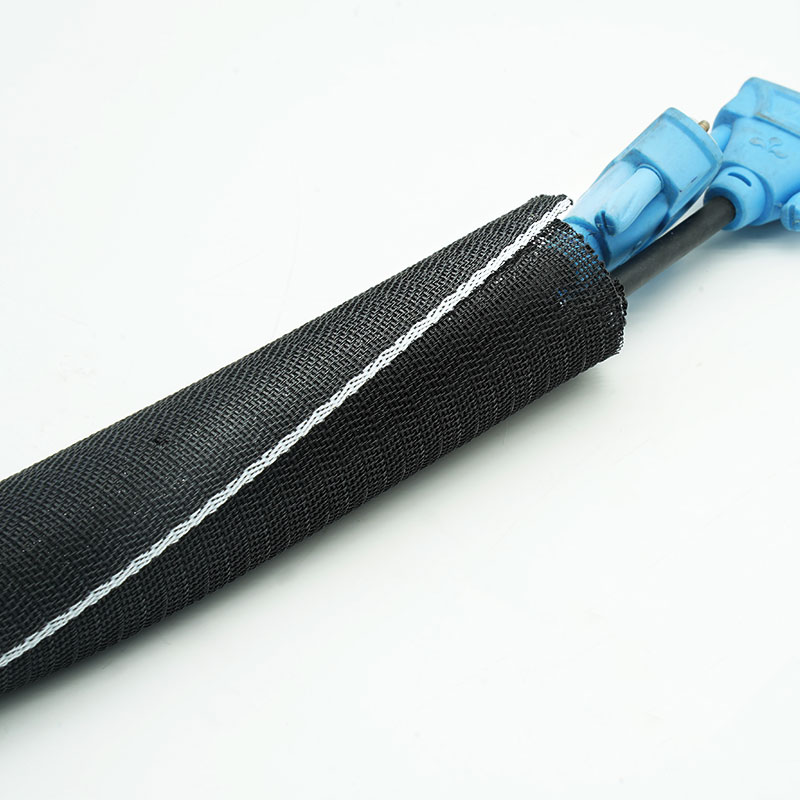

02. Can it be installed over connectors?
Yes. The split wrap installs from the side.
03. Can custom colors be supplied?
Yes, subject to yarn availability and MOQ.
Request a Sample or Quote
Send the bundle range, installation environment, required performance, cut length and quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quotation.
