Why Choose SBW-PET-UV Outdoor Cable Protection??
1. Reduce Premature Sunlight Aging
The UV-resistant PET formulation is intended for exposed cable routes where ordinary indoor sleeving may lose mechanical performance too quickly.

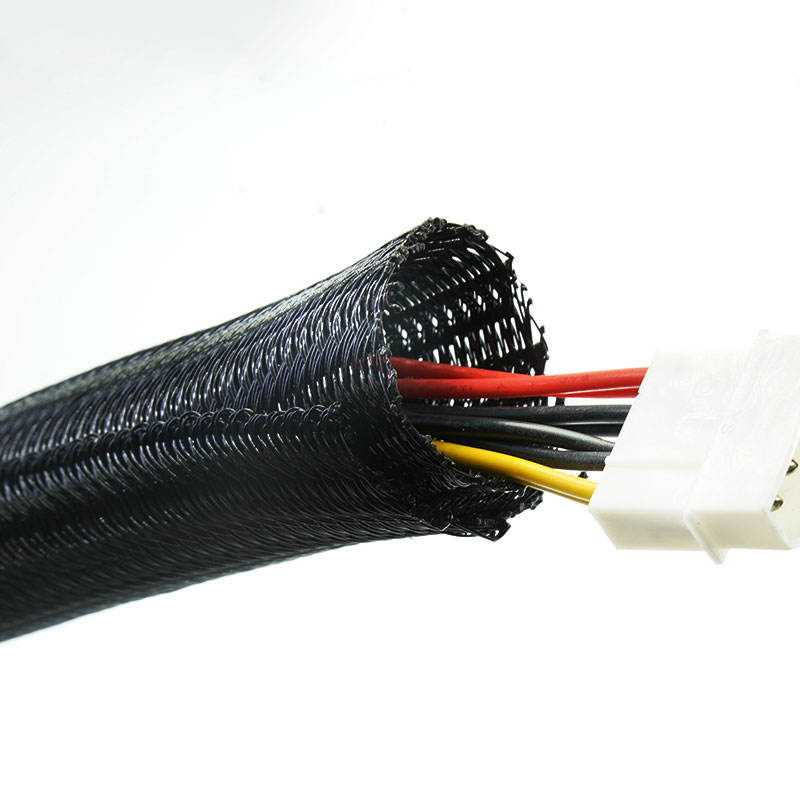

2. Upgrade Outdoor Harnesses Without Rewiring
The split construction wraps around terminated bundles, avoiding connector removal during installation and maintenance.
3. Protect Exposed Cable Surfaces
The braided layer helps control abrasion and cable contact on solar equipment, charging systems, machinery and outdoor cabinets.
4. Support Technical Evaluation
ISO 4892-2 exposure data is available for the referenced construction, helping engineers review suitability before specifying the product.
1. UV-Resistant Material
The PET formulation is designed for cable and wire-harness routing exposed to sunlight.
2. Retrofit-Friendly Design
The self-closing split structure supports installation and maintenance on completed harnesses.
3. Documented UV Exposure
ISO 4892-2 exposure data is available for the referenced construction.
4. Flexible Outdoor Routing
The braided surface follows equipment frames, bends and moving cable paths.
5. Abrasion Protection
The braided construction helps protect exposed cable surfaces from routine contact and rubbing.
6. Breathable Open Structure
The sleeve organizes outdoor wiring without trapping the bundle inside a sealed tube.
7. Project-Specific Supply
Size, cut length, packaging and identification can be adapted to project requirements.
| Material |
UV-resistant PET |
| Construction |
Self-closing split braid |
| Overlap |
≥35% |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| UV Resistance |
ISO 4892-2, 1,000 hours |
| Flammability |
UL94 V-2 |
| Irradiance |
0.35 W/m² at 340 nm |
| Black Panel Temperature |
65°C |
| Relative Humidity |
50% |
| Exposure Cycle |
102 min light + 18 min light and water spray |
| Tensile Performance |
Approximately 10% reduction |
| Elongation at Break |
Approximately 5.8% reduction |
| Elongation Retention |
More than 94% |
| Appearance |
No visible cracking or embrittlement |
| Available Color |
Black |
| Certification |
RoHS,REACH |
| Halogen Free |
Yes |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
Nominal Size
(mm)
|
Bundle Dia Range(mm)
|
Packing
Length
(m/spool)
|
|
Min
|
Max
|
|
SBW-PET-003-BK-UV
|
Φ3
|
2 |
4 |
300 |
|
SBW-PET-005-BK-UV
|
Φ5
|
3 |
6 |
200 |
|
SBW-PET-006-BK-UV
|
Φ6
|
4 |
7 |
200 |
|
SBW-PET-008-BK-UV
|
Φ8
|
6 |
10 |
100 |
|
SBW-PET-010-BK-UV
|
Φ10
|
8 |
11 |
100 |
|
SBW-PET-013-BK-UV
|
Φ13
|
12 |
15 |
50 |
|
SBW-PET-016-BK-UV
|
Φ16
|
15 |
18 |
25 |
|
SBW-PET-019-BK-UV
|
Φ19
|
18 |
22 |
25 |
|
|
|
23 |
26 |
25 |
|
|
|
28 |
30 |
25 |
|
|
|
29 |
34 |
25 |
|
|
|
35 |
40 |
25 |
|
|
|
46 |
55 |
25 |
● Note: Select the size according to the actual bundle diameter and ensure at least 35% overlap after installation.
Typical Applications
Solar and Renewable-Energy Equipment
Protects exposed control, communication and auxiliary wiring on outdoor energy systems.
Outdoor Telecommunications
Organizes cable bundles on communication equipment, cabinets and exposed network installations.
EV Charging Equipment
Provides serviceable protection for wiring routed through outdoor charging assemblies.
Construction and Agricultural Machinery
Covers sensor, control and electrical harnesses exposed to sunlight during equipment operation.
Outdoor Sensors and Controls
Protects signal and power cables connected to monitoring, security and automation devices.
Exterior Electrical Assemblies
Supports cable organization where sunlight exposure makes ordinary indoor sleeving unsuitable.
In addition to bundle diameter, provide the geographic location, expected sunlight exposure, service life target, movement, abrasion and contact with water, oils or chemicals. UV resistance does not automatically establish weatherproofing or liquid sealing; the protected cable system must be evaluated as a complete assembly.
Customization Available
MJ FLEX provides OEM and ODM support from material and construction selection through sampling, packaging and series-production requirements:
• Size, spread width and overlap.
• Color, cut length and reel length.
• Braid density and coverage.
• Labels, barcodes, kitting and packaging.
• Samples, inspection requirements and supporting documents.
• SBW-PET — Self Wrapping Split Braided Cable Sleeve
• SBW-PET-FR-V0 — UL94 V-0 flame-retardant self-wrapping sleeve
• SBW-PET-FR-EN45545 — EN45545 railway self-closing braided sleeve
• SBW-PET-RR — Rodent-resistant split braided sleeve
Frequently Asked Questions
01. What does the 1,000-hour UV test demonstrate?
It shows how the UV-stabilized PET retains flexibility, elongation and appearance under controlled accelerated weathering.
02. Is this sleeve waterproof?
No. The braid is an open, breathable structure. It protects and organizes cables but does not create a liquid-tight seal.
03. How is it different from standard black PET sleeving?
The UV version uses a UV-resistant formulation and is supported by accelerated exposure data for the referenced construction.
04. Can it be used on solar or outdoor charging equipment?
It can be considered for exposed cable organization and abrasion protection. Final selection should account for temperature, movement, chemicals and the project specification.
05. Does the UV test apply to every size and color?
Not automatically. Confirm that the requested size, color and construction are covered by the applicable test documentation.
Request a Sample or Quote
For an accurate technical recommendation and quotation, please provide:
The cable-bundle diameter, outdoor location, exposure conditions and required lifetime. MJ FLEX can review the application and prepare samples for outdoor installation evaluation.
