Why Choose VBW-PVT Hook and Loop Braided Wrap Sleeving?
1. Retrofit completed wiring
Wraps around existing harnesses, plugs and branch points without cable disassembly.
2. Reduce maintenance time
The full-length closure opens and reseals for inspection, repair or cable replacement.
3. Accommodate changing bundles
The flexible braided panel follows bends and moderate variations in bundle diameter.
4. Replace disposable bundling
Reusable closure supports repeated access without cutting ties or tape.

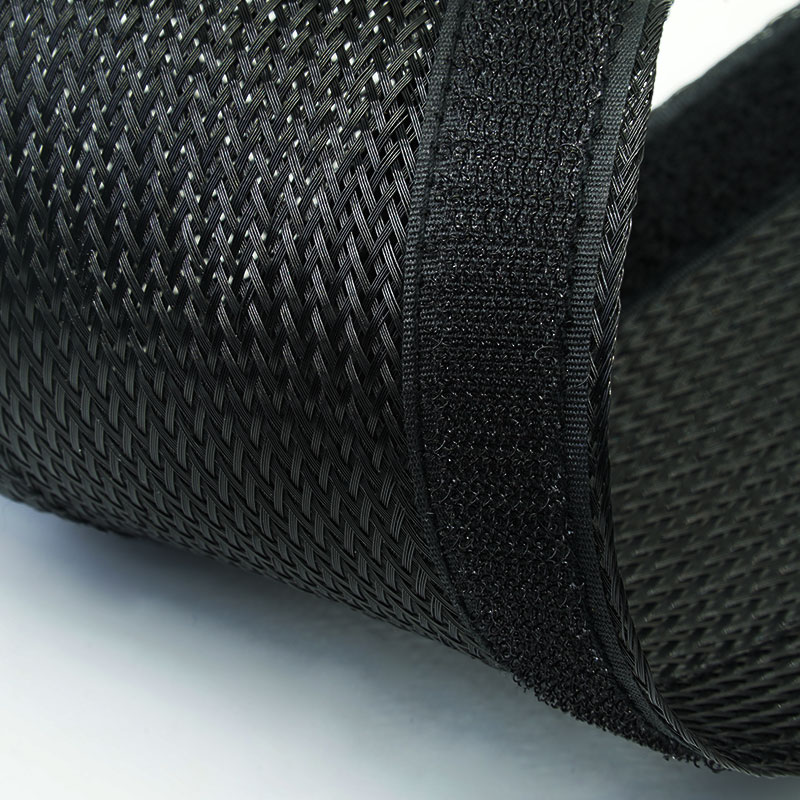

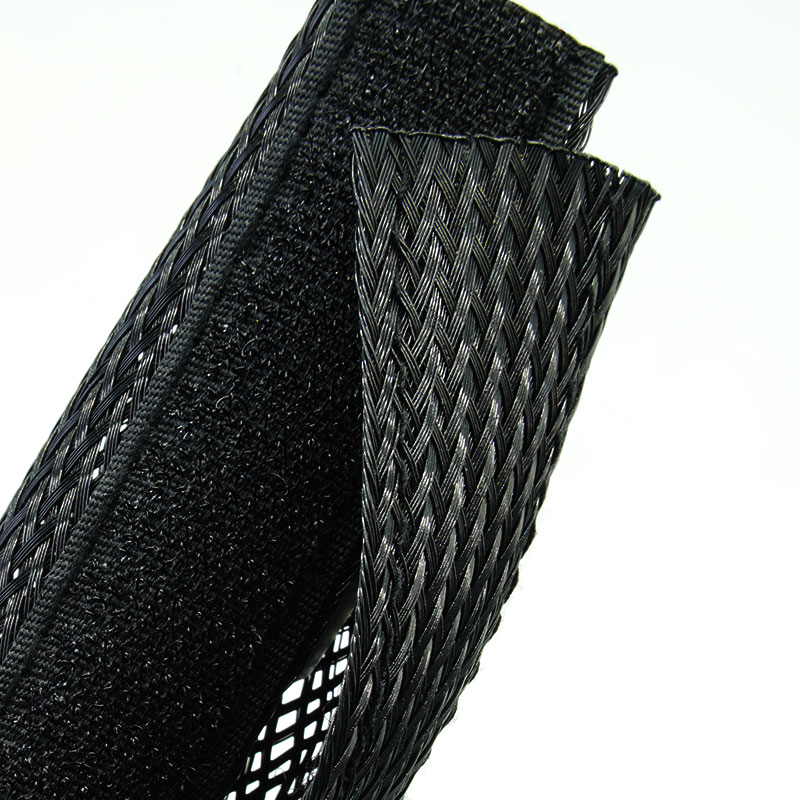

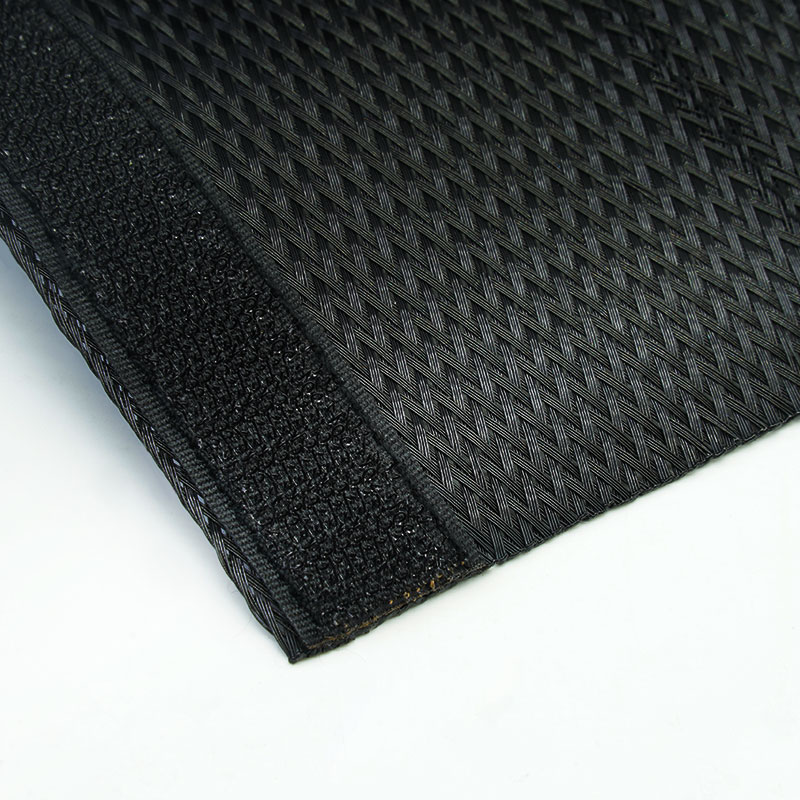

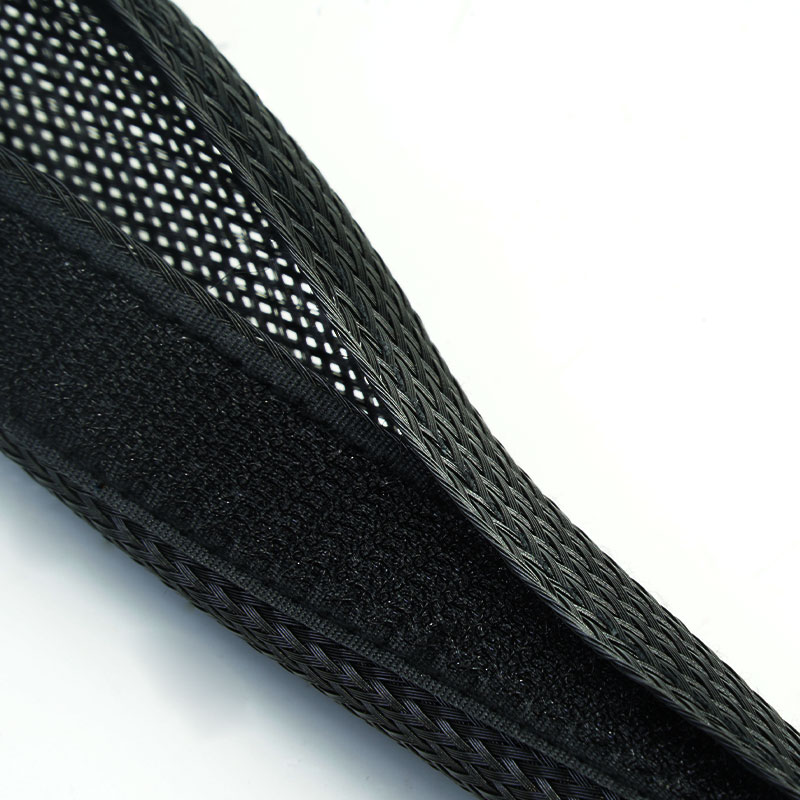

1. Full-length hook-and-loop closure
Provides fast side-entry installation and repeatable reopening.

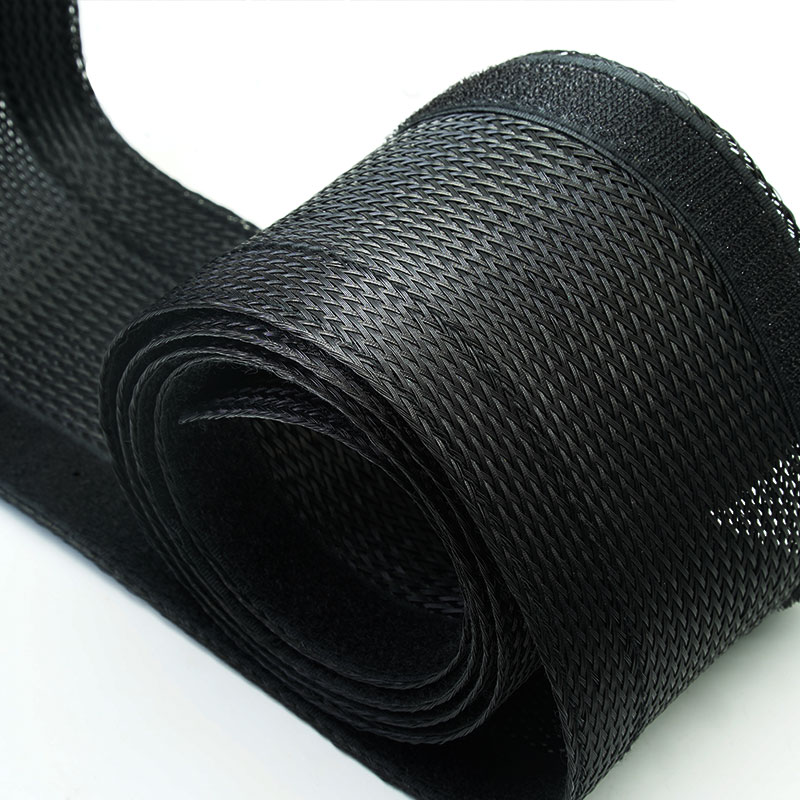

2. Flexible braided construction
Conforms to curved routes and irregular cable groups.
3. Expandable bundle coverage
Allows practical fit across a defined diameter range.
4. Abrasion protection
Helps reduce cable-jacket wear against frames, panels and equipment surfaces.
5. Connector-friendly retrofit
Installs after terminals and plugs are fitted.
6. Accessible branch-outs
Allows cables to enter or exit at selected points along the wrap.
7. Custom OEM supply
Available in project-specific diameters, lengths, colors and packaging.
| Sleeving Material |
PET monofilament |
| Hook and Loop Material |
Nylon |
| Construction |
Openable braided wrap |
| Closure |
Hook-and-loop strip |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
UL94 V2 |
| Abrasion Resistance |
Medium |
| Standard Color |
Black |
| Certification |
RoHS,REACH |
| Cutting Tool |
Blade or hot knife |
Specifications
|
Part No
|
Flat Width
(mm)
|
ID
(mm)
|
Spread Width
(mm)
|
Width Of Hook and Loop
(mm)
|
Packing
Length
(m/roll)
|
|
|
VBW-PVT-013-BK
|
13
|
Φ10
|
40±6
|
10
|
25 |
|
VBW-PVT-019-BK
|
19
|
Φ15
|
65±7
|
20
|
25 |
|
VBW-PVT-025-BK
|
25
|
Φ18
|
75±7
|
20
|
25 |
|
VBW-PVT-032-BK
|
32
|
Φ23
|
90±7
|
20
|
25 |
|
VBW-PVT-040-BK
|
40
|
Φ25
|
100±8
|
20
|
25 |
|
VBW-PVT-051-BK
|
51
|
Φ30
|
115±10
|
20
|
25 |
|
VBW-PVT-064-BK
|
64
|
Φ42
|
150±15
|
20
|
25 |
| VBW-PVT-075-BK |
75
|
Φ52
|
170±20
|
20
|
25 |
|
|
|
|
|
|
25 |
|
|
|
|
|
|
25 |
|
|
|
|
|
|
25 |
|
|
|
Φ86 |
|
|
25 |
Typical Applications
Workstations and office equipment
Combines loose power, data and peripheral leads while keeping them easy to change.
Industrial control equipment
Protects terminated sensor and control wiring and shortens troubleshooting access.
Robotics and automation
Organizes flexible cable groups where components are serviced or replaced regularly.
Automotive interior retrofits
Wraps accessory and low-voltage harnesses without removing installed connectors.
Audio, video and event systems
Creates reusable cable looms for setups that are assembled and dismantled repeatedly.
Measure the cable bundle at its smallest and largest points, then include bulky connectors and branch locations. Select a width that closes with adequate hook-and-loop engagement without compressing the cables. State bend frequency, abrasion source, temperature and required opening cycles so the braid and closure can be matched to the application.
Customization Available
• Width and bundle range — Sized for the actual installed cable group and closure overlap.
• Cut length and end finish — Prepared pieces for workstations, machines or harness stations.
• Closure configuration — Hook-and-loop width, color and placement can be reviewed.
• Branding and packaging — Labels, barcodes, kits, roll lengths and OEM cartons available by agreement.
Standard VBW-PVT is intended for general cable organization and abrasion protection. RoHS, REACH and halogen-free documentation may be available for confirmed materials. Do not state a flame, UV, waterproof or electrical-insulation rating unless it is supported by the exact ordered construction.
• Raw-material verification — Braid yarn and closure materials are checked against the production specification.
• Closure engagement check — Hook-and-loop alignment and holding performance are inspected.
• Braid and edge inspection — Coverage, broken yarns, loose edges and contamination are controlled.
• Final release check — Dimensions, length, labels, quantity and packaging are verified.
Frequently Asked Questions
01. Can it be installed over cables with connectors?
Yes. The side-entry wrap does not need to pass over the connector.
02. Can the sleeve be reopened and reused?
Yes. It is designed for applications requiring repeated cable access.
03. Is it the same as a closed expandable braided sleeve?
No. VBW-PVT opens along its length, making retrofit installation and maintenance easier.
Request a Sample or Quote
Send the bundle dimensions, installation environment, closure preference, finished length, quantity and required documents. MJ FLEX will review the application and recommend a suitable sample or quotation configuration.
