Why Choose STW-PET-W Braided Split Loom?
1. Follow complex vehicle routes
The knitted wave structure bends around corners and changing harness profiles.

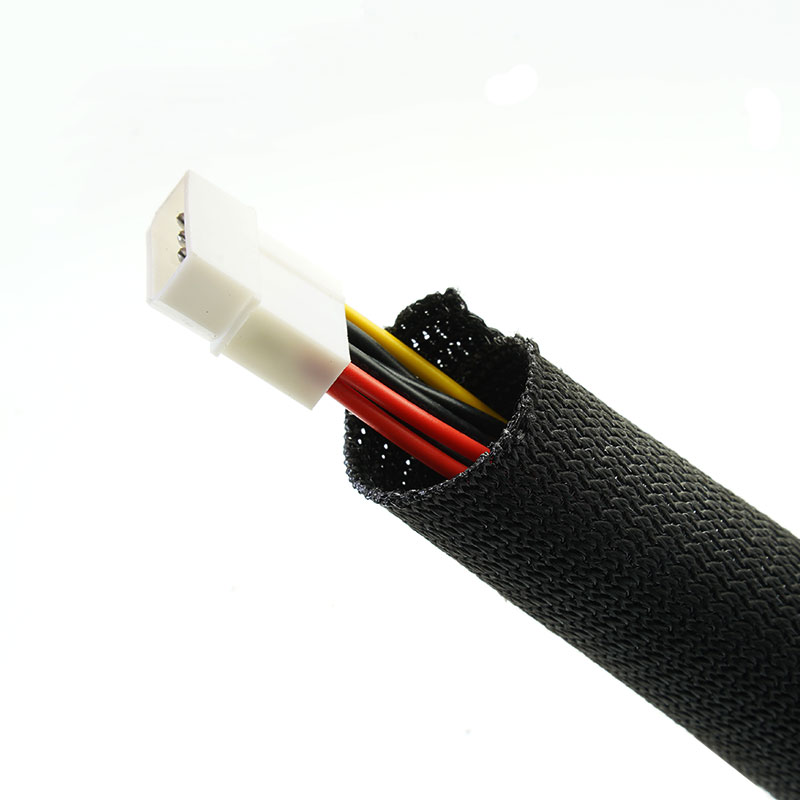

2. Speed harness installation
Side entry fits terminated cables without pulling through a closed tube.
3. Protect cables near panels
Textile coverage reduces jacket wear against vehicle structures.
4. Simplify service and branching
The split loom opens locally for exits and maintenance.

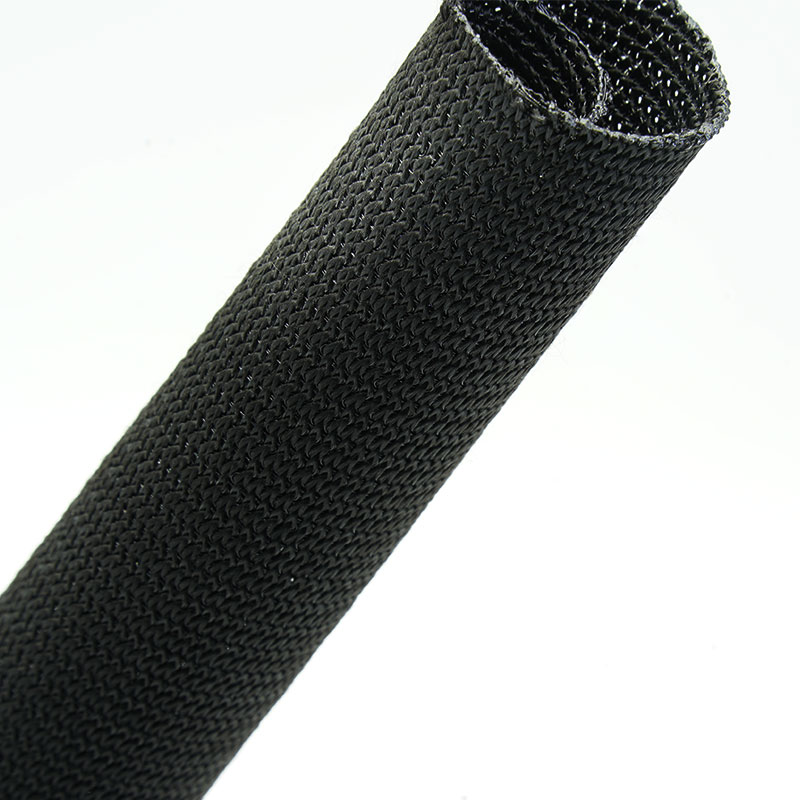

1. Warp-knitted wave structure
Provides flexible textile coverage.

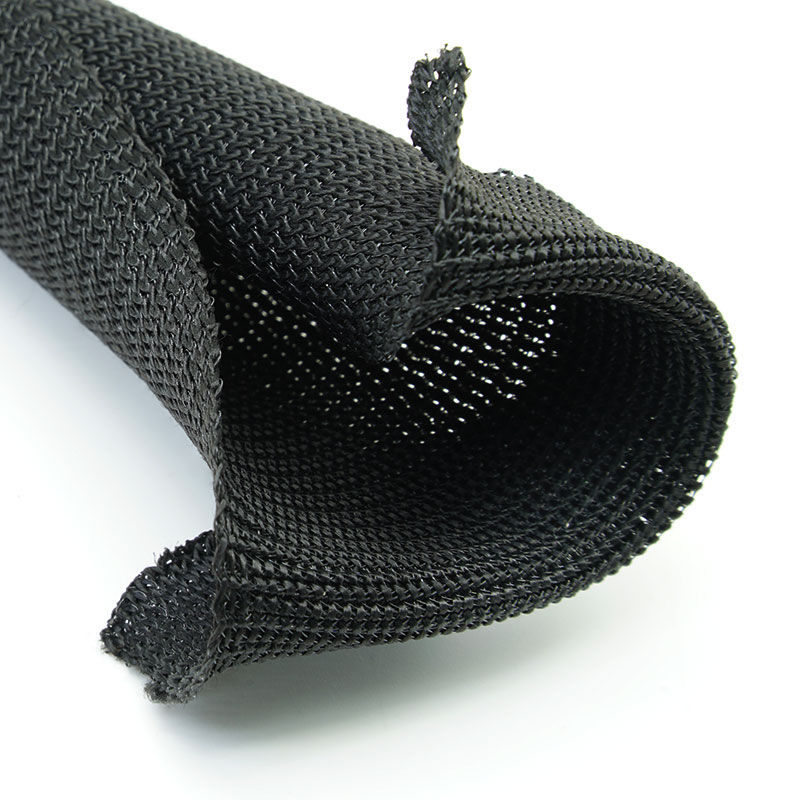

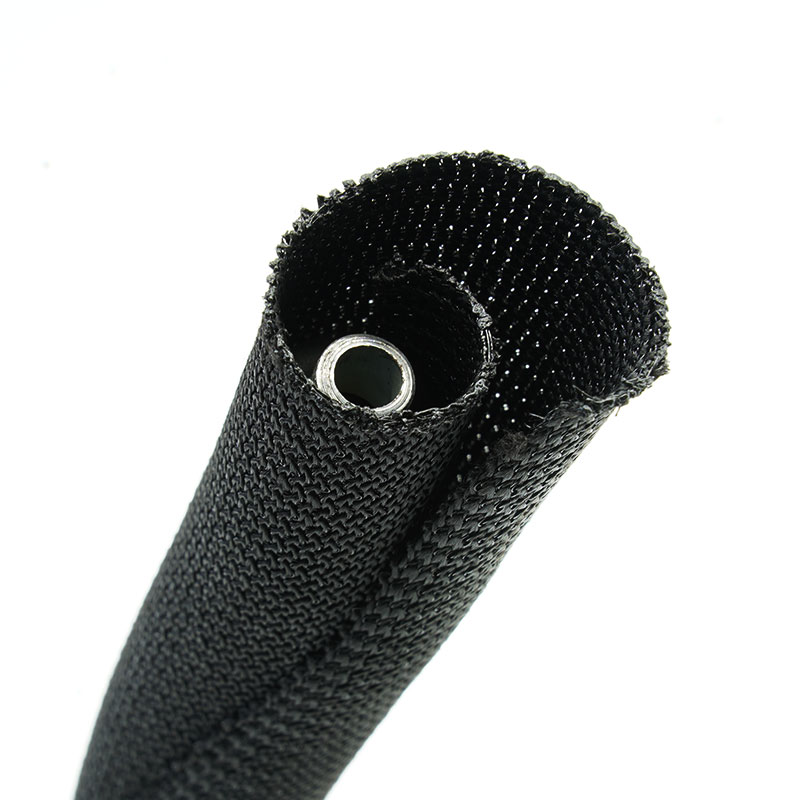

2. Split wrap-around profile
Supports side-entry installation.

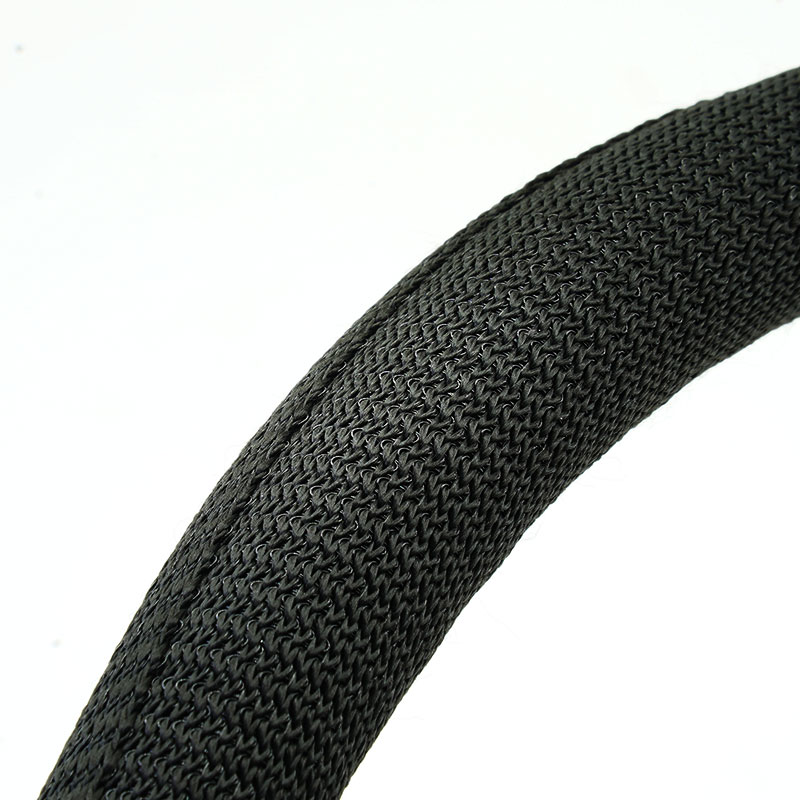

3. Automotive routing flexibility
Follows bends and irregular bundles.
4. Branch-friendly construction
Allows local wire exits.
5. Abrasion protection
Helps reduce cable-jacket wear.
6. Lightweight alternative
Avoids bulky rigid conduit in protected areas.
7. Custom harness supply
Sizes, lengths and packaging can be reviewed.
| Material |
PET Multifilament+monofilament |
| Construction |
Warp-knitted split loom |
| Overlap |
≥35% |
| Working Temperature |
-40°C to +150°C |
| Melting Point |
240±10°C |
| Flammability |
UL94 V0,FMVSS302,GB8410-2006 |
| Standard Color |
Black,Other colors subject to MOQ |
| Certification |
RoHS,REACH,Halogen free |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Blade or hot knife |
| Supply |
Rolls or cut lengths |
Specifications
|
Part No
|
ID
(mm)
|
|
Spread Width
(mm)
|
Bundle Dia Range(mm)
|
Packing
Length
(m/spool)
|
|
Min
|
Max
|
|
STW-PET-005-BK-W
|
5
|
7
|
25±4
|
4 |
6 |
200 |
|
STW-PET-008-BK-W
|
8
|
10
|
40±4
|
6 |
9 |
100 |
|
STW-PET-010-BK-W
|
10
|
12
|
45±4
|
8 |
11 |
80 |
|
STW-PET-013-BK-W
|
13
|
15
|
65±5
|
12 |
15 |
50 |
|
STW-PET-016-BK-W
|
16
|
18
|
77±5
|
15 |
18 |
100 |
|
STW-PET-019-BK-W
|
19
|
21
|
97±5
|
18 |
22 |
100 |
|
|
|
|
|
23 |
26 |
50 |
|
|
|
|
|
28 |
30 |
50 |
|
|
|
|
|
29 |
34 |
50 |
|
|
|
|
|
35 |
40 |
50 |
|
|
|
|
|
48 |
52 |
25 |
● Note: Select the size according to the actual bundle diameter and ensure at least 35% overlap after installation.
Typical Applications
Dashboard harnesses
Routes branched wiring through confined interior spaces.
Door and seat systems
Protects flexible harnesses around moving modules.
Body and roof wiring
Contains long cable runs behind trim panels.
Industrial machinery
Organizes sensor wiring around frames and bends.
Appliances
Protects internal cable groups near housings.
Measure minimum and maximum bundle diameter, branch locations and bend radius. Select a size that closes securely without flattening the knitted profile. State abrasion, movement, temperature and fluids. Use a tested FR or high-temperature grade when the project specifies those properties.
Customization Available
Nominal size - Matched to cable range.
Knitted density - Adjusted for coverage and flexibility.
Cut lengths - Prepared by harness zone.
Labels and packaging - OEM kits and private labels available.
Standard STW-PET-W is intended for mechanical cable organization and abrasion protection. Flame, temperature, automotive and chemical claims require exact construction data. Material declarations may be available for confirmed yarns.
Yarn identity - Material and color are checked.
Knitted profile inspection - Wave consistency and defects are monitored.
Fit verification - Closure and dimensions are checked.
Packing release - Length, labels and quantity are confirmed.
Frequently Asked Questions
01. How is it different from woven wrap?
Warp knitting creates a looped, flexible wave structure; woven fabric has a different yarn interlacing and surface.
02. Can cables exit along the route?
Yes. The split profile opens locally for branches.
03. Is the standard version flame rated?
Only when supported by test data for the exact construction.
Request a Sample or Quote
Send the bundle range, installation environment, required performance, cut length and quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quotation.
