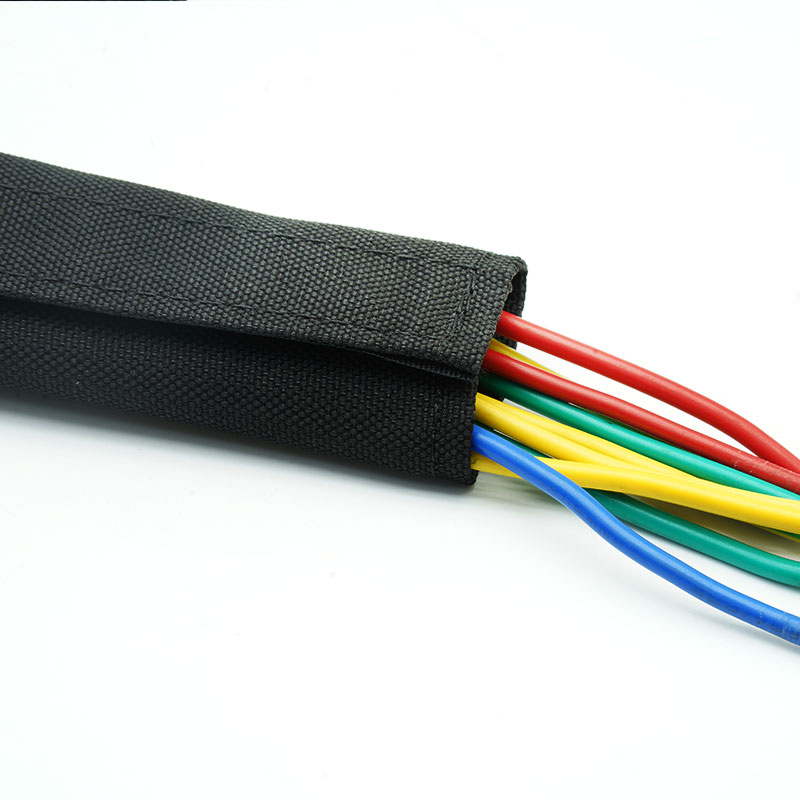

1. Manage cables and hoses together
Broad textile coverage contains mixed lines that vary in diameter, surface and stiffness.
2. Protect finished surfaces
The fabric exterior creates a softer interface around painted panels and interior equipment.
3. Open equipment without rebuilding the bundle
Reusable closure gives maintenance teams direct access along the full route.
4. Improve appearance and containment
The opaque textile body hides mixed wiring and reduces loose-line movement.

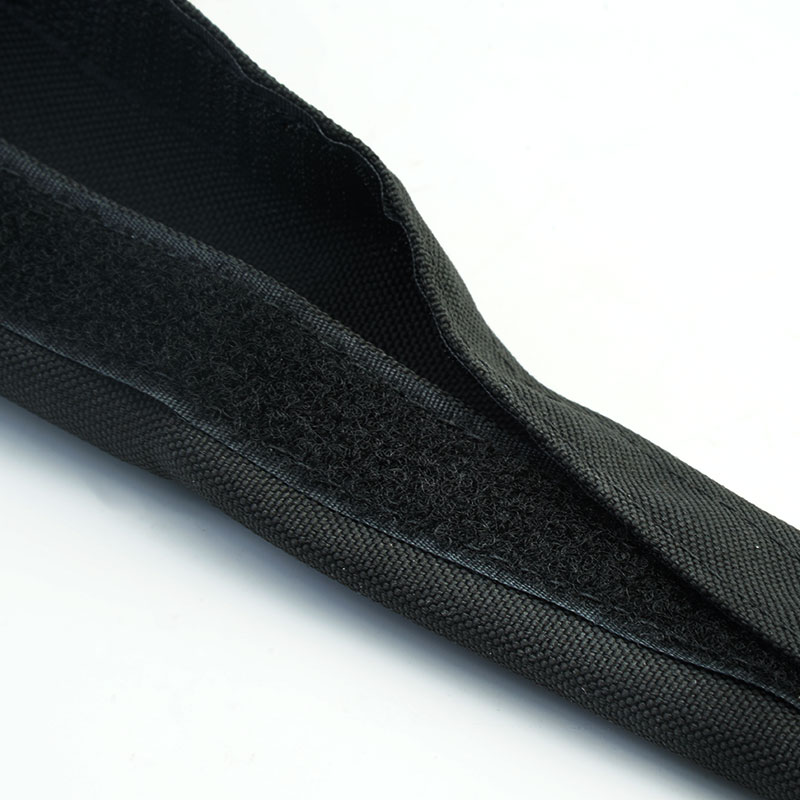

1. Reusable hook-and-loop closure
Opens flat for installation and reseals along the complete sleeve.

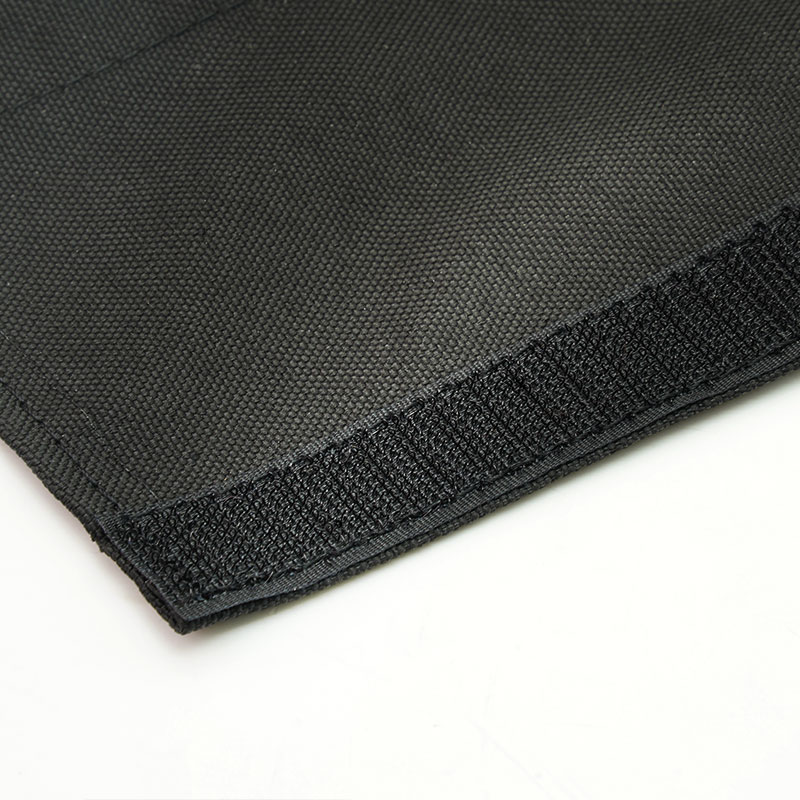

2. Dense textile construction
Provides broad coverage and a smooth outer appearance.

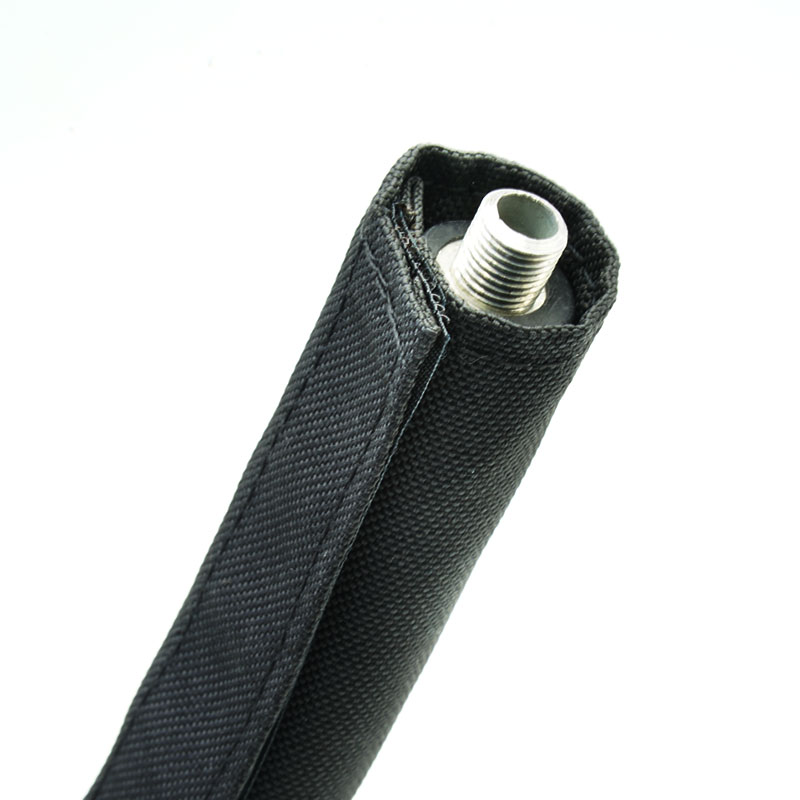

3. Cable and hose compatibility
Suitable for mixed bundles when temperature and fluid exposure are confirmed.
4. Soft contact surface
Helps limit scuffing against interior panels and finished components.
5. Flexible wrap geometry
Follows bends and accommodates moderate bundle variation.
6. Maintenance-friendly access
Supports inspection, hose replacement and cable additions.
7. Custom assembly options
Available in selected widths, lengths, colors, labels and packaging.
| Sleeving Material |
PET mulifilament+monofilament |
| Hook & Loop Material |
Nylon |
| Structure |
Flat wrap-around sleeve |
| Closure |
Hook-and-loop strip |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
UL94 V2 |
| Abrasion Resistance |
Medium |
| Standard Color |
Black |
| Certification |
RoHS,REACH |
| Cutting Tool |
Blade or hot knife |
Specifications
|
Part No
|
ID
(mm)
|
Spread Width
(mm)
|
Width Of Hook and Loop
(mm)
|
Packing
Length
(m/roll)
|
|
|
VTW-PVT-016-BK
|
Φ16
|
70
|
20
|
25 |
|
VTW-PVT-020-BK
|
Φ20
|
85
|
20
|
25 |
|
VTW-PVT-025-BK
|
Φ25
|
100
|
20
|
25 |
|
VTW-PVT-030-BK
|
Φ30
|
115
|
20
|
25 |
|
VTW-PVT-035-BK
|
Φ35
|
130
|
20
|
25 |
|
VTW-PVT-040-BK
|
Φ40
|
145
|
20
|
25 |
|
VTW-PVT-050-BK
|
Φ50
|
177
|
20
|
25 |
| VTW-PVT-060-BK |
Φ60
|
210
|
20
|
25 |
|
|
|
|
|
25 |
|
|
|
|
|
25 |
|
|
|
|
|
25 |
|
|
Φ100 |
|
|
25 |
Typical Applications
Machine cable-and-hose bundles
Contains electrical lines and pneumatic hoses while keeping maintenance points accessible.
Vehicle interiors and equipment bays
Reduces rubbing and visual clutter around seats, panels and auxiliary modules.
Medical and laboratory equipment
Organizes serviceable leads and tubing where a soft textile surface is preferred.
Office furniture and height-adjustable desks
Keeps moving power and data lines together without a rigid conduit.
Temporary installations and rental equipment
Allows bundles to be opened, rearranged and reused between deployments.
Measure the combined circumference and maximum outside diameter of all cables and hoses, including fittings. Allow enough overlap for secure closure without flattening soft tubing. Identify hose temperature, pressure, media, leak risk and cleaning chemicals; this product organizes and shields lines but is not a pressure-retaining or leak-containment device.
Customization Available
• Wrap width and overlap — Configured for cable-only, hose-only or mixed-service bundles.
• Textile construction — Fabric weight, surface and color may be reviewed for project needs.
• Cutouts and cut lengths — Branch positions and assembly lengths available after drawing confirmation.
• Identification and packing — Printed labels, barcodes, kits and private-label packaging by agreement.
VTW-PVT provides mechanical organization and surface protection only. Compatibility with heat, oils, coolants, cleaning agents or medical environments must be confirmed. Standard material should not be described as flame rated, waterproof, sterile, pressure resistant or fluid tight without product-specific evidence.
• Fabric inspection — Surface consistency, weave defects and contamination are checked.
• Closure alignment — Hook-and-loop position and continuous engagement are verified.
• Fit review — Representative bundle sizes are checked for overlap and flexibility.
• Order verification — Length, cut features, labels and packaging are matched to the order.
Frequently Asked Questions
01. Can it wrap both hoses and electrical cables?
Yes, when temperature, media and movement are within the confirmed material limits.
02. Does the sleeve contain leaking fluid?
No. It is an organizational and abrasion-protection wrap, not a sealed containment product.
03. Why choose textile rather than braided construction?
Textile construction provides broader, more opaque coverage and a softer continuous surface.
Request a Sample or Quote
Send the bundle dimensions, installation environment, closure preference, finished length, quantity and required documents. MJ FLEX will review the application and recommend a suitable sample or quotation configuration.
