Colored PET Braided Sleeving
colored braided wire loom

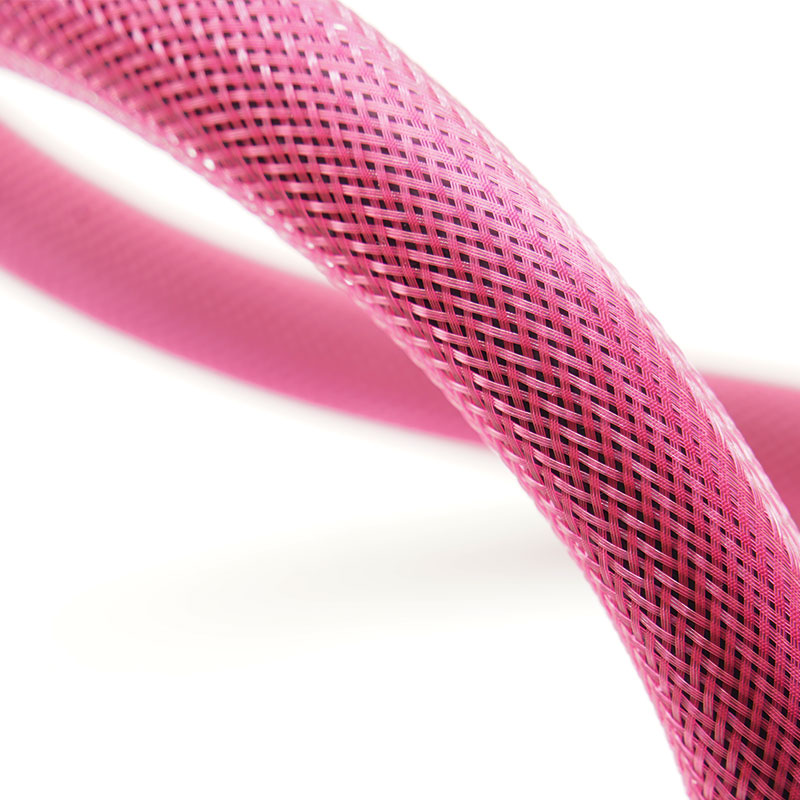

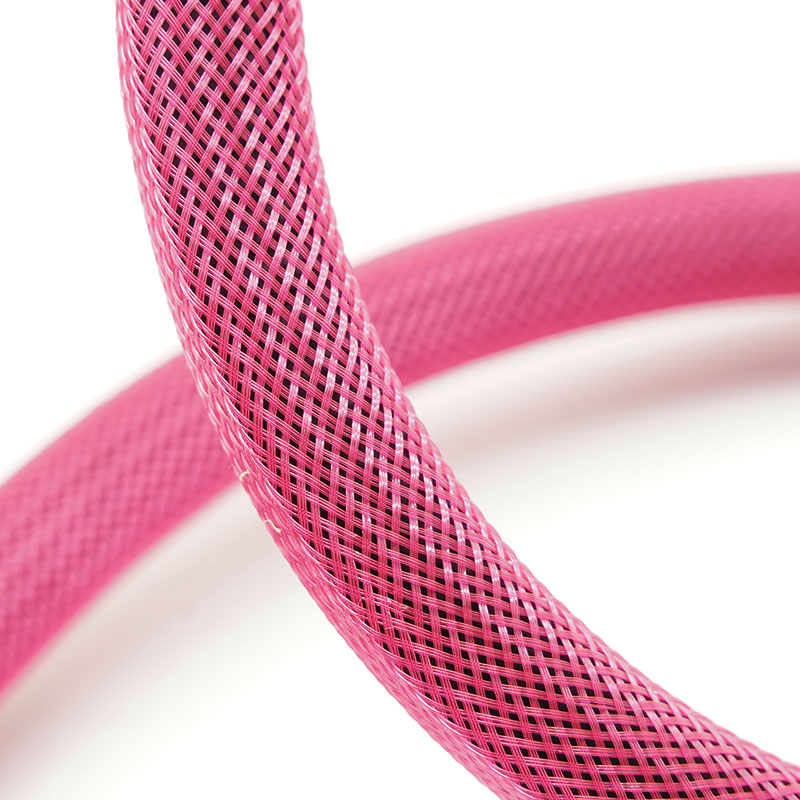

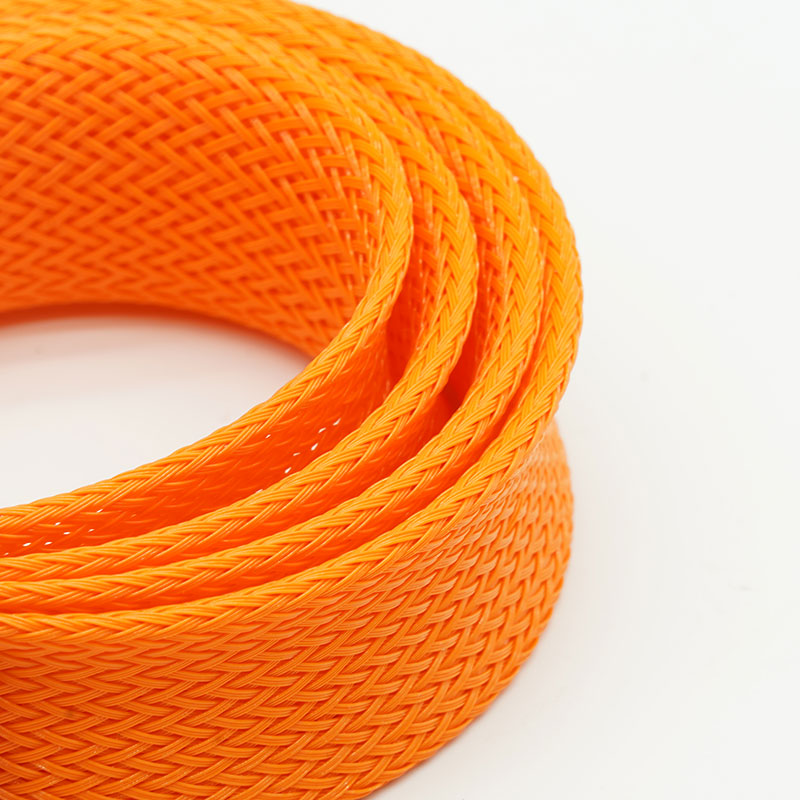

Colored PET Expandable Braided Cable Sheath

MJ FLEX BRS-PET-CLR is a colored expandable PET braid that combines cable protection with visual identification. It helps separate circuits, match equipment colors and improve harness recognition while retaining the flexibility, connector pass-through and abrasion protection of general PET braided sleeving. Color feasibility and minimum order depend on yarn and production requirements.

  • Material :

    PET Monofilament

  • Working Temperature :

    -40℃~ +125℃

  • Melting Point :

    240+(-)10℃

  • Flammability :

    UL94 V2

  • Standard Color :

    Customer-approved standard or custom color

  • Certification :

    Rohs,Reach,Halogen Free

  • MOQ :

    2000m

  • Why Choose BRS-PET-CLR?

    • Identify circuits quickly

    Different colors help installers distinguish power, signal, network or equipment-specific bundles.

    • Support product branding

    Color can coordinate with equipment, retail packaging or customer identity.

    • Reduce wiring mistakes

    Clear visual separation improves assembly and field-maintenance recognition.

    • Protect and organize together

    The colored braid adds routine abrasion protection without labels along the full cable route.



    Key Features

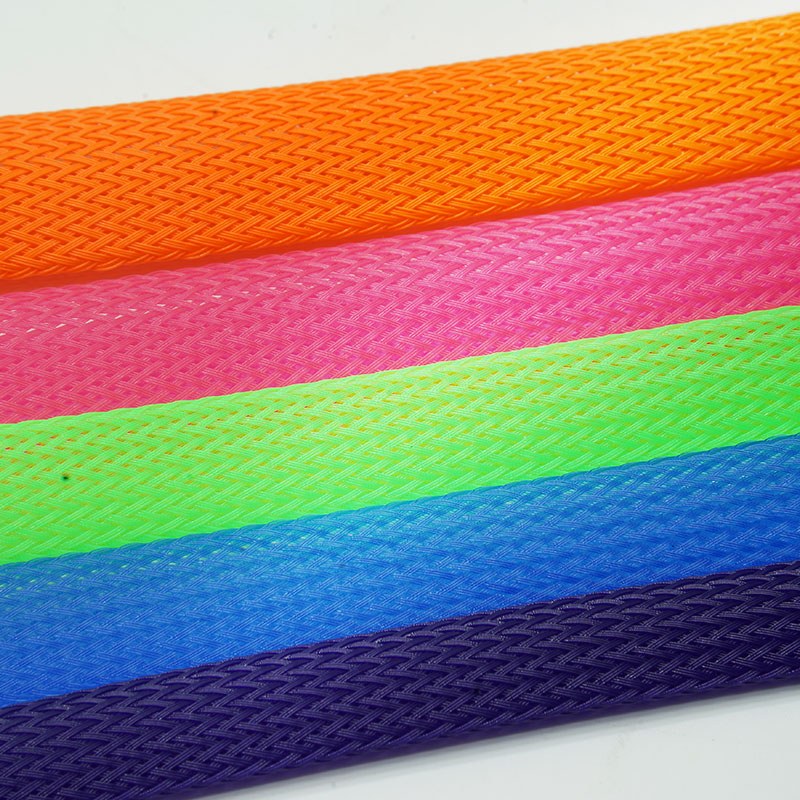

    1. Multiple color options

    Supports identification, coding and visual design requirements.

    2. Expandable PET braid

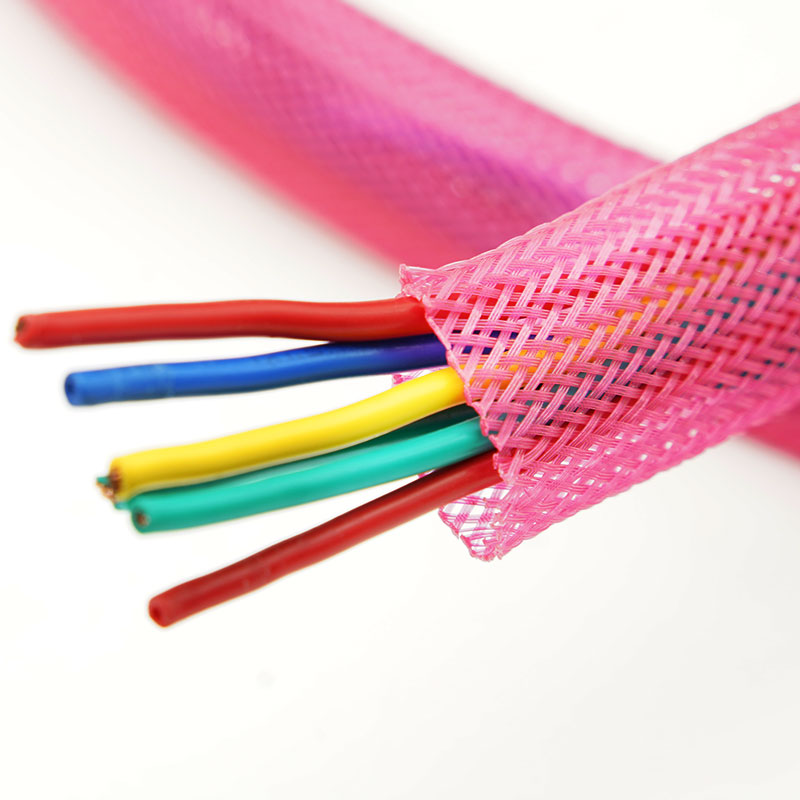

    Passes over connectors and fits changing bundle diameters.

    3. Abrasion protection

    Helps reduce scuffing and jacket wear.

    4. Lightweight flexible structure

    Follows bends without rigid conduit.

    5. Open-braid ventilation

    Allows heat and moisture to dissipate around the bundle.

    6. Hot-knife cuttable

    Heat sealing helps produce controlled ends.

    7. Custom packaging available

    Supports retail, OEM and assembly-line supply formats.



    Technical Data

    Material PET monofilament
    Construction Expandable open braid
    Working Temperature -40°C to +125°C
    Melting Point 240±10°C
    Flammability UL94 V2
    Abrasion Resistance Medium
    Wall thickness 0.65 ± 0.05 mm
    Standard Color Customer-approved standard or custom color
    Certification RoHS,REACH,Halogen Free
    Halogen Free Yes
    Cutting Tool Hot knife

    Specifications
    Part No
    Flat Width(W)
    Expanded Range(mm)
    Wall
    Thickness
    (mm)
    Packing
    Length
    (m/spool)
    Inch
    mm
    Min.(I)
    Max.(O)
    BRS-PET-003-CLR
    1/8”
    		 3 1 6
    0.65±0.05
    		 1000
    BRS-PET-006-CLR
    1/4”
    		 6 3 9
    0.65±0.05
    		 500
    BRS-PET-008-CLR
    5/16”
    		 8 5 12
    0.65±0.05
    		 350
    BRS-PET-010-CLR
    3/8”
    		 10 7 17
    0.65±0.05
    		 350
    BRS-PET-012-CLR
    1/2”
    		 12 8 20
    0.65±0.05
    		 350
    BRS-PET-016-CLR
    5/8”
    		 16 10 27
    0.65±0.05
    		 250
    BRS-PET-018-CLR
    11/16"
    		 18 12 29
    0.65±0.05
    		 250
    BRS-PET-020-CLR
    3/4”
    		 20 14 32
    0.65±0.05
    		 200
    BRS-PET-025-CLR
    1”
    		 25 18 35
    0.65±0.05
    		 200
    BRS-PET-032-CLR
    1-1/4”
    		 32 20 50
    0.65±0.05
    		 150
    BRS-PET-038-CLR
    1-1/2”
    		 38 30 60
    0.65±0.05
    		 100
    BRS-PET-045-CLR
    1-3/4”
    		 45 35 75
    0.65±0.05
    		 100
    BRS-PET-050-CLR
    2”
    		 50 40 80
    0.65±0.05
    		 100
    BRS-PET-064-CLR
    2-1/2”
    		 64 45 105
    0.65±0.05
    		 50
    BRS-PET-076-CLR
    3”
    		 76 64 120
    0.65±0.05
    		 50
    BRS-PET-100-CLR
    4”
    		 100 80 150
    0.65±0.05
    		 50
    ● Note: Expanded range describes geometric capability, not the preferred continuous operating point. Selecting near maximum expansion increases braid openings, reduces surface coverage and shortens installed length.

    Typical Applications
    Wire-harness identification
    Separates circuits and reduces connection errors during assembly.
    Audio and computer builds
    Adds organized routing and a coordinated appearance.
    Robotics and automation
    Color-codes power, signal and pneumatic-adjacent cable groups for maintenance.
    Appliances and electronics
    Distinguishes internal harness functions and production variants.
    Retail and aftermarket kits
    Combines visual appeal with lightweight cable protection.

    How to Select

    Provide a physical sample or Pantone or RAL reference, required size, annual volume and acceptable color tolerance. Confirm whether flame, UV or regulatory performance is also required because pigments and additives can affect the approved formulation and documentation.



    Customization Available

    • Color matching - Pantone, RAL or customer sample subject to feasibility.

    • Multi-color patterns - Tracer or mixed-color designs can be evaluated.

    • Size and cut length - Matched to the harness and assembly process.

    • Retail or OEM packaging - Custom labels, boxes, barcodes and roll lengths.



    Testing and Compliance

    Color does not establish flame, UV or industry compliance. RoHS, REACH, halogen-free or POP documentation can be reviewed for the selected color and material; special performance claims require evidence for that exact formulation.



    Quality Assurance

    • Color approval - Lab sample or production standard is approved before bulk production.

    • Color consistency - Yarn and finished braid are compared with the approved reference.

    • Braid inspection - Coverage, diameter and surface defects are monitored.

    • Packing separation - Colors, sizes and lots are identified to prevent mixing.



    Frequently Asked Questions

    01. Can you match Pantone or RAL colors?
    Yes, subject to material feasibility, tolerance and MOQ.
    02. Do all colors have the same MOQ?
    No. MOQ depends on pigment, yarn, size and production quantity.
    03. Does color change flame performance?
    It can; compliance must be confirmed for the exact formulation.
    04. Can several colors be packed as a kit?
    Yes, subject to quantity and packaging review.



    Request a Sample or Quote

     Share the bundle diameter, largest connector, operating environment, required test standard, cutting or packaging needs and estimated quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quotation.
