Why Choose STW-PET-UV Woven Cable Sleeve?
1. Protect sunlight-exposed harnesses
UV-stabilized material helps reduce degradation caused by prolonged outdoor exposure.
2. Retrofit outdoor wiring
Side entry wraps around installed cables, connectors and branches.
3. Maintain field-service access
The sleeve can be reopened for inspection or cable replacement.
4. Combine outdoor durability and flexibility
The woven wrap protects against routine abrasion without rigid conduit.

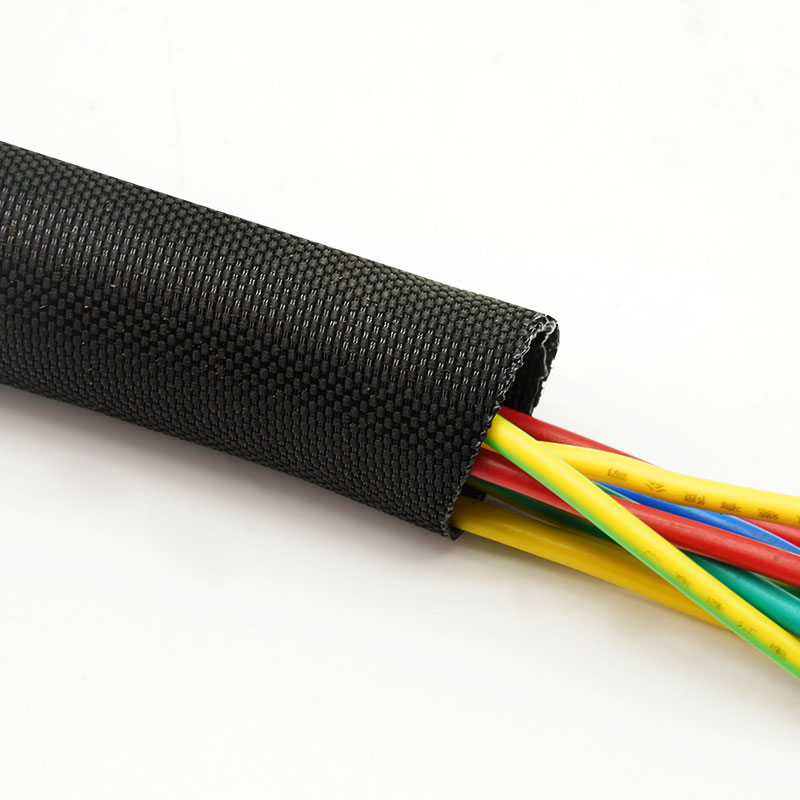

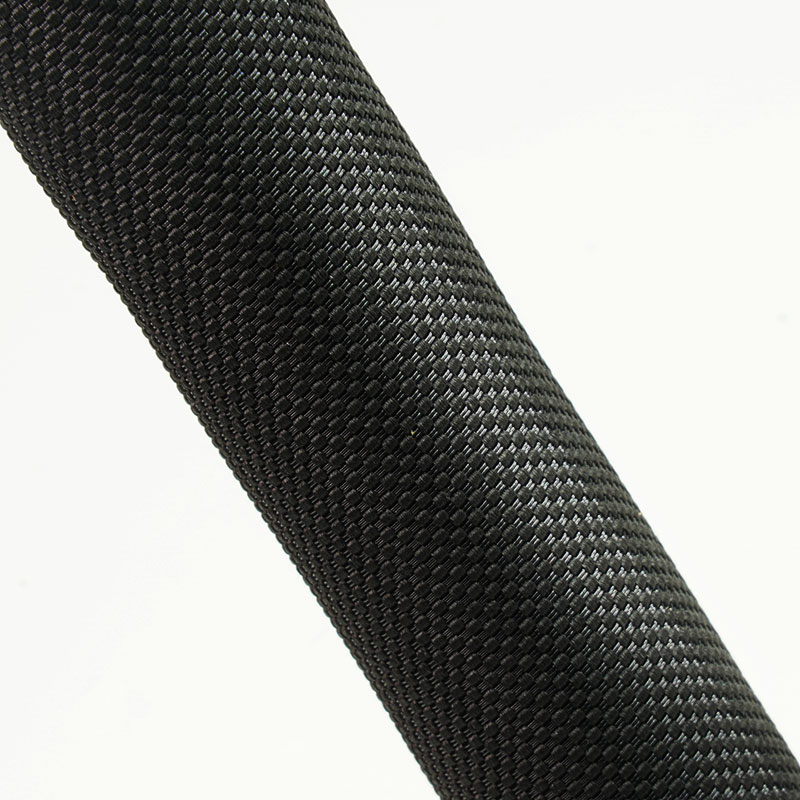

1. UV-resistant woven polyester
Developed for sunlight-exposed cable-protection applications.

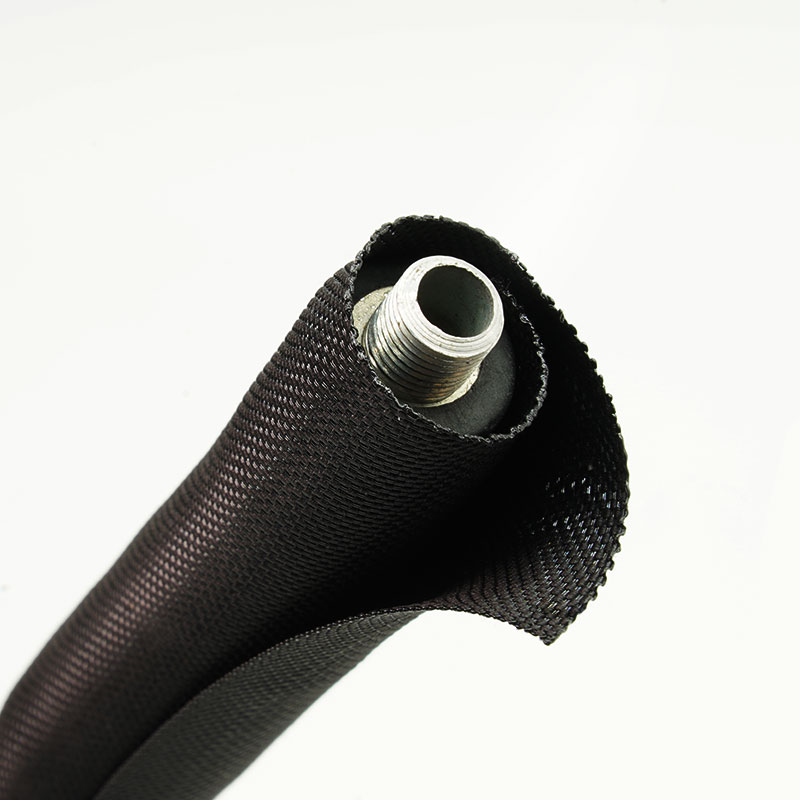

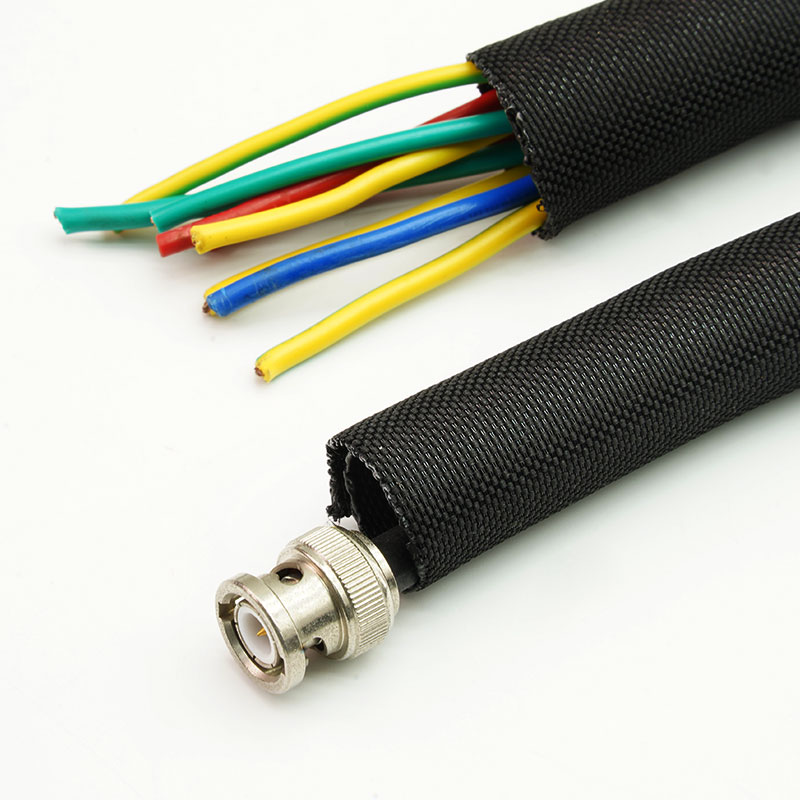

2. Self-closing split design
Wraps around existing bundles without disconnecting terminals.
3. Outdoor abrasion protection
Helps shield cable jackets from rubbing and handling.
4. Flexible textile construction
Follows bends and irregular equipment routes.
5. Accessible overlap closure
Allows branch-outs and later maintenance.
6. Black outdoor-grade construction
Supports common exterior installation requirements.
7. Custom cut and packaging options
Available for OEM assembly and field-installation kits.
| Material |
UV-stabilized PET Monofilament and Multifilament |
| Construction |
Self-closing split wrap |
| Overlap |
≥35% |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
UL94 V2 |
| Standard Color |
Black |
| Certification |
RoHS,REACH,Halogen free |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Blade or hot knife |
Specifications
|
Part No
|
Nominal Size
(mm)
|
Spread Width
(mm)
|
Bundle Dia Range(mm)
|
Packing
Length
(m/spool)
|
|
Min
|
Max
|
|
STW-PET-003-BK-UV
|
Φ3
|
25±2
|
2 |
4 |
200 |
|
STW-PET-005-BK-UV
|
Φ5
|
29±2
|
4 |
6 |
200 |
|
STW-PET-006-BK-UV
|
Φ6
|
34±2
|
4 |
7 |
200 |
|
STW-PET-008-BK-UV
|
Φ8
|
46±2
|
6 |
10 |
100 |
|
STW-PET-010-BK-UV
|
Φ10
|
55±2
|
8 |
11 |
100 |
|
STW-PET-013-BK-UV
|
Φ13
|
65±2
|
12 |
15 |
100 |
|
STW-PET-016-BK-UV
|
Φ16
|
77±2
|
15 |
18 |
100 |
|
STW-PET-019-BK-UV
|
Φ19
|
104±5
|
18 |
20 |
50 |
|
|
|
|
23 |
26 |
25 |
|
|
|
|
27 |
31 |
25 |
|
|
|
|
30 |
34 |
25 |
|
|
|
|
37 |
40 |
25 |
|
|
|
|
48 |
52 |
25 |
● Note: Select the size according to the actual bundle diameter and ensure at least 35% overlap after installation.
Typical Applications
Solar and photovoltaic equipment
Protects accessible control and communication wiring exposed to sunlight.
Outdoor telecom systems
Organizes cable groups around antennas, cabinets and infrastructure equipment.
EV charging equipment
Wraps serviceable exterior or semi-exposed auxiliary harnesses.
Agricultural and construction machinery
Protects wiring exposed to sun, dust and frequent inspection.
Outdoor lighting and signage
Contains power and signal cables while preserving maintenance access.
Describe sunlight exposure, climate, temperature, moisture, chemicals, abrasion and expected service conditions. Provide the bundle range and branch locations. Accelerated UV data, when applicable, supports comparison but should not be converted into a universal number of outdoor service years.
Customization Available
• Diameter and overlap - Matched to the actual outdoor harness range.
• Cut pieces and kits - Prepared by installation zone or equipment model.
• Outdoor labels - Product, lot and project identification on packaging.
• Special construction review - Braid density and combined performance needs can be evaluated.
UV resistance should be supported by the applicable material or construction data. It does not establish flame performance. RoHS, REACH and halogen-free documentation may be available for confirmed materials. Any UV test statement must match the exact ordered sleeve.
• UV-grade material verification - Approved stabilized yarn is identified by lot.
• Overlap and fit check - Closure is inspected across the specified bundle range.
• Surface and edge inspection - Woven defects, loose yarns and contamination are checked.
• Traceable packing - Product labels and order details are verified before shipment.
Frequently Asked Questions
01. Why use the UV version instead of standard STW-PET?
It is the more appropriate choice for prolonged sunlight exposure.
02. Can it be installed on existing outdoor wiring?
Yes. The split construction wraps around terminated harnesses.
03.Does UV resistance mean it is waterproof?
No. The open textile sleeve is not a sealed waterproof conduit.
04.Are colors other than black available?
They require separate feasibility and UV-performance review.
Request a Sample or Quote
Send the bundle range, installation environment, required standard, cut length and quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quote.
