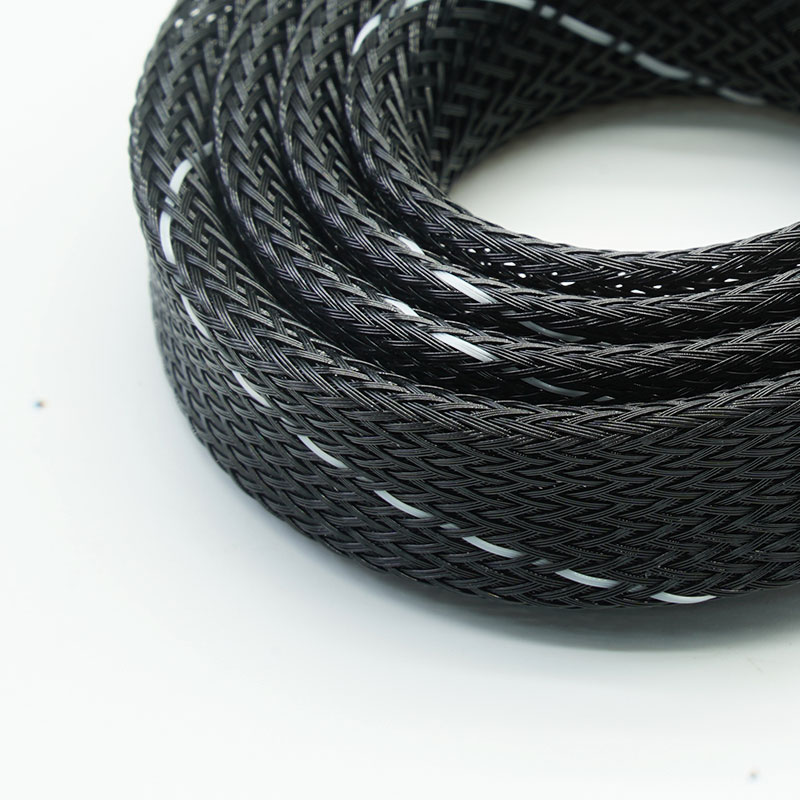

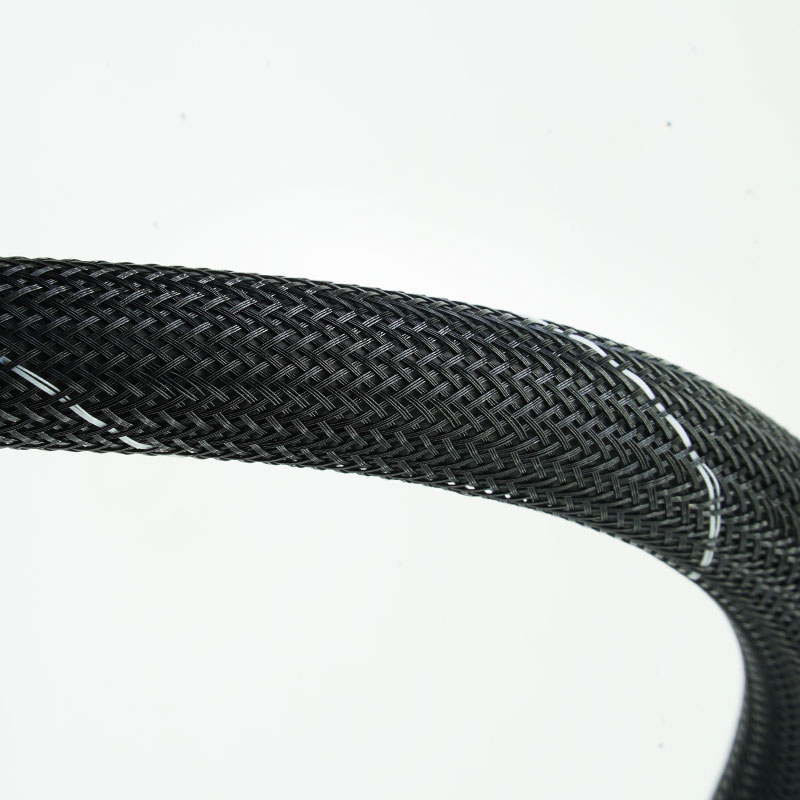

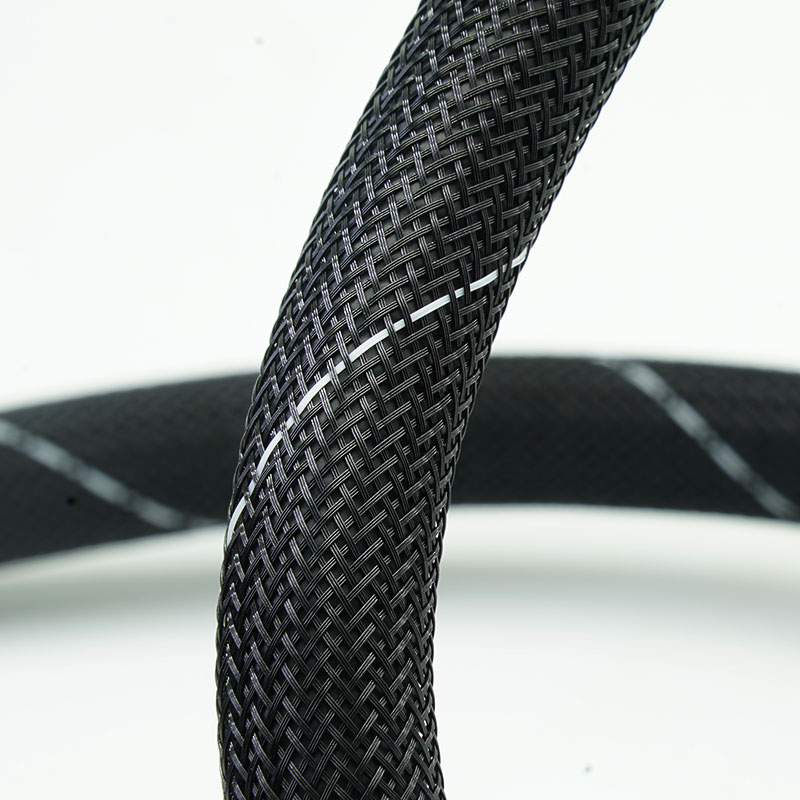

Flame Retardant PET Expandable Braided Mesh Wire Sleeve

MJ FLEX BRS-PET-FR is an expandable PET braided sleeve for cable assemblies that specify VW-1 flame performance. It combines a flame-retardant PET construction with connector pass-through, abrasion protection and flexible routing for electrical equipment, cabinets and general industrial harnesses. The applicable report should be reviewed against the exact ordered construction.

  • Material :

    PET Monofilament

  • Working Temperature :

    -40℃~ +150℃

  • Melting Point :

    240+(-)10℃

  • Flammability :

    VW-1

  • Standard Color :

    Black

  • Certification :

    Rohs,Reach,Halogen Free,CSA

  • MOQ :

    1 Spool

  • Why Choose BRS-PET-FR?

    • Meet a VW-1 specification

    Provides a defined flame-performance option instead of relying on a generic flame-retardant claim.

    •Protect wiring from routine wear

    The braid forms a sacrificial barrier between cable jackets and nearby surfaces.

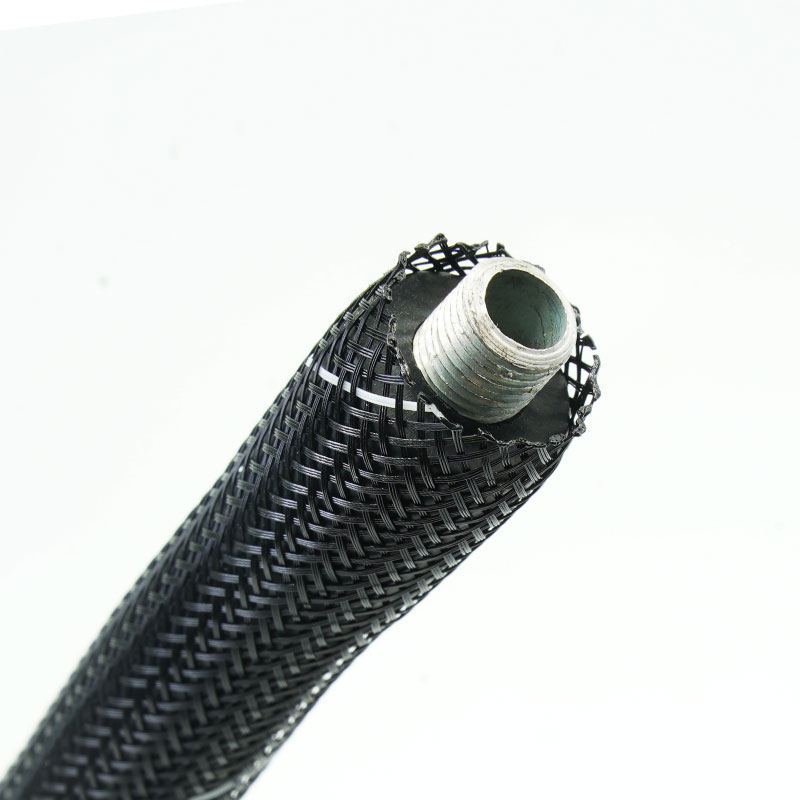

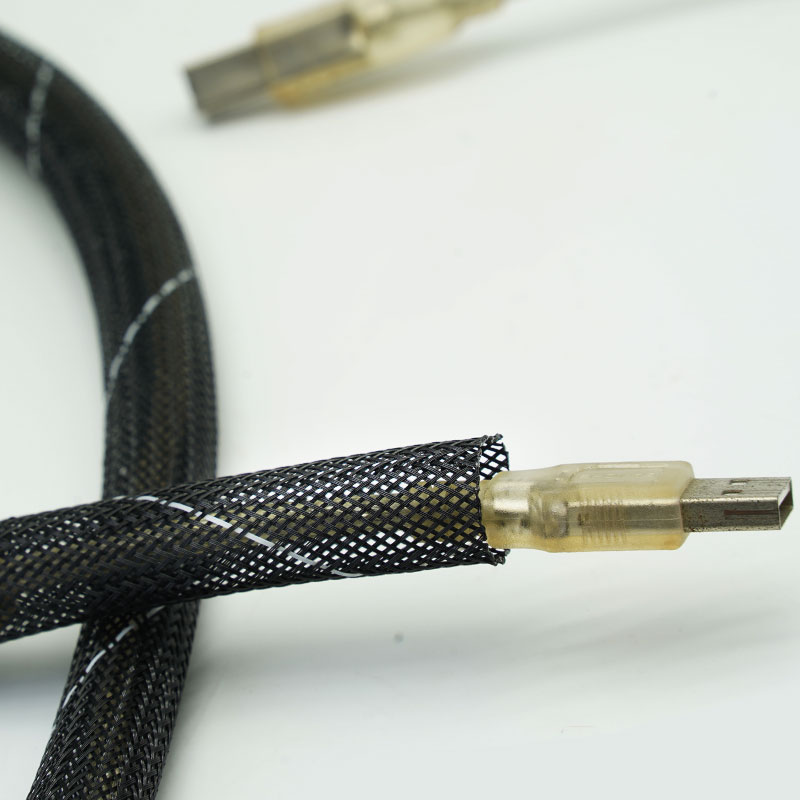

    • Install over existing terminals

    Expansion supports assembly over connectors and irregular cable bundles.

    • Simplify technical approval

    Product and document selection can be aligned before quotation.



    Key Features

    1. VW-1 flame performance
    Referenced construction is designed for the specified vertical flame requirement.
    2. Flame-retardant PET yarn
    Combines practical durability with controlled flame behavior.
    3. Expandable braided structure
    Fits multiple bundle diameters and connector profiles.
    4. Flexible abrasion protection
    Helps reduce rubbing damage in equipment and enclosures.
    5. Lightweight open construction
    Maintains flexibility and avoids unnecessary bulk.
    6. Heat-sealable cut ends
    Hot-knife cutting helps control fraying.
    7. Compliance-document support
    Relevant reports and declarations can be reviewed before order.



    Technical Data

    Material Flame-retardant PET
    Construction Expandable braid
    Working Temperature -40°C to +150°C
    Melting Point 240±10°C
    Flammability VW-1
    Abrasion Resistance Medium
    Wall thickness 0.65 ± 0.05 mm
    Standard Color Black
    Certification RoHS,REACH,Halogen Free,VW-1,FMVSS302,CSA
    Halogen Free Yes
    UV Resistant Yes
    Cutting Tool Hot knife

    Specifications
    Part No
    Flat Width(W)
    Expanded Range(mm)
    Wall
    Thickness
    (mm)
    Packing
    Length
    (m/spool)
    Inch
    mm
    Min.(I)
    Max.(O)
    BRS-PET-003-BK-FR
    1/8”
    		 3 1 6
    0.65±0.05
    		 1000
    BRS-PET-006-BK-FR
    1/4”
    		 6 3 9
    0.65±0.05
    		 500
    BRS-PET-008-BK-FR
    5/16”
    		 8 5 12
    0.65±0.05
    		 350
    BRS-PET-010-BK-FR
    3/8”
    		 10 7 17
    0.65±0.05
    		 350
    BRS-PET-012-BK-FR
    1/2”
    		 12 8 20
    0.65±0.05
    		 350
    BRS-PET-016-BK-FR
    5/8”
    		 16 10 27
    0.65±0.05
    		 250
    BRS-PET-018-BK-FR
    11/16"
    		 18 12 29
    0.65±0.05
    		 250
    BRS-PET-020-BK-FR
    3/4”
    		 20 14 32
    0.65±0.05
    		 200
    BRS-PET-025-BK-FR
    1”
    		 25 18 35
    0.65±0.05
    		 200
    BRS-PET-032-BK-FR
    1-1/4”
    		 32 20 50
    0.65±0.05
    		 150
    BRS-PET-038-BK-FR
    1-1/2”
    		 38 30 60
    0.65±0.05
    		 100
    BRS-PET-045-BK-FR
    1-3/4”
    		 45 35 75
    0.65±0.05
    		 100
    BRS-PET-050-BK-FR
    2”
    		 50 40 80
    0.65±0.05
    		 100
    BRS-PET-064-BK-FR
    2-1/2”
    		 64 45 105
    0.65±0.05
    		 50
    BRS-PET-076-BK-FR
    3”
    		 76 64 120
    0.65±0.05
    		 50
    BRS-PET-100-BK-FR
    4”
    		 100 80 150
    0.65±0.05
    		 50
    ● Note: Expanded range describes geometric capability, not the preferred continuous operating point. Selecting near maximum expansion increases braid openings, reduces surface coverage and shortens installed length.

    Typical Applications
    Industrial control cabinets
    Organizes internal wiring while addressing a specified VW-1 requirement.
    Electrical and electronic equipment
    Protects power, signal and communication leads from routine abrasion.
    Appliances and instruments
    Bundles internal harnesses where flame-retardant sleeving is required.
    Automation equipment
    Protects sensor and control wiring routed around frames and modules.
    Charging and power equipment
    Covers auxiliary cable bundles inside electrical enclosures, subject to system-level review.

    How to Select

    Specify the cable bundle, connector size, operating environment and exact flame test requested. VW-1 should not be substituted for UL 94 V-0, EN 45545-2 or automotive burning tests. Confirm document coverage for the selected size before approval.
    Customization Available



    Customization Available

    • Nominal diameter - Sized for both connector and installed bundle.

    • Braid coverage - Reviewed within the approved construction limits.

    • Cut-length service - Prepared pieces for repeatable harness assembly.

    • Labels and packaging - Private labels, lot codes and custom roll lengths.



    Testing and Compliance

    VW-1 performance applies to the referenced tested construction. It is not a blanket certification of the finished harness or equipment and is not equivalent to UL 94 V-0. Applicable RoHS, REACH and halogen-free documents may be supplied for confirmed materials.



    Quality Assurance

    • Approved material control - Production uses the defined flame-retardant PET formulation.

    • In-process monitoring - Braid pattern, diameter and coverage are checked.

    • Length and appearance check - Rolls are verified for length, ends and defects.

    • Release-document review - Required labels and compliance files are checked before shipment.

    Frequently Asked Questions

    01. Is VW-1 the same as UL 94 V-0?
    No. They are different flame-test classifications.
    02. Can the sleeve be supplied pre-cut?
    Yes, with agreed tolerance and end finish.
    03. Is black the standard color?
    Yes; other colors require material and test-coverage review.
    04. Can you provide a test report?
    Relevant documents can be supplied after confirming the requested construction.



    Request a Sample or Quote

    Share the bundle diameter, largest connector, operating environment, required test standard, cutting or packaging needs and estimated quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quotation.
