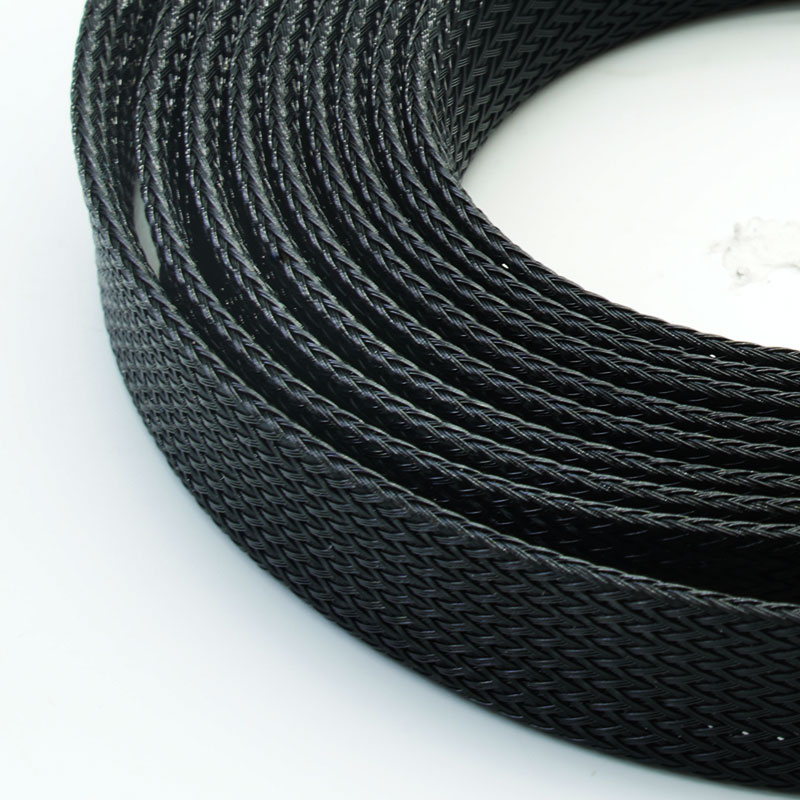

EN45545 Flame Retardant PET Expandable Braided Mesh Cable Sleeving

MJ FLEX BRS-PET-FR-EN45545 is a flame-retardant expandable PET sleeve developed for railway wiring and onboard electrical equipment. The referenced construction meets EN 45545-2 R22 and R23 at Hazard Level HL3, while its open braid expands over connectors and protects cable bundles from routine abrasion. Report coverage must be matched to the ordered size and construction.

  • Material :

    PET Monofilament

  • Working Temperature :

    -40℃~ +150℃

  • Melting Point :

    240+(-)10℃

  • Flammability :

    EN 45545-2 R22/R23 HL3

  • Standard Color :

    Black

  • Certification :

    RoHS, REACH, halogen free and applicable EN 45545-2 report

  • MOQ :

    1 Spool

  • Why Choose BRS-PET-FR-HL3?

    • Address railway fire requirements

    Supports projects specifying EN 45545-2 R22 and R23 HL3 for the referenced construction.

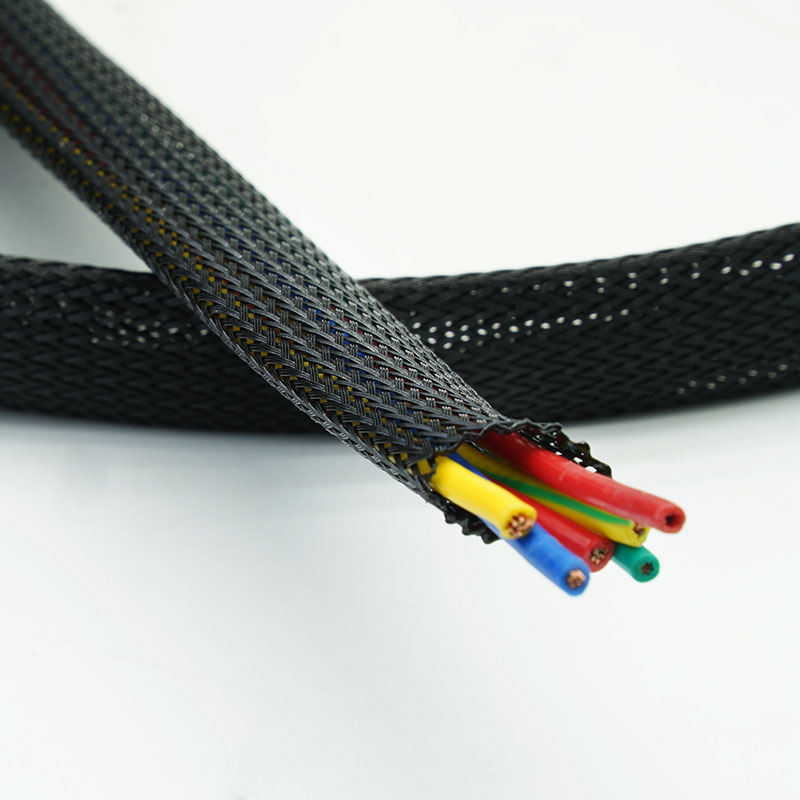

    • Protect terminated harnesses

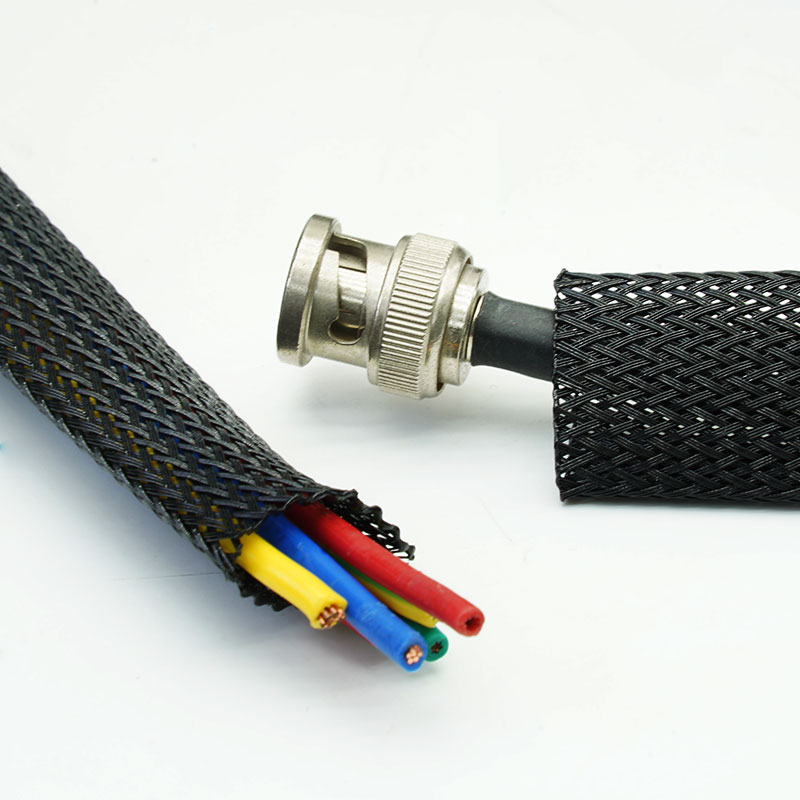

     Expandable braid passes over connectors without requiring a split sleeve.

    • Reduce approval uncertainty

    Test documents can be matched to the proposed construction before order confirmation.

    • Combine compliance and cable protection

    Provides flame performance, abrasion protection and organized routing in one lightweight sleeve.



    Key Features

    1. EN 45545-2 R22 and R23 HL3
    Referenced construction supports demanding railway hazard-level requirements.
    2. Flame-retardant PET monofilament
    Balances controlled flame behavior with practical harness protection.
    3. Expandable connector pass-through
    Accommodates terminals and changing bundle diameters.

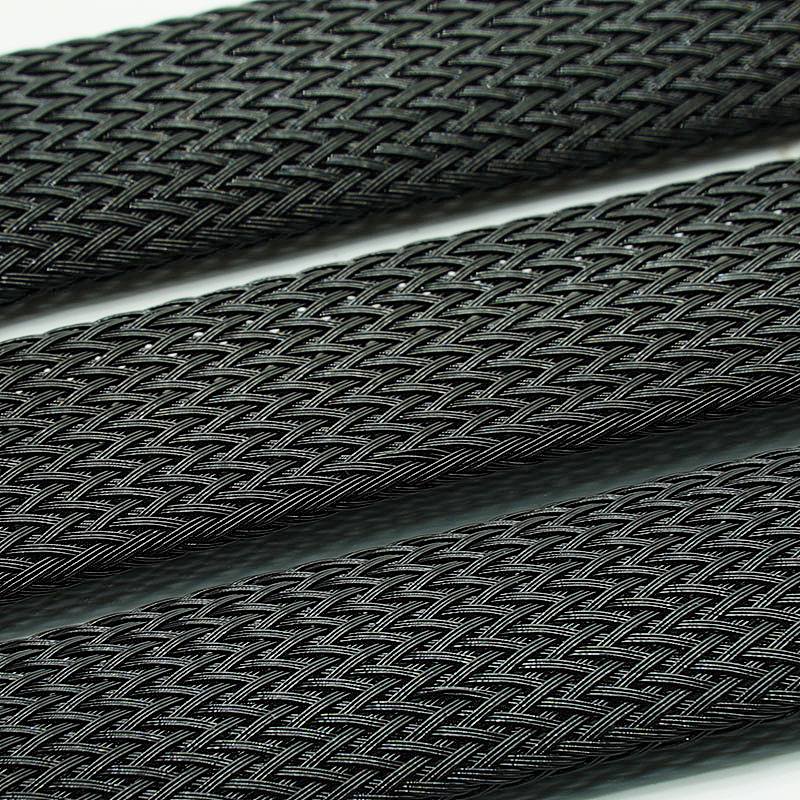

    4. Abrasion-resistant open braid
    Helps reduce jacket wear in cabinets, vehicles and equipment modules.
    5. Flexible lightweight coverage
    Routes around bends without the bulk of rigid conduit.
    6. Hot-knife cuttable
    Allows sealed ends for cleaner assembly.
    7. Documentation support
    Applicable reports and material declarations are available for review.



    Technical Data

    Material Flame-retardant PET monofilament
    Construction Expandable braid
    Working Temperature -40°C to +150°C
    Melting Point 240±10°C
    Flammability EN 45545-2 R22/R23 HL3
    Abrasion Resistance Medium
    Wall thickness 0.65 ± 0.05 mm
    Standard Color Black; other colors available upon request
    Certification RoHS, REACH, halogen free and applicable EN 45545-2 report
    Halogen Free Yes
    UV Resistant Yes
    Cutting Tool Hot knife

    Specifications
    Part No
    Flat Width(W)
    Expanded Range(mm)
    Wall
    Thickness
    (mm)
    Packing
    Length
    (m/spool)
    Inch
    mm
    Min.(I)
    Max.(O)
    BRS-PET-003-BK-FR-HL3
    1/8”
    		 3 1 6
    0.65±0.05
    		 1000
    BRS-PET-006-BK-FR-HL3
    1/4”
    		 6 3 9
    0.65±0.05
    		 500
    BRS-PET-008-BK-FR-HL3
    5/16”
    		 8 5 12
    0.65±0.05
    		 350
    BRS-PET-010-BK-FR-HL3
    3/8”
    		 10 7 17
    0.65±0.05
    		 350
    BRS-PET-012-BK-FR-HL3
    1/2”
    		 12 8 20
    0.65±0.05
    		 350
    BRS-PET-016-BK-FR-HL3
    5/8”
    		 16 10 27
    0.65±0.05
    		 250
    BRS-PET-018-BK-FR-HL3
    11/16"
    		 18 12 29
    0.65±0.05
    		 250
    BRS-PET-020-BK-FR-HL3
    3/4”
    		 20 14 32
    0.65±0.05
    		 200
    BRS-PET-025-BK-FR-HL3
    1”
    		 25 18 35
    0.65±0.05
    		 200
    BRS-PET-032-BK-FR-HL3
    1-1/4”
    		 32 20 50
    0.65±0.05
    		 150
    BRS-PET-038-BK-FR-HL3
    1-1/2”
    		 38 30 60
    0.65±0.05
    		 100
    BRS-PET-045-BK-FR-HL3
    1-3/4”
    		 45 35 75
    0.65±0.05
    		 100
    BRS-PET-050-BK-FR-HL3
    2”
    		 50 40 80
    0.65±0.05
    		 100
    BRS-PET-064-BK-FR-HL3
    2-1/2”
    		 64 45 105
    0.65±0.05
    		 50
    BRS-PET-076-BK-FR-HL3
    3”
    		 76 64 120
    0.65±0.05
    		 50
    BRS-PET-100-BK-FR-HL3
    4”
    		 100 80 150
    0.65±0.05
    		 50
    ● Note: Expanded range describes geometric capability, not the preferred continuous operating point. Selecting near maximum expansion increases braid openings, reduces surface coverage and shortens installed length.

    Typical Applications
    Rolling-stock interiors
    Protects passenger-area wiring while addressing the specified railway fire requirement.
    Driver cabs and control panels
    Organizes signal and control wiring in confined electrical spaces.
    Door, lighting and HVAC systems
    Reduces abrasion on moving or serviceable harnesses routed through onboard equipment.
    Railway electrical cabinets
    Separates and protects power, communication and auxiliary cable bundles.
    Rail infrastructure equipment
    Supports cable protection in trackside or station equipment when the project specification calls for the referenced test.



    How to Select

    Confirm the required requirement set, hazard level, bundle diameter, largest connector, operating temperature and installation location. EN 45545-2 is not interchangeable with VW-1, UL 94 V-0, ECE R118 or FMVSS 302. Request report matching before design approval.



    Customization Available

    • Diameter and expansion - Matched to the cable bundle and connector pass-through.

    • Cut lengths - Hot-knife cut pieces with agreed tolerance.

    • Identification - Project, batch and report-reference labels.

    • Packaging - Custom roll length, cartons and private labels.



    Testing and Compliance

    The referenced construction meets EN 45545-2 R22 and R23 at HL3. This statement applies only to the tested material and construction; it does not certify the complete harness or vehicle. RoHS, REACH and halogen-free documentation may be supplied where applicable.

    Quality Assurance

    • Controlled FR raw material - Approved flame-retardant PET is verified before use.

    • Braid inspection - Diameter, coverage and broken filaments are monitored.

    • Traceability - Material and production lots are retained for order tracking.

    • Document verification - Reports and declarations are checked against the supplied construction.



    Quality and Supply Assurance

    Serial supply can be controlled through approved part numbers, lot identification, dimensional inspection, reel labeling, retained production records and agreed change notification. Material formulation, filament, braid construction, color, critical process or manufacturing-site changes should be reviewed before implementation when they may affect the approved railway evidence.

    Frequently Asked Questions

    01. Does every size meet HL3?
    Report coverage must be confirmed for the requested size and construction.
    02. Is EN 45545 the same as VW-1?
    No. They use different test methods and acceptance criteria.
    03. Can it pass over connectors?
    Yes, within its designed expansion range.
    04. Are reports available?
    Applicable reports can be supplied after construction confirmation.



    Request a Sample or Quote

    Share the bundle diameter, largest connector, operating environment, required test standard, cutting or packaging needs and estimated quantity. MJ FLEX will recommend a suitable construction and arrange a sample or quotation.
