Why Choose SBW-PET Split Braided Sleeving?
1. Avoid Connector Removal
The split self-wrapping design installs around completed harnesses, reducing disassembly time during production, upgrades and repairs.
2. Control Cable Abrasion and Disorder
The PET braid groups loose wires and limits routine rubbing against panels, housings and nearby components.
3. Keep Wiring Accessible
The sleeve can be opened locally for inspection, branch-outs or cable additions, helping simplify field maintenance.
4. Handle Changing Bundle Shapes
The sleeve can be opened locally for inspection, branch-outs or cable additions, helping simplify field maintenance.

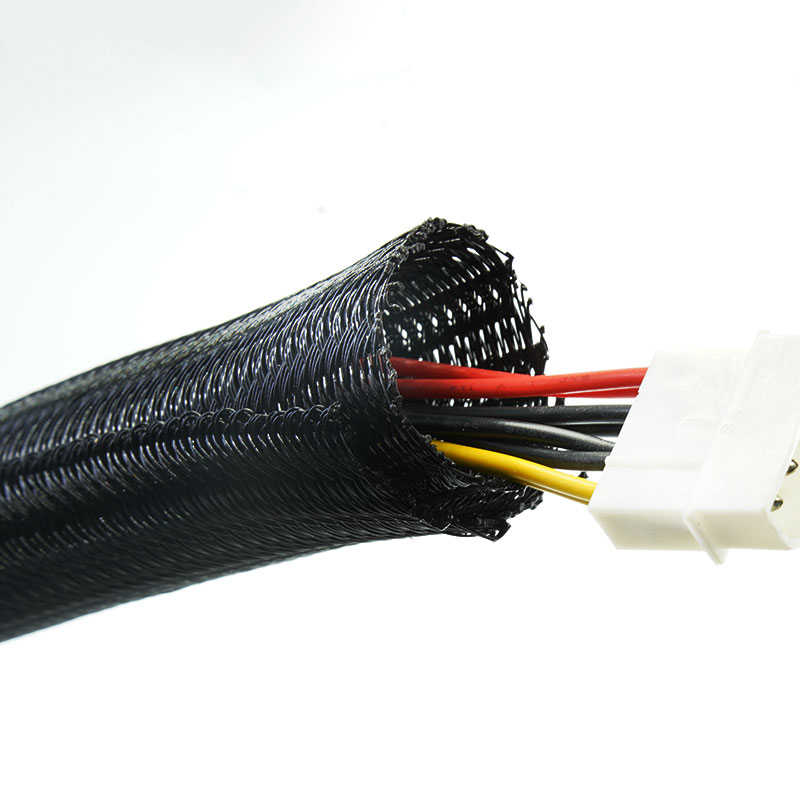

1. Easy Retrofit Installation
Installs around assembled cable bundles without removing connectors.
2. Serviceable Cable Access
The self-wrapping structure maintains coverage while allowing branch-outs and later maintenance.
3. Lightweight Abrasion Protection
PET monofilament braid protects cable surfaces without adding a rigid conduit.
4. Flexible Harness Routing
The sleeve follows curved paths and adapts to irregular bundle shapes.
5. Secure Wrap-Around Coverage
The overlapping construction closes around the bundle and helps keep individual cables contained.
6. Expandable Bundle Capacity
The flexible opening accommodates moderate diameter changes along the harness.
7. Custom Supply Options
Diameter, color, cut length, packaging and labeling can be customized subject to production review.
| Material |
PET monofilament and multifilament |
| Construction |
Self-wrapping split braided |
| Overlap |
≥35% |
| Working Temperature |
-40°C to +125°C |
| Melting Point |
240±10°C |
| Flammability |
FMVSS 302 |
| Abrasion Resistance |
ISO 6722 Class 10, ≥4,000 cycles |
| Liquid Resistance |
Reference: GMW14327 |
| Standard Color |
Black |
| Certification |
RoHS,REACH |
| Halogen Free |
Yes |
| UV Resistant |
Yes |
| Cutting Tool |
Hot knife |
Specifications
|
Part No
|
Nominal Size
(mm)
|
Bundle Dia Range(mm)
|
Packing
Length
(m/spool)
|
|
Min
|
Max
|
|
SBW-PET-003-BK
|
Φ3
|
2 |
4 |
300 |
|
SBW-PET-005-BK
|
Φ5
|
3 |
6 |
200 |
|
SBW-PET-006-BK
|
Φ6
|
4 |
7 |
200 |
|
SBW-PET-008-BK
|
Φ8
|
6 |
10 |
100 |
|
SBW-PET-010-BK
|
Φ10
|
8 |
11 |
100 |
|
SBW-PET-013-BK
|
Φ13
|
12 |
15 |
50 |
|
SBW-PET-016-BK
|
Φ16
|
15 |
18 |
25 |
|
SBW-PET-019-BK
|
Φ19
|
18 |
22 |
25 |
|
|
|
23 |
26 |
25 |
|
|
|
28 |
30 |
25 |
|
|
|
29 |
34 |
25 |
|
|
|
35 |
40 |
25 |
|
|
|
46 |
55 |
25 |
● Note: Select the size according to the actual bundle diameter and ensure at least 35% overlap after installation.
Typical Applications
Automotive Interiors and General Vehicle Harnesses
Organizes and protects wiring routed around dashboards, doors, seats and interior equipment, helping reduce cable abrasion, loose wires and installation difficulty.
Industrial Machinery and Control Cabinets
Bundles control, sensor and power cables inside machinery and electrical cabinets, helping prevent cable disorder, surface wear and difficult maintenance.
Robotics and Automated Equipment
Provides flexible protection for cables routed along curved or moderately moving paths, helping manage repeated bending, cable contact and complex routing.
Electrical Appliances and Electronic Assemblies
Keeps internal wiring neatly grouped and protected from contact with housings, components and sharp edges while preserving access for assembly and inspection.
Retrofit Cable Organization and Field Maintenance
Installs around existing or terminated cable bundles without disconnecting connectors, simplifying upgrades, repairs and cable additions.
Specifications
Measure the finished wire-bundle outside diameter at its smallest and largest points, including connectors, branches and tie locations. Select a sleeve that closes with sufficient overlap across the entire routing. Also specify the installation environment, abrasion level, required access frequency, color, cut length and any applicable flammability or industry standard.
Customization Available
MJ FLEX provides OEM and ODM support from material and construction selection through sampling, packaging and series-production requirements:
• Color, cut length and reel length.
• Braid density and coverage.
• Labels, barcodes, kitting and packaging.
• Samples, inspection requirements and supporting documents.
• SBW-PET-UV — UV-resistant self-wrapping braided sleeve
• SBW-PET-FR-V0 — UL94 V-0 flame-retardant self-wrapping sleeve
• SBW-PET-FR-EN45545 — EN45545 railway self-closing braided sleeve
• SBW-PET-RR — Rodent-resistant split braided sleeve
Frequently Asked Questions
01. Can it be installed without disconnecting the wire harness?
Yes. The split construction wraps around an assembled bundle and is suitable for retrofit installation.
02. Does the sleeve remain accessible after installation?
Yes. It can be opened locally for inspection, repair or cable additions, although repeated handling should be considered when selecting the construction.
03. Is the standard version suitable for a certified flame-retardant project?
Use the corresponding VW-1, UL 94 V-0 or EN 45545 version when the project specification calls for a defined fire-performance standard.
04. How should the correct size be selected?
Provide the actual bundle outside-diameter range and, if possible, a drawing or sample. MJ FLEX can check coverage and overlap before production.
05. How should it be cut?
Use a temperature-controlled hot knife to seal the PET edge and reduce fraying.
06. Are custom colors,lengths and packaging available?
Yes. MOQ and lead time depend on color.size, cut length, labeling, packaging and inspection requirements.
Request a Sample or Quote
For an accurate technical recommendation and quotation, please provide:
1. Minimum and maximum bundle diameter.
2. Largest connector, branch or transition size.
3. Required sleeve size and installed length.
4. Operating temperature and abrasion points.
5. Required flammability, abrasion and compliance documents.
6. Color, cut length, labels and packaging.
7. Sample quantity, order quantity and delivery schedule.
