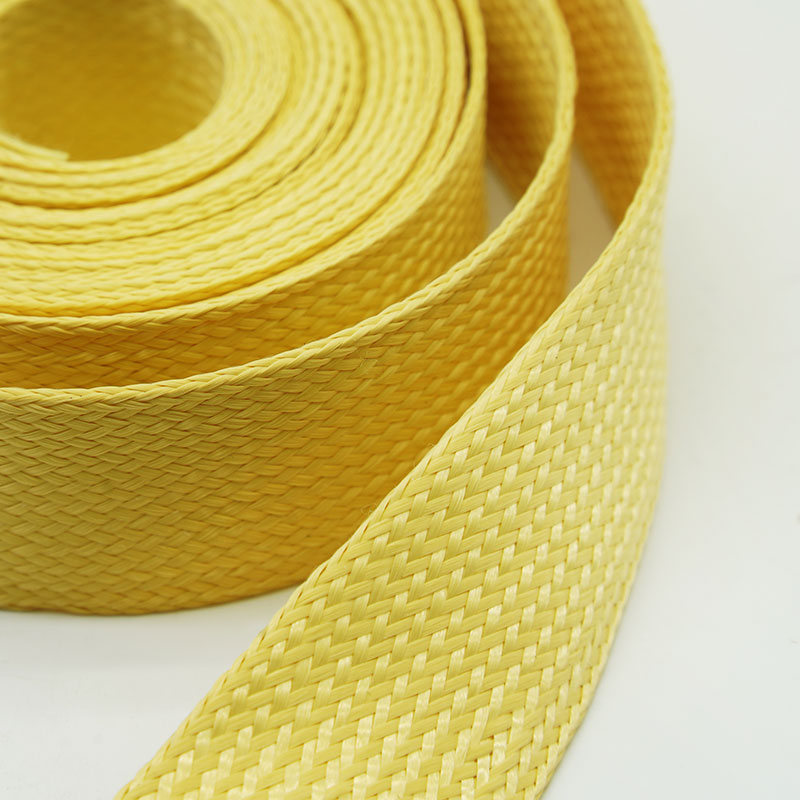

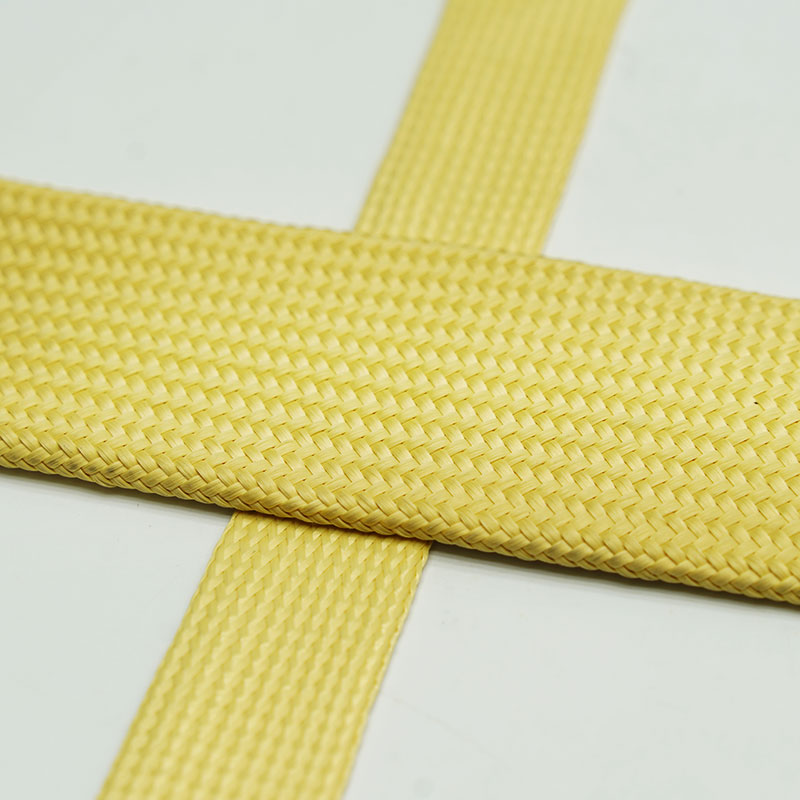

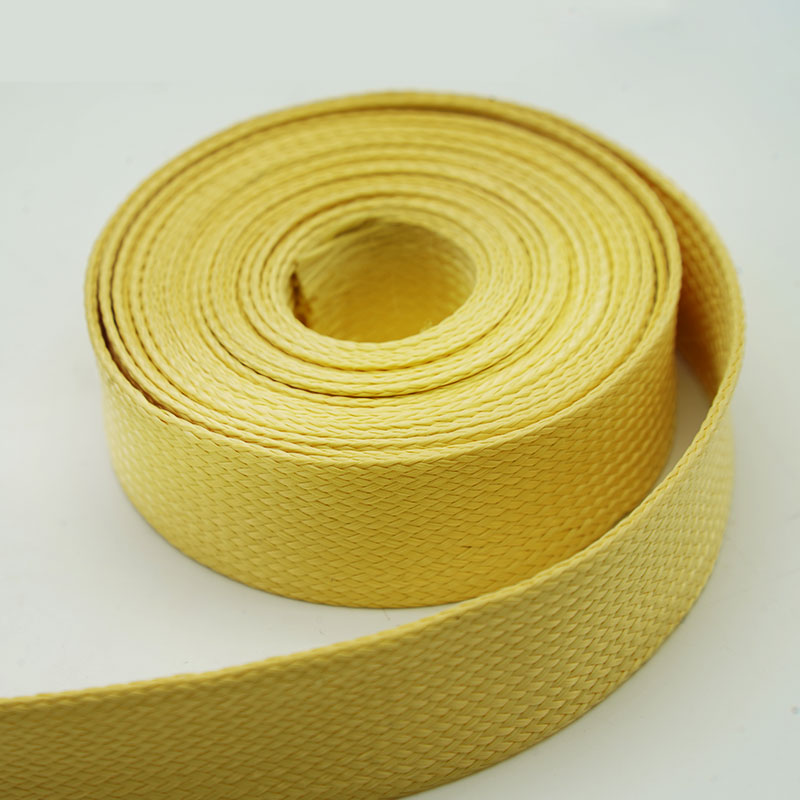

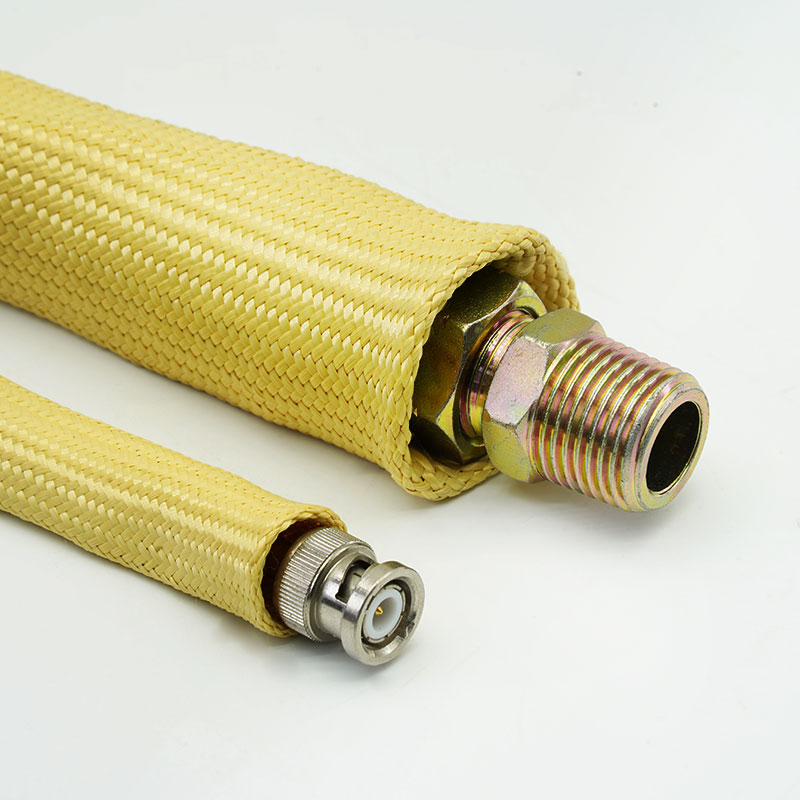

Kevlar Expandable Braided Cable Sleeving

MJ FLEX BRS-KV is a lightweight braided sleeve made from para-aramid fiber for cable and hose protection where high tensile strength, cut resistance and low weight are priorities. The textile braid protects vulnerable jackets from sharp edges and mechanical damage while remaining flexible around complex assemblies.

  • Material :

    Para-aramid fiber

  • Working Temperature :

    -60℃~ +260℃

  • Melting Point :

    Not Melt

  • Flammability :

    VW-1,UL 94 V-0

  • Standard Color :

    Natural yellow typical

  • Certification :

    Rohs,Reach,Halogen Free

  • MOQ :

    500m

  • Why Choose BRS-KV?

    • Reduce cutting and tearing damage

    High-strength aramid fibers help resist sharp-edge contact and mechanical abuse.

    • Protect without heavy armor

    The low-density textile adds less weight than many metallic protection systems.

    • Reinforce demanding cable routes

    Braided construction distributes local loads around the bundle.

    • Maintain flexibility

    The sleeve follows bends and irregular harness shapes.



    Key Features

    1. Para-aramid fiber braid

    Provides high strength at low weight.

    2. Cut-resistant textile structure

    Helps protect cables from sharp edges.

    3. Abrasion protection

    Reduces jacket wear in high-contact areas.

    4. Flexible bundle fit

    Conforms to curved and irregular routes.

    5. Nonmetallic construction

    Avoids electrical conductivity of metal braid.

    6. Low stretch behavior

    Supports stable coverage under tension.

    7. Custom protective builds

    Size, braid density, layers and cut lengths can be reviewed.



    Technical Data

    Material Para-aramid fiber
    Construction    Textile braided sleeve
    Working Temperature -60°C to +260°C
    Melting Point Not Melt
    Heat aging resistance Refer to EN6059
    Liquid Resistance Refer to EN6059
    Standard Color Natural yellow typical
    RoHS Compliant Yes
    Reach Compliant Yes
    Cutting Tool Special cutting method
    Supply Rolls or cut assemblies

    Specifications
    Part No
    Flat Width(W)
    Expanded Range(mm)
    Packing
    Length
    (m/spool)
    Inch
    mm
    Min.(I)
    Max.(O)
    BRS-KV-004-YL
    1/8”
    		 3 3 7 500
    BRS-KV-006-YL
    1/4”
    		 6 5 11 500
    BRS-KV-008-YL
    5/16”
    		 8 6 13 400
    BRS-KV-010-YL
    3/8”
    		 10 8 16 300
    BRS-KV-012-YL
    1/2”
    		 12 9 18 300
    BRS-KV-015-YL
    5/8”
    		 15 10 20 300
    BRS-KV-020-YL
    3/4”
    		 20 11 23 200
    BRS-KV-025-YL
    1”
    		 25 15 27 150
    Typical Applications
    Aerospace and motorsport harnesses
    Protects lightweight wiring in mechanically demanding routes.
    Robotics and automation
    Shields moving cables from abrasion and edge contact.
    Defense and field equipment
    Reinforces cable assemblies exposed to handling and impact.
    Industrial hoses and cables
    Adds cut protection near machinery and sheet metal.
    Marine and outdoor equipment
    Provides lightweight mechanical reinforcement after environmental review.


    How to Select

    Define the main hazard: abrasion, cut, tensile load, heat or flame. Provide bundle range, movement, edges, fluids, UV exposure and end-finishing needs. The sleeve protects cables but is not a certified load-bearing rope, ballistic product or electrical insulation unless specifically tested.



    Customization Options

    Size and braid density - Matched to coverage and flexibility.

    Layered construction - Additional layers can be evaluated for protection.

    End finishing - Binding, coating or prepared ends by agreement.

    Project packaging - Cut kits, labels and OEM cartons available.

    Testing and Compliance

    Kevlar is a registered trademark; use the name only when verified branded fiber is supplied. Otherwise use para-aramid braided sleeving. Flame, ballistic, cut-level and temperature claims require exact construction testing. Material declarations may be available.



    Quality Assurance

    Fiber identity - Aramid yarn grade and color are verified.

    Braid inspection - Coverage, yarn damage and surface defects are checked.

    Fit and dimension - Size, length and expansion are confirmed.

    End and packing check - Fray control, labels and quantity are verified.

    Frequently Asked Questions

    01. Is this sleeve cut proof?
    No material is universally cut proof; performance depends on yarn, braid and hazard.
    02. Can it carry structural loads?
    No. Use it as protective sleeving unless a load-bearing assembly is specifically engineered.
    03. Why are the fibers yellow?
    Natural para-aramid fiber commonly has a yellow appearance.



    Request a Sample or Quote

      Send the bundle range, operating environment, required performance, cut length, quantity and documents. MJ FLEX will recommend a suitable construction and arrange a sample or quotation.
