• Reliable Insulation for Electrical Components
Designed for transformer leads, motor connections and coil wiring, helping reduce the risk of unintended contact between conductors and surrounding components.
• Flexible Protection for Compact Assemblies
The flexible fiberglass braid and silicone-resin coating facilitate installation and routing in space-constrained electrical assemblies.
•Two Insulation Grades for Different Requirements
Available in 1.5 kV and 2.5 kV constructions to support selection according to equipment standards, insulation design and application conditions.
•Protection Against Surface Abrasion
The coated fiberglass construction helps reduce surface abrasion during installation, routing and service.

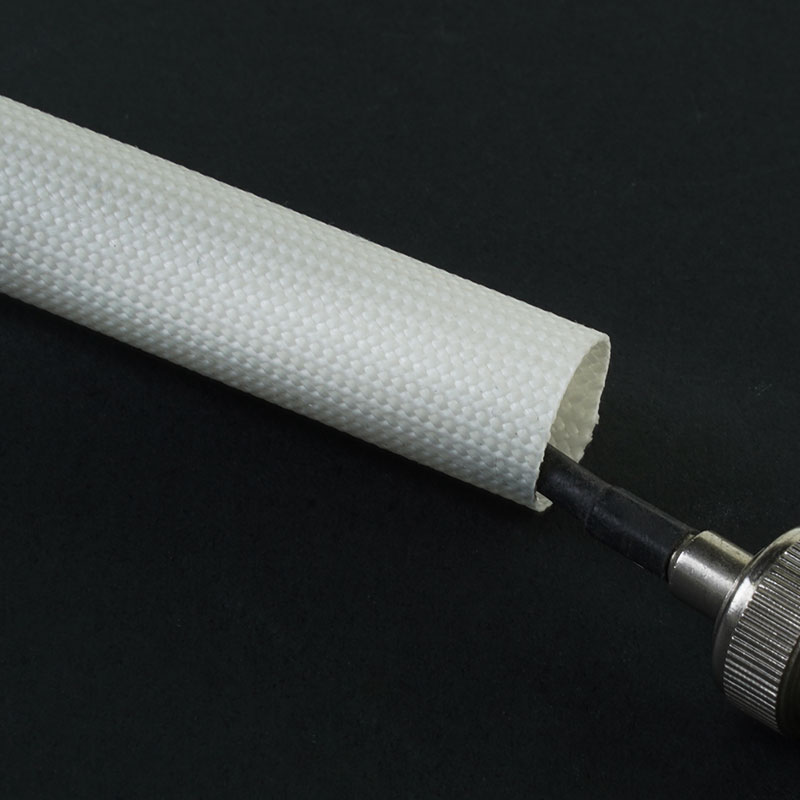

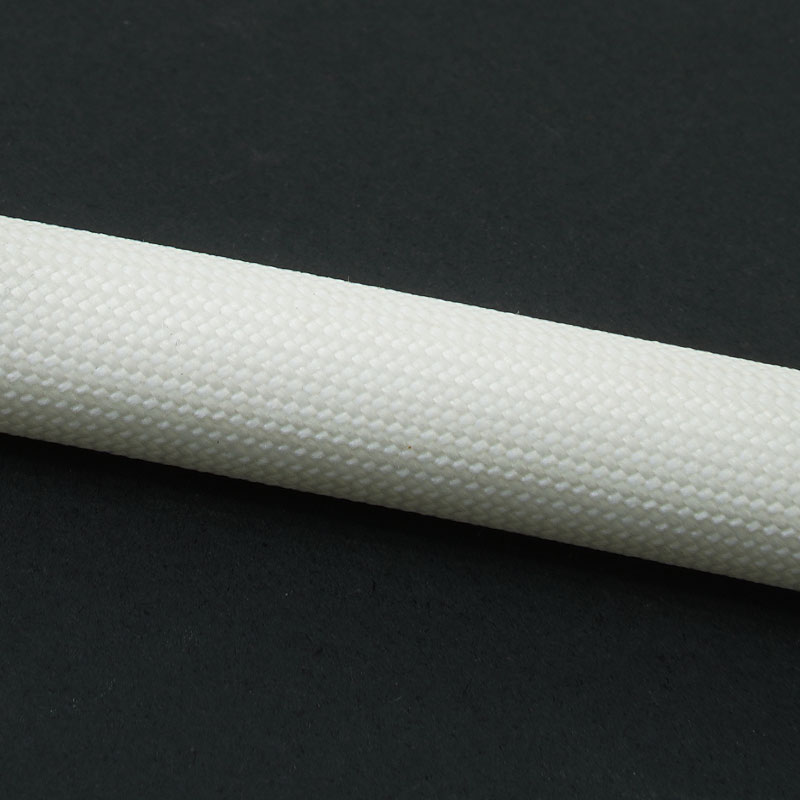

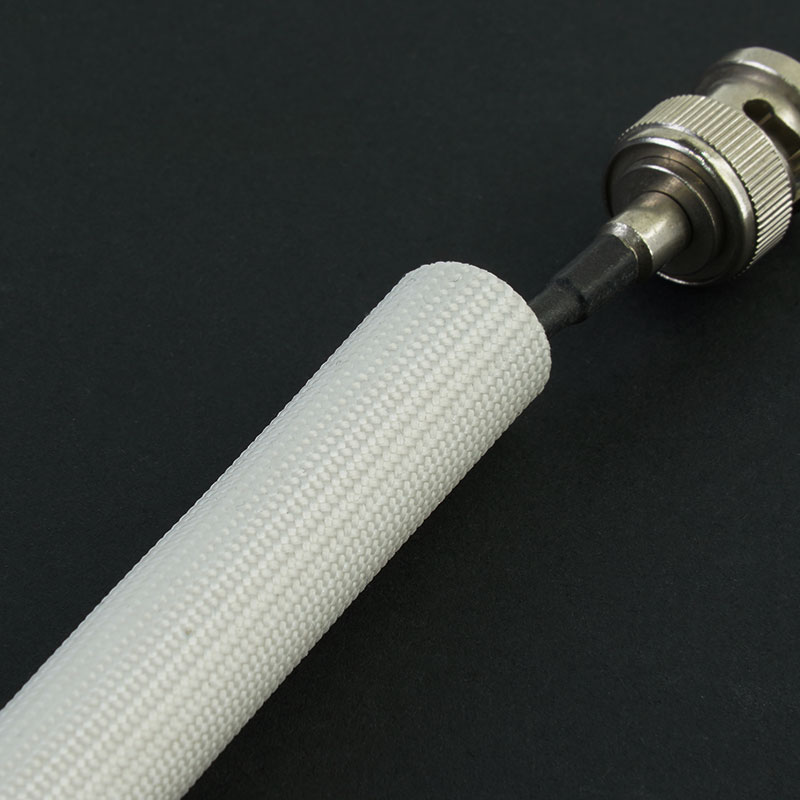

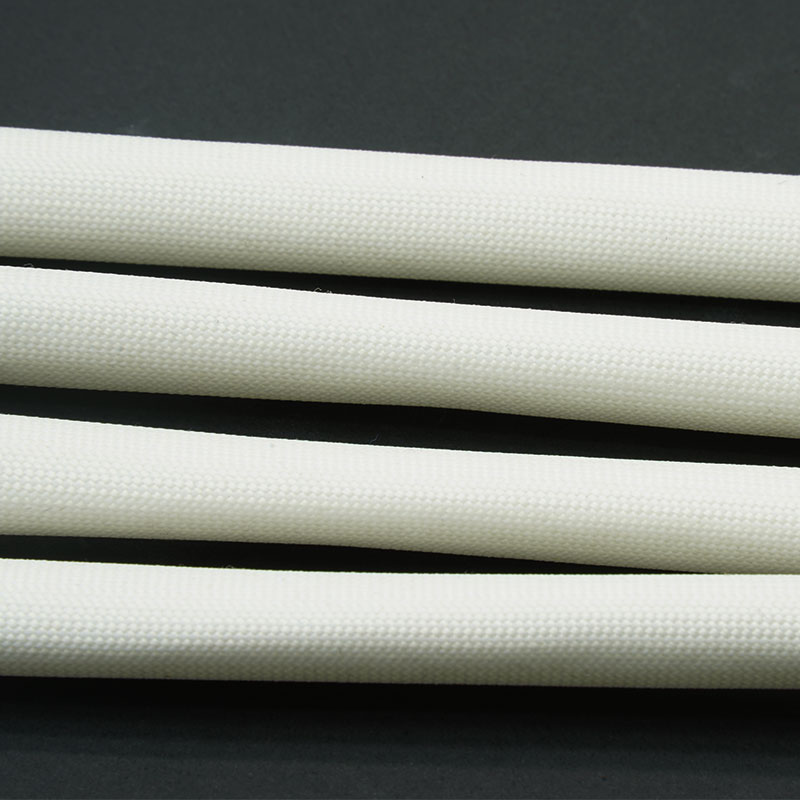

• Silicone-coated fiberglass construction
Combines a braided fiberglass substrate with a cured silicone-resin surface.
• Two withstand-voltage grades
Available in 1.5 kV and 2.5 kV constructions with size-specific walls.
• Flexible and Compact Design
The flexible coated construction suits space-constrained electrical assemblies and facilitates installation and routing.
• Heat and Abrasion Protection
Helps reduce heat-related effects and surface abrasion on protected conductors in electrical equipment and connection areas.
• High-Temperature Aging Performance
The product has undergone a specified high-temperature aging test with no cracking observed, supporting evaluation for thermal applications.
• Multiple Sizes for Fine Wiring
A broad size range accommodates transformer leads, motor connections, coil wiring and industrial electrical components.
| Braided Material |
Fiberglass Fiber |
| Coating Material |
Silicone Resin |
| Working Temperature |
-40°C to +200°C |
| Withstand Voltage |
1.5 kV, 2.5 kV |
| Flammability |
VW-1 |
| Aging Test |
260°C × 6H; No Cracking |
| Horizontal Flame Test |
Pass |
| Submerge Water Test |
No Sticky, No Deformation,No Softening |
| Temperature Endurance |
200±2°C × 168 h; ≥ primary Voltage Value |
| Standard Color |
White |
| Cutting Tool |
Scissor |
| Part No |
ID
(mm)
|
ID
Tolerance
(mm) |
Wall Thickness
(mm) |
Packing Length
(m/spool) |
| 1.5KV |
2.5KV |
| GF-IC-S-0.5-WH |
0.5 |
+0.30/-0.10 |
0.31±0.05 |
0.31±0.05 |
200 |
| GF-IC-S-0.8-WH |
0.8 |
+0.30/-0.10 |
0.31±0.05 |
0.33±0.05 |
200 |
| GF-IC-S-1.0-WH |
1.0 |
+0.30/-0.10 |
0.32±0.05 |
0.36±0.05 |
200 |
| GF-IC-S-1.5-WH |
1.5 |
+0.30/-0.10 |
0.37±0.05 |
0.38±0.05 |
200 |
| GF-IC-S-2.0-WH |
2.0 |
+0.30/-0.10 |
0.37±0.05 |
0.39±0.05 |
200 |
| GF-IC-S-2.5-WH |
2.5 |
+0.30/-0.10 |
0.37±0.05 |
0.41±0.05 |
200 |
| GF-IC-S-3.0-WH |
3.0 |
+0.30/-0.10 |
0.37±0.05 |
0.43±0.05 |
100 |
| GF-IC-S-3.5-WH |
3.5 |
+0.30/-0.10 |
0.38±0.05 |
0.43±0.05 |
100 |
| GF-IC-S-4.0-WH |
4.0 |
+0.30/-0.10 |
0.39±0.05 |
0.44±0.05 |
100 |
| GF-IC-S-4.5-WH |
4.5 |
+0.30/-0.10 |
0.40±0.05 |
0.44±0.05 |
100 |
| GF-IC-S-5.0-WH |
5.0 |
+0.40/-0.10 |
0.40±0.05 |
0.44±0.05 |
100 |
| GF-IC-S-5.5-WH |
5.5 |
+0.40/-0.10 |
0.40±0.05 |
0.44±0.05 |
100 |
| GF-IC-S-6.0-WH |
6.0 |
+0.40/-0.10 |
0.41±0.05 |
0.45±0.05 |
100 |
| GF-IC-S-7.0-WH |
7.0 |
+0.40/-0.10 |
0.41±0.05 |
0.45±0.05 |
100 |
| GF-IC-S-8.0-WH |
8.0 |
+0.40/-0.10 |
0.42±0.05 |
0.45±0.05 |
50 |
| GF-IC-S-9.0-WH |
9.0 |
+0.50/-0.10 |
0.48±0.05 |
0.53±0.05 |
50 |
| GF-IC-S-10.0-WH |
10.0 |
+0.50/-0.10 |
0.50±0.05 |
0.53±0.05 |
50 |
| GF-IC-S-11.0-WH |
11.0 |
+0.50/-0.10 |
0.51±0.05 |
0.54±0.05 |
50 |
| GF-IC-S-12.0-WH |
12.0 |
+0.50/-0.10 |
0.51±0.05 |
0.54±0.05 |
50 |
| GF-IC-S-13.0-WH |
13.0 |
+0.50/-0.10 |
0.51±0.05 |
0.55±0.05 |
50 |
| GF-IC-S-14.0-WH |
14.0 |
+0.50/-0.10 |
0.51±0.05 |
0.55±0.05 |
50 |
| GF-IC-S-15.0-WH |
15.0 |
+0.50/-0.10 |
0.52±0.05 |
0.55±0.05 |
50 |
| GF-IC-S-16.0-WH |
16.0 |
+0.60/-0.10 |
0.53±0.05 |
0.56±0.05 |
50 |
| GF-IC-S-18.0-WH |
18.0 |
+0.60/-0.10 |
0.60±0.05 |
0.63±0.05 |
50 |
| GF-IC-S-20.0-WH |
20.0 |
+0.80/-0.10 |
0.70±0.05 |
0.73±0.05 |
50 |
| GF-IC-S-25.0-WH |
25.0 |
+0.80/-0.10 |
0.75±0.05 |
0.76±0.05 |
50 |
| GF-IC-S-30.0-WH |
30.0 |
+0.80/-0.10 |
0.75±0.05 |
0.78±0.05 |
50 |
| GF-IC-S-35.0-WH |
35.0 |
+0.80/-0.10 |
0.80±0.05 |
0.85±0.05 |
50 |
• Transformer lead protection
Insulates winding leads and terminal connections where heat and dielectric performance are critical.
• Electric motors and generators
Covers coil leads and internal wiring exposed to vibration, heat and confined routing.
• Power supplies and electrical equipment
Protects component leads, bus connections and internal conductors from contact and heat.
• Industrial controls and sensors
Protects fine signal and power leads where moisture stability and controlled wall thickness are required.
How to Select
Measure the largest OD, including insulation joints or terminals the sleeve must pass over. Choose the voltage grade from the applicable equipment standard rather than voltage alone, and confirm wall thickness, clearance, creepage and environmental conditions. Check the route temperature, flexing, moisture, oils and abrasion.
• Sizes & Dimensions - Multiple standard inside diameters are available to suit conductor diameters, terminal dimensions and installation space
• Color and identification - White is the standard color. Alternative colors and product identification options can be reviewed based on material requirements, production conditions and order quantity.
• Packaging - Roll lengths, product labels, batch identification and customized packaging can be arranged according to order requirements.
GF-IC-S Silicone Coated Fiberglass Sleeve is designed for applications requiring heat resistance and reliable electrical insulation. Available in 1.5 kV and 2.5 kV constructions, it meets the specified VW-1 flame-retardant requirements. The product shows no cracking after aging at 260°C for 6 hours, no stickiness, deformation or softening after the specified water-immersion test, and maintains withstand voltage at no less than its initial value after temperature endurance testing at 200 ± 2°C for 168 hours. These test results support the evaluation of product performance under the specified test conditions. We maintain consistent product quality through raw material selection, coating and curing process control, and dimensional inspection.
• Raw Material Verification - Fiberglass braiding materials and silicone-resin coating materials are verified against approved product requirements.
• Coating and Curing Control - Coating coverage and curing conditions are monitored to support uniform coating, stable adhesion and consistent product construction.
• Dimensional Inspection - Inside diameter and wall thickness are inspected against the applicable tolerances and product specifications.
• Surface and Workmanship Inspection - Products are inspected for cracking, uneven coating, exposed fiberglass braid, contamination and other visible defects that may affect quality.
• Final Inspection and Traceability - Part number, withstand-voltage grade, dimensions, color, quantity and packaging are checked before shipment, with relevant batch records verified according to order requirements.
Frequently Asked Questions
01. What is GF-IC-S silicone coated fiberglass sleeving used for?
Is designed for insulating transformer leads, motor connections, coil wiring and internal electrical circuits. Its flexible coated construction suits applications requiring compact insulation and thermal protection.
02. What is the difference between the 1.5 kV and 2.5 kV versions?
The two versions feature different insulation constructions and wall thicknesses. Selection should be based on the equipment's insulation requirements, applicable standards and the specified dimensions for each grade.
03.How do I select the correct sleeve diameter?
Measure the outside diameter of the wire, lead or cable bundle, including any section the sleeve must pass over. Choose a suitable inside diameter that allows installation without excessive stretching or a loose fit.
04.Can the sleeve be used around moving wires or vibrating components?
GF-IC-S provides flexible insulation for electrical assemblies. For applications involving repeated movement or vibration, confirm the bend radius, routing conditions and abrasion requirements before selecting the sleeve.
Request a Sample or Quote
Please provide the conductor or cable bundle outside diameter, terminal size, required withstand-voltage grade, working temperature, moisture and chemical exposure conditions, bend radius, required cut length and order quantity.MJ FLEX can review the appropriate GF-IC-S size and 1.5 kV or 2.5 kV construction according to your application requirements before arranging samples and pricing.
