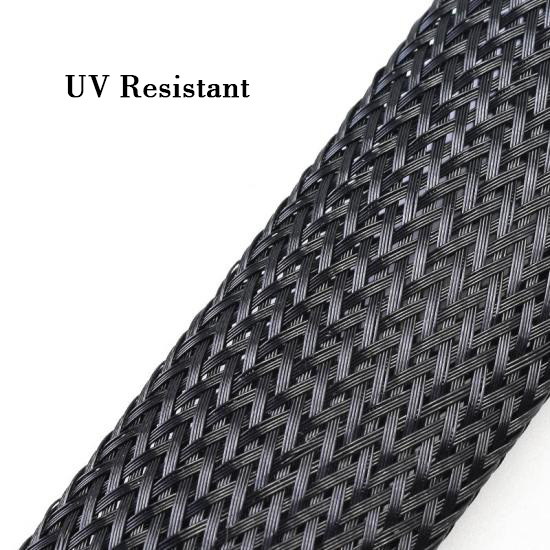

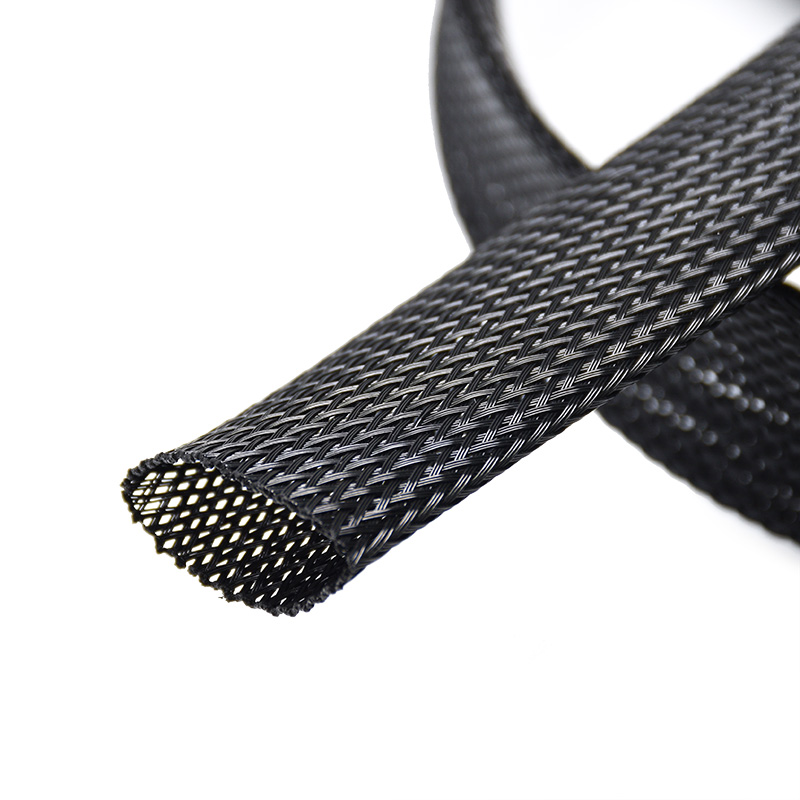

UV Resistant PET Expandable Braided Cable Sleeve

E-FLEX UV Resistant PET Expandable Braided Sleeving (BRS-PET-UV) is tested according to ISO 4892-2 for 1,000 hours, featuring a specially developed UV-stabilized formulation that delivers exceptional long-term outdoor weatherability, durability, flexibility, and abrasion resistance for wires, cables, and hoses.

Part No:

BRS-PET-UV
Material:

UV-stabilized PET monofilament
Working Temperature:

-70°C to +125°C
Melt Point:

240+（-）10°C
Flammability:

UL94 V0
Certification:

ISO 4892-2 1000h
Standard Color:

Black
Request Quote

UV Resistant PET Expandable Braided Cable Sleeve

Protect your critical outdoor wiring, cables, and hoses with UV Resistant PET Expandable Braided Cable Sleeve. Built using a specially formulated, UV-stabilized polyester monofilament, this sleeving is engineered to withstand prolonged sunlight and harsh outdoor environments without sacrificing the high flexibility and expandability of standard braided sleeving. Rigorously tested to ISO 4892-2 (1,000 hours xenon-arc weathering), it guarantees exceptional long-term weatherability, making it the ideal choice for exposed industrial, automotive, and renewable energy applications.

Key Features & Benefits

  • 1000-Hour ISO 4892-2 Certified: Successfully tested for long-term simulated sunlight exposure with no visible cracking or embrittlement.
  • Superior UV Durability: Over 94% elongation retention and minimal tensile reduction after extensive weathering tests.
  • High Flexibility & Expandability: Easy to install over irregular shapes, connectors, and cable bundles.
  • Exceptional Abrasion Resistance: Protects against chafing, cutting, and mechanical wear.
  • Flame Retardant: UL94 V0 rated for enhanced safety.
  • Eco-Friendly & Safe: RoHS, REACH, and Halogen-Free compliant.
  • Fully Customizable: Tailored diameters, colors, packaging options, and private labeling available via OEM/ODM services.

Technical Specifications

Property Specification
Product SKU BRS-PET-UV
Material UV-stabilized PET monofilament
Construction Expandable braided sleeving
Available Sizes 3 mm to 100 mm
Working Temperature -40°C to +125°C (Brief tolerance down to -70°C)
Melting Point Approximately 240°C (± 10°C)
Flammability UL94 V0
Standard Color Black (Recommended for optimal long-term UV resistance)
Recommended Cutting Tool Hot Knife

ISO 4892-2 UV Test Results

Test Item Specification / Result
Test Standard ISO 4892-2
Exposure Duration 1,000 hours
Tensile Performance Approx. 10% reduction
Elongation at Break Approx. 5.8% reduction ( > 94% retention)
Appearance No visible cracking or embrittlement

Why Choose UV-Stabilized PET Over Standard PET?

Ordinary PET sleeving will gradually fade, harden, and lose its flexibility when exposed to direct sunlight over time. MJ FLEX UV-stabilized sleeving integrates advanced chemical stabilizers into the polyester matrix, locking in mechanical integrity and extending service life outdoors.
Please note: Due to its open-weave braided structure, this product provides maximum mechanical and UV protection but is not waterproof.

Typical Applications

  • Solar and photovoltaic (PV) power systems
  • EV (Electric Vehicle) charging equipment & cables
  • Outdoor electrical cabinets & telecom infrastructure
  • Automotive wire harnesses
  • Heavy-duty agricultural and construction equipment
  • Industrial machinery exposed to natural light
  • Outdoor lighting systems

Customization Services (OEM / ODM)

MJ FLEX supports specialized project requirements with comprehensive customization options:

  • Custom diameter sizes and expansion ratios
  • Adjustable braiding density
  • Custom colors and specific flame-retardant requirements
  • Flexible packaging: custom spools or pre-cut lengths
  • Private labeling and custom branding
